Description
High Torque Transmission for Heavy Industrial Applications
The PLF160 High Torque Straight Tooth Gearbox is develop for large industrial transmission systems.
It features a reinforced straight tooth gear structure.
The design provides stable and reliable power output.
The rigid transmission structure supports heavy load operation.
Power loss during operation is effectively reduce.
As a PLF160 high torque straight tooth gearbox for heavy duty industrial applications,
it is widely use in large automation equipment, industrial machinery, and heavy transmission systems.
The compact design improves equipment space utilization.
Excellent mechanical strength and stability are maintain.
The multi-stage transmission configuration supports various reduction requirements.
Equipment control performance during startup is improve.
It is suitable for long-term industrial production environments.
High Strength Structure for Reliable Performance
The PLF160 uses high-performance alloy steel for core gear components.
Precision machining ensures accurate gear engagement.
Transmission vibration and mechanical noise are reduce.
Overall system efficiency is improve.
As a PLF160 high torque gearbox for industrial automation equipment,
it performs reliably in demanding industrial environments.
High inertia loads and frequent start-stop operations are support.
Stable continuous output power is provide.
Automation reliability requirements are satisfy.
The reinforced housing improves impact resistance.
High precision bearings enhance load support capability.
The gearbox service life is extend.
Precision Manufacturing Ensures Long-Term Operation
The PLF160 High Torque Straight Tooth Gearbox is manufacture with advanced production technology.
Gears receive heat treatment to improve wear resistance.
Optimized tooth processing enhances transmission accuracy.
Strict inspection ensures consistent product quality.
As a PLF160 precision straight tooth gearbox for servo motor applications,
it is suitable for high-precision motion control equipment.
The gearbox supports robotics, CNC machinery, and automated production lines.
Maintenance costs are reduced while equipment efficiency improves.
OEM customization and special application development are available.
The gearbox meets global industrial transmission requirements.
Typical Applications
Large automation production equipment.
Industrial robotic systems.
Heavy-duty conveyor equipment.
CNC machining machinery.
Smart logistics systems.
High-load motion control platforms.
PLF160 High Torque Straight Tooth Gearbox Specifications
Product Information
- Product Name: PLF160 High Torque Straight Tooth Gearbox
- Product Type: Heavy-duty industrial straight tooth gearbox
- Transmission Structure: High-strength straight gear transmission system
- Design Features: High torque output, rigid structure, stable operation
- Compatible Equipment: Servo motors, stepper motors, industrial drive systems
- Main Applications: Large automation equipment, robotics, heavy machinery

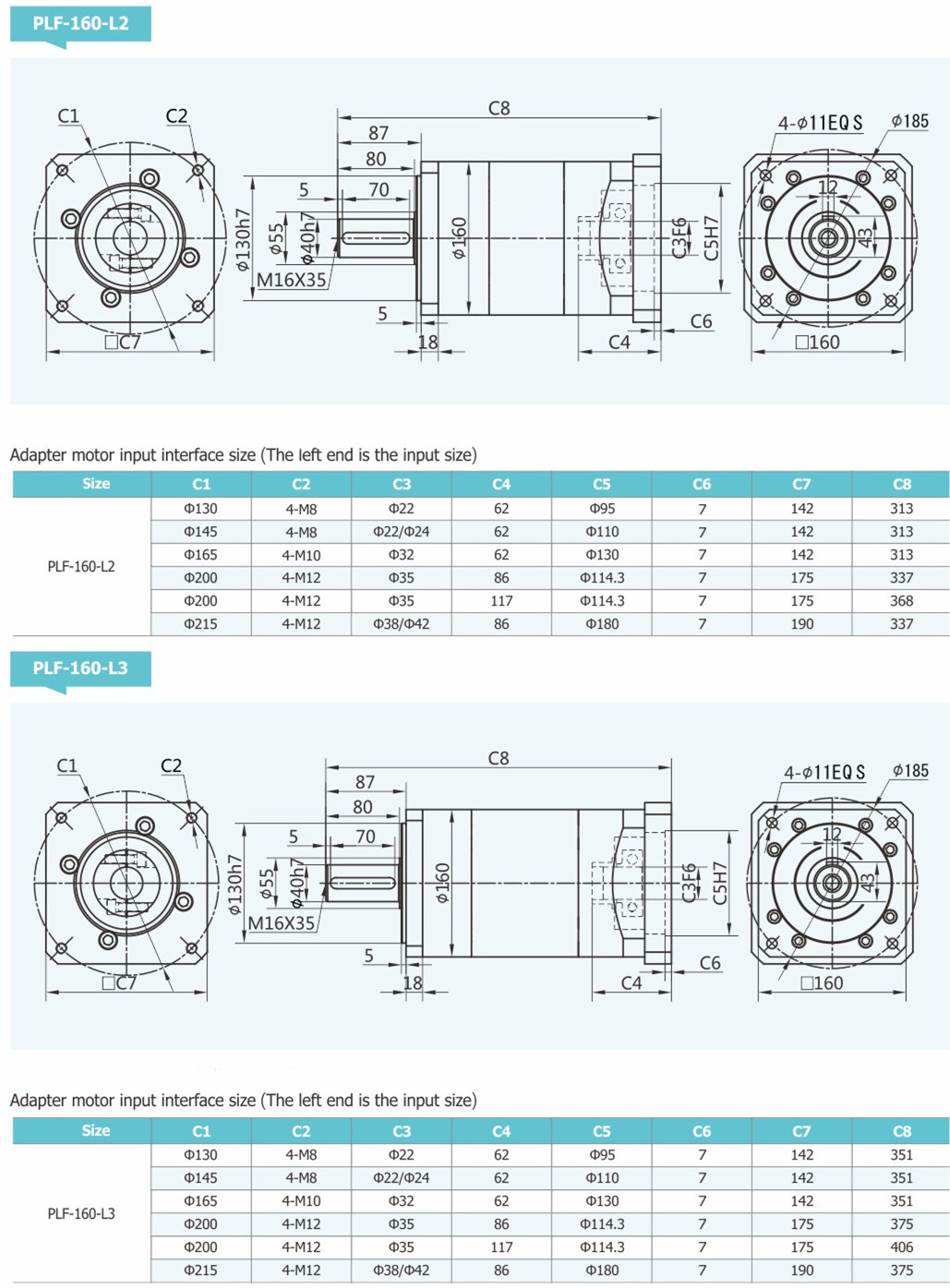

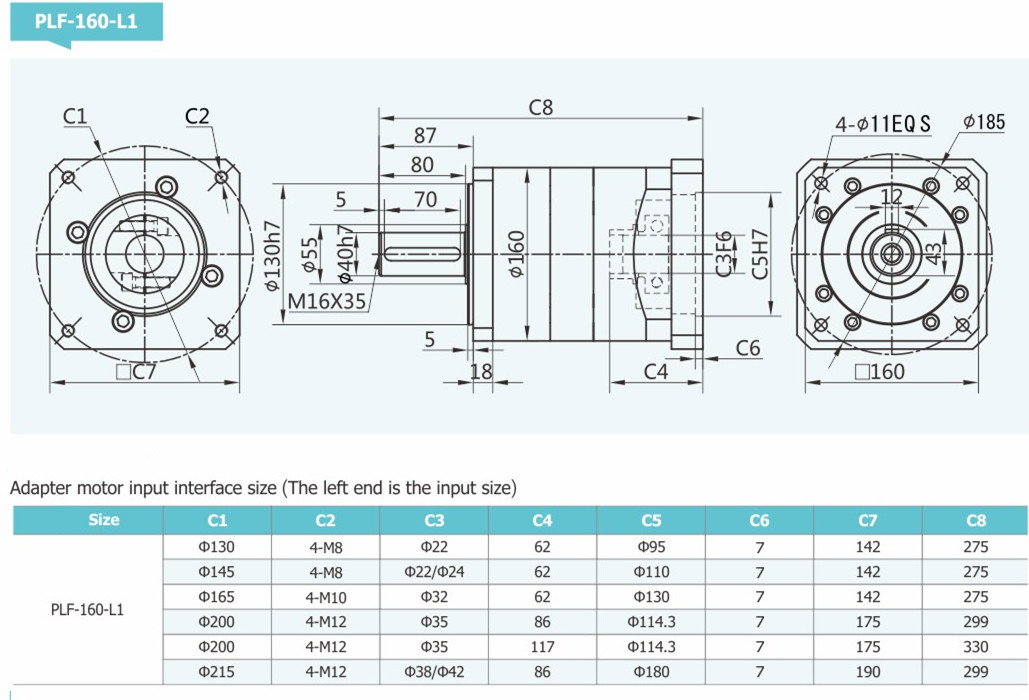

Dimensions & Mechanical Structure
- Frame Size: 160 mm
- Output Type: High-strength solid shaft output
- Output Shaft Size: Ø40 mm (custom options available)
- Input Interface: Standard motor flange connection
- Housing Structure: High-rigidity alloy metal housing
- Mounting Options: Flange mounting / multi-direction installation
- Structural Design: Reinforced bearing support for improved load stability
Transmission Performance
- Gear Ratio Range: 3:1 to 100:1
- Gear Stages: Single-stage, two-stage, and multi-stage options
- Rated Output Torque: 500–2000 N·m
- Peak Output Torque: Up to 2500 N·m
- Backlash: ≤12–20 arcmin
- Efficiency: ≥90%
- Maximum Input Speed: 3000 rpm
- Load Capability: Designed for high inertia and continuous heavy-duty operation
- Operation Features: Stable power transmission with reduced impact loads
Materials & Manufacturing
- Gear Material: Premium alloy steel
- Gear Processing: Precision hobbing, grinding, and tooth surface optimization
- Heat Treatment: Carburized and hardened process
- Tooth Hardness: HRC58–62
- Housing Material: High-strength aluminum alloy or steel structure
- Bearing System: Heavy-duty precision bearing configuration
- Lubrication: Long-life industrial grease lubrication
Operating Conditions
- Operating Temperature: -20°C to +90°C
- Protection Rating: IP54 (IP65 upgrade available)
- Noise Level: ≤70 dB
- Service Life: ≥20,000 hours
- Duty Cycle: Continuous operation S1
- Environment: Suitable for demanding industrial applications
Product Advantages
- Extremely high torque output for heavy equipment
- Straight tooth design improves mechanical rigidity
- High load capacity enhances system reliability
- Precision manufacturing ensures long-term stability
- OEM customization and special solutions available
