Description

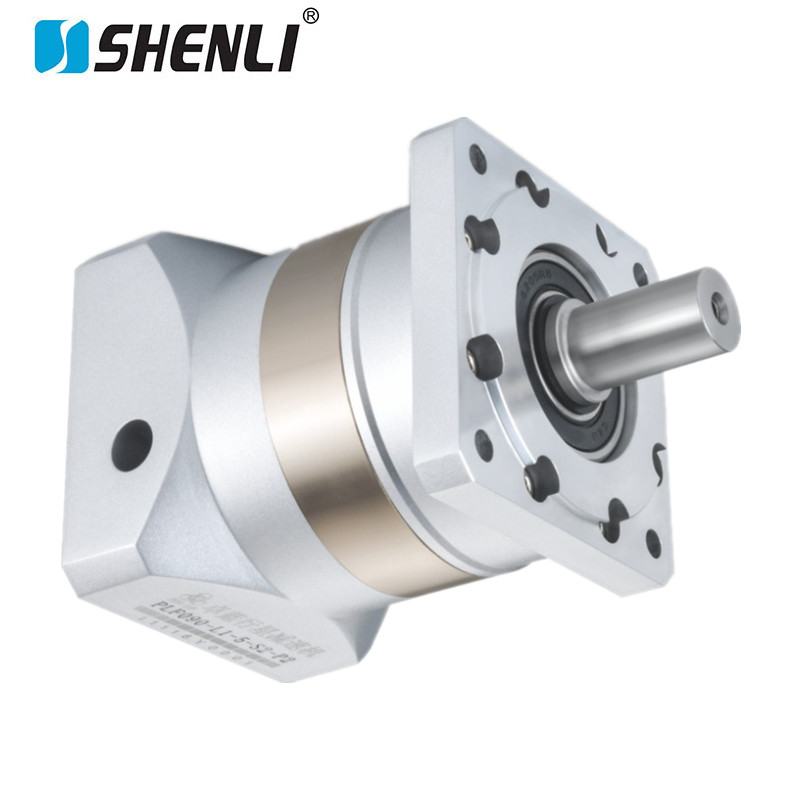

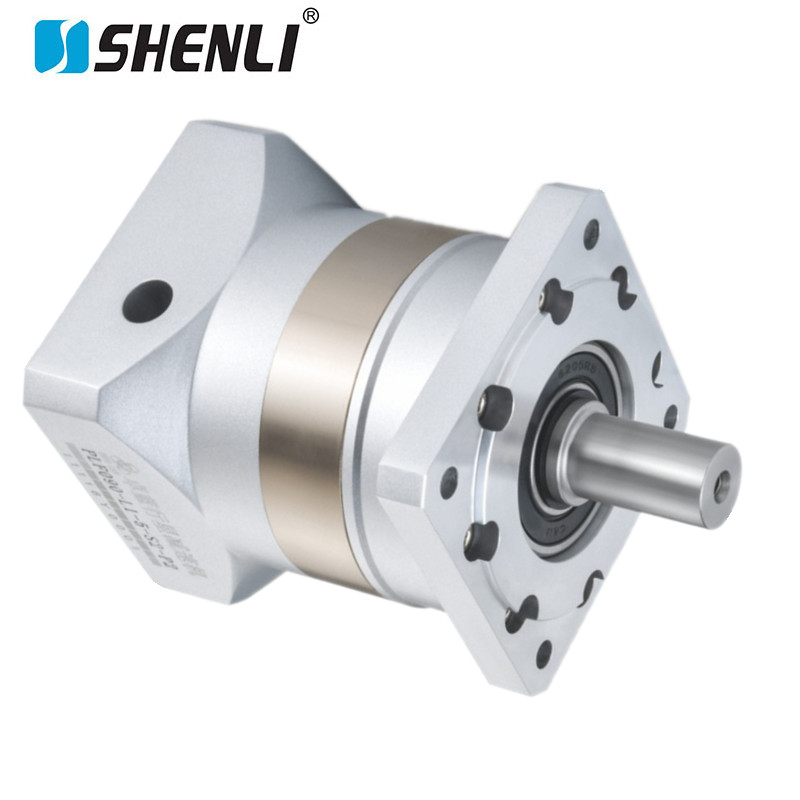

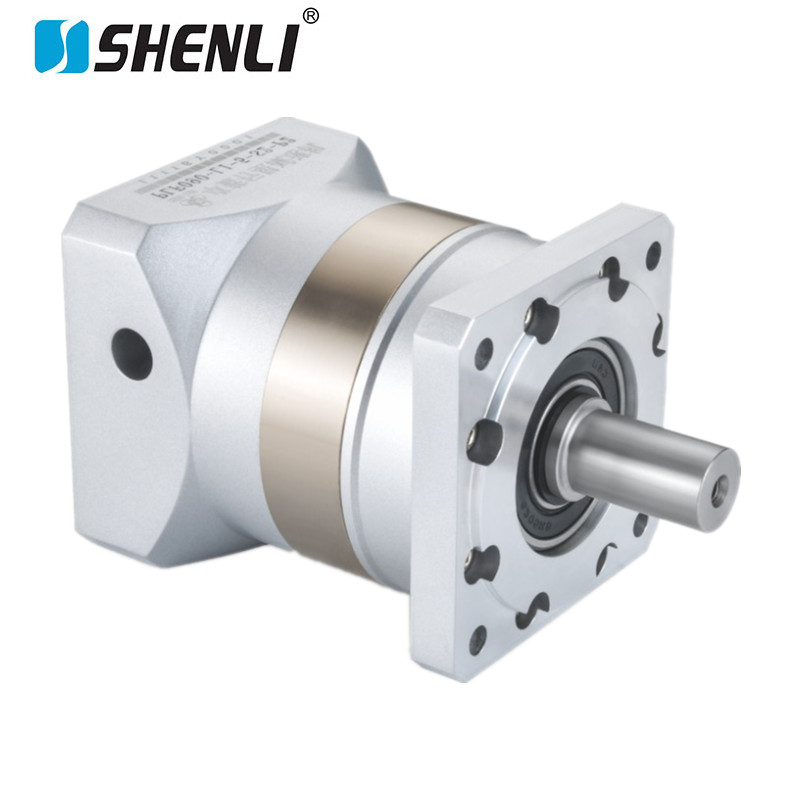

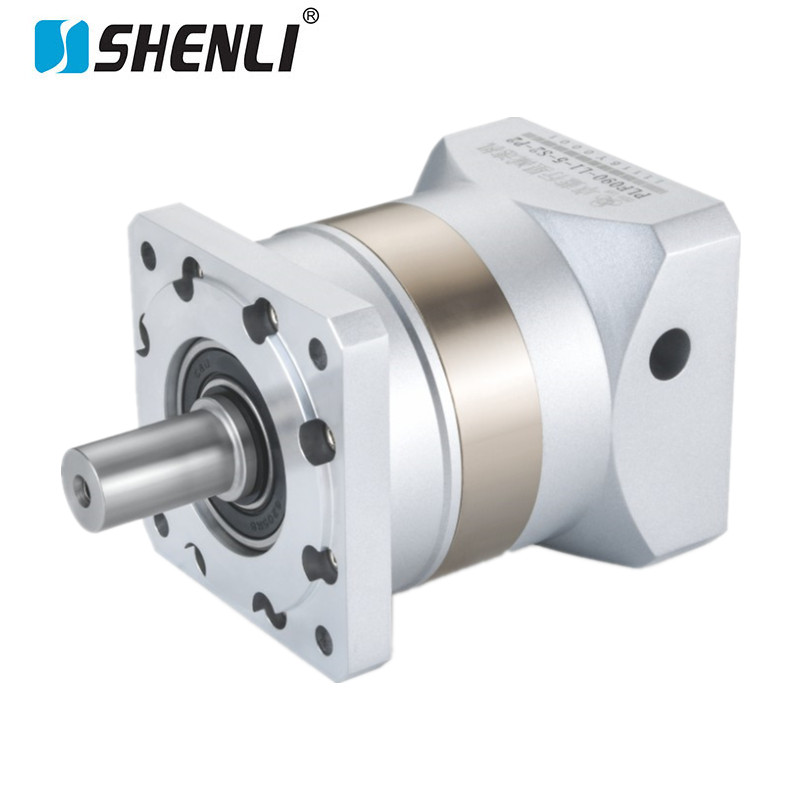

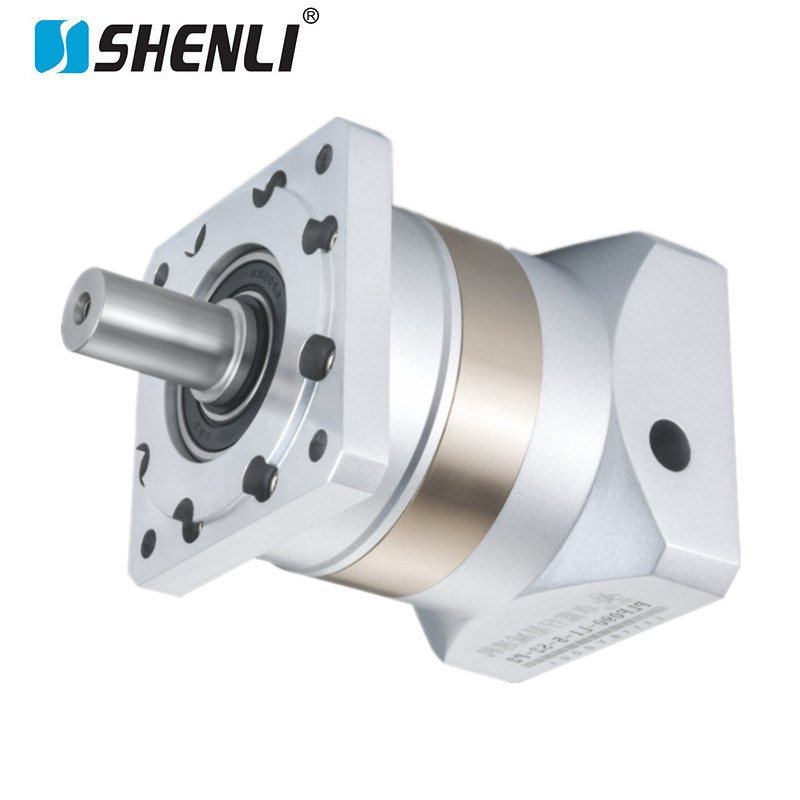

Multi-stage Straight Gear Design for Heavy Load Transmission

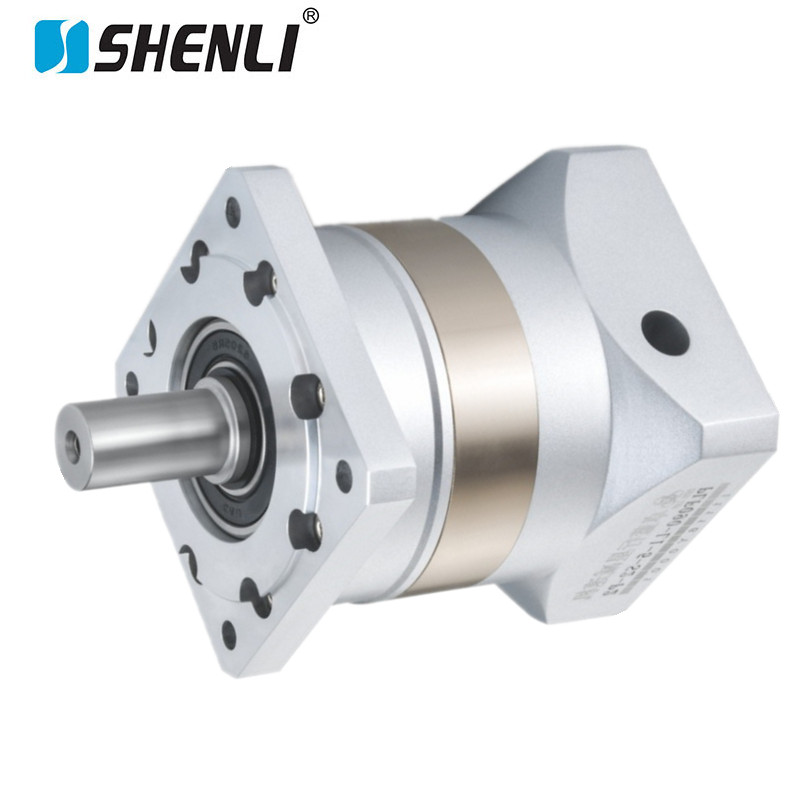

The PLF120 Multi-stage Straight Gearbox is design for large industrial transmission systems.
It features a reinforced multi-stage straight gear structure.
The design provides higher reduction ratios and output torque.
Multi-stage gearing improves transmission stability.
Mechanical impact from high-speed input is reduce.
As a PLF120 multi-stage straight gearbox for heavy duty industrial applications,
it is suitable for automation equipment, conveyor systems, and heavy machinery.
The compact structure simplifies equipment integration.
Excellent load capacity is maintain.
The optimized gear arrangement improves power transmission efficiency.
It performs reliably during continuous operation.
Industrial reliability requirements are fully satisfy.
High Rigidity Design for Stable Operation
The PLF120 uses high-strength gear materials.
Precision machining ensures accurate gear engagement.
Operating vibration and transmission noise are minimize.
Overall equipment stability is improve.
As a PLF120 high torque straight gearbox for industrial automation equipment,
it handles demanding output loads effectively.
It is suitable for high-inertia motion control applications.
Stable power delivery is maintain.
Machine efficiency is enhance.
The rigid housing structure improves impact resistance.
Optimized bearing support reduces shaft deviation.
Gearbox service life is extend.
Precision Manufacturing for Long-Term Reliability
The PLF120 Multi-stage Straight Gearbox is manufacture with advanced machining technology.
Core gears receive professional heat treatment.
Tooth hardness and wear resistance are improve.
Transmission accuracy remains stable over long operation periods.
As a PLF120 precision gearbox for servo motor and motion control systems,
it is ideal for precision industrial equipment.
Frequent start-stop operation is support.
Complex working conditions are handle effectively.
Maintenance requirements are reduce.
Strict quality inspection controls every manufacturing process.
OEM customization and special application development are available.
The gearbox meets diverse global industrial requirements.
Typical Applications
Heavy-duty automation equipment.
Industrial conveyor machinery.
Robot-assisted systems.
Smart logistics equipment.
Packaging machinery.
High-load motion platforms.
PLF120 Multi-stage Straight Gearbox Specifications
Product Information
- Product Name: PLF120 Multi-stage Straight Gearbox
- Product Type: High torque multi-stage straight transmission gearbox
- Gear Structure: Multi-stage parallel shaft straight gear system
- Mounting Method: Flange mounting design
- Compatible Drives: Servo motors, stepper motors, industrial drive motors
- Applications: Heavy-duty automation equipment, industrial machinery, smart manufacturing systems

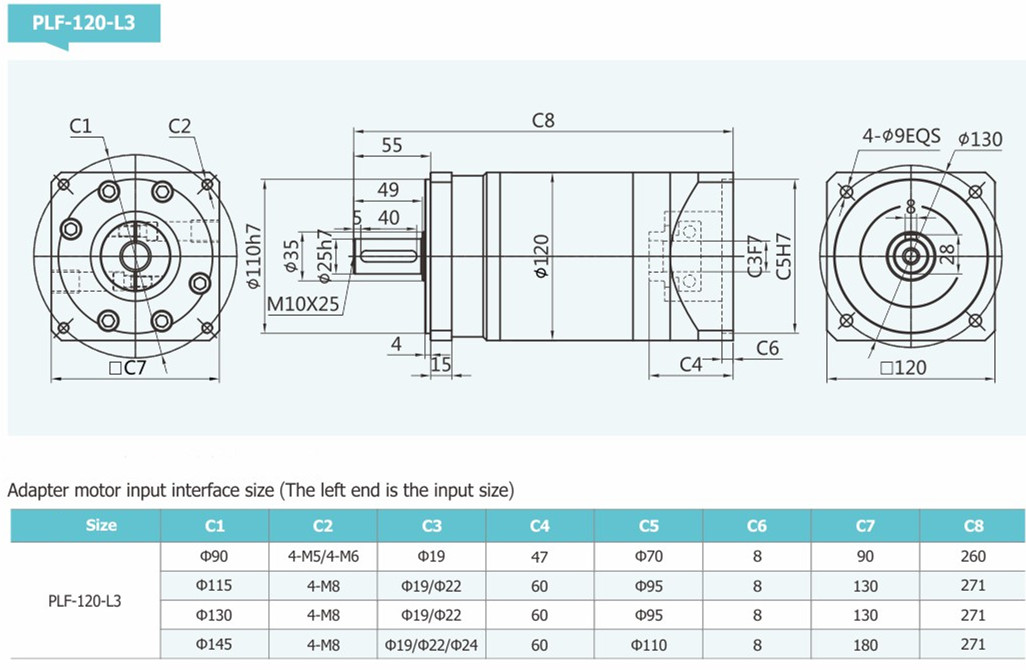

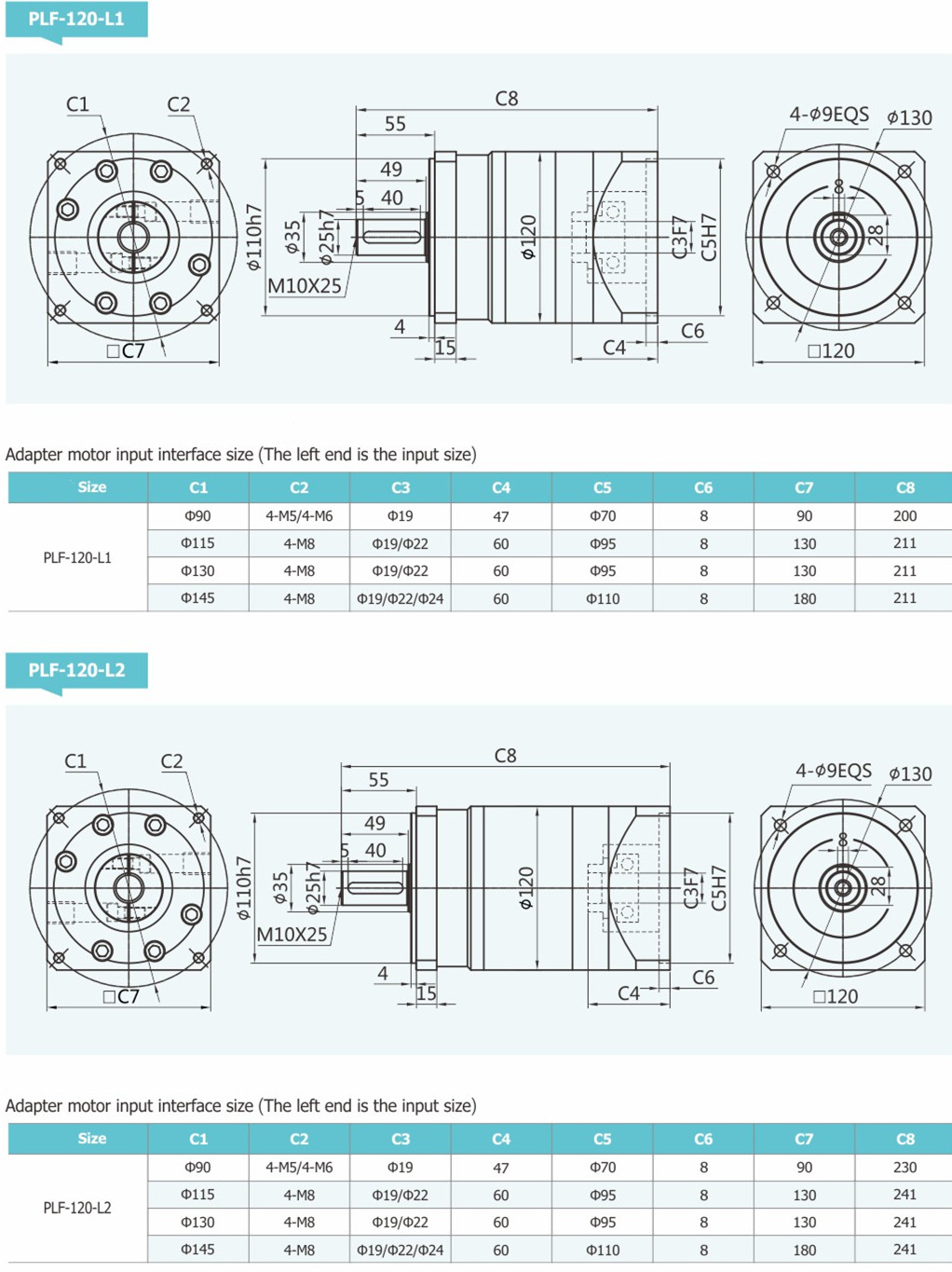

Dimensions & Structure
- Frame Size: 120 mm
- Output Structure: High-strength solid shaft output
- Output Shaft Diameter: Ø35 mm (customizable)
- Shaft Options: Round shaft / keyed shaft
- Input Interface: Standard motor mounting flange
- Housing Design: High-rigidity alloy housing structure
- Installation: Multi-direction mounting compatible design

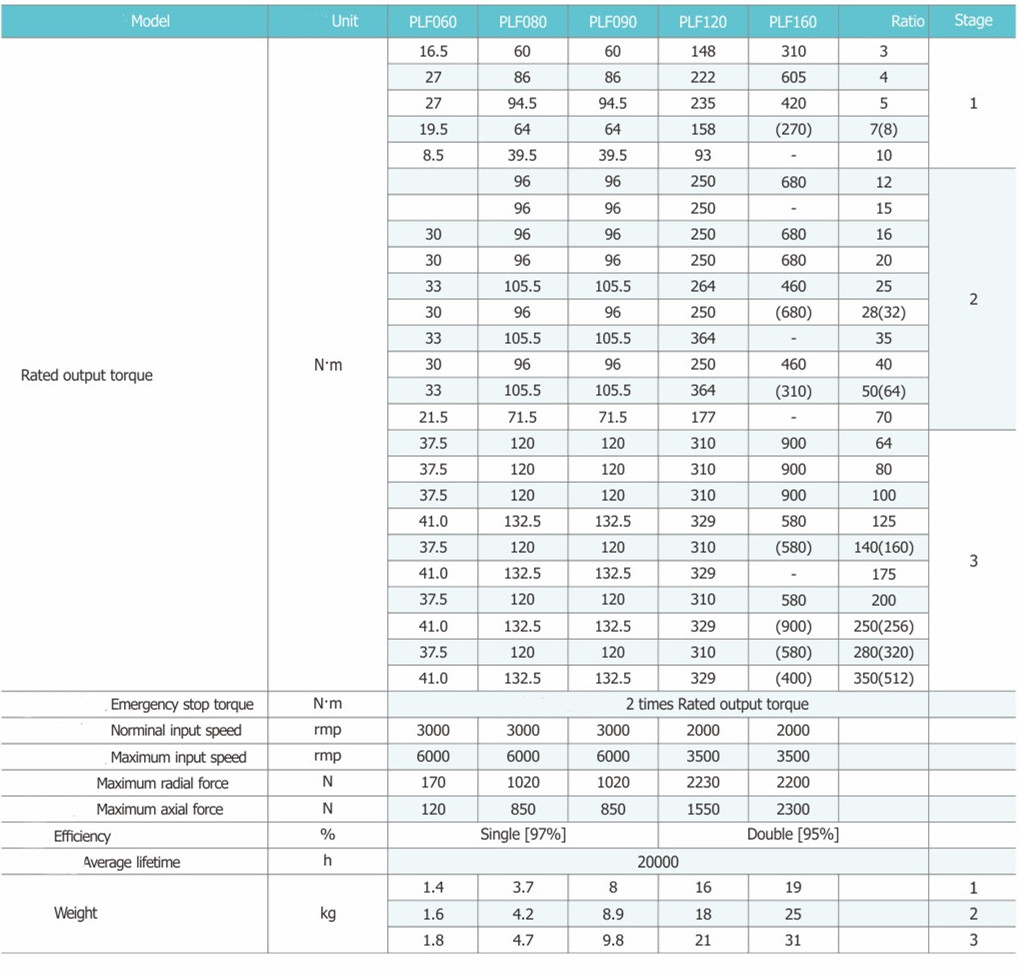

Transmission Performance
- Gear Ratio Range: 10:1 to 1000:1
- Gear Stages: Two-stage / three-stage / multi-stage configurations
- Rated Output Torque: 300–1000 N·m
- Peak Output Torque: Up to 1500 N·m
- Backlash: ≤10–20 arcmin
- Efficiency: ≥90%
- Maximum Input Speed: 3000 rpm
- Load Capability: Designed for high inertia and heavy-duty applications
- Operation Features: Stable transmission with reduced impact loads
Materials & Manufacturing
- Gear Material: High-strength alloy steel
- Gear Processing: Precision hobbing and tooth surface finishing
- Heat Treatment: Carburized and hardened process
- Tooth Hardness: HRC58–62
- Housing Material: Cast aluminum alloy / high-strength metal housing
- Bearing System: Heavy-duty precision bearing structure
- Lubrication: Long-life industrial grease
Operating Conditions
- Operating Temperature: -20°C to +90°C
- Protection Rating: IP54 (higher protection available on request)
- Noise Level: ≤68 dB
- Service Life: ≥20,000 hours
- Duty Cycle: Continuous operation S1
- Environment: Suitable for industrial dust and high-load conditions
Product Advantages
- Multi-stage structure provides wide reduction ratios
- High torque output for heavy-duty applications
- Straight gear transmission improves mechanical rigidity
- Reliable performance for continuous operation
- OEM and customized solutions availabl
