PLE60 Low Backlash Stepper Planetary Gearbox for Motion Control

Description

High-Efficiency Transmission Designed for Stepper Motors

The PLE60 Stepper Planetary Gearbox is engineered specifically for stepper motor drive systems.
It adopts a high-precision planetary gear transmission structure.
The design increases output torque and operational stability.
Its compact size fits equipment with limited installation space.
Low backlash improves repeat positioning accuracy.
As a PLE60 stepper planetary gearbox for NEMA23 stepper motor applications, it is widely used in automation equipment, CNC machinery, and precision motion control systems.
High transmission efficiency reduces energy loss.
>Smooth power delivery improves overall machine performance.
It is suitable for continuous industrial operation.

Precision Manufacturing for Reliable Motion Control

The PLE60 uses high-strength alloy steel gears.
Every gear is precision hobbed and ground.
Critical components receive professional heat treatment.
>Wear resistance and service life are significantly improved.
As a PLE60 low backlash stepper planetary gearbox for motion control systems, it delivers consistent transmission accuracy.
Optimized gear engagement minimizes operating noise.
The rigid structure reduces vibration effectively.
It supports frequent start-stop cycles and precise positioning.
It is ideal for electronics manufacturing, laser equipment, and inspection systems.

Stable Power for Modern Automation Equipment

The PLE60 integrates easily with various stepper motors.
>It supports both open-loop and closed-loop control systems.
Standard mounting interfaces simplify installation.
Equipment upgrades become faster and more efficient.
As a PLE60 stepper planetary gearbox for industrial automation equipment, it performs well in packaging machinery, robotics, AGV systems, conveyors, and smart manufacturing solutions.
Stable output improves machine productivity.
Efficient lubrication reduces maintenance frequency.
Strict quality inspection ensures dependable long-term operation.

OEM and ODM customization services are available.
Multiple gear ratios and input flange options are supported.
This helps customers complete equipment integration efficiently.

PLE60 Stepper Planetary Gearbox Specifications

Product Information

Product Name: PLE60 Stepper Planetary Gearbox
Product Type: Precision planetary gearbox for stepper motors
Series: PLE60
Transmission Structure: Single-stage or two-stage planetary gear system
Output Type: Round shaft or keyed shaft (optional)
Compatible Motors: NEMA23 (57 mm) stepper motors, closed-loop stepper motors, and custom flange motors
Applications: Industrial automation, CNC machines, robotics, AGVs, laser equipment, packaging machinery, and inspection systems

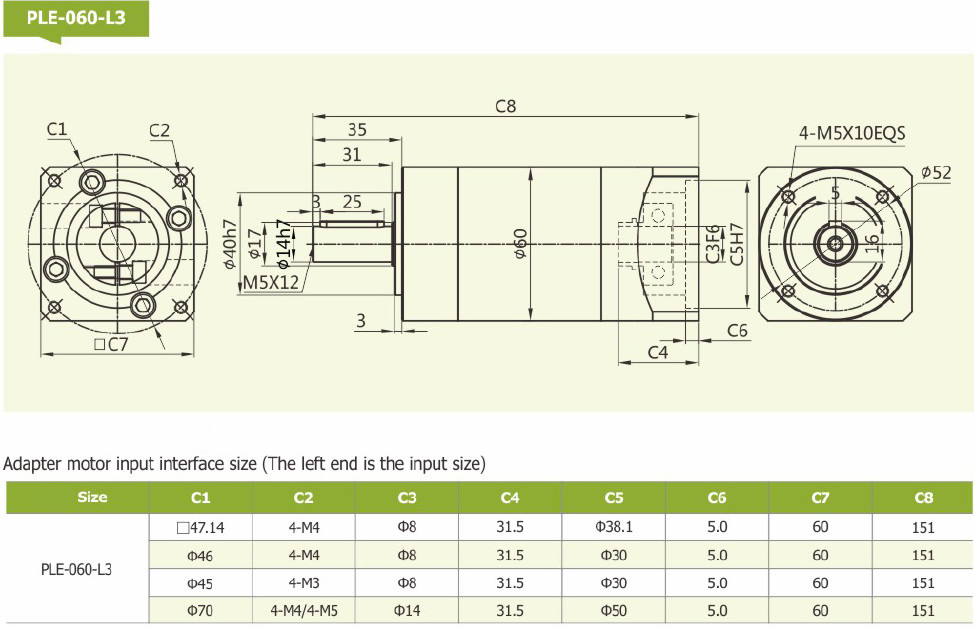

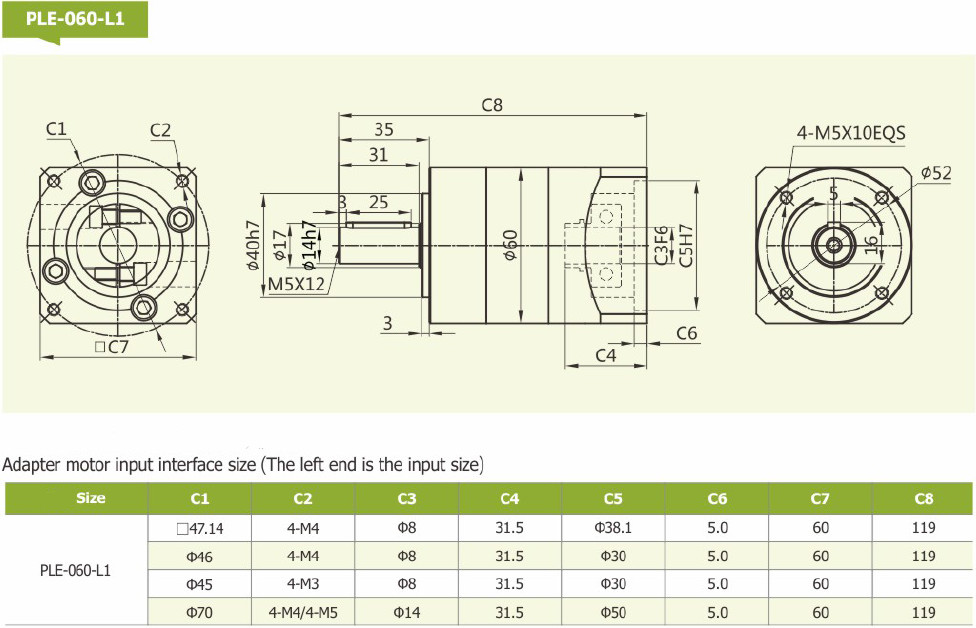

Dimensions & Mechanical Structure

Frame Size: 60 mm
Housing Material: High-strength aluminum alloy
Gear Material: 20CrMnTi alloy steel
Output Shaft Material: High-strength alloy steel
Input Connection: Standard stepper motor flange
Mounting Orientation: Universal mounting
Sealing Design: Dust-resistant and oil-sealed construction

Transmission Performance

Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 70:1, 100:1
Gear Stages: Single-stage or two-stage
Backlash: ≤8 arcmin (single-stage); ≤12 arcmin (two-stage)
Maximum Input Speed: 5000 rpm
Recommended Input Speed: 3000 rpm
Transmission Efficiency: ≥97% (single-stage); ≥94% (two-stage)
Output Torque: Multiple torque ratings according to selected gear ratio
Operating Characteristics: High precision, low vibration, low noise, and smooth transmission

Manufacturing Process

Gear Machining: Precision CNC hobbing and gear grinding
Heat Treatment: Carburized, hardened, and precision finished
Gear Hardness: HRC58–62
Bearing System: High-precision, low-friction bearings
Lubrication: Lifetime synthetic grease
Assembly Process: Precision coaxial assembly with dynamic performance inspection
