Description
Dual-Speed Transmission Solution for Multi-Condition Control
The DLE36 two speed reducer is design for complex working conditions.
It adopts a dual-speed switching transmission structure.
Output characteristics can be adjusted under different loads.
System adaptability and efficiency are significantly improved.
As a DLE36 two speed reducer for industrial automation equipment,
it is widely used in automation lines and smart equipment systems.
It optimizes power distribution structure.
Energy fluctuation is reduce.
Overall operational stability is improve.
The compact design fits space-limited installations.
Modular mounting improves integration efficiency.
Supports multiple motor matching solutions.
Dual-Speed Switching for Enhanced Control Flexibility
The DLE36 uses precision gear assemblies and switching mechanisms.
It provides two different reduction ratios.
Supports both high-speed and high-torque operation modes.
Control flexibility is significantly improve.
As a DLE36 dual speed planetary gearbox for motion control systems,
it is suitable for precision motion applications.
Such as robots, inspection systems, and positioning platforms.
Ensures smooth operation under varying conditions.
Reduces speed change impact.
Precision-machined gears ensure consistent meshing.
Noise and vibration are effectively reduce.
System response speed is improve.
Industrial Manufacturing for Long-Term Reliability
The DLE36 speed reducer is made from high-strength alloy steel.
Critical gears undergo carburizing and quenching treatment.
Wear resistance and load capacity are significantly enhance.
It is suitable for long-term continuous operation.
As a DLE36 dual speed reducer for robotic systems,
it is widely used in robotic joints and smart drive systems.
Ensures stable output under complex loads.
Extends equipment service life.
Reduces maintenance cost and downtime.
Automated machining and inspection ensure consistency.
Each unit is tested under load conditions.
OEM and customized solutions are support.
Typical Applications
Industrial automation production lines.
Robotic joint drive systems.
Smart manufacturing equipment.
Precision positioning and inspection systems.
Automated conveying and assembly systems.
Medical and laboratory equipment.
Basic Information
- Product Name: DLE36 Two Speed Reducer
- Product Type: Dual-speed planetary transmission gearbox
- Structure: Switchable dual-speed planetary gear system
- Compatible Motors: NEMA 17 / NEMA 23 stepper motors and servo motors
- Mounting Type: Flange modular design

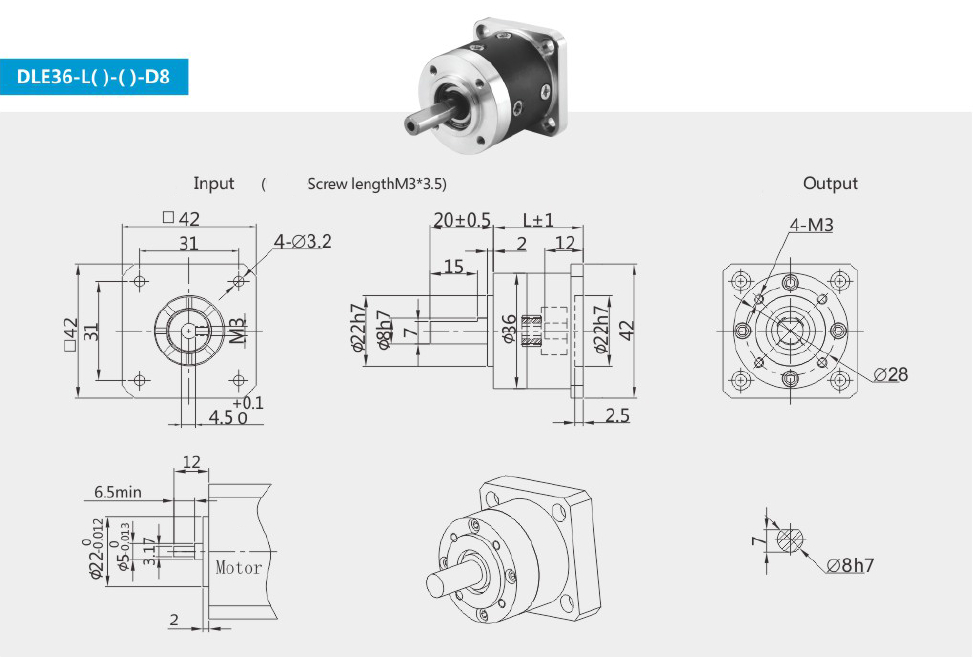

Dimensional Specifications
- Outer Diameter: 36 mm
- Input Interface: Standard bore or custom coupling interface
- Output Shaft Diameter: Ø6 mm / Ø8 mm optional
- Shaft Type: Keyed shaft / round shaft / D-shaft
- Mounting Pattern: Standardized motor-compatible design
- Overall Length: Varies depending on dual-speed configuration
Dual-Speed Transmission Parameters
- Speed Modes: Two selectable transmission stages
- Gear Ratio Range: 3:1 to 120:1
- Rated Output Torque: 1 to 12 N·m
- Peak Torque: Up to 15 N·m
- Efficiency: ≥90% (dual-stage system)
- Backlash: ≤15 arcmin (precision grade)
- Input Speed Range: Up to 6000 rpm
- Operating Modes: High-speed / high-torque dual output modes
Materials & Manufacturing
- Gear Material: High-strength carburized alloy steel
- Gear Processing: Precision grinding and hobbing
- Heat Treatment: Carburizing and quenching process
- Surface Hardness: HRC 58–62
- Housing Material: High-strength aluminum alloy with anodizing
- Bearing System: Precision deep groove ball bearings
- Lubrication: Long-life maintenance-free grease
Performance & Environment
- Noise Level: ≤58 dB
- Operating Temperature: -25°C to +85°C
- Protection Rating: IP54 (IP65 optional upgrade)
- Service Life: ≥20,000 hours continuous operation
- Duty Cycle: 24-hour continuous load capability
Key Features
- Flexible dual-speed switching control
- High torque density output design
- Compact structure for space-saving installation
- Low vibration and stable operation
- Compatible with multiple automation systems
