Description

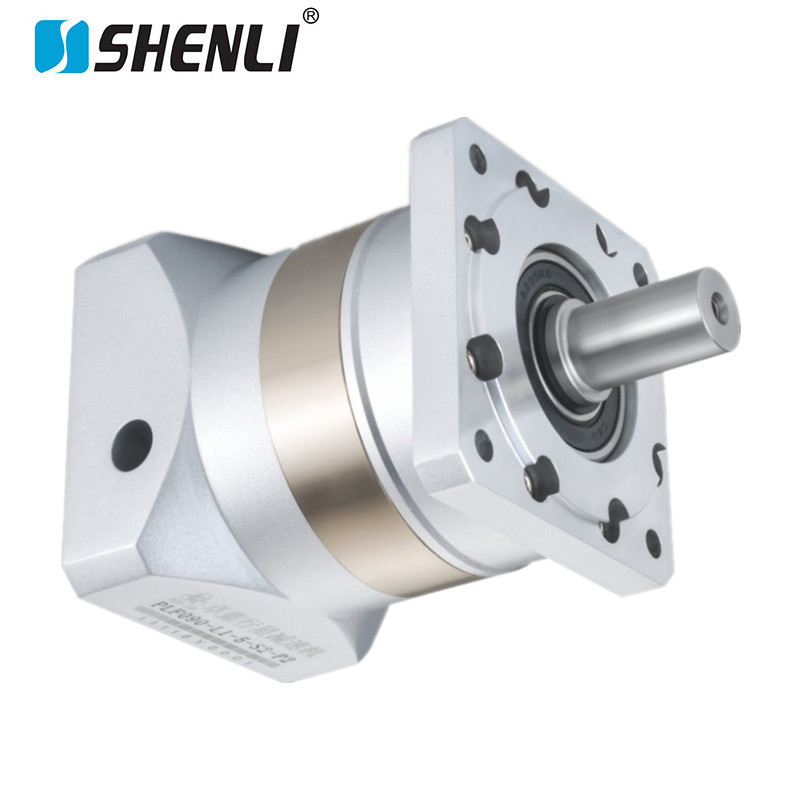

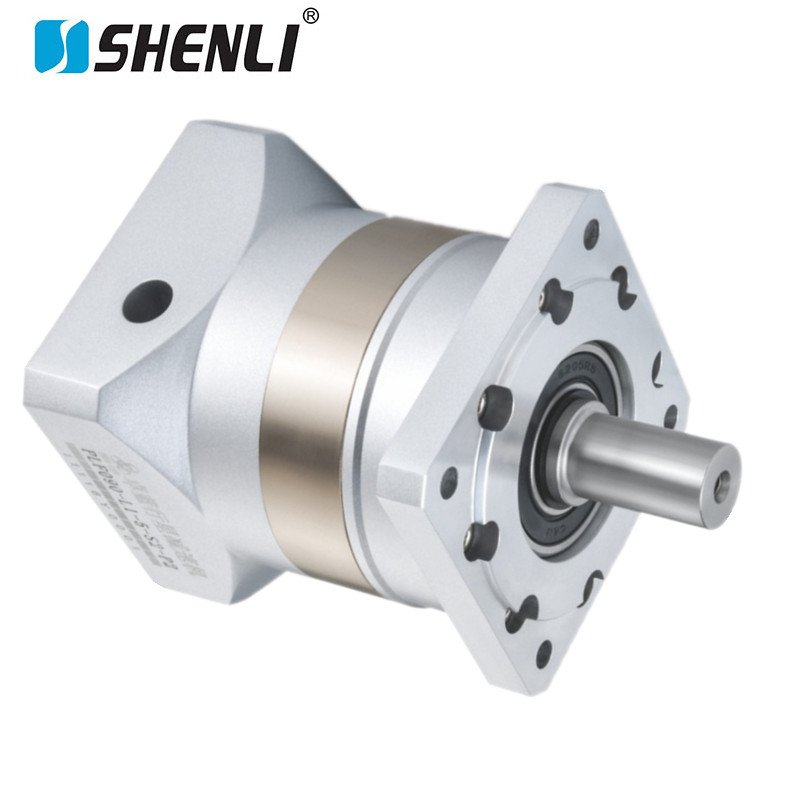

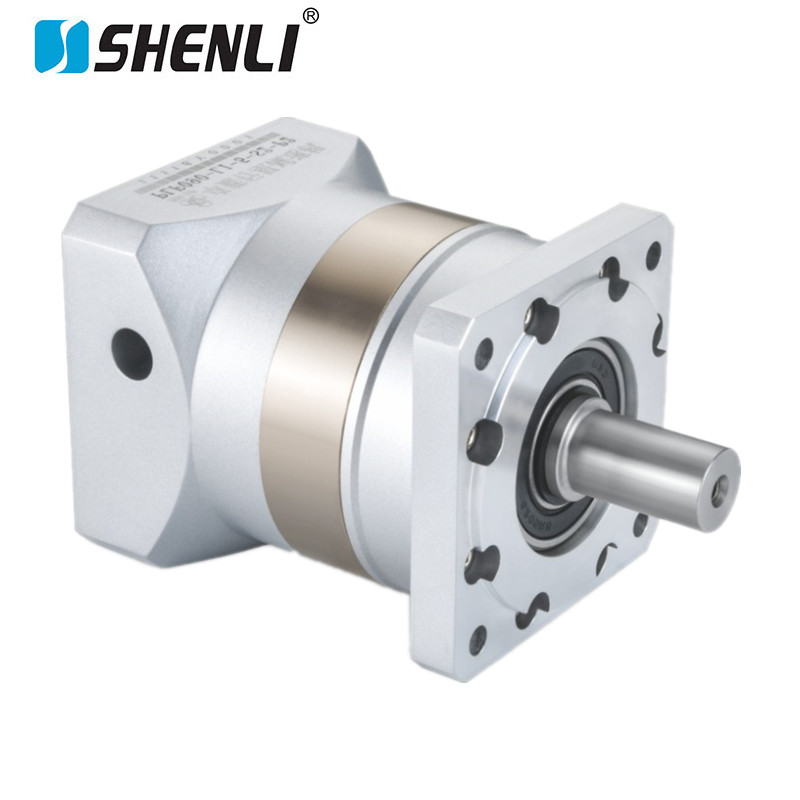

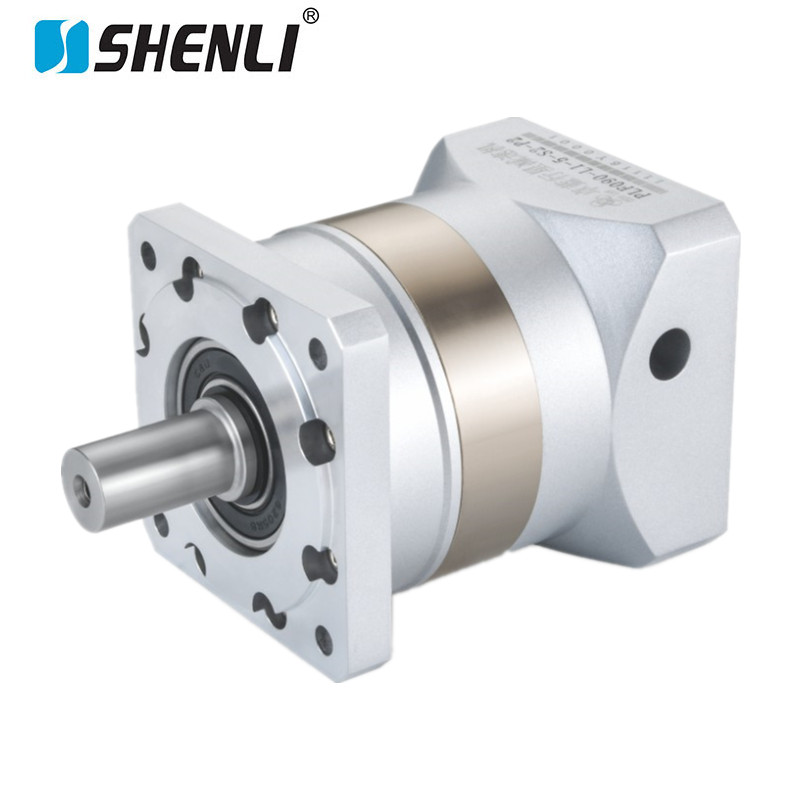

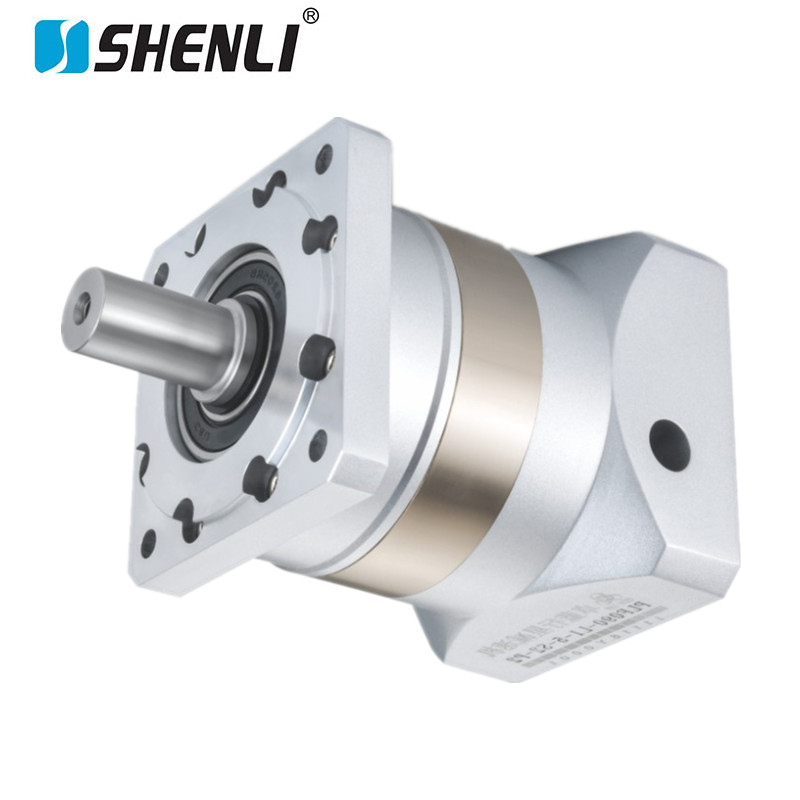

High-Rigidity Spur Gear Transmission Structure
The PLF90 straight gear gearbox is developed for high-response motion control systems.
It adopts a precision spur gear transmission design.
Power transmission efficiency remains excellent.
Response speed is significantly improve.
It is suitable for frequent start-stop operations.
High acceleration and deceleration requirements are support.
As a PLF90 straight gear gearbox for high-speed automation transmission systems,
it features a compact structure and easy installation.
Overall equipment efficiency is enhance.
The spur gear design minimizes transmission delay.
Power delivery becomes more direct and responsive.
It is especially suitable for dynamic motion control systems.
Accurate Positioning and Efficient Power Output
The PLF90 gearbox utilizes optimized gear geometry.
Output stability is significantly improve.
Low backlash ensures precise positioning performance.
Precision motion control requirements are fully support.
As a PLF90 low backlash spur gear gearbox for servo motor applications,
it is widely used in high-accuracy equipment.
Fast and accurate positioning can be achieve.
Control error accumulation is minimize.
Production efficiency is improve.
Multiple gear ratios are available.
Different load requirements can be accommodate.
The gearbox is compatible with stepper motors and servo motors.
Flexible power matching becomes possible.
Precision Manufacturing and Long-Term Reliability
The gears are manufactured from premium alloy steel.
Carburizing and hardening processes are apply.
Gear wear resistance is significantly enhance.
Long-term load capacity is improve.
As a PLF90 straight gear gearbox for industrial robot precision motion control,
it delivers stable and reliable performance.
Critical gears undergo precision grinding processes.
Consistent meshing accuracy is ensure.
A high-precision bearing system improves structural rigidity.
Operational vibration is effectively reduce.
Running smoothness is enhance.
Every gearbox completes load performance testing.
Extended life-cycle verification is conduct.
OEM and ODM customization services are available.
Typical Applications
Industrial robots.
CNC machine tools.
Automated assembly lines.
Laser processing equipment.
Packaging machinery.
Electronics manufacturing equipment.
Material handling systems.
New energy automation equipment.
General Specifications
- Product Name: PLF90 Straight Gear Gearbox
- Product Type: Precision Spur Planetary Gearbox
- Mounting Size: 90 mm standard flange
- Transmission Structure: Multi-stage spur planetary gear design
- Housing Material: High-strength aerospace-grade aluminum alloy
- Output Configuration: Solid output shaft
- Installation Method: Multi-directional mounting capability

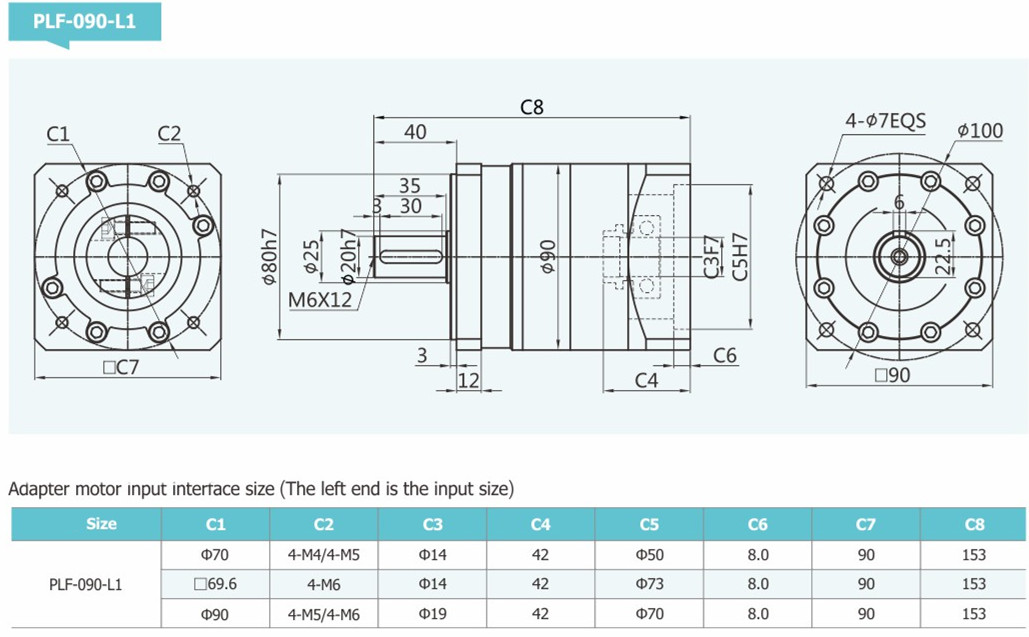

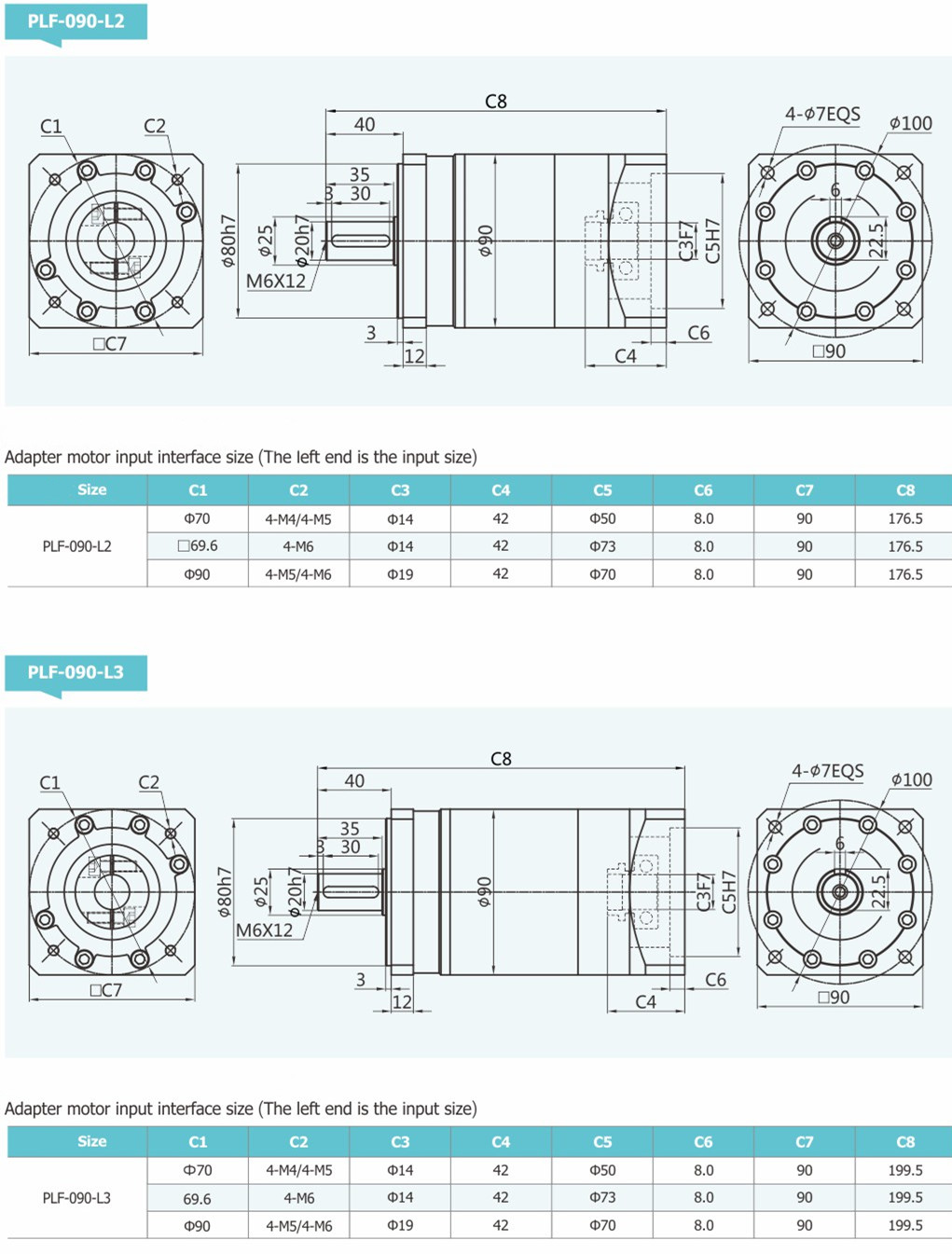

Dimensional Specifications
- Flange Size: 90 × 90 mm
- Input Shaft Diameter: 14 mm
- Output Shaft Diameter: 22 mm
- Output Shaft Length: 45 mm
- Pilot Diameter: Ø70 mm
- Mounting Pattern: Standard 4-hole configuration
- Gearbox Length: 95 mm / 115 mm / 135 mm depending on stage count
Transmission Performance
- Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1, 16:1, 20:1, 25:1, 35:1, 50:1, 100:1
- Rated Output Torque: 30–210 N·m
- Peak Torque Capacity: Up to 420 N·m
- Mechanical Efficiency: ≥97%
- Backlash: ≤10 arcmin
- Maximum Input Speed: 6500 rpm
- Recommended Operating Speed: 1000–4500 rpm
- Radial Load Capacity: 2500 N
- Axial Load Capacity: 1600 N
Materials and Manufacturing
- Gear Material: Carburized 20CrMnTi alloy steel
- Gear Processing: CNC hobbing and precision grinding
- Gear Surface Hardness: HRC58–62
- Surface Treatment: Anodized corrosion-resistant finish
- Lubrication System: Fully sealed long-life lubrication
- Bearing Type: High-precision deep groove ball bearings
Environmental Specifications
- Operating Temperature: -10°C to +90°C
- Storage Temperature: -30°C to +120°C
- Protection Rating: IP64
- Service Life: ≥25,000 hours
- Maintenance Requirement: Lifetime maintenance-free design
Compatible Equipment
- Nema34 stepper motors
- 90-series closed-loop stepper motors
- 750W–2kW servo motors
- Precision automation transmission systems
| Model | Unit | PLF090 | Ratio | Stage |
| Rated output torque | N.m | 60 | 3 | 1 |
| 86 | 4 | |||
| 94.5 | 5 | |||
| 64 | 7(8) | |||
| 39.5 | 10 | |||
| 96 | 12 | 2 | ||
| 96 | 15 | |||
| 96 | 16 | |||
| 96 | 20 | |||
| 105.5 | 25 | |||
| 96 | 28(32) | |||
| 105.5 | ||||
| 96 | 40 | |||
| 105.5 | 50(64) | |||
| 71.5 | 70 | |||
| 120 | 64 | 3 | ||
| 120 | 80 | |||
| 120 | 100 | |||
| 132.5 | 125 | |||
| 120 | 140(160) | |||
| 132.5 | 175 | |||
| 120 | 200 | |||
| 132.5 | 250(256) | |||
| 120 | 280(320) | |||
| 132.5 | 350(512) | |||
| Emergency stop torque | N.m | 2 times Rated output torque | ||
| Nominal input speed | rmp | 3000 | ||
| Maximum input speed | rmp | 6000 | ||
| Maximum radial force | N | 1020 | ||
| Maximum axial force | N | 850 | ||
| Efficiency | % | Single[97%] | Double[95%] | |
| Average lifetime | h | 20000 | ||
| Weight | kg | 8 | 1 | |
| 8.9 | 2 | |||
| 9.8 | 3 | |||
| Model | Unit | PLF090 | Ratio | Stage |
| Moment of Inertia | kgcm2 | 0.4 | 3 | 1 |
| 0.309 | 4 | |||
| 0.291 | 5 | |||
| 0.285 | 7[8] | |||
| 0.283 | 10 | |||
| 0.4 | 12 | |||
| 0.309 | 15 | 2 | ||
| 0.291 | 16 | |||
| 0.291 | 20 | |||
| 0.291 | 25 | |||
| 0.285 | 28[32] | |||
| 0.285 | 35 | |||
| 0.2835 | 40 | |||
| 0.283 | 50 | |||
| 0.283 | 70[64] | |||
| 0.291 | 64 | 3 | ||
| 0.291 | 80 | |||
| 0.291 | 100 | |||
| 0.291 | 125 | |||
| 0.291 | 140[160] | |||
| 0.291 | 175 | |||
| 0.283 | 200 | |||
| 0.283 | 250[256] | |||
| 0.283 | 280[320] | |||
| 0.283 | 350[512] | |||
| Noise | dB | 65 | ||
| Lubricating | Synthetic grease lubrication | |||
| Levels of protection | IP65 | |||
