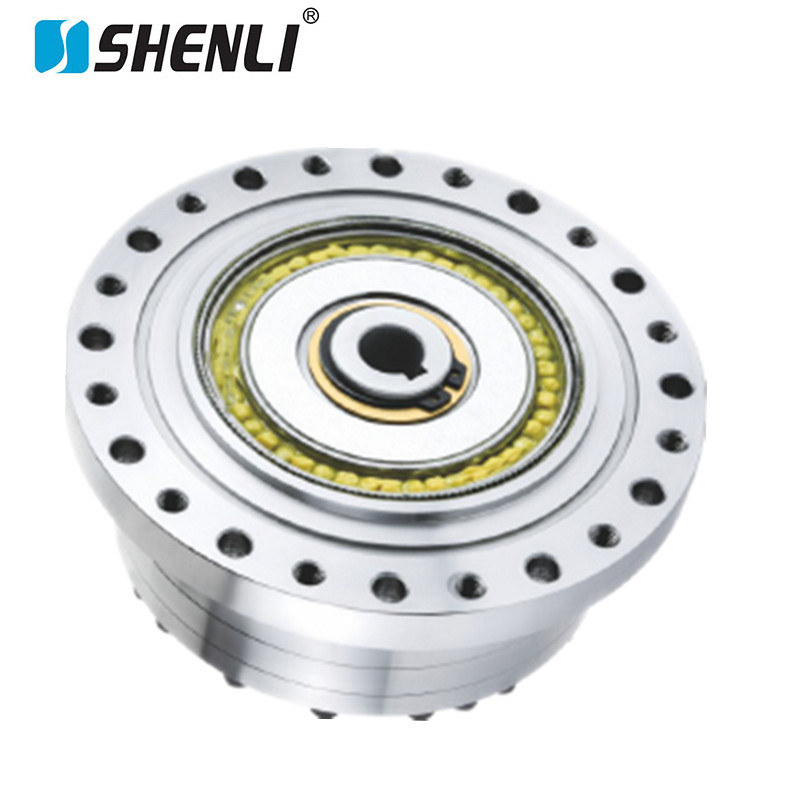

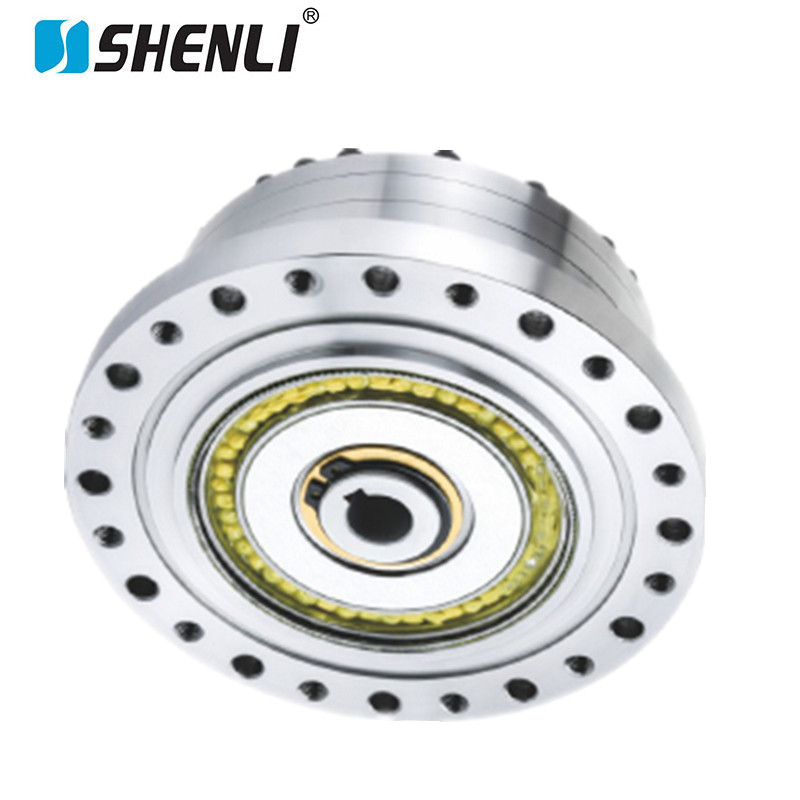

Description

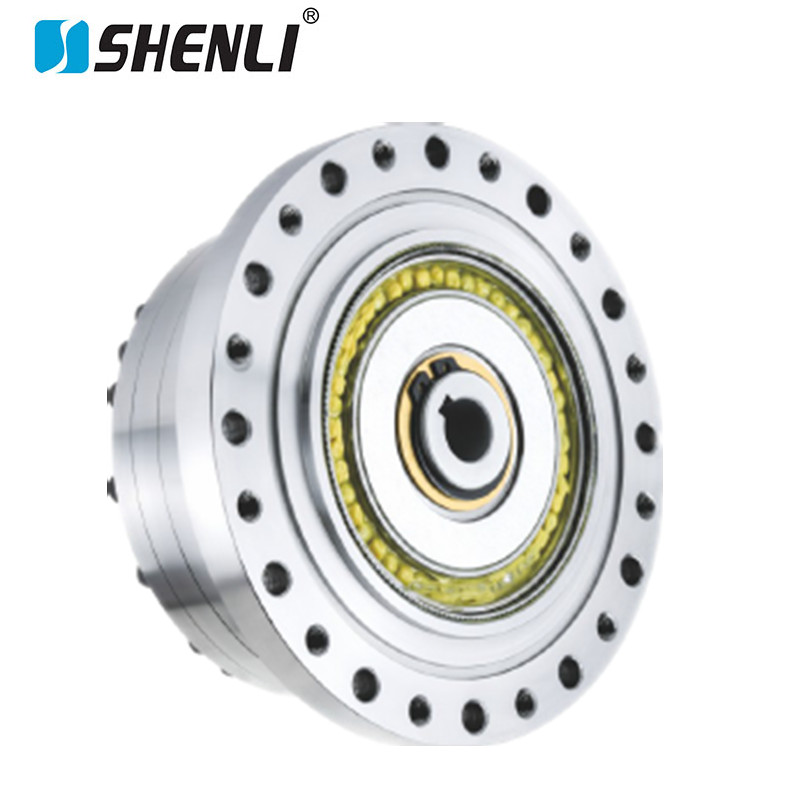

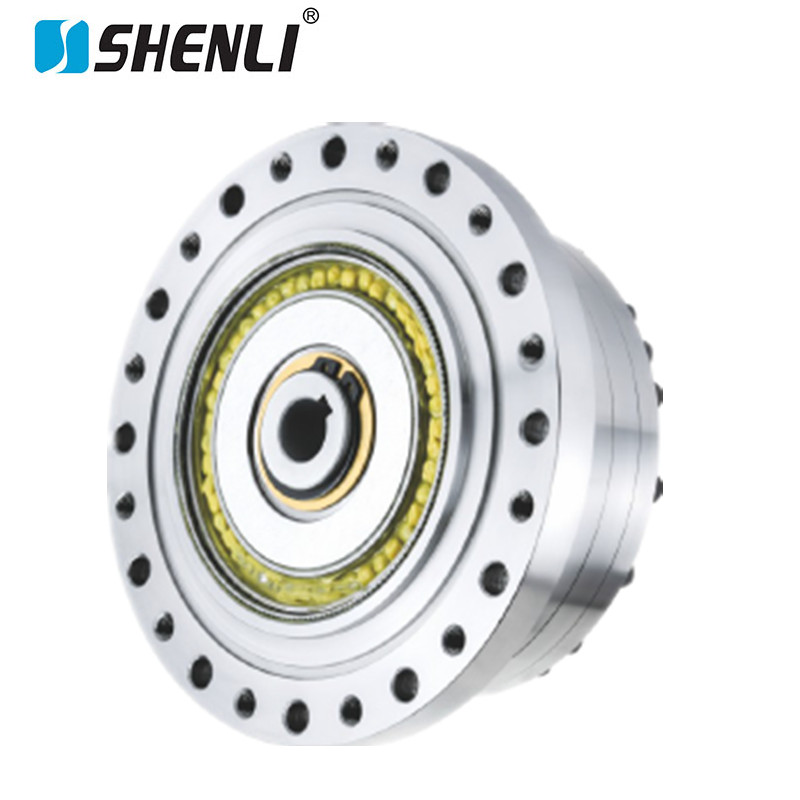

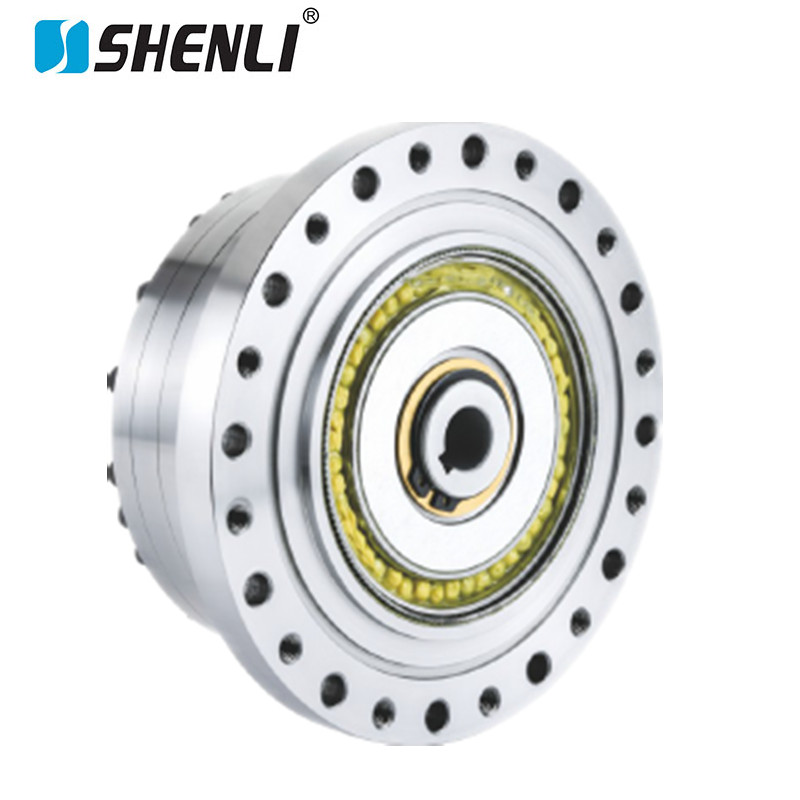

Engineered by SHENLI, the ZLCS Series zero backlash harmonic drive delivers motion transmission performance for high-precision industrial applications. Utilizing advanced flexspline, circular spline, and wave generator principles, this compact gear reducer achieves reduction ratios up to 160:1 while keeping backlash strictly at ≤1 arcmin.

Built specifically for robotics system integrators, CNC machinery manufacturers, and medical automation builders, SHENLI harmonic drives provide high torque density, repeat positioning accuracy, and smooth multi-axis motion.

Core Engineering Advantages

1. Ultra-Low Backlash & Sub-Arcminute Positioning

Featuring simultaneously engaged gear teeth across opposite sides of the flexspline, the ZLCS drive eliminates lost motion and mechanical hysteresis. With backlash held under 1 arcmin and repeat positioning accuracy within ±20 arcsec, it provides the precise trajectory control required in multi-axis robotic joints and rotary tables.

2. High Torque Density in Compact Dimensions

Crafted with an ultra-slim frame size ranging from Size 14 to Size 50 (outer diameters from 42 mm to 160 mm), the ZLCS drive produces up to 900 N·m peak torque. The compact, hollow-shaft option allows internal cabling or pneumatic routing, saving structural space in robotic arms and slim machinery setups.

3. Premium Alloy Construction & Extended Duty Cycle

Core gear components are manufactured from high-strength alloy steel and treated via a vacuum hardening process (HRC 58–62). Coupled with high-precision wave generator bearings and factory-sealed synthetic grease, the ZLCS drive achieves a service life exceeding 10,000 operational hours with minimal thermal drift.

4. Broad Motor Compatibility & Flexible Mounting

Designed with standard industrial flange mounting patterns, the ZLCS drive seamlessly integrates with standard AC/DC servo motors and stepper motors. Its high input speed capability (up to 6500 rpm) supports high-speed dynamic tracking without inducing vibration or noise.

Industrial Applications

The ZLCS zero backlash harmonic drive is deployed across high-precision industrial sectors:

Industrial & Collaborative Robots: Drives joint rotations (Waist, Shoulder, Elbow, Wrist) on 6-axis articulated robots and cobots.
CNC Machine Tools: Powers rotary index tables, B/C axis milling heads, and precision tool changers.
Semiconductor Manufacturing: Controls wafer handling arms, precision aligners, and automated optical inspection (AOI) stages.
Medical Automation: Executes sub-millimeter movement in surgical robotics, diagnostic scanners, and radiation therapy positioning systems.
Laser Processing Equipment: Maintains consistent path velocity for multi-axis fiber laser cutting and welding heads.

Full OEM & ODM Customization

SHENLI offers custom gear drive design to meet specialized mechanical and thermal constraints:

Dimensional Tailoring: Custom flange bolt patterns, special shaft diameters, and altered axial lengths.
Ratio & Torque Customization: Special gear ratios, modified tooth profiles, and application-specific grease formulations for cleanrooms or extreme temperature environments (-20°C to +90°C).
Sub-Assembly Integration: Factory integration with custom cross-roller bearings, encoder housings, or motor adapters.

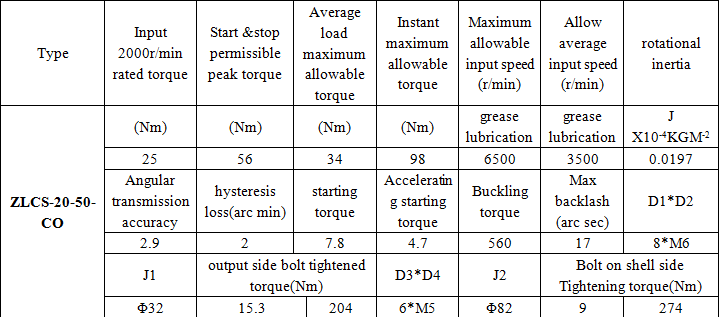

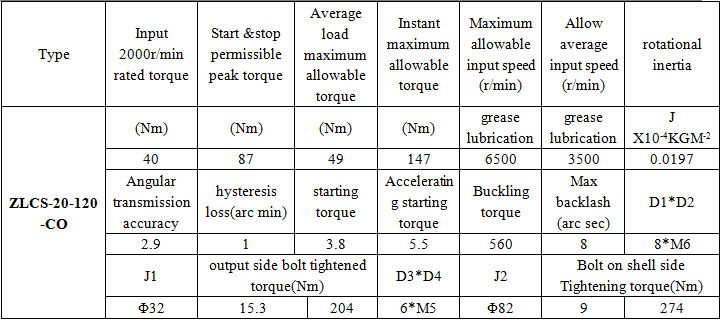

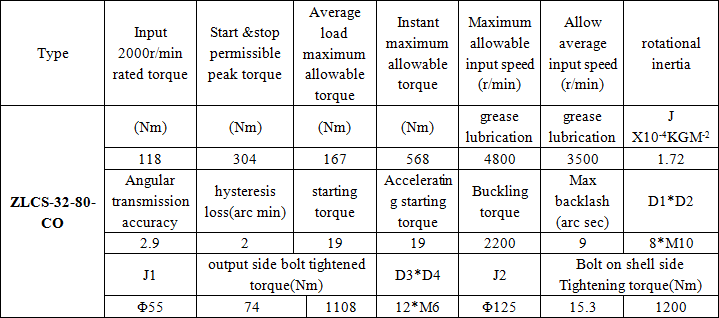

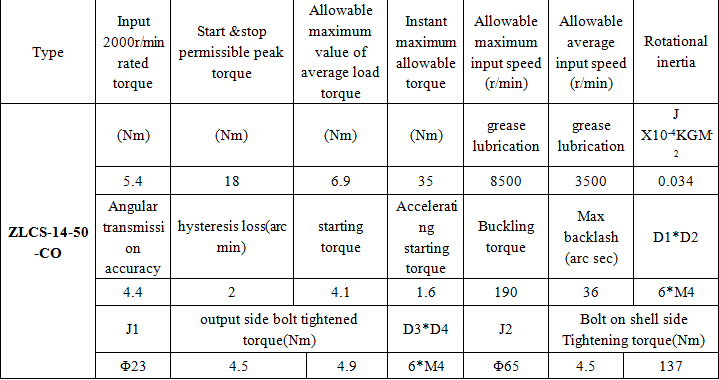

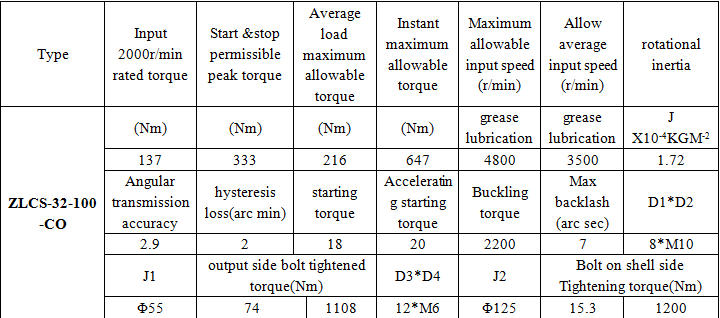

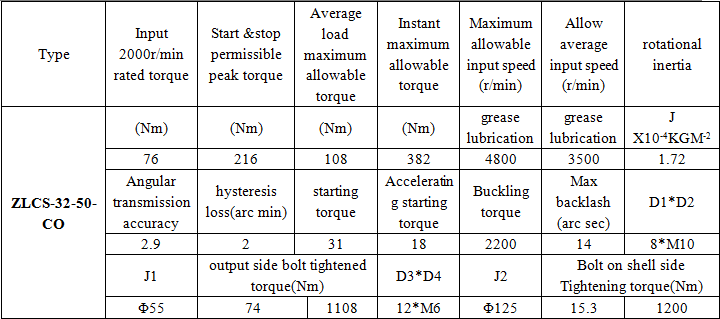

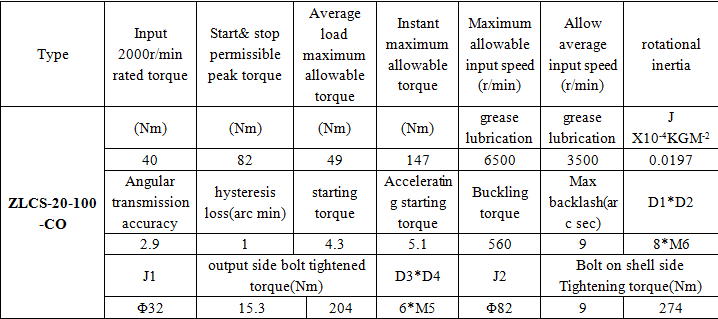

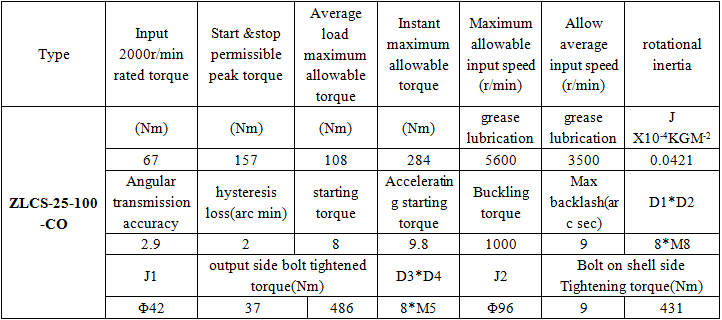

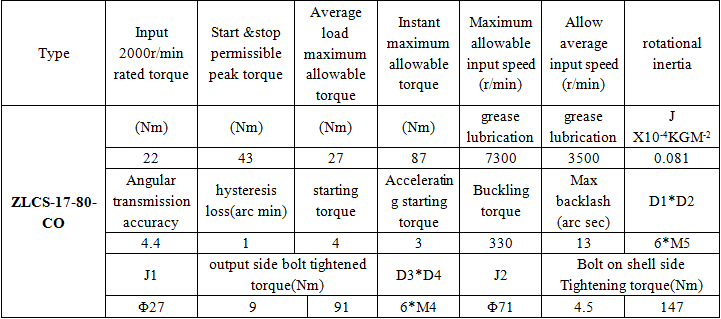

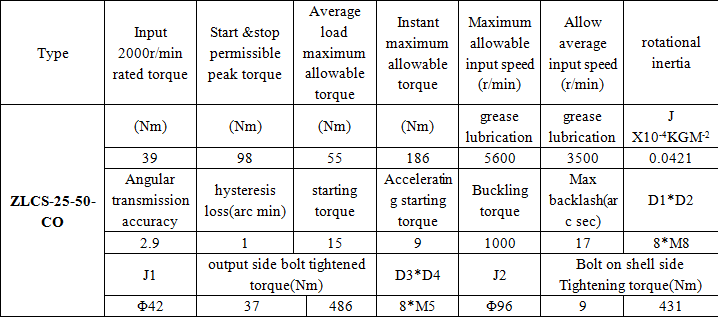

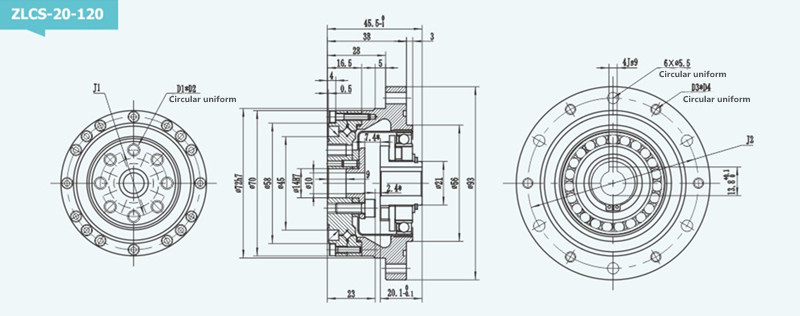

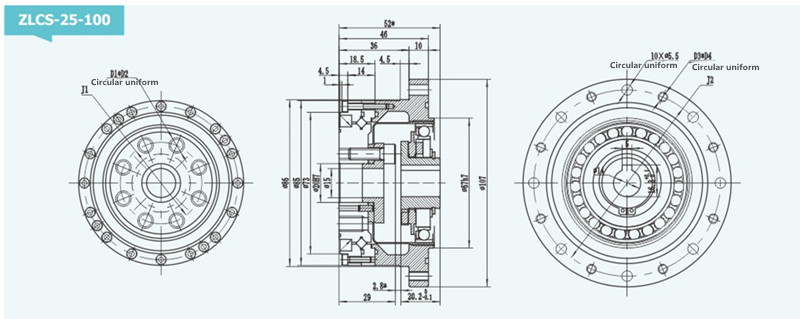

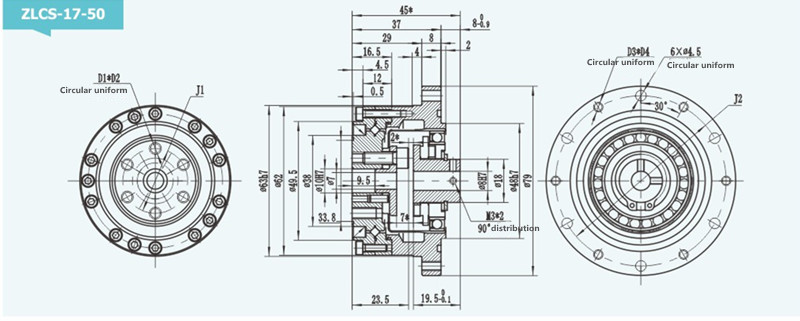

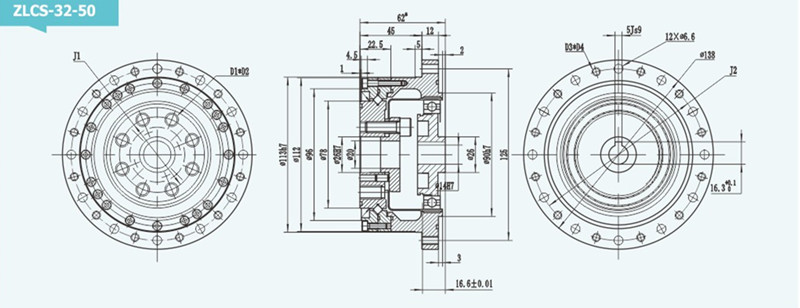

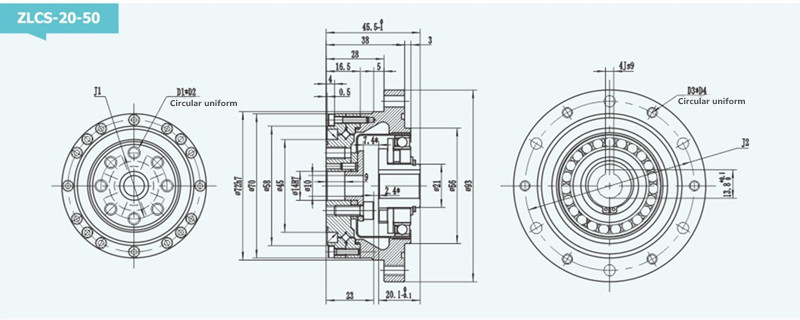

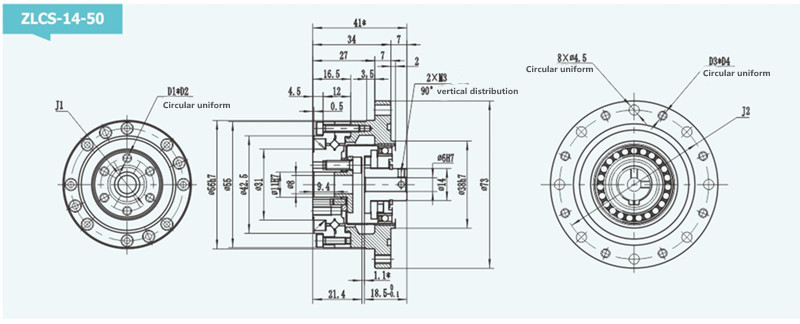

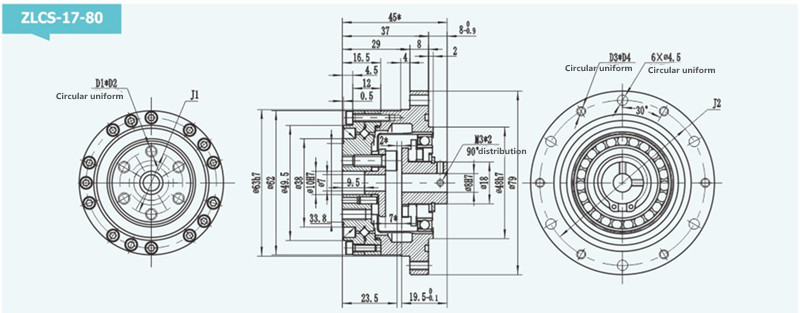

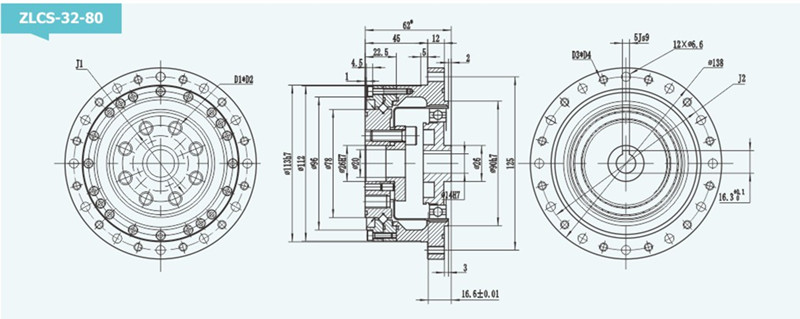

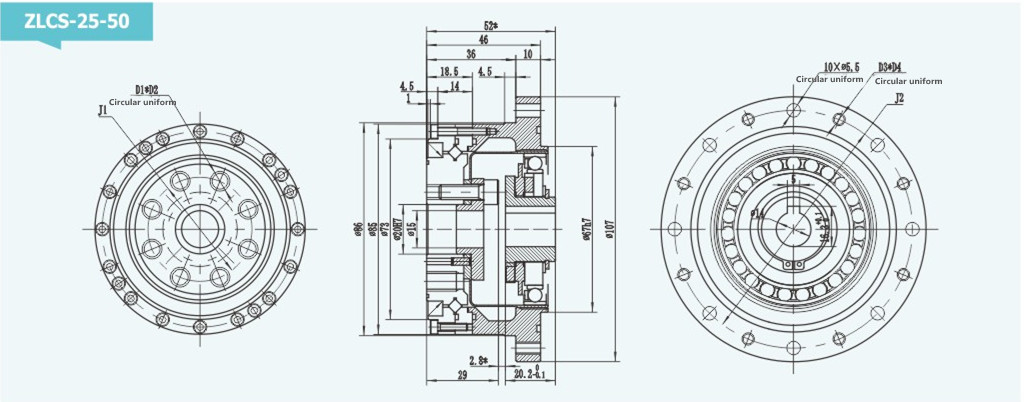

ZLCS Harmonic Drive Technical Specifications

General Specifications

Product Name: ZLCS Harmonic Drive
Product Type: Precision Harmonic Gear Reducer
Transmission Principle: Flexspline, circular spline, and wave generator mechanism
Mounting Type: Flange-mounted configuration
Output Structure: High-rigidity flange output
Design Features: Ultra-slim and lightweight construction
Compatible Motors: Stepper motors and servo motors
