Description

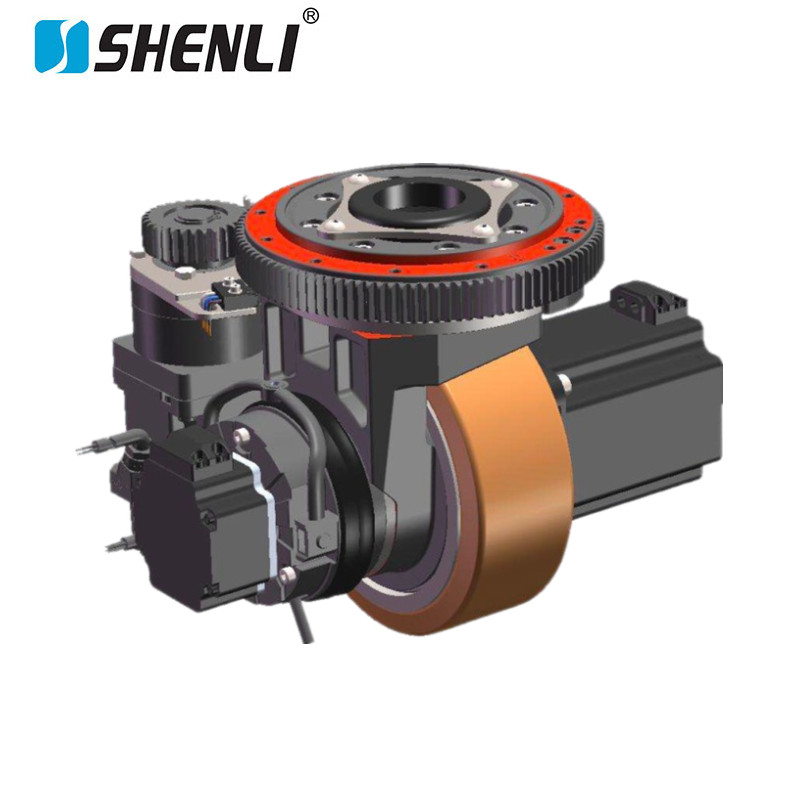

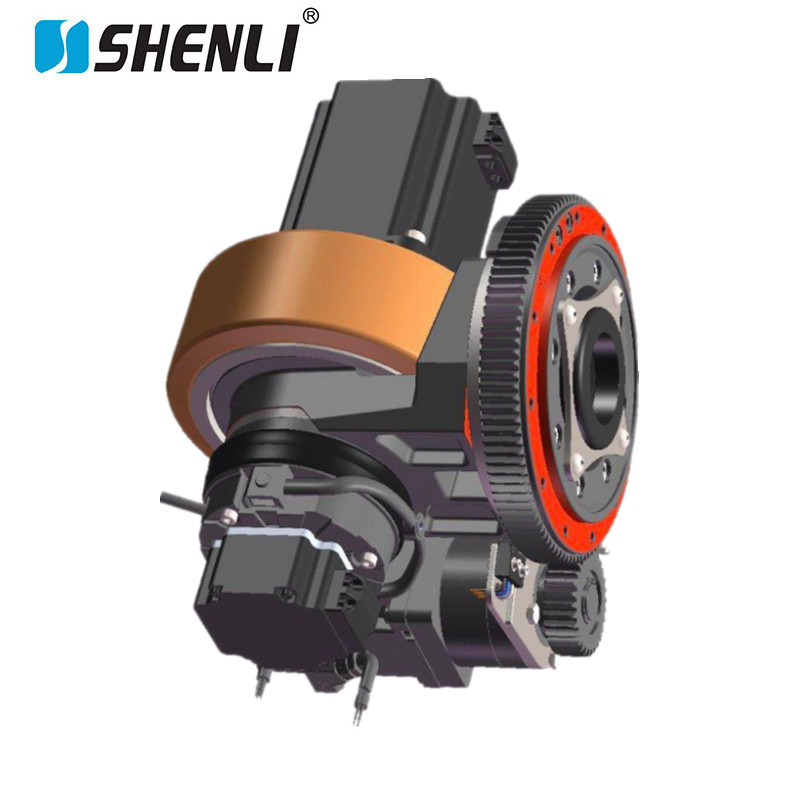

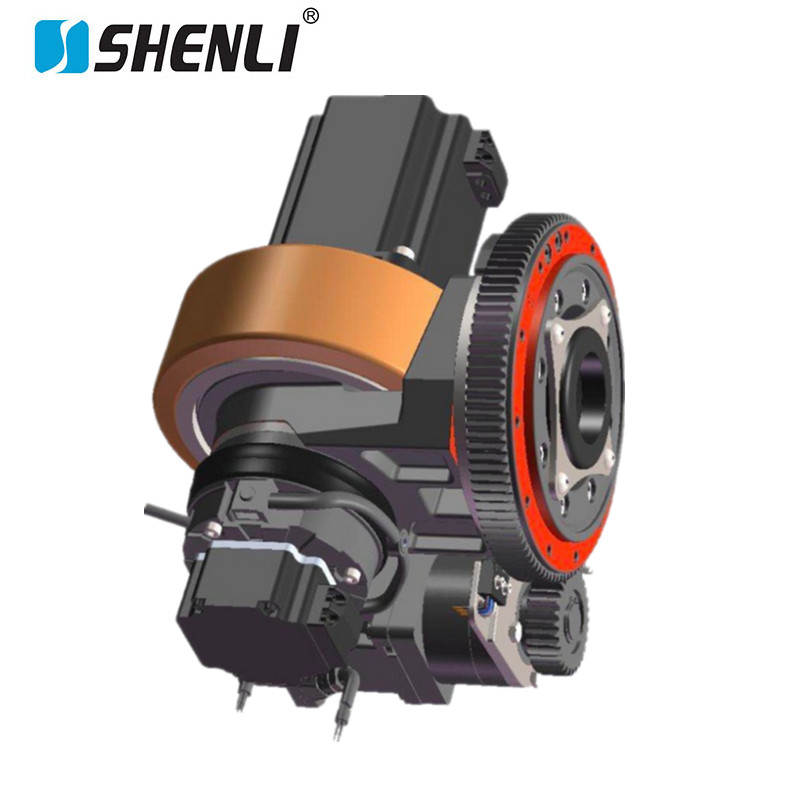

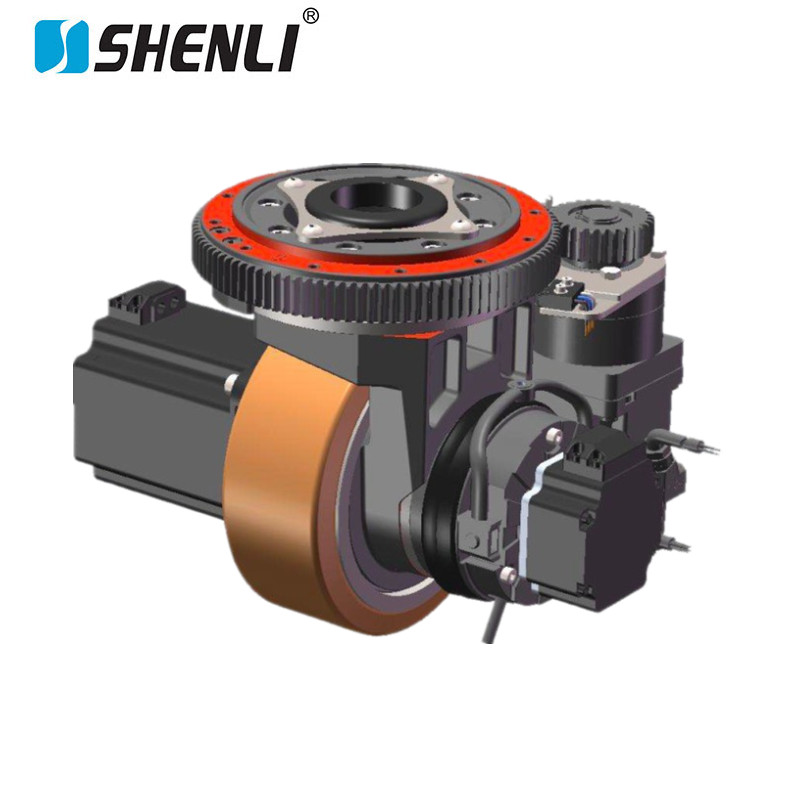

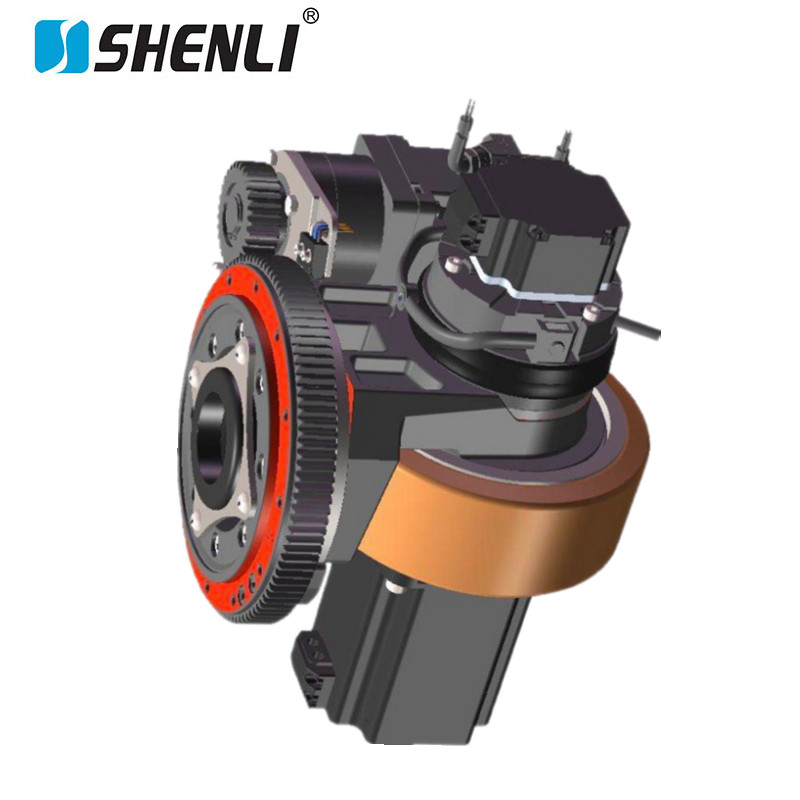

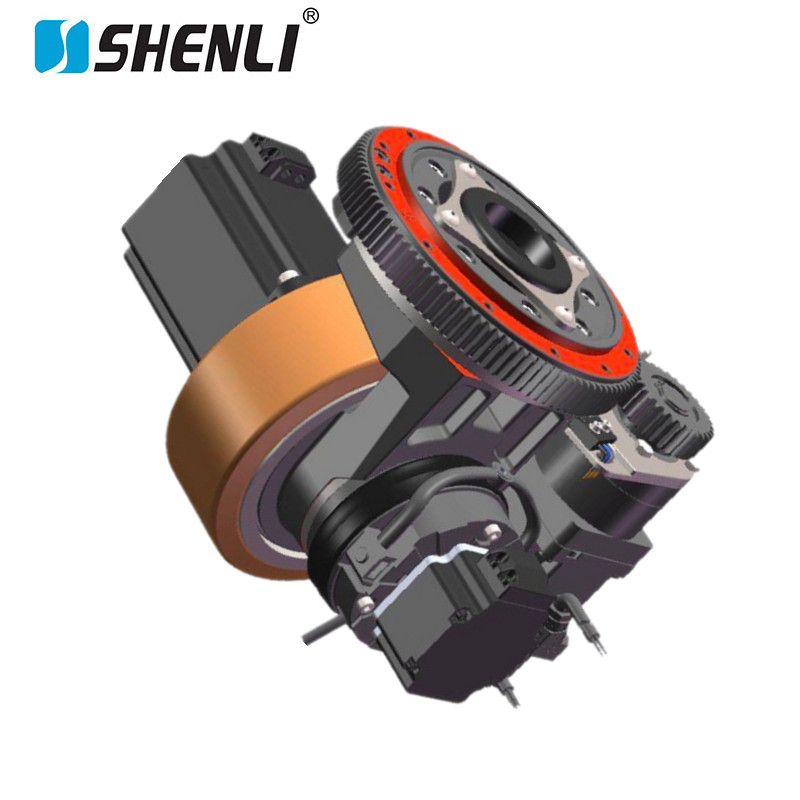

WDS Horizontal Steering Wheel for AGV and AMR Automation Systems

SHENLI develops advanced motion control components for automated material handling equipment. The WDS horizontal steering wheel integrates driving and steering functions into a compact AGV drive steering module, providing efficient movement control for autonomous vehicles.

Designed for AGV manufacturers, AMR system integrators, warehouse automation companies, and industrial mobile platform builders, this integrated steering wheel solution delivers precise navigation, high load capacity, and flexible multi-directional movement.

By combining a steering actuator, drive motor, and high-traction wheel system in one compact structure, the WDS module helps equipment manufacturers optimize chassis design while improving overall motion performance.

Compact Drive and Steering Integration for Space-Limited AGVs

The WDS horizontal steering wheel adopts a horizontal coaxial or offset structure that combines traction and steering mechanisms into a single assembly.

This compact design reduces vertical installation requirements and creates additional internal space for batteries, control systems, and payload areas. As a result, it is ideal for low-profile AGVs, autonomous forklifts, and mobile robotic platforms that require efficient space utilization.

High-Torque Motion Control and Precise Navigation

Equipped with servo motor drive options, the WDS steering module supports smooth acceleration, fast direction changes, and accurate trajectory control.

The optimized motion system reduces vibration during operation and maintains stable movement when AGVs navigate narrow aisles, sharp turns, and complex factory environments.

This reliable performance makes the module suitable for applications that require continuous material transportation and precise positioning.

Heavy-Duty Mechanical Structure for Industrial Operation

SHENLI manufactures the WDS steering wheel using high-strength alloy steel components and precision CNC machining processes.

The reinforced housing structure withstands mechanical impact, torsional stress, and continuous industrial workloads. Integrated precision bearings distribute radial and axial forces evenly, supporting stable operation in high-frequency warehouse and manufacturing environments.

High-Traction Polyurethane Wheel for Reliable Floor Contact

The WDS module uses an industrial polyurethane wheel designed for demanding factory conditions.

The polyurethane tread provides low rolling resistance, excellent wear resistance, oil resistance, and non-marking performance. It maintains reliable traction on epoxy floors, smooth concrete surfaces, and slightly uneven industrial ground.

This wheel design helps AGVs achieve stable movement, controlled braking, and reduced floor damage during daily operation.

Customized AGV Drive Steering Solutions from SHENLI

As an experienced industrial motion control manufacturer, SHENLI provides customized AGV and AMR steering solutions based on different vehicle structures and application requirements.

Customers can optimize motor specifications, steering configurations, wheel designs, and mechanical interfaces to match specific automation projects.

With advanced manufacturing capabilities and strict quality control, SHENLI delivers reliable WDS horizontal steering wheels for warehouse automation, smart factories, and autonomous mobile robotics.

Typical Applications

AGV automated guided transport systems.
Smart warehouse logistics systems.
Industrial automated handling platforms.
Intelligent factory mobile robots.
Flexible production line equipment.
Unmanned handling systems.
Heavy-duty logistics transfer systems.

WDS Horizontal Steering Wheel – Product Specifications & Technical Details

The WDS Horizontal Steering Wheel is a high-performance integrated steering and driving module designed for AGV (Automated Guided Vehicle), AMR (Autonomous Mobile Robot), and intelligent material handling systems. The module combines compact structure, precision steering control, and high-load traction capability to meet demanding industrial automation applications.

Technical Specifications

• Product Name: WDS Horizontal Steering Wheel
• Product Type: Integrated AGV Steering Drive Module
• Steering Structure: Horizontal Steering Design
• Drive Mode: Servo Motor / Brushless Motor Compatible
• Wheel Configuration: Drive & Steering Integrated Module
• Wheel Material: High Wear-Resistant Polyurethane / Rubber Optional
• Frame Material: High-Strength Aluminum Alloy / Steel Structure
• Load Capacity: Suitable for Medium and Heavy-Duty AGV Systems
• Steering Accuracy: High Precision Directional Control
• Rotation Angle: 360° Continuous Steering Capability
• Transmission Type: Precision Gear Transmission System
• Motor Compatibility: Servo Motor, Closed-Loop Motor, Brushless DC Motor
• Gearbox Compatibility: Planetary Gearbox / Precision Reducer Optional
• Control System Support: AGV Controller / PLC / Motion Control System
• Encoder Option: Absolute Encoder / Incremental Encoder
• Installation Method: Bottom Mount / Customized Mounting Structure
• Operating Voltage: Customizable According to System Requirements
• Speed Performance: Stable High-Speed Motion Control
• Protection Features: Dustproof & Industrial Protection Design
• Maintenance Requirement: Low Maintenance Structure
• Operating Environment: Warehouse, Factory, Logistics Center, Smart Manufacturing Facility

Product Features

• Compact horizontal steering structure for optimized installation space
• Integrated steering and drive system for simplified AGV design
• High load-bearing capability for industrial transport applications
• Smooth steering response and stable traction performance
• High-strength wheel material with excellent abrasion resistance
• Precision steering control for autonomous navigation systems
• Low vibration and low noise during continuous operation
• Flexible customization available for different AGV and AMR platforms
• Long operational lifespan under intensive industrial environments
• Suitable for 24/7 automated logistics operation systems

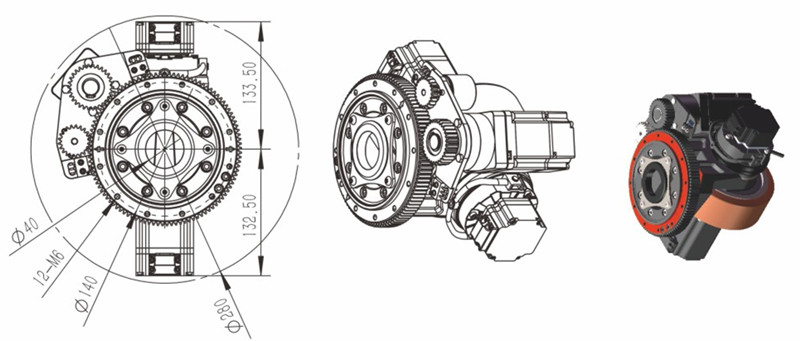

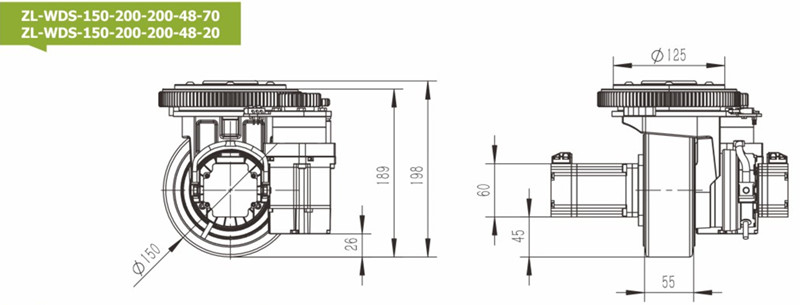

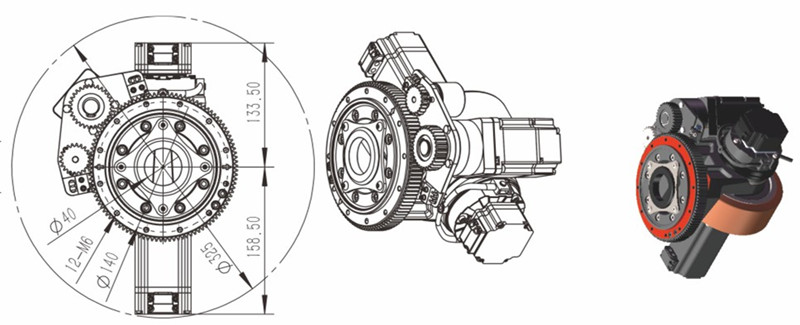

ZL-WDS-150-200-200-48-70(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	200	48	3000	5.1	0.64	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	20	68			Motor Power	W	200
	Reducer torque	Nm	100	120			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1000				Motor speed	RPM	3000
	Rubber Loaded	Kg	900				Motor current	A	5.1
	Braking torque	Nm	76	258.4			Reducer speed ratio	i	35+（105:30）
	Actuators torque	Nm	4	4			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	70.7	20.8			Encoder	Magnetic braiding	Increment
	Traction	N	162	522.24				Resolution ratio	1024
	Traction weight	reference	292	835.584			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About16

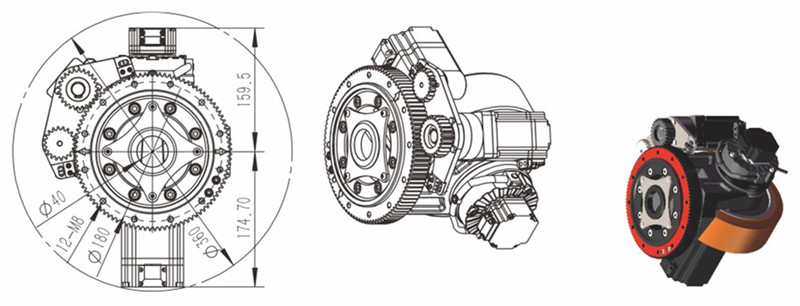

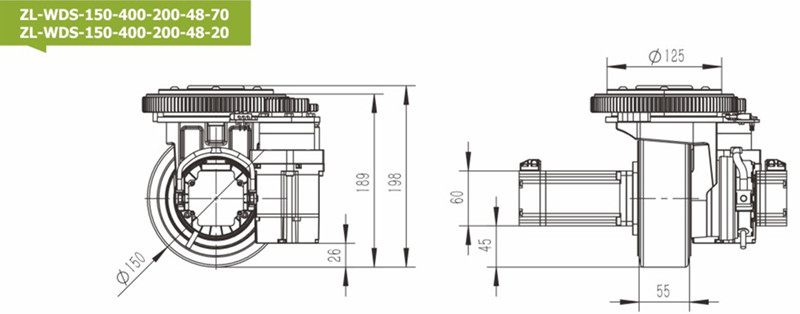

ZL-WDS-150-400-200-48-70(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	400	48	3000	10.1	1.27	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	20	68			Motor Power	W	200
	Reducer torque	Nm	100	120			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1000				Motor speed	RPM	3000
	Rubber Loaded	Kg	900				Motor current	A	5.1
	Braking torque	Nm	76	258.4			Reducer speed ratio	i	35+（105:30）
	Actuators torque	Nm	4	4			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	70.7	20.8			Encoder	Magnetic braiding	Increment
	Traction	N	322	1036.3				Resolution ratio	1024
	Traction weight	reference	547	1658			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About16

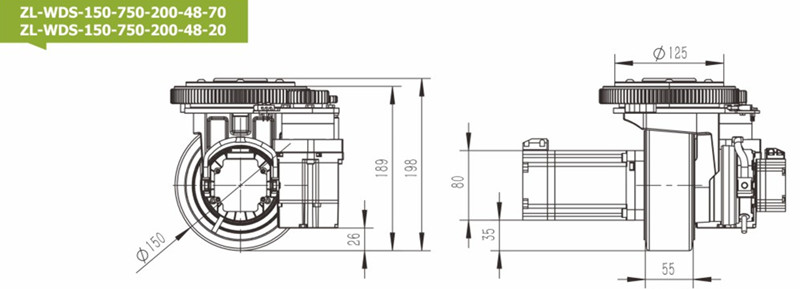

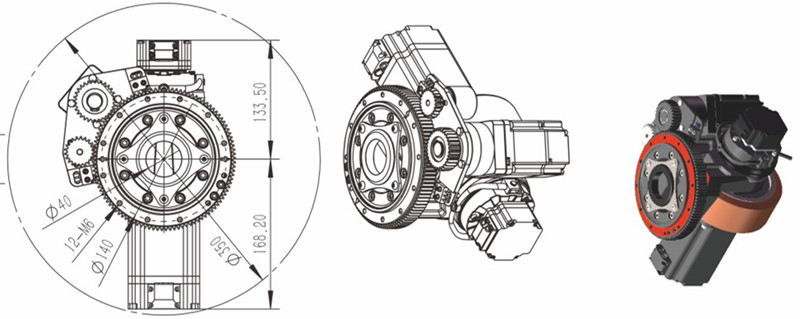

ZL-WDS-150-750-200-48-70(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	750	48	3000	19	2.39	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	20	68			Motor Power	W	200
	Reducer torque	Nm	100	120			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1000				Motor speed	RPM	3000
	Rubber Loaded	Kg	900				Motor current	A	5.1
	Braking torque	Nm	76	258.4			Reducer speed ratio	i	35+（105:30）
	Actuators torque	Nm	4	4			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	70.7	20.8			Encoder	Magnetic braiding	Increment
	Traction	N	605	1733.55				Resolution ratio	1024
	Traction weight	reference	1029	2600.32			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About17

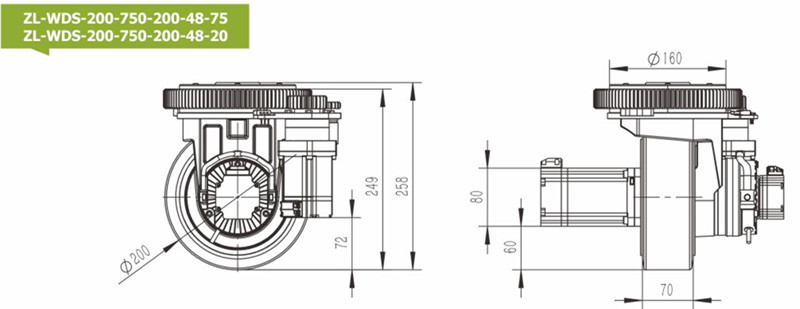

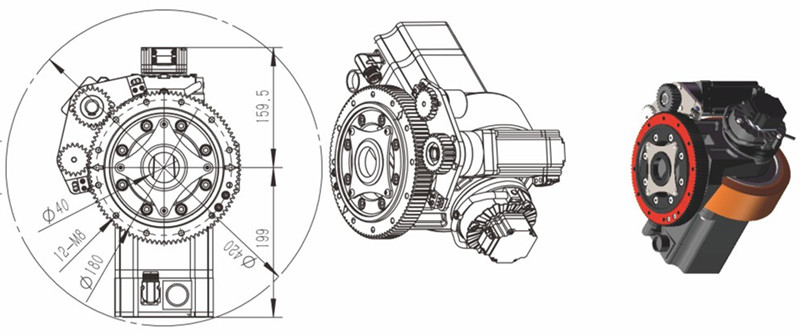

ZL-WDS-200-750-200-48-75(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	750	48	3000	19	2.39	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	85			Motor Power	W	200
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1500				Motor speed	RPM	3000
	Rubber Loaded	Kg	1380				Motor current	A	5.1
	Braking torque	Nm	190	646			Reducer speed ratio	i	35+（100:25）
	Actuators torque	Nm	8	8			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	75.4	22.2			Encoder	Magnetic braiding	Increment
	Traction	N	568	1218.9				Resolution ratio	1024
	Traction weight	reference	851	1828.35			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About24

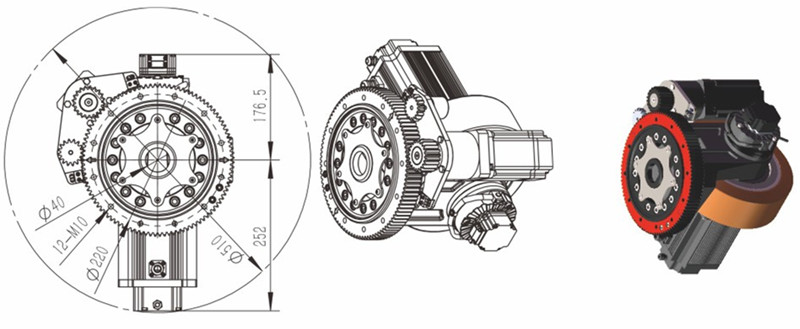

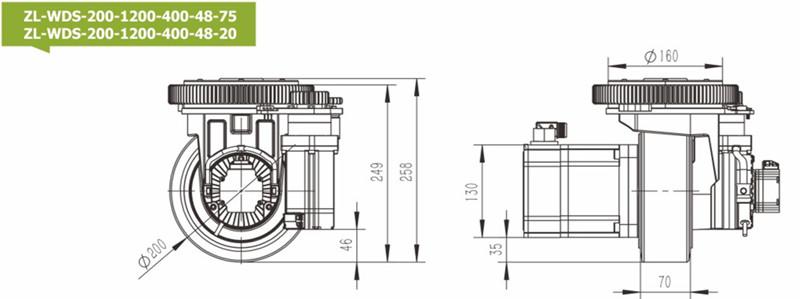

ZL-WDS-200-1200-400-48-75(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	1200	48	3000	31.6	3.8	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	85			Motor Power	W	400
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1500				Motor speed	RPM	3000
	Rubber Loaded	Kg	1380				Motor current	A	10.1
	Braking torque	Nm	190	646			Reducer speed ratio	i	35+（100:25）
	Actuators torque	Nm	8	8			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	75.4	22.2			Encoder	Magnetic braiding	Increment
	Traction	N	903	1615				Resolution ratio	1024
	Traction weight	reference	1354	2422.5			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About25

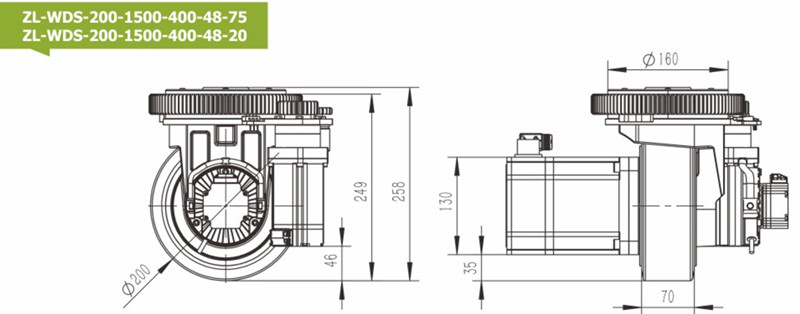

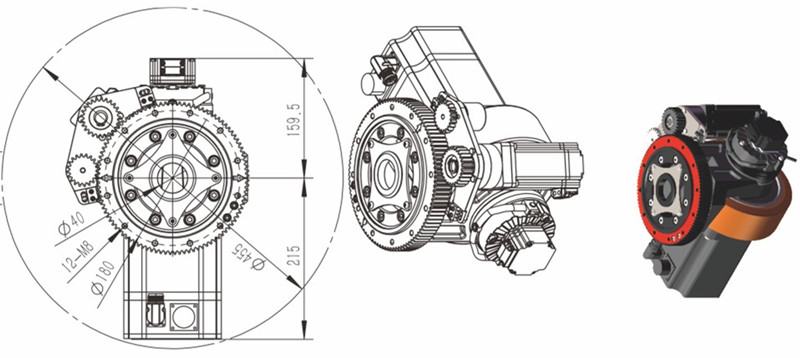

ZL-WDS-200-1500-400-48-75(20)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	1500	48	3000	37.4	5	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	85			Motor Power	W	400
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	1500				Motor speed	RPM	3000
	Rubber Loaded	Kg	1380				Motor current	A	10.1
	Braking torque	Nm	190	646			Reducer speed ratio	i	35+（100:25）
	Actuators torque	Nm	8	8			Reducer torque	Nm	35
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	75.4	22.2			Encoder	Magnetic braiding	Increment
	Traction	N	1188	2125				Resolution ratio	1024
	Traction weight	reference	1781	3187.5			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About26

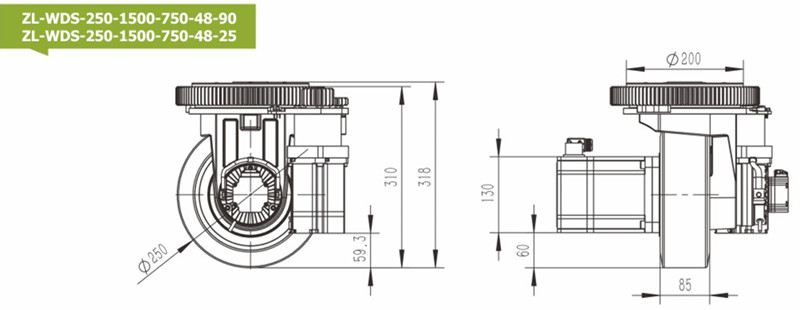

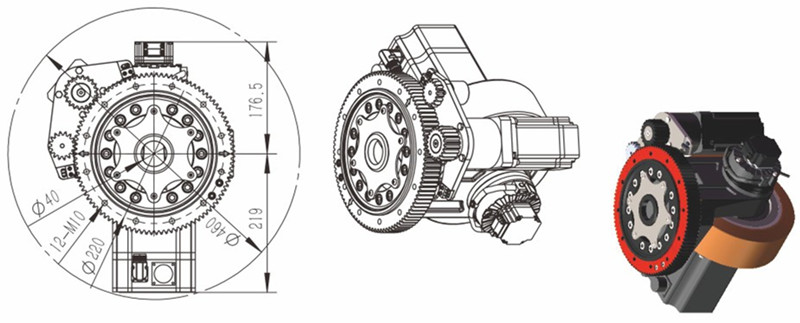

ZL-WDS-250-1500-750-48-90(25)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	1500	48	3000	37.4	5	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	85			Motor Power	W	750
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	2000				Motor speed	RPM	3000
	Rubber Loaded	Kg	1800				Motor current	A	19
	Braking torque	Nm	190	646			Reducer speed ratio	i	35+（100:20）
	Actuators torque	Nm	8	8			Reducer torque	Nm	105
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	94.2	27.7			Encoder	Magnetic braiding	Increment
	Traction	N	950	1700				Resolution ratio	1024
	Traction weight	reference	1425	2550			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About30

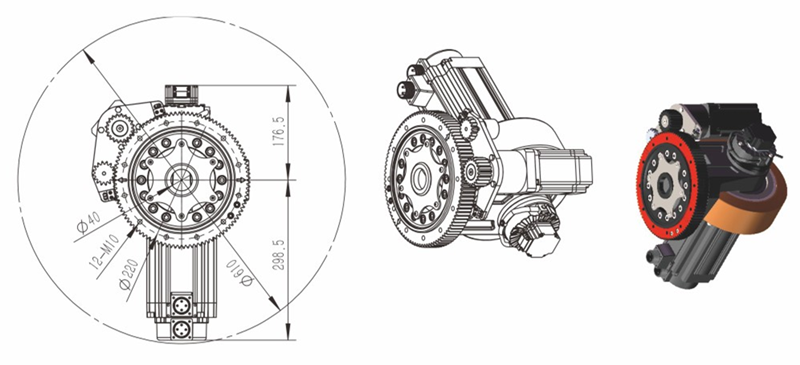

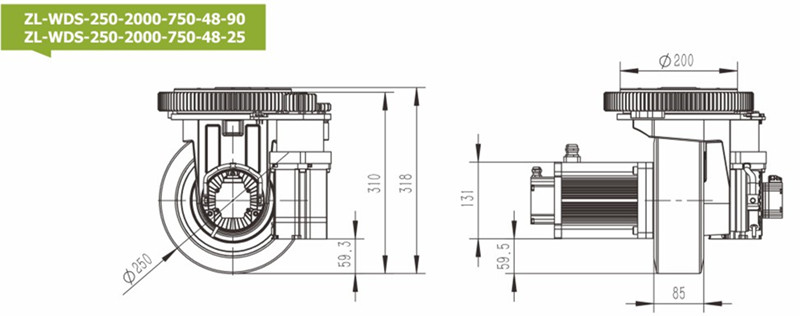

ZL-WDS-250-2000-750-48-90(25)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	2000	48	3000	73.5	7.3	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	85			Motor Power	W	750
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	2000				Motor speed	RPM	3000
	Rubber Loaded	Kg	1800				Motor current	A	19
	Braking torque	Nm	190	646			Reducer speed ratio	i	35+（100:20）
	Actuators torque	Nm	8	8			Reducer torque	Nm	105
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	94.2	27.7			Encoder	Magnetic braiding	Increment
	Traction	N	1387	2482				Resolution ratio	1024
	Traction weight	reference	2081	3723			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About32

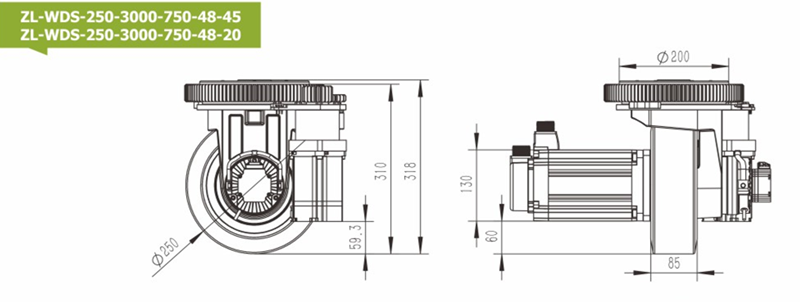

ZL-WDS-250-3000-750-48-90(25)

Traction motor parameters		Motor Power	Motor Voltage	Motor speed	Motor current	Rated torque	IP Grade	Encoder
Type	DC	W	V	RPM	A	Nm	IP	Magnetic braiding	Resolution ratio
	Servo Motor	3000	48	1500	80	19.1	65	Increment	1024
Traction reducer parameters	Type	X	Planetary reducer			Steering motor parameters	Type	DC	Servo Motor
	Reducer speed ratio	i	25	56			Motor Power	W	750
	Reducer torque	Nm	250	310			Motor Voltage	V	48
	Polyurethane Loaded	Kg	2000				Motor speed	RPM	3000
	Rubber Loaded	Kg	1800				Motor current	A	19
	Braking torque	Nm	190	425.6			Reducer speed ratio	i	35+（100:20）
	Actuators torque	Nm	8	8			Reducer torque	Nm	105
	Actuators Voltage	V	DC24	DC24			IP Grade	IP	65
	Maximum speed	M/min	47.1	21			Encoder	Magnetic braiding	Increment
	Traction	N	3056	4278.4				Resolution ratio	1024
	Traction weight	reference	4584	6417.6			Left and right limit	IO	Always on, always off
							Max steering Angle	±	140°
Another	Reducer lubrication		lubricant		（-20°~200°）
	Dead-weight		Kg		About35
