PLFS160 Robotic Reducer Product Description
High Performance Transmission Solution for Heavy-Duty Robots
The PLFS160 Robotic Reducer is developed for high-load industrial robot systems.
It adopts a high-rigidity planetary transmission structure for powerful output performance.
The optimized internal design reduces energy loss during operation.
This reducer is suitable for heavy robotic arms, handling robots, and automation equipment.
As a PLFS160 high torque robotic reducer for industrial robots, it delivers stable operation under demanding working conditions.
Reliable transmission performance improves robotic efficiency.
The robust structure supports long-term precision operation.
Precision Manufacturing Enhances Load Capacity
The PLFS160 uses high-strength alloy materials for critical components.
The gears undergo heat treatment and precision grinding processes.
Advanced machining technology ensures accurate gear engagement.
The rigid housing design improves impact resistance.
As a PLFS160 heavy duty robot gearbox for automation systems, it performs well in high-load and frequent-motion applications.
Precision bearings improve rotational stability.
The optimized lubrication system reduces maintenance requirements.
Designed for Smart Manufacturing and Industrial Automation
The PLFS160 is widely used in industrial robots and smart manufacturing equipment.
It supports welding robots, palletizing robots, and material handling systems.
High torque output meets large robot joint drive requirements.
Excellent repeatability improves production accuracy.
As a PLFS160 precision planetary reducer for robotic arms, it can integrate with various servo drive systems.
Reliable transmission helps customers improve manufacturing efficiency.
Flexible design supports different industrial environments.
Customized Manufacturing for Diverse Requirements
The PLFS160 supports customized gear ratios and structural designs.
Input interfaces can be adjusted for different motor models.
Output shaft dimensions can meet specific installation requirements.
Professional engineers provide application-based technical support.
OEM and ODM production services are available.
The PLFS160 helps global machine builders develop high-performance robotic transmission systems.
PLFS160 Robotic Reducer Specifications
Product Information
- Product Name: PLFS160 Robotic Reducer
- Model Number: PLFS160
- Product Type: Heavy-duty precision planetary robotic reducer
- Transmission Structure: Multi-stage planetary gear transmission design for high-load motion control
- Main Function: Provides stable power transmission for industrial robots, automation equipment, and smart manufacturing systems
- Compatible Drives: Servo motors, robotic joint drive systems, and automated actuators
- Typical Applications: Heavy robotic arms, handling robots, welding robots, palletizing machines, and automated production lines
Mechanical Specifications

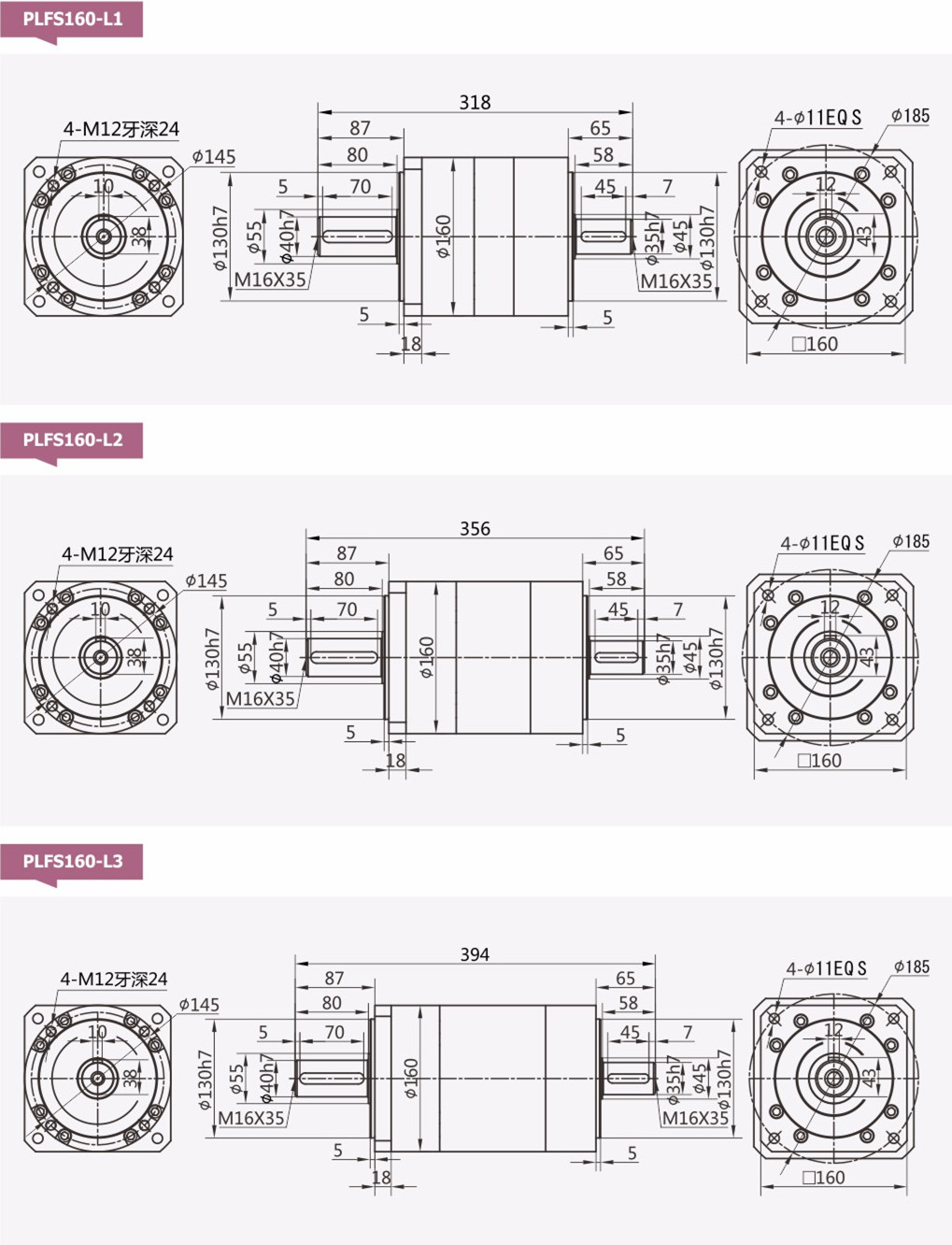

- Frame Size: 160 mm series housing design for high-load equipment integration
- Housing Material: High-strength alloy aluminum or steel structure for impact resistance
- Gear Material: Premium alloy steel with carburizing and surface hardening treatment
- Manufacturing Process: Precision gear grinding, CNC machining, and automated assembly
- Output Structure: High-rigidity flange output design with customized shaft options
- Bearing System: High-precision bearings for stable load performance
- Sealing Design: Multi-layer sealing structure for long-term industrial operation
Performance Specifications
- Gear Ratio Range: 3:1 to 100:1, selectable according to application requirements
- Rated Output Torque: 500–1500 N·m depending on configuration
- Backlash: ≤10 arcmin standard, precision version available up to ≤5 arcmin
- Transmission Efficiency: Up to 97% efficiency in single-stage operation
- Maximum Input Speed: 5000 rpm
- Operating Features: High torque, high rigidity, low vibration, and low noise performance
- Positioning Accuracy: Suitable for robotic repeatability and precision motion control
Manufacturing & Customization
- Inspection Items: Backlash measurement, torque testing, noise analysis, and lifetime verification
- Protection Rating: IP54 standard with upgraded options available
- Operating Temperature: -20°C to +90°C
- Mounting Method: Flange mounting compatible with various robotic drive interfaces
- Lubrication Method: High-performance grease lubrication for extended operation cycles
- Customization Capability: Supports custom ratios, mounting dimensions, output interfaces, and OEM/ODM development
