PLFS120 Precision Robotic Gearbox Product Description
High Rigidity Structure for Precision Robotic Motion
The PLFS120 Precision Robotic Gearbox is designed for advanced robotic systems.
It adopts an optimized planetary transmission structure for efficient power delivery.
The rigid housing design improves operational stability.
The compact structure simplifies integration into robot joints and automation equipment.
As a PLFS120 precision robotic gearbox for industrial robots, it is suitable for robotic arms, collaborative robots, smart manufacturing equipment, and precision motion platforms.
Stable output performance supports long-term operation.
Accurate control capability improves robotic efficiency.
Precision Manufacturing Ensures Reliable Transmission Performance
The PLFS120 uses high-strength alloy materials for key components.
The gears are manufactured through precision machining and strengthening processes.
Advanced gear grinding technology improves meshing accuracy.
Optimized gear design reduces operating noise and vibration.
As a PLFS120 low backlash planetary gearbox for motion control, it provides accurate positioning and fast response performance.
High-quality bearings enhance load capacity.
Professional assembly procedures ensure consistent performance.
Efficient Solution for Robotic Automation Applications
The PLFS120 is widely used in industrial robots and automated production systems.
It supports welding robots, handling robots, and assembly robots.
High torque output handles demanding motion tasks.
Excellent repeatability improves manufacturing precision.
As a PLFS120 robotic gearbox for servo motor applications, it integrates with various servo drive systems.
Reliable transmission extends equipment service life.
Flexible design supports different operating environments.
Customized Services for Diverse Industrial Requirements
The PLFS120 supports various gear ratios and mounting interfaces.
The input structure can be adjusted for different motor models.
Output shaft designs can meet special equipment requirements.
Professional engineers provide application-based technical support.
OEM and ODM production services are available.
The PLFS120 helps global machine builders develop high-performance robotic motion systems.

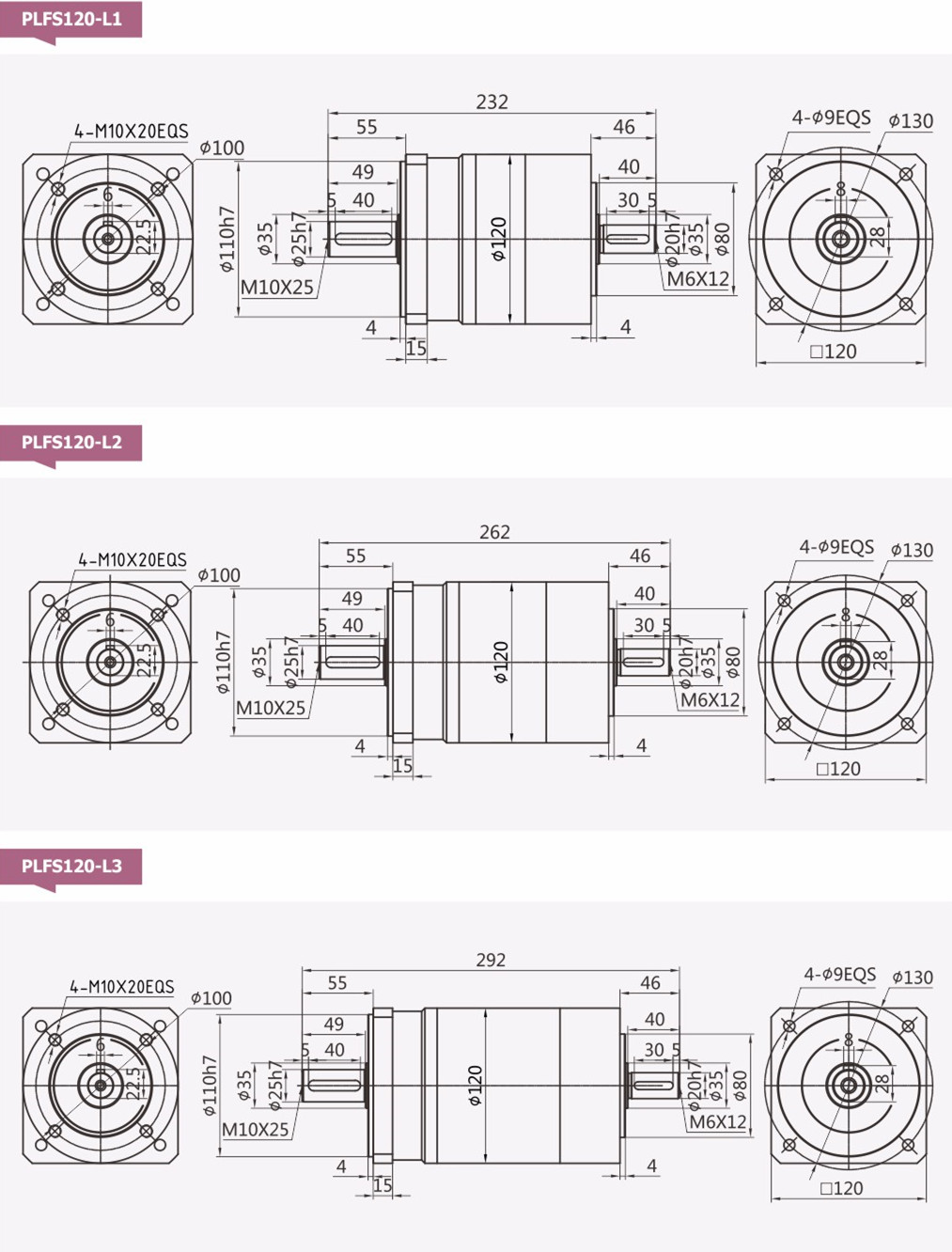

PLFS120 Precision Robotic Gearbox Specifications
General Information
- Product Name: PLFS120 Precision Robotic Gearbox
- Model Number: PLFS120
- Product Type: High-rigidity planetary gearbox designed for robotic applications
- Transmission Structure: Precision inline planetary gear transmission system
- Product Positioning: Precision power transmission component for industrial robots, automation equipment, and smart manufacturing systems
- Compatible Drives: Servo motors, brushless motors, and closed-loop stepper motors
- Typical Applications: Six-axis robots, robotic arms, collaborative robots, welding robots, handling robots, and automated production lines
Mechanical Specifications
- Frame Size: 120 mm series structural design
- Housing Material: High-strength aluminum alloy or alloy steel construction for heavy-duty operation
- Gear Material: Premium alloy steel with carburizing and hardening treatment
- Gear Processing: Precision grinding technology for smooth and accurate engagement
- Output Design: Rigid solid output shaft with customizable interfaces
- Bearing System: Precision bearings for stable rotation and impact resistance
- Sealing Structure: Multi-layer sealing design for long-term industrial operation
Performance Specifications
- Gear Ratio Range: 3:1, 4:1, 5:1, 7:1, 10:1 and combined ratios from 15:1 to 100:1
- Rated Output Torque: 150–600 N·m depending on ratio and configuration
- Backlash: ≤8 arcmin standard, precision version available up to ≤5 arcmin
- Transmission Efficiency: ≥97% for single-stage operation with high-efficiency output
- Maximum Input Speed: 6000 rpm
- Operating Features: High rigidity, low vibration, low noise, and excellent repeatability
- Service Life: Designed for continuous industrial working conditions
Manufacturing & Service Specifications
- Manufacturing Equipment: CNC machining centers and automated assembly systems
- Inspection Items: Backlash measurement, torque testing, noise inspection, and endurance testing
- Protection Rating: IP54 standard with higher protection options available
- Operating Temperature: -20°C to +90°C
- Mounting Method: Flange mounting compatible with various robotic drive systems
- Customization Service: Supports special ratios, shaft dimensions, flange designs, and OEM/ODM development
