PLX42 Square Flange Planetary Gearbox Product Description
Compact Design for Precision Automation Transmission
The PLX42 Square Flange Planetary Gearbox is designed for limited installation spaces.
It adopts a unique square flange structure for flexible equipment integration.
The compact housing and precision planetary transmission provide stable power output.
This gearbox is suitable for servo motors, automation equipment, and precision machinery systems.
As a PLX42 square flange planetary gearbox for servo motors, it delivers accurate speed control and reliable torque transmission.
The optimized structure simplifies installation processes.
It also improves overall equipment efficiency.
Precision Manufacturing Ensures Reliable Performance
The PLX42 uses high-strength alloy materials for critical transmission components.
The internal gears are processed through precision machining and heat treatment.
Advanced tooth surface finishing reduces transmission errors.
The optimized planetary gear design improves load distribution capability.
As a PLX42 low backlash precision planetary gearbox, it is ideal for high-accuracy motion control applications.
Precision bearings enhance rotational stability.
Multi-layer sealing improves industrial environment adaptability.
Designed for Industrial Automation Applications
The PLX42 is widely used in robotic auxiliary systems and smart manufacturing equipment.
It supports packaging machines, CNC equipment, and automated production lines.
Stable transmission performance meets continuous operation requirements.
Low vibration operation improves equipment quality.
As a PLX42 compact planetary gearbox for automation equipment, it provides high-performance transmission for compact machinery.
Flexible interfaces simplify motor integration.
It helps customers improve mechanical system competitiveness.
Customized Solutions for Different Industries
The PLX42 supports customized ratios and mounting structures.
Input interfaces can be modified according to different motor models.
Output configurations can meet special equipment requirements.
Professional engineers provide application-based technical support.
OEM and ODM mass production services are available.
The PLX42 provides reliable precision transmission solutions for global machine builders.

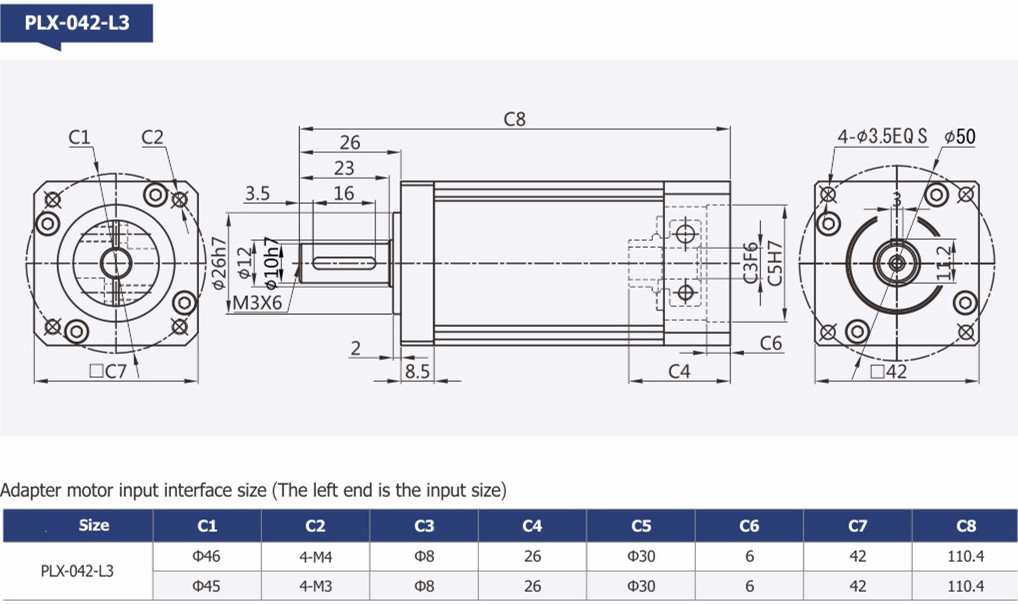

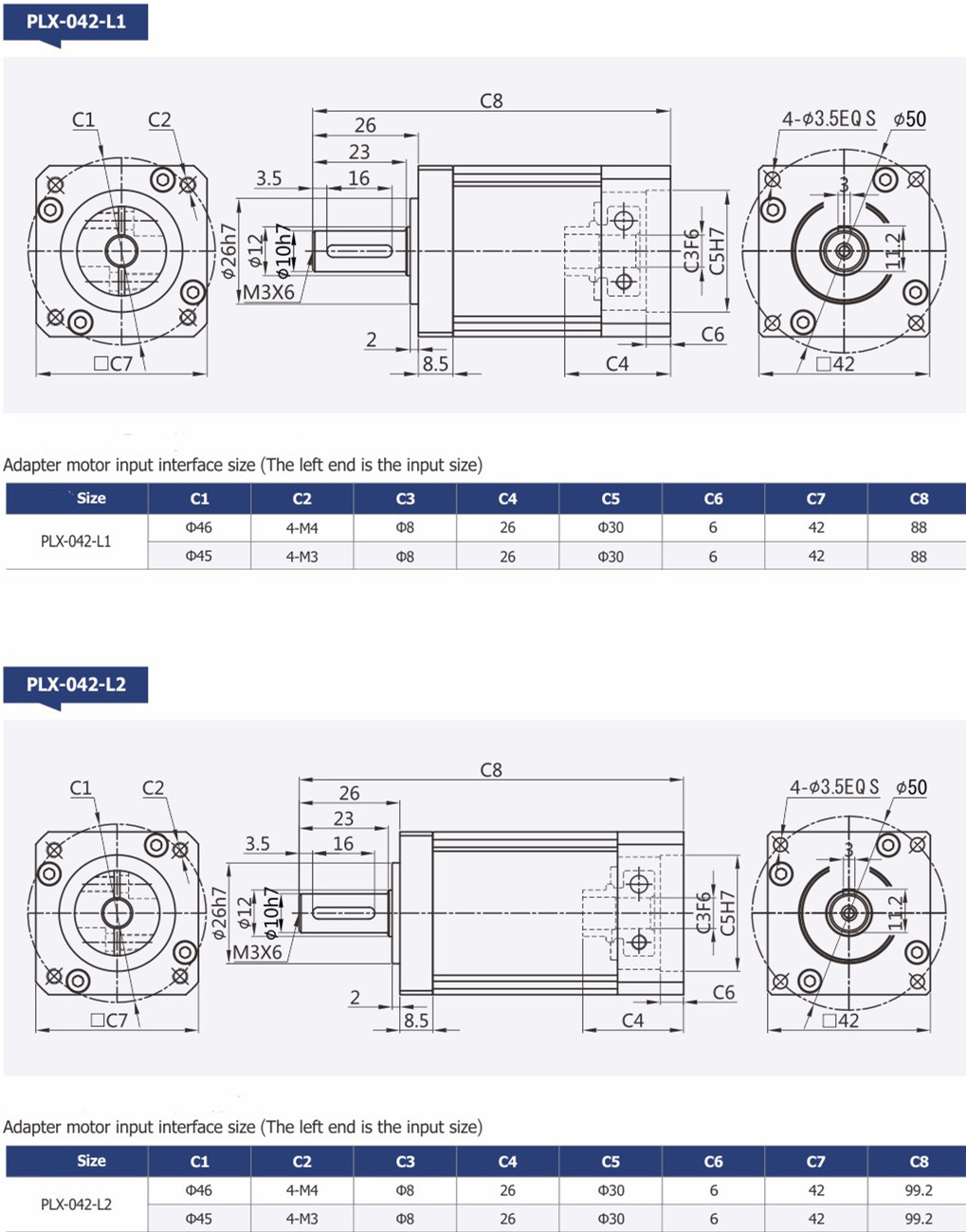

PLX42 Square Flange Planetary Gearbox Specifications
Product Basic Information
- Product Name: PLX42 Square Flange Planetary Gearbox
- Model Number: PLX42
- Product Type: Compact precision planetary gearbox
- Transmission Design: Inline planetary gear structure with square flange mounting design
- Main Function: Converts high-speed motor rotation into higher torque output with improved motion control accuracy
- Compatible Equipment: Servo motors, stepper motors, automated actuators, and precision machinery
- Applications: CNC machines, robotic auxiliary systems, packaging equipment, electronic manufacturing equipment, and automation lines
Mechanical Specifications
- Frame Size: 42mm compact housing design for space-limited applications
- Mounting Flange: Standard square flange structure for stable equipment integration
- Gear Material: High-strength alloy steel with carburizing and hardening treatment
- Housing Material: Rigid metal alloy structure for improved load resistance
- Gear Processing: Precision grinding technology for accurate meshing and smooth transmission
- Output Design: High-rigidity shaft output with customized interface options
- Bearing System: Precision ball bearings for enhanced accuracy and service life
Performance Specifications
- Gear Ratio Range: 3:1 to 100:1, selectable according to application requirements
- Rated Output Torque: 10–50 N·m depending on ratio and configuration
- Backlash: ≤10 arcmin standard, with precision options available
- Transmission Efficiency: Up to 95% efficiency in single-stage operation
- Input Speed: Maximum input speed up to 4000–5000 rpm
- Operating Features: Low noise, low vibration, fast response, and stable transmission
- Control Accuracy: Suitable for precision positioning in automation systems
Environmental Features & Customization
- Protection Design: Sealed structure for long-term industrial operation
- Operating Temperature: -20°C to +90°C
- Lubrication Method: High-performance grease for extended maintenance intervals
- Mounting Method: Square flange mounting for easy machine integration
- Inspection Items: Backlash testing, noise analysis, torque testing, and lifetime verification
- Customization Service: Supports special ratios, mounting dimensions, shaft designs, and OEM/ODM development
