Description

PLFK160 Industrial Gearbox Product Description

Built for Heavy-Duty Industrial Power Transmission

The PLFK160 Industrial Gearbox is engineered for demanding power transmission applications.
It features a large-frame precision planetary gear structure.
The optimized transmission path improves torque delivery efficiency.
A high-rigidity housing enhances overall impact resistance.
As a PLFK160 industrial gearbox for heavy duty automation equipment, it is widely used in automated production lines, metallurgical machinery, logistics systems, and large industrial equipment.
Stable power output supports continuous and reliable operation.
Its compact configuration helps maximize installation efficiency.

Precision Manufacturing Ensures Reliable Performance

The PLFK160 uses premium alloy steel for critical transmission components.
Every gear is manufactured through precision CNC machining.
Advanced heat treatment increases surface durability.
Precision gear grinding minimizes transmission errors.
As a PLFK160 high torque planetary gearbox for servo motor systems, it fully supports high-performance servo drive applications.
High-precision bearings reduce mechanical friction.
Consistent transmission accuracy is maintained during extended operation.

High Efficiency for Demanding Industrial Applications

The PLFK160 delivers outstanding load-carrying capability.
The reduction mechanism provides smooth and stable power transmission.
The low-backlash design improves motion control precision.
High efficiency helps reduce overall energy consumption.
As a PLFK160 precision gearbox for industrial motion control, it is suitable for robotic systems, CNC machines, packaging equipment, and automated workstations.
Continuous torque output supports demanding production environments.
Its durable construction minimizes maintenance downtime.

Flexible Customization for Advanced Equipment

The PLFK160 supports multiple input flange configurations.
It is compatible with various servo and stepper motor brands.
Gear ratios and output structures can be customized.
Special shaft dimensions and mounting interfaces are available.
OEM and ODM manufacturing services support global equipment builders.
Professional engineering teams provide complete technical assistance.
The gearbox helps manufacturers achieve reliable and efficient transmission upgrades.

PLFK160 Industrial Gearbox Specifications

General Information

Product Name: PLFK160 Industrial Gearbox
Model: PLFK160
Product Type: Precision flange-output planetary gearbox
Transmission Structure: Inline high-rigidity planetary transmission system
Output Design: Flange output for high-torque power transmission
Compatible Motors: AC servo motors, closed-loop stepper motors, and brushless DC motors
Typical Applications: Robotics, CNC machine tools, automated production lines, heavy-duty conveyor systems, packaging equipment, and smart manufacturing solutions

Mechanical Structure Specifications

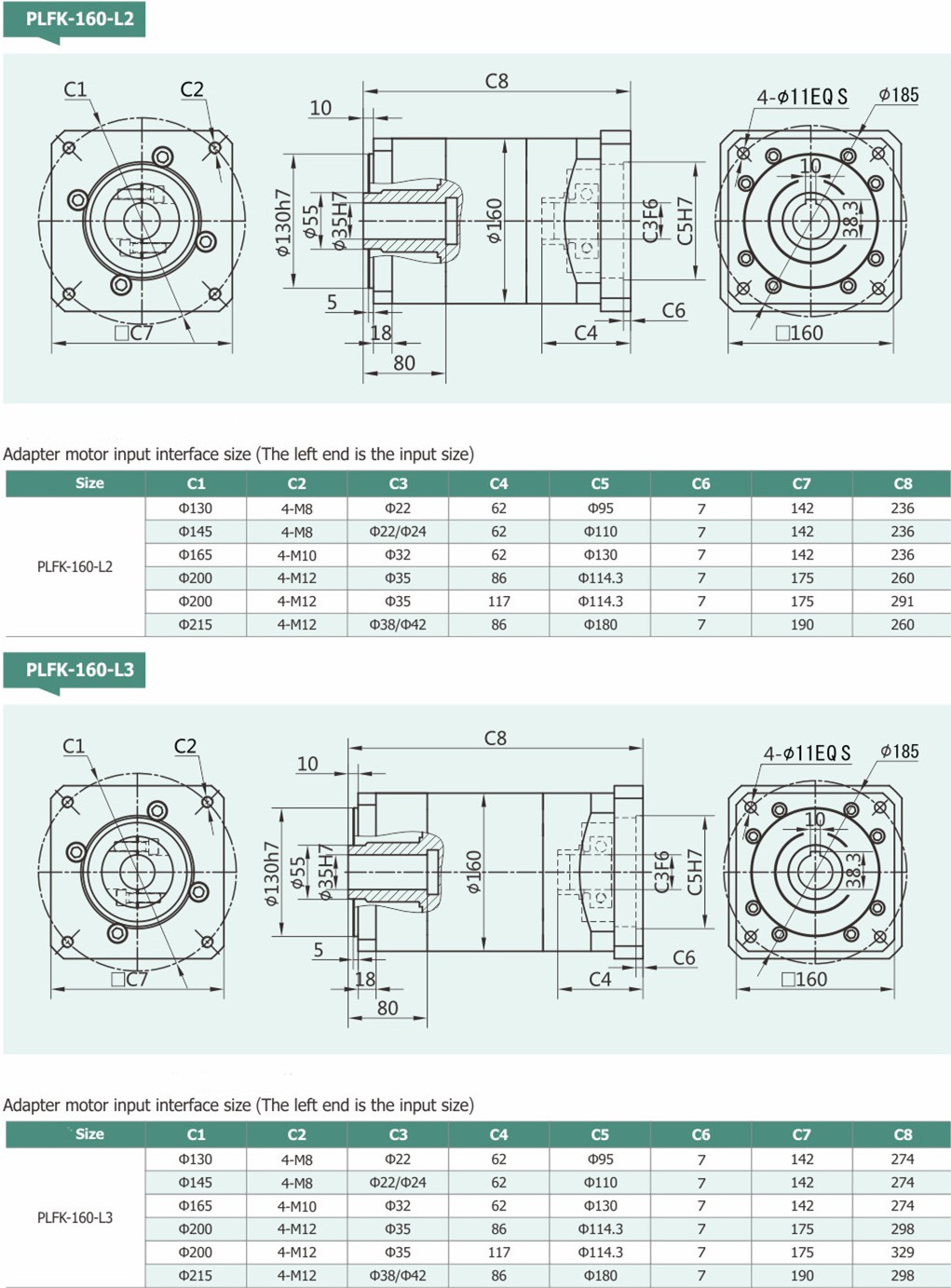

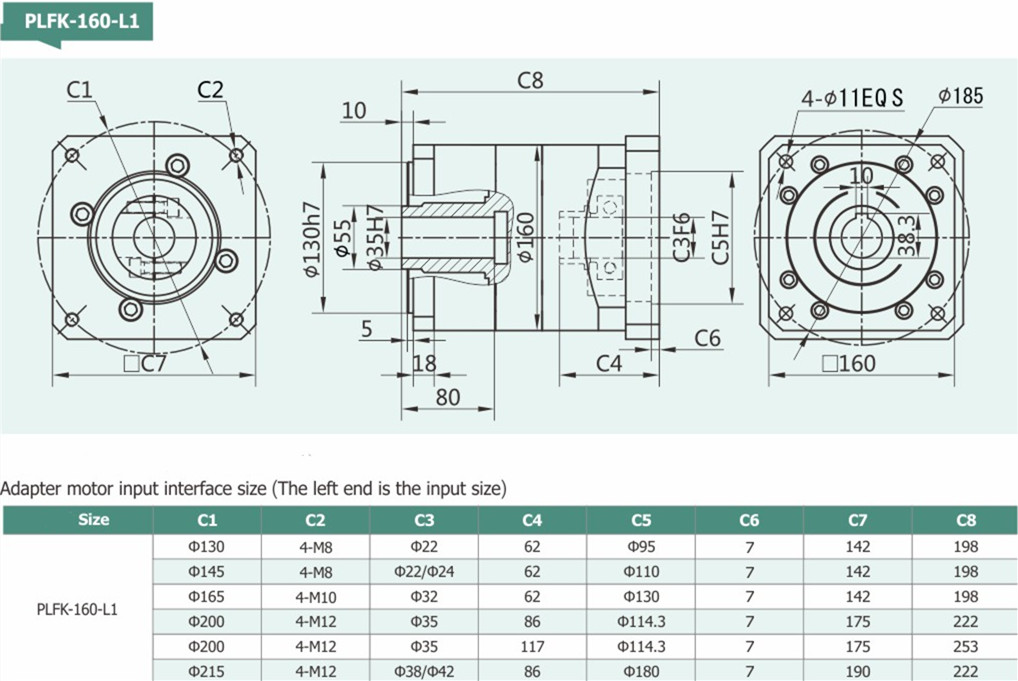

Frame Size: 160 mm standard flange configuration
Housing Material: Aerospace-grade aluminum alloy for lightweight strength and excellent rigidity
Gear Material: 20CrMnTi alloy steel with carburizing, hardening, and precision gear grinding
Output Shaft Material: Hardened alloy steel for superior fatigue resistance
Bearing System: High-precision rolling bearings with enhanced radial and axial load capacity
Lubrication: Fully sealed long-life lubrication system for reduced maintenance
Sealing Design: Dual industrial sealing system to prevent dust ingress and lubricant leakage

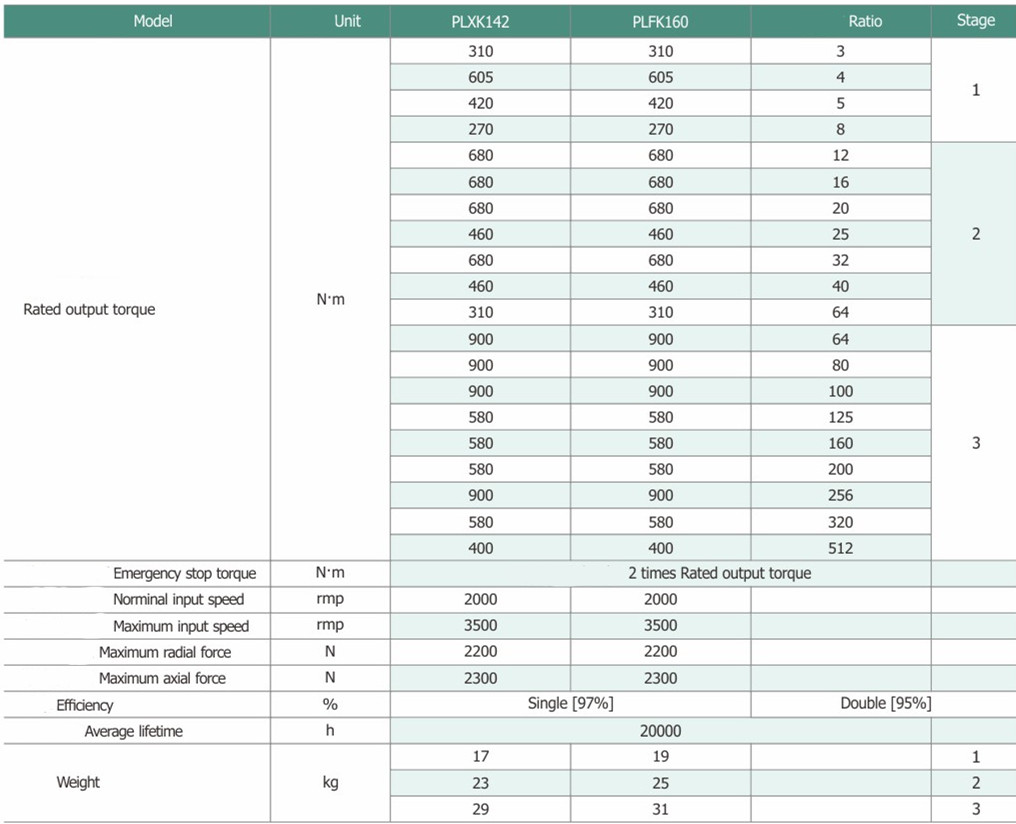

Transmission Performance

Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1 (single stage); 12:1–100:1 (dual-stage options)
Rated Output Torque: 200–1000 N·m, depending on gear ratio
Peak Output Torque: Up to 1500 N·m
Backlash: ≤5 arcmin, optional precision version ≤3 arcmin
Maximum Input Speed: 6000 rpm
Recommended Input Speed: 3000 rpm
Transmission Efficiency: ≥97% (single stage), ≥94% (dual stage)
Performance Features: High torque, low backlash, high rigidity, low vibration, and quiet operation

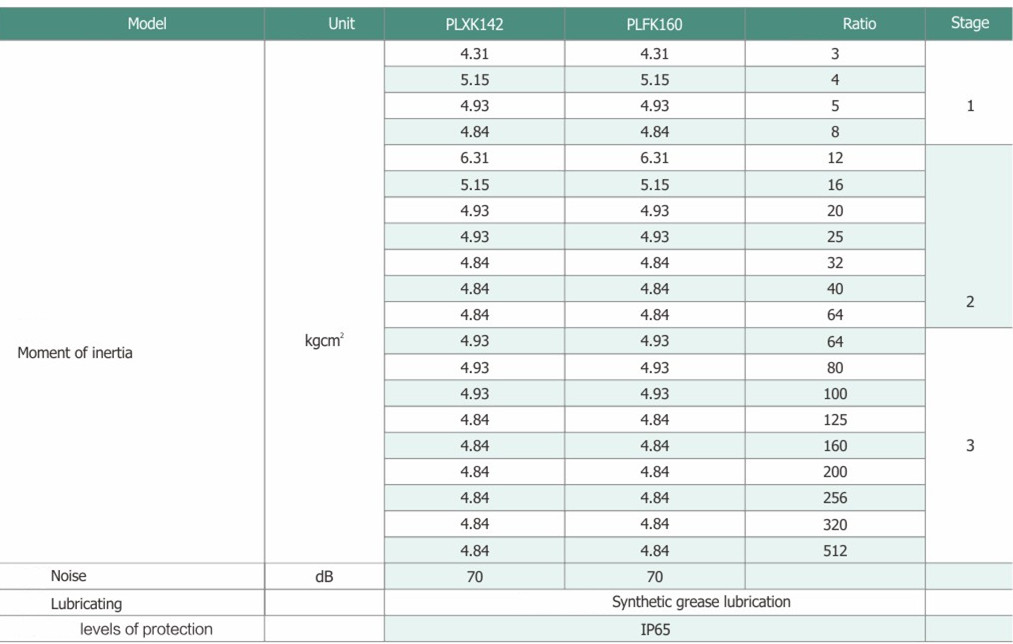

Operating Conditions & Quality Assurance

Operating Temperature: -20°C to +90°C
Protection Rating: IP65, with optional enhanced protection
Duty Cycle: Continuous (S1) and intermittent operation
Noise Level: ≤60 dB under rated conditions
Expected Service Life: More than 20,000 operating hours under normal condition
Manufacturing Process: Precision CNC machining with 100% inspection of torque, backlash, noise, and concentricity before shipment
Custom Services: OEM, ODM, custom gear ratios, special flanges, input shafts, and output interfaces available
