PLXK142 Transmission Gearbox Product Description

High-Rigidity Right-Angle Transmission Solution

The PLXK142 Transmission Gearbox is developed for demanding industrial transmission applications.
It features a high-strength right-angle transmission structure.
The design enables efficient power conversion in limited installation spaces.
Optimized gear arrangements improve transmission stability.
As a PLXK142 right angle transmission gearbox for industrial automation, it is suitable for automation lines, robotic equipment, conveyor systems, and smart manufacturing machines.
Stable output performance supports long-term continuous operation.
The compact structure allows more flexible mechanical system layouts.

Precision Manufacturing for Reliable Transmission

The PLXK142 uses premium alloy materials for critical transmission components.
Key gears are manufactured through precision machining and strengthening processes.
Accurate assembly technology reduces mechanical errors.
The optimized internal structure improves overall rigidity.
As a PLXK142 high torque gearbox for servo motor applications, it works effectively with high-performance servo drive systems.
The reduction mechanism delivers smooth power transmission.
It also helps reduce vibration and operating noise.

Designed for Heavy-Duty Industrial Equipment

The PLXK142 Transmission Gearbox provides excellent torque handling capability.
It is suitable for frequent start-stop cycles and dynamic load conditions.
The high-efficiency transmission design reduces energy loss.
The low-backlash structure improves motion control accuracy.
As a PLXK142 precision transmission gearbox for robotic systems, it is widely used in robotic auxiliary equipment, CNC machines, packaging machinery, and automated work platforms.
Reliable performance helps improve equipment productivity.
The durable design extends the service life of complete systems.

Flexible Customization for Various Applications

The PLXK142 supports multiple mounting configurations and interface designs.
The gearbox can be optimized according to different equipment requirements.
Customized gear ratios, output structures, and connection methods are available.
Professional engineers provide complete transmission solutions.
The product meets standard industrial requirements.
It also supports special machinery development projects.
OEM and ODM services help global customers upgrade their equipment efficiently.

PLXK142 Transmission Gearbox Specifications

General Information

Product Name: PLXK142 Transmission Gearbox
Model: PLXK142
Product Type: Precision right-angle transmission gearbox
Transmission Structure: Right-angle output design with high-rigidity gear transmission mechanism
Main Applications: Industrial automation, robotic equipment, CNC machines, conveyor systems, and smart manufacturing machinery
Compatible Drives: Servo motors, stepper motors, and automated motion systems

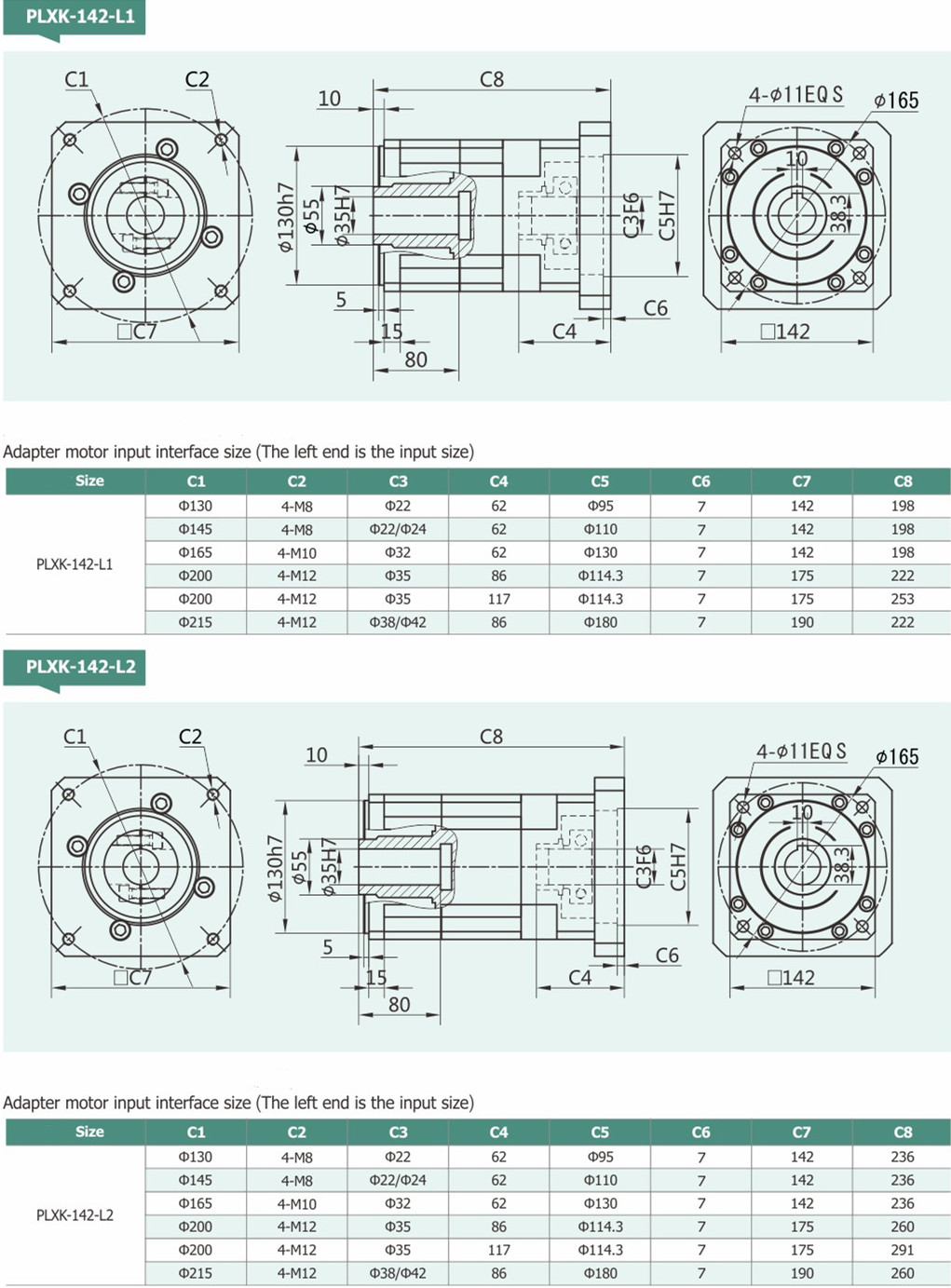

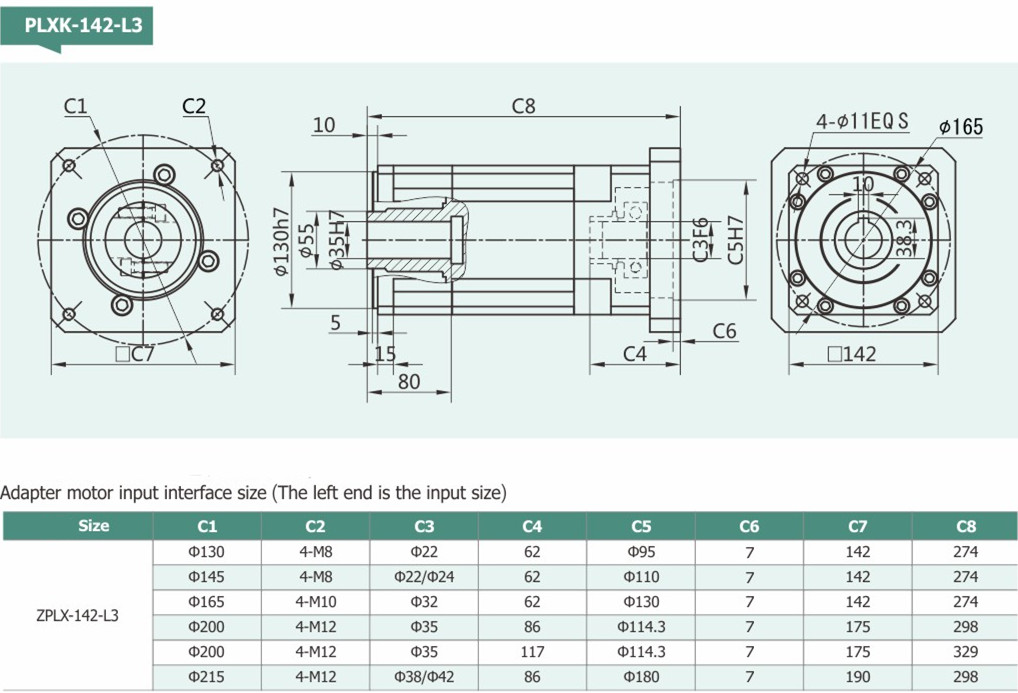

Mechanical Structure Specifications

Frame Size: 142 mm compact structural design
Mounting Method: Flange mounting with flexible installation orientations
Input Interface: Supports multiple motor connection configurations
Output Design: Right-angle output shaft structure for space-limited equipment
Housing Material: High-strength aluminum alloy for improved rigidity and heat dissipation
Gear Material: Premium alloy steel with heat treatment for enhanced wear resistance
Bearing System: High-precision bearings for stable and smooth operation
Sealing Structure: Industrial-grade sealing design against dust and lubricant leakage

Transmission Performance Parameters

Gear Ratio Range: 3:1–100:1, customizable according to application requirements
Rated Output Torque: 150–800 N·m depending on gear ratio
Peak Output Torque: Up to 1000 N·m
Backlash: ≤8 arcmin, optimized precision version available
Efficiency: Up to 95%
Maximum Input Speed: 4000 rpm
Operating Features: High torque output, low vibration, and stable transmission
Load Capability: Suitable for continuous operation and dynamic load conditions

Manufacturing & Quality Control

Core components produced through precision CNC machining
Gears processed with carburizing and hardening technology
Accurate assembly ensures consistent transmission performance
Key inspections include torque, noise, backlash, and efficiency testing
Long-life lubrication design reduces maintenance requirements
OEM, ODM, and customized structural solutions are supported

Operating Conditions

Operating Temperature: -20°C to +90°C
Protection Rating: IP54 standard, IP65 upgrade available
Duty Mode: Continuous or intermittent operation
Noise Level: ≤65 dB
Service Life: More than 20,000 hours under standard conditions
Suitable Environment: Industrial automation and precision machinery applications
