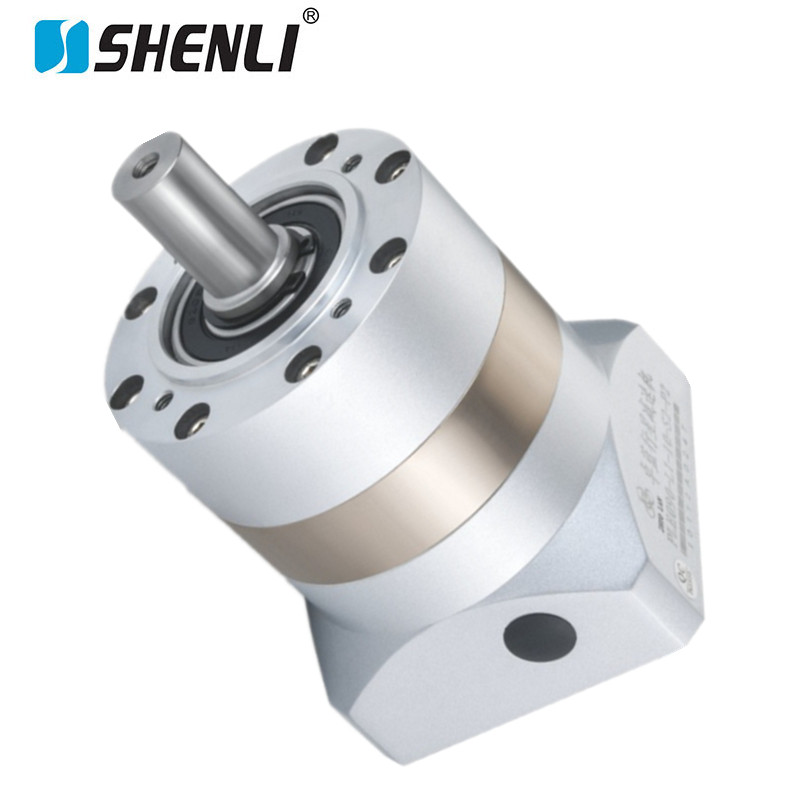

China PLE90 Precision Servo Planetary Gearbox Supplier

Description

Precision Power Transmission for High-Load Servo Systems

The PLE90 Servo Planetary Gearbox is developed for high-performance servo drive systems.
It features an optimized planetary gear transmission structure.
The design combines high torque output with precise motion control.
Its rigid housing minimizes deformation under heavy loads.
Low backlash improves repeatable positioning accuracy.
As a PLE90 servo planetary gearbox for industrial automation equipment, it is widely used in robotics, CNC machinery, and smart manufacturing systems.
High transmission efficiency reduces energy loss.
Stable power delivery supports continuous industrial operation.
It performs reliably in high-speed and heavy-duty environments.

Precision Manufacturing for Long-Term Reliability

The PLE90 uses premium alloy steel for its core gears.
Every gear is precision hobbed and ground.
Critical components receive carburizing and heat treatment.
The hardened gear surface improves wear resistance.
As a PLE90 low backlash servo planetary gearbox for robotic applications, it provides outstanding transmission accuracy.
High precision bearings reduce rotational resistance.
Optimized gear engagement minimizes vibration and noise.
Precision coaxial assembly enhances operating stability.
The gearbox is designed for demanding production environments.

Flexible Solution for Advanced Automation

The PLE90 is compatible with a wide range of AC servo motors.
Multiple flange sizes and input shaft options are available.
Standard mounting dimensions simplify equipment integration.
Various gear ratios support different motion requirements.
As a PLE90 precision planetary gearbox for CNC machines and servo motors, it is widely applied in robotic joints, CNC machining centers, laser systems, lithium battery production lines, and semiconductor equipment.
The rigid output structure improves dynamic performance.
Lifetime lubrication reduces maintenance requirements.
OEM and ODM services support customized automation projects.

PLE90 Servo Planetary Gearbox Specifications

General Information

Product Name: PLE90 Servo Planetary Gearbox
Product Type: Precision servo planetary gearbox
Product Series: PLE High-Precision Planetary Gearbox Series
Transmission Type: Precision planetary gear transmission
Compatible Motors: AC servo motors and brushless servo motors
Typical Applications: Industrial robots, CNC machining centers, laser equipment, lithium battery machinery, semiconductor equipment, and automated production lines

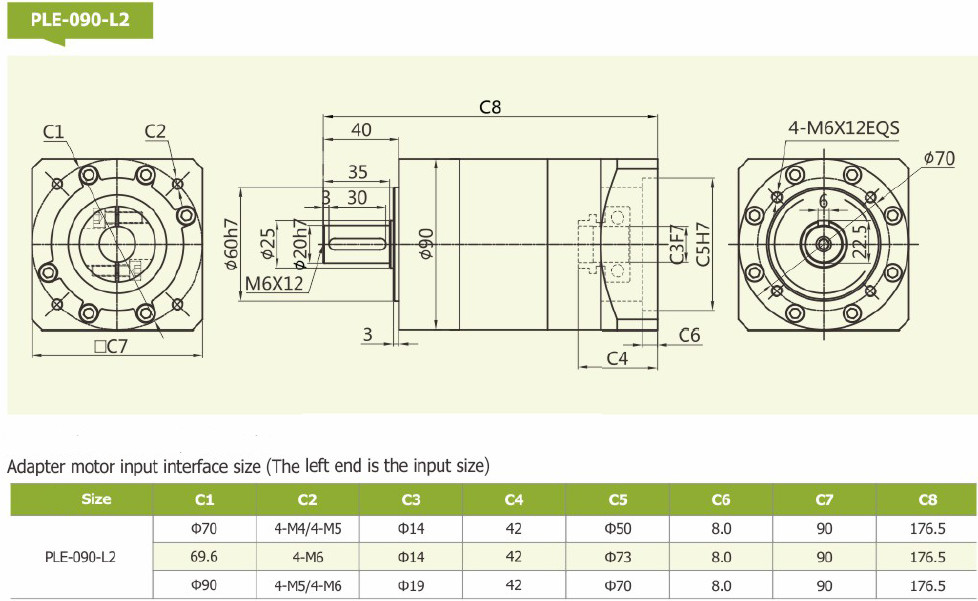

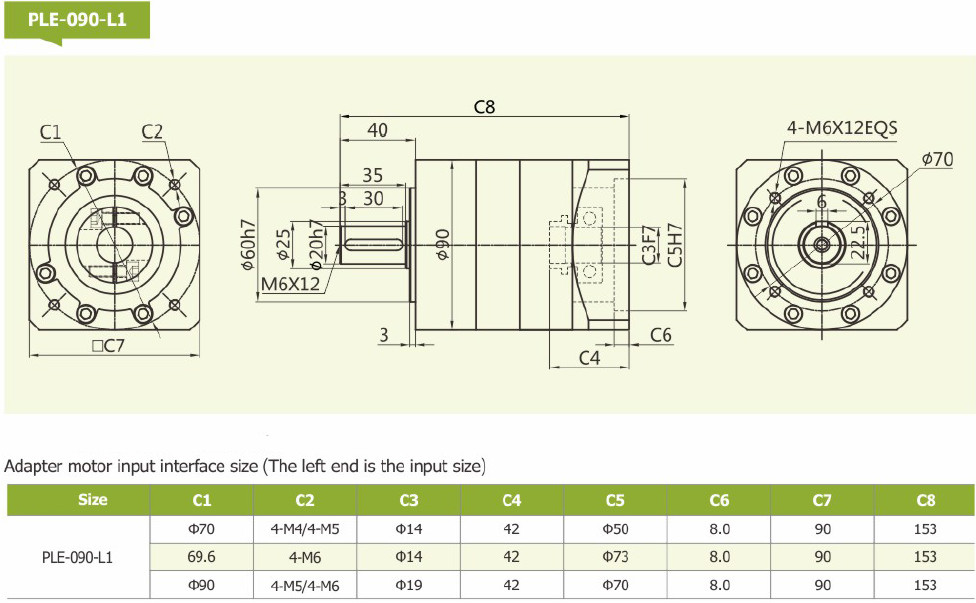

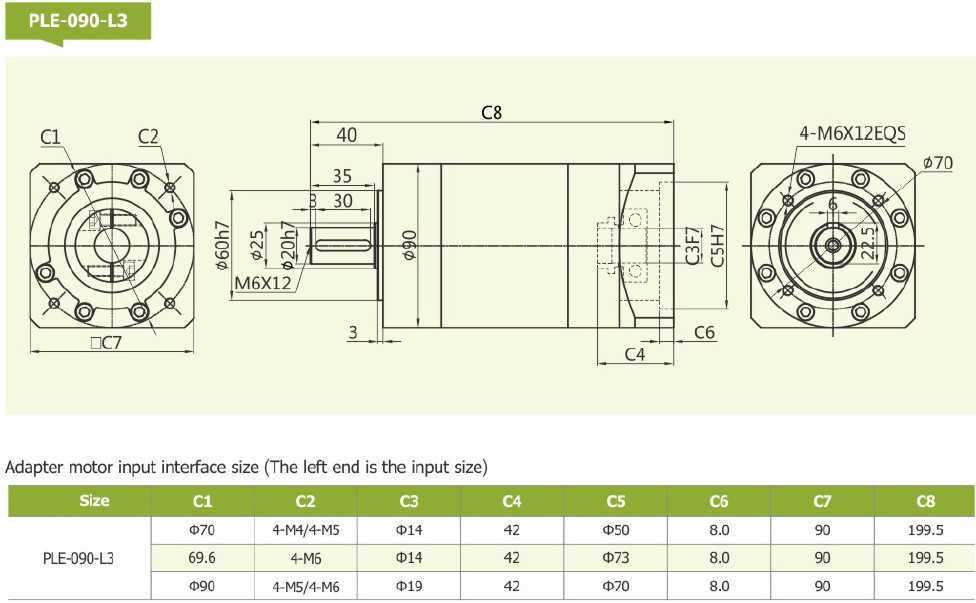

Structure & Dimensions

Frame Size: 90 mm
Input Mounting: Standard servo motor flange
Output Type: High-rigidity solid output shaft
Output Shaft: Standard keyed shaft with optional custom diameters
Housing Material: Integrated high-strength aluminum alloy housing
Gear Material: Premium 20CrMnTi alloy steel
Mounting Position: Flange mounting with multi-direction installation
Sealing Design: Industrial-grade dust-proof sealing structure

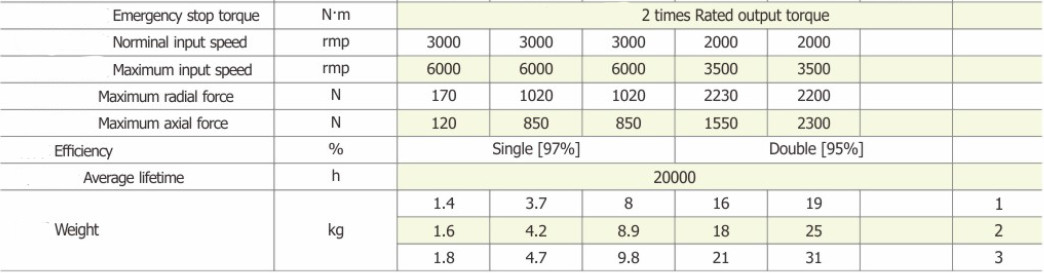

Transmission Performance

Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 70:1, and 100:1
Gear Stages: Single-stage and two-stage versions

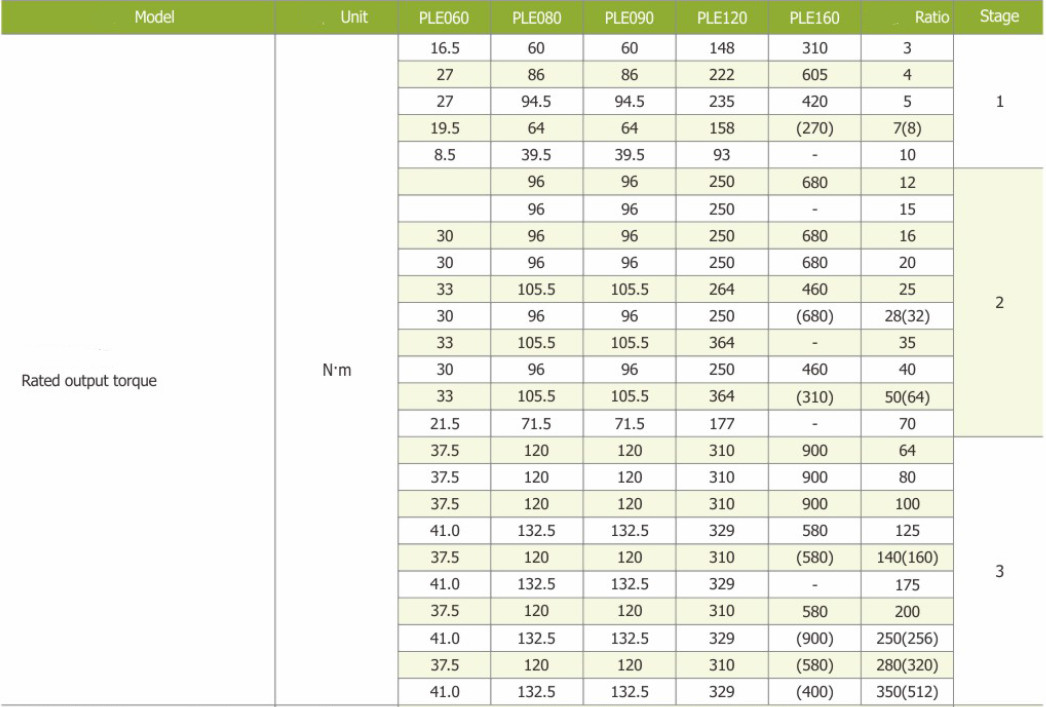

Rated Output Torque: 60–180 N·m
Maximum Peak Torque: 220 N·m
Backlash: ≤8 arcmin (single stage); ≤10 arcmin (two stage)
Transmission Efficiency: ≥97% (single stage); ≥94% (two stage)
Maximum Input Speed: 6000 rpm
Performance Features: Low vibration, high rigidity, low noise, and excellent repeatability
