AF140 Helical Gearbox Manufacturer

Industrial Transmission for Larger Automation Systems

The AF140 Helical Gearbox is developed for demanding industrial transmission applications.
Its helical gear geometry provides progressive contact between mating teeth.
This arrangement helps distribute mechanical forces during rotational transmission.
AF140 is suitable for machines requiring controlled speed and dependable torque delivery.
It can support continuous operation across various automated production environments.
The AF140 Industrial Helical Gearbox is suitable for material handling and mechanical processing equipment.
It also fits production lines requiring reliable rotary power transmission.

Servo Drive and Motion Control Integration

AF140 can be integrated with compatible servo motors and industrial drive systems.
Its reduction function converts motor speed into suitable output rotation.
This helps machinery achieve controlled movement without unnecessary transmission complexity.
The AF140 Helical Gearbox for Servo Motor suits positioning and indexing mechanisms.
It can also serve robotic equipment, CNC machinery, and automated handling systems.
Engineers can select suitable ratios according to the required machine operating conditions.
Motor compatibility should be confirmed according to the specific mechanical interface.

Precision Gear Manufacturing Process

Gear accuracy is essential for reliable gearbox operation and long-term performance.
AF140 transmission components undergo controlled machining and finishing procedures.
Gear tooth profiles are processed according to defined dimensional requirements.
Critical surfaces receive inspection before components enter final assembly.
Assembly procedures control shaft alignment, bearing positioning, and gear engagement.
Lubrication is introduced according to the gearbox operating requirements.
Finished gearboxes undergo inspection before delivery to customers.

Industrial Applications and Mechanical Advantages

AF140 provides a practical transmission option for larger industrial machinery.
It can support automated production equipment and material transfer systems.
Typical applications include packaging machinery, CNC equipment, conveyors, and robotic mechanisms.
The AF140 High Torque Helical Gearbox can serve applications requiring substantial mechanical transmission capacity.
Its helical configuration supports stable operation during repeated machine cycles.
This makes AF140 suitable for equipment requiring dependable speed reduction and torque transfer.

OEM Manufacturing and Customized Integration

Machine builders often require more than a standard gearbox configuration.
Motor dimensions, mounting interfaces, reduction ratios, and operating conditions may differ between projects.
The AF140 Helical Gearbox Manufacturer can support application-specific configuration requirements.
OEM customers can discuss motor matching and mechanical integration before production.
Custom solutions can help simplify gearbox installation within existing machine architectures.
AF140 is therefore suitable for automation integrators and industrial equipment manufacturers.
Technical consultation helps identify an appropriate transmission configuration for each application.

AF140 Helical Gearbox Parameters

Model: AF140 Helical Gearbox
Type: Precision Helical Gear Reducer
Transmission Stages: Single-stage and two-stage configurations
Available Ratios: 3, 4, 5, 7, 10, 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, and 100
Rated Output Torque: 240–585 N·m, depending on the selected ratio
Emergency Stop Torque: 3 times the rated output torque
Nominal Input Speed: 2,000 rpm
Maximum Input Speed: 3,500 rpm
Maximum Radial Force: 9,100 N
Maximum Axial Force: 8,200 N
Efficiency: 97% for single-stage; 95% for two-stage configurations
Average Lifetime: 20,000 hours
Weight: 16 kg for Stage 1; 18 kg for Stage 2
Moment of Inertia: 5.81–12.35 kg·cm², depending on the transmission ratio
Backlash: ≤3 arcmin for Precision 1; ≤5 arcmin for Standard 1; ≤5 arcmin for Precision 2; ≤7 arcmin for Standard 2
Torsional Rigidity: 50 N·m/arcmin
Noise Level: 68 dB
Lubrication: Synthetic grease lubrication
Protection Rating: IP65

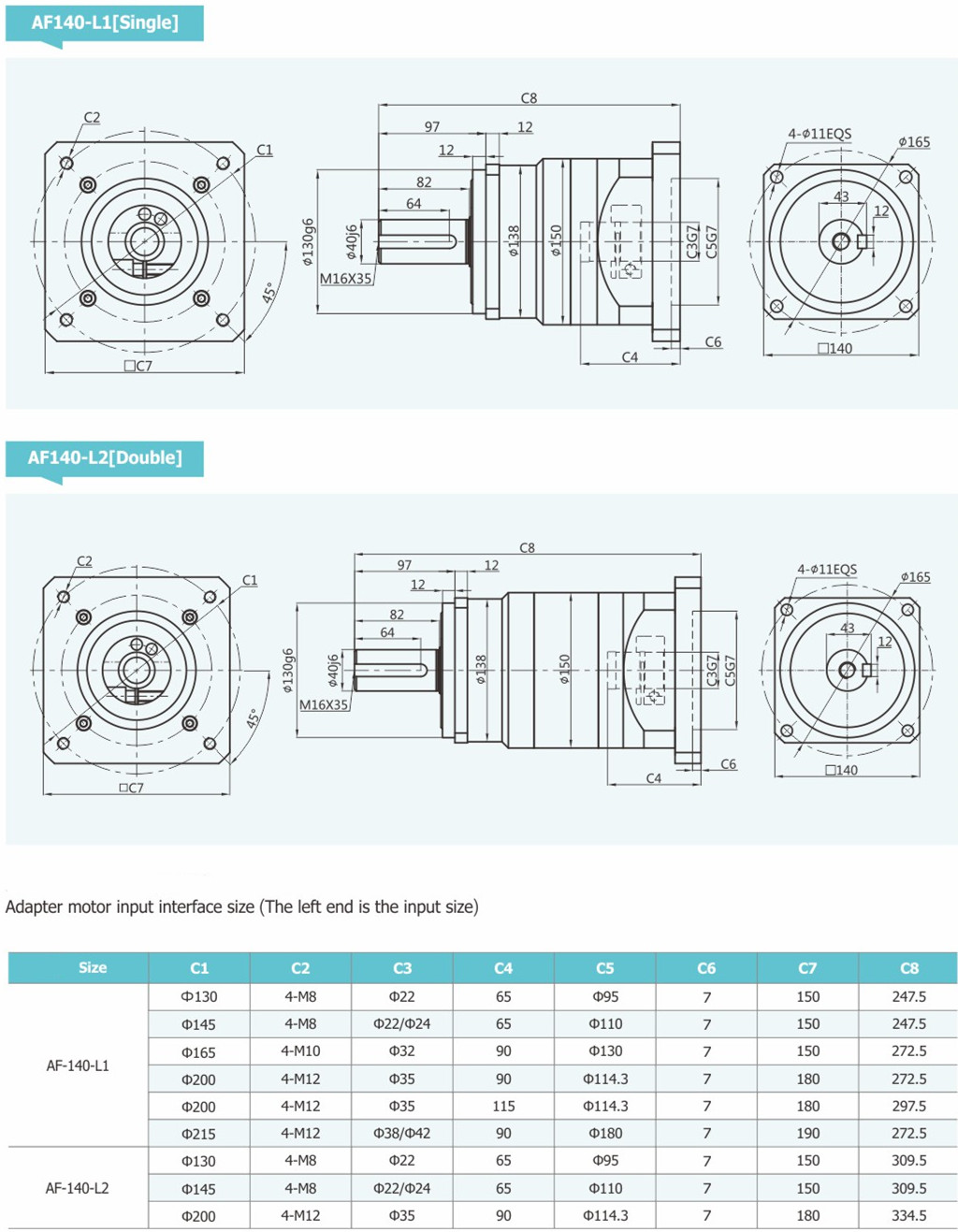

Dimensions: Mechanical dimensions and mounting interfaces are not specified in this table. Refer to the applicable AF140 dimensional drawing.
