Description

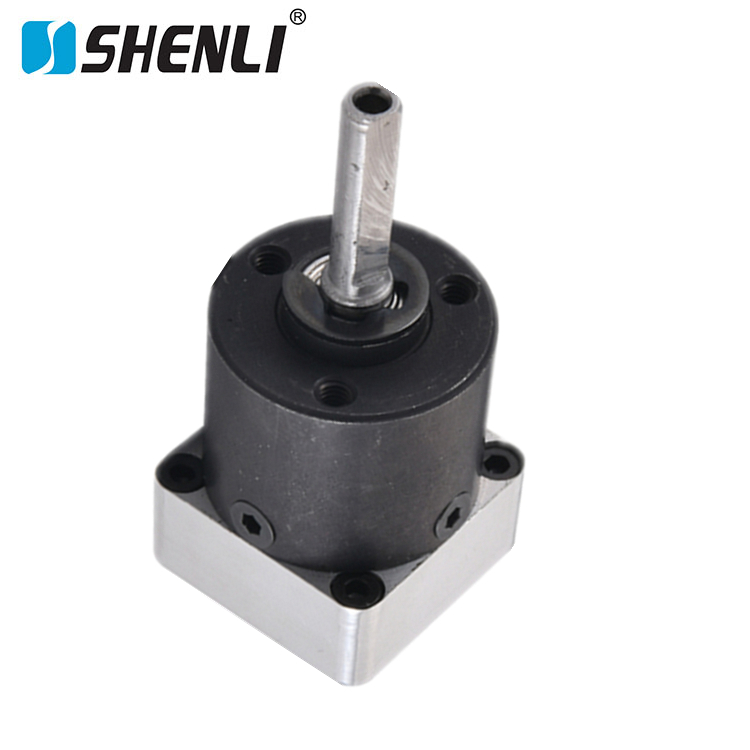

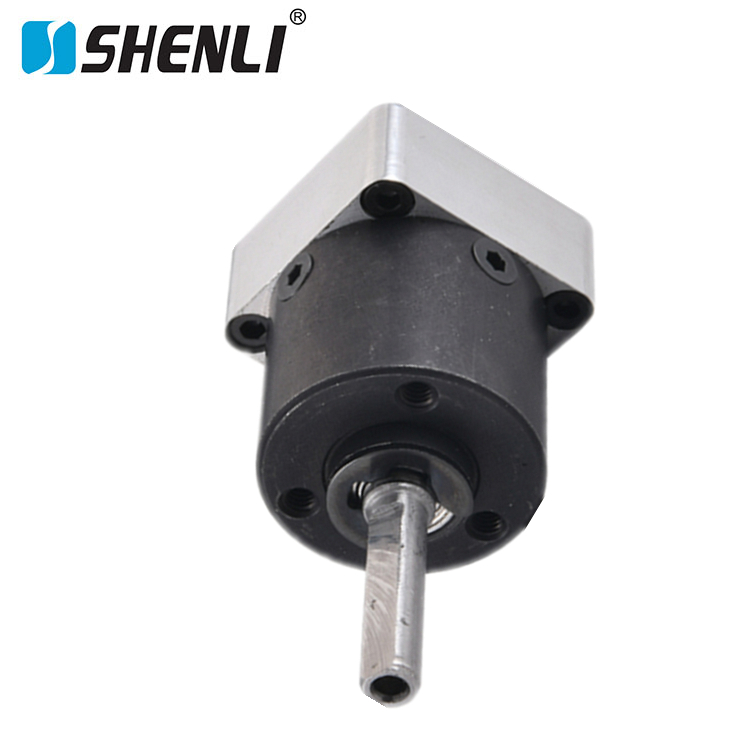

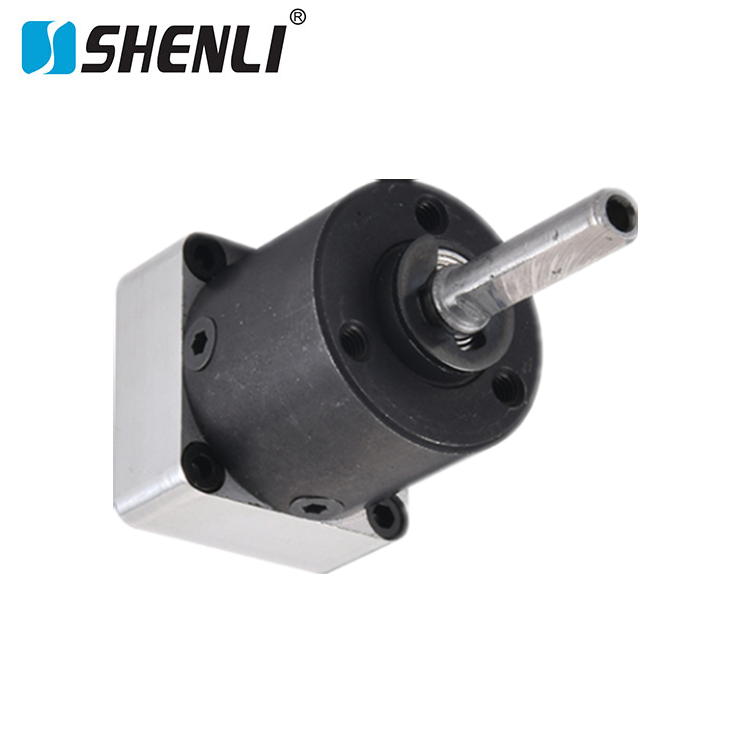

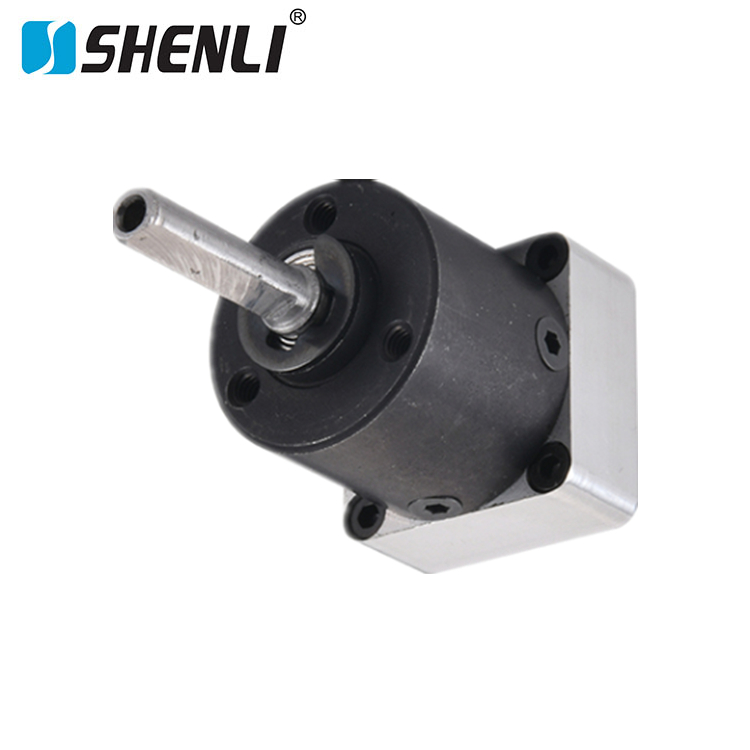

Precision Power Transmission for Compact Equipment
The DLE20 planetary reducer is design for compact automation equipment.
Its miniature size suits limited installation spaces.
The precision planetary gear structure ensures stable power transmission.
Torque output remains balanced and reliable.
As a DLE20 planetary reducer for precision automation equipment,
it improves overall operating accuracy.
Transmission errors are effectively reduce.
Motion control becomes smoother and more efficient.
It is ideal for intelligent instruments and precision machinery.
The optimized design reduces overall weight.
Installation becomes easier and faster.
It supports the evolving needs of miniature equipment.
Low Backlash Design for Accurate Positioning
The DLE20 uses high-precision gear machining technology.
Each gear undergoes strict inspection procedures.
Consistent meshing accuracy is maintain.
The gearbox operates smoothly and efficiently.
As a DLE20 low backlash planetary reducer for motion control systems,
it delivers excellent repeat positioning performance.
It meets demanding motion control requirements.
It is suitable for inspection equipment and automation platforms.
Operational stability is significantly improve.
The optimized tooth profile reduces vibration.
Noise levels remain exceptionally low.
Overall equipment quality is enhance.
Premium Manufacturing for Long-Term Reliability
The DLE20 planetary reducer uses high-strength alloy steel gears.
Critical components receive advanced heat treatment.
Wear resistance is significantly improve.
Service life is extended under continuous operation.
As a DLE20 planetary gearbox for NEMA 11 stepper motor,
it provides efficient power matching.
Stepper system performance is enhance.
It adapts to long-term industrial applications.
Automated assembly ensures consistent product quality.
Every unit undergoes comprehensive performance testing.
Stable operation is guaranteed before shipment.
OEM and custom development services are available.
Typical Applications
Intelligent instruments.
Laboratory automation systems.
Miniature robotic drives.
Electronics manufacturing equipment.
Medical automation devices.
Precision conveying and positioning platforms.
Product Overview
- Product Name: DLE20 Planetary Reducer
- Product Type: Miniature Precision Planetary Gearbox
- Structure: Inline planetary gear transmission design
- Compatible Motors: NEMA 8, NEMA 11 stepper motors and miniature servo motors
- Mounting Type: Flange-mounted configuration

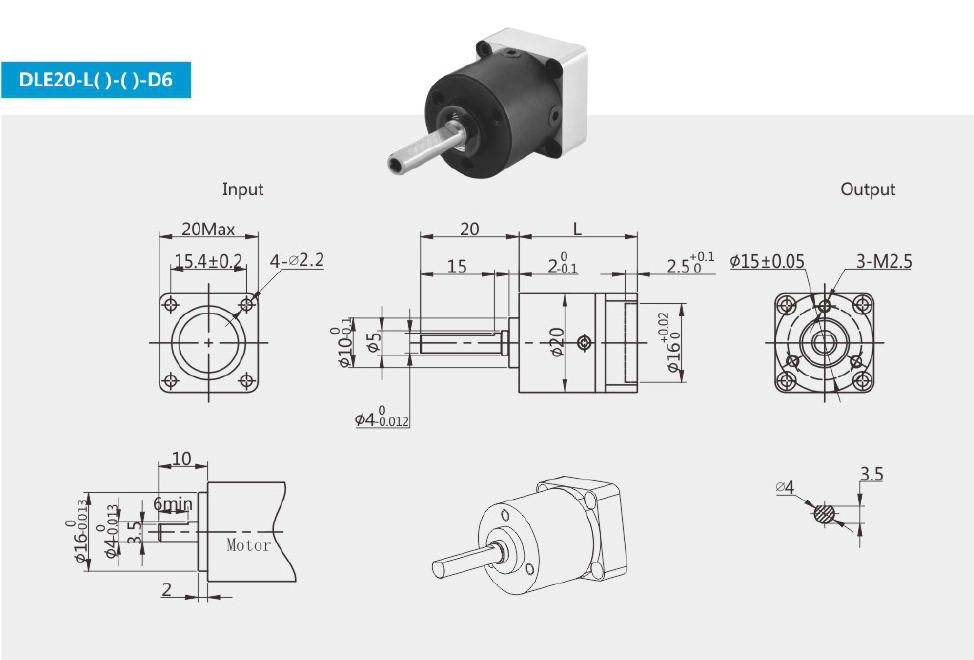

Dimensional Specifications
- Gearbox Diameter: 20 mm
- Output Shaft Diameter: Ø4 mm / Ø5 mm optional
- Shaft Type: Round shaft or D-cut shaft
- Overall Length: Varies according to gear ratio
- Weight: Approximately 50–120 g

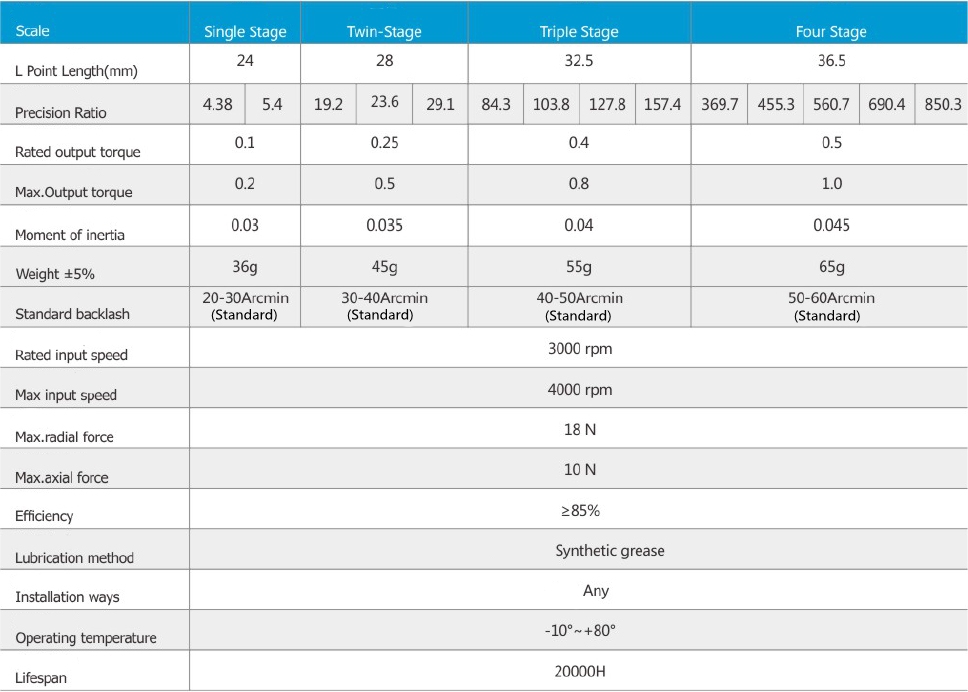

Transmission Specifications
- Gear Stages: Single-stage or two-stage versions
- Gear Ratios: 3:1, 4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 36:1, 50:1, 100:1
- Backlash: ≤15 arcmin
- Rated Output Torque: 0.2–3 N·m
- Peak Output Torque: 5 N·m
- Transmission Efficiency: ≥90% for single-stage models
- Output Rotation Direction: Same direction as input
Materials and Manufacturing
- Gear Material: High-strength alloy steel
- Gear Processing: Precision hobbing and grinding technology
- Housing Material: Lightweight aluminum alloy
- Bearing Type: Precision deep groove ball bearings
- Lubrication: Lifetime maintenance-free grease
Operating Conditions
- Operating Temperature: -20°C to +80°C
- Protection Rating: IP40
- Noise Level: ≤55 dB
- Service Life: ≥20,000 hours
- Duty Cycle: Suitable for continuous operation
Key Features
- Ultra-compact miniature design
- High-precision low-backlash transmission
- Excellent torque transmission capability
- Smooth operation with minimal vibration
- Ideal for precision motion control applications
