Description

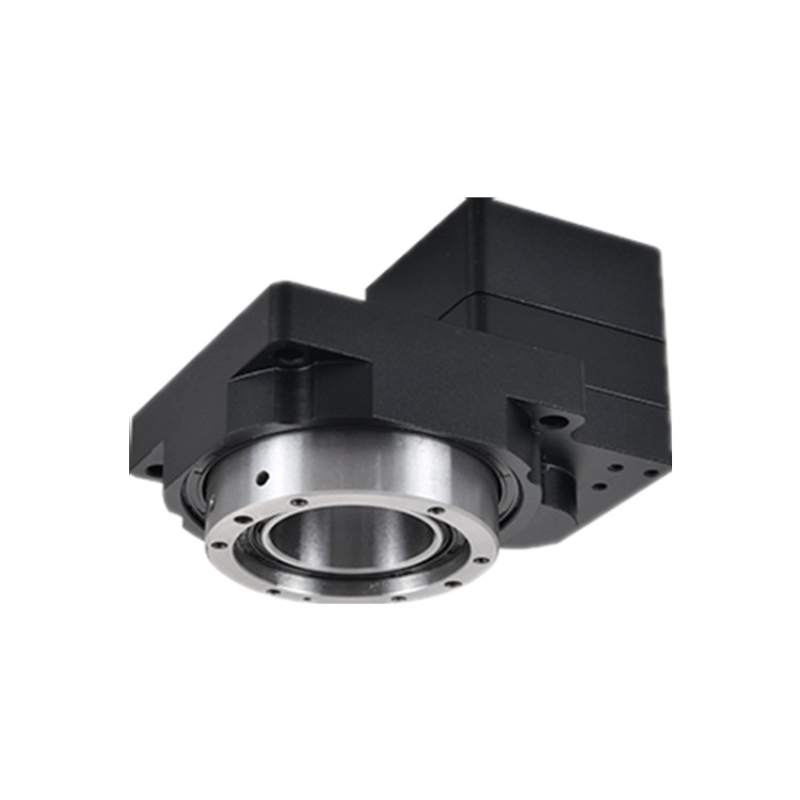

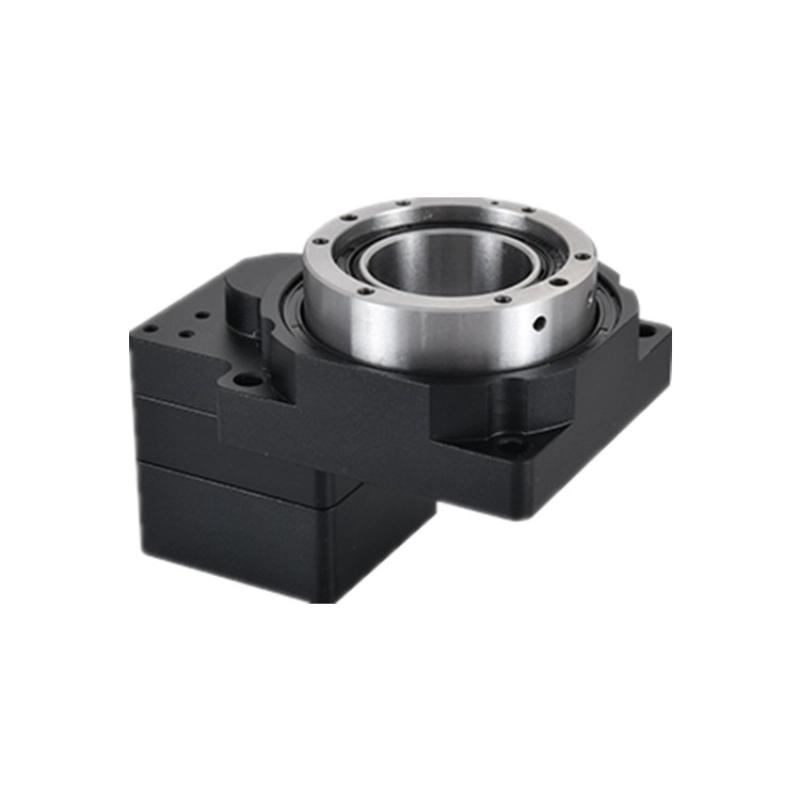

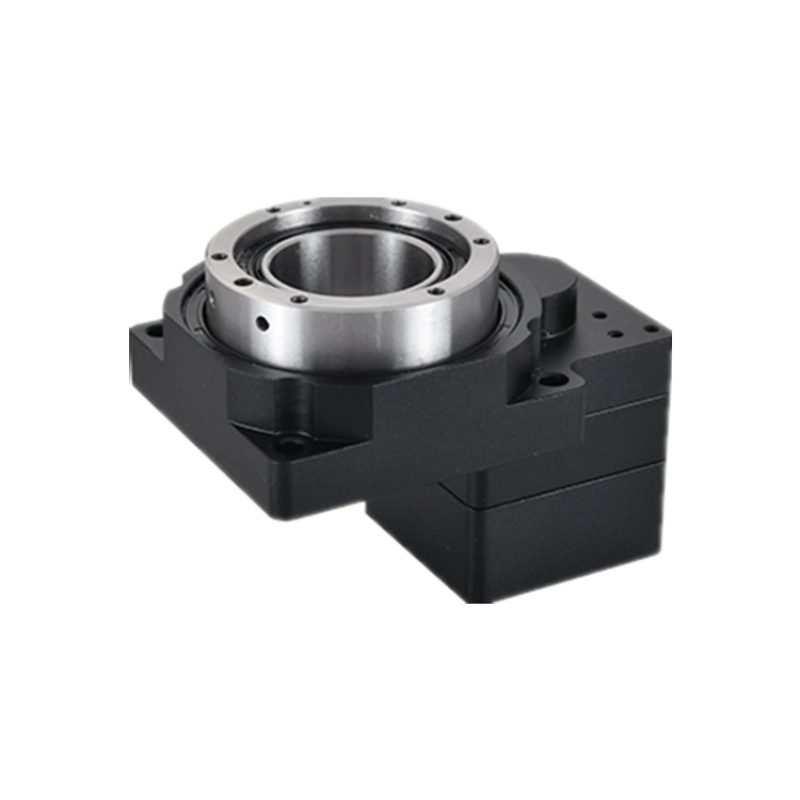

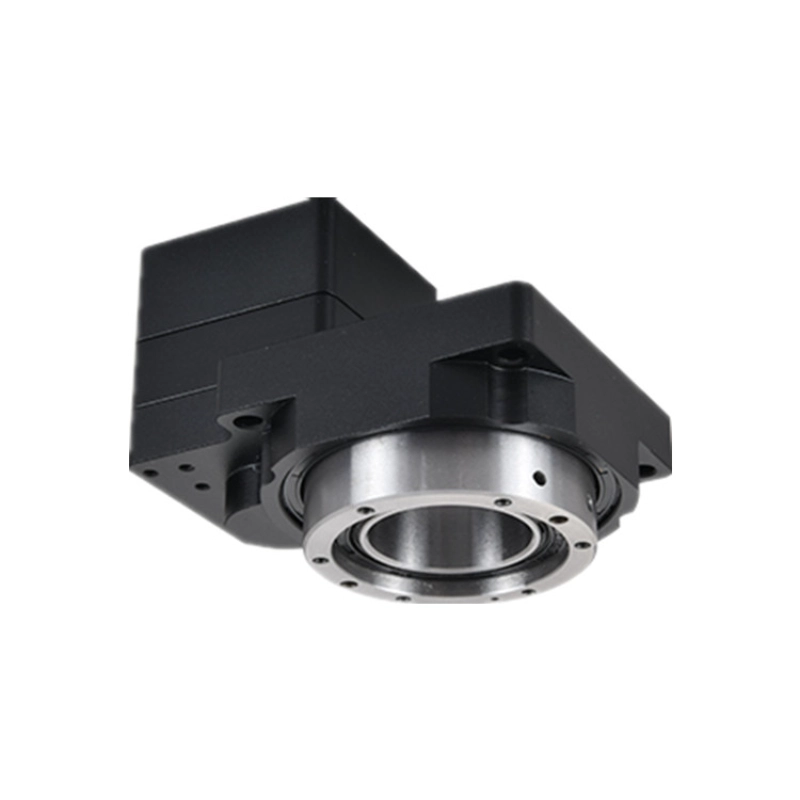

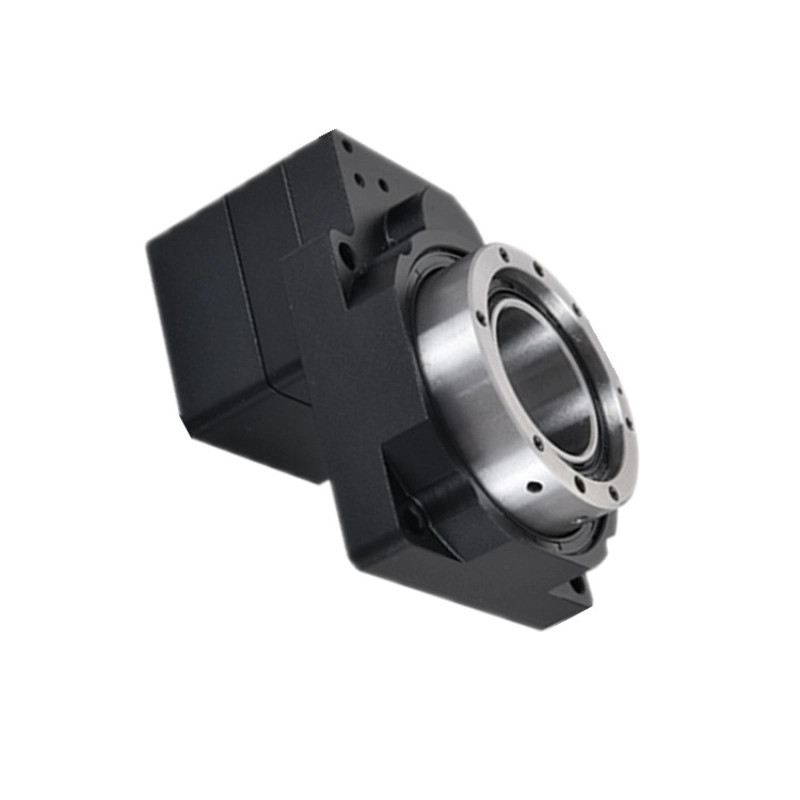

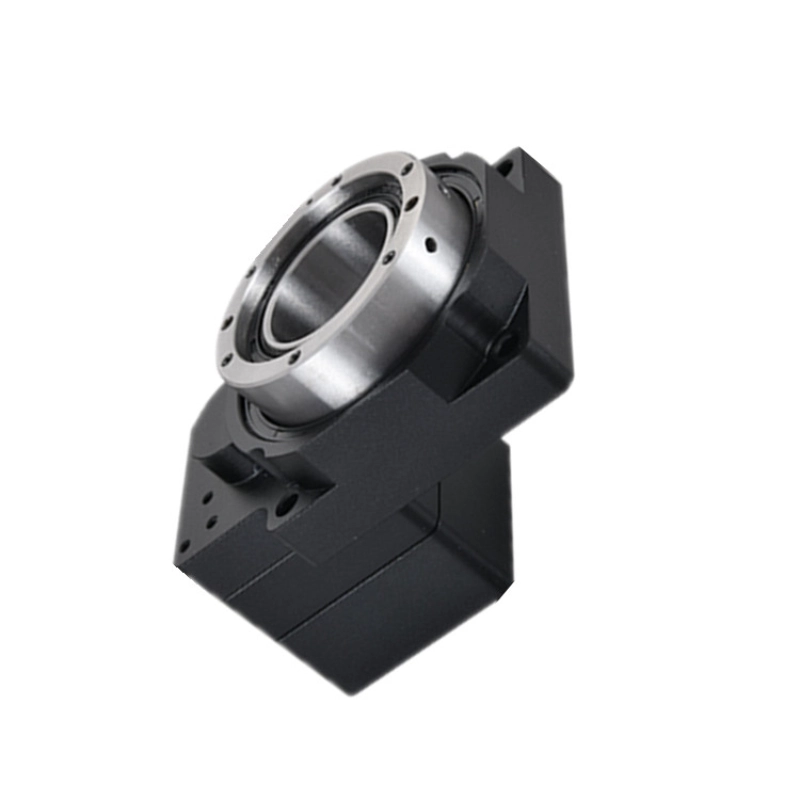

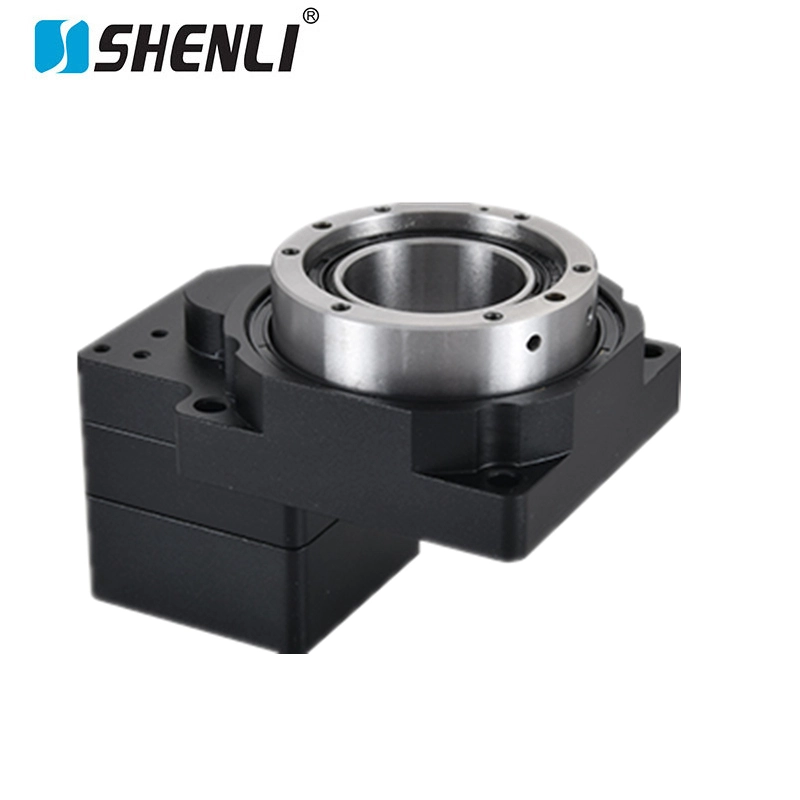

Compact High-Precision Rotary Transmission Platform
The SLPA60 hollow rotary platform is designed for precision rotary positioning applications.
Its compact structure fits limited installation spaces.
A hollow through-hole design is integrate.
Pneumatic tubes and cables can pass through the center.
External wiring complexity is reduce.
Equipment appearance becomes cleaner and more organized.
As a SLPA60 hollow rotary platform for automated positioning systems,
it improves overall system integration efficiency.
It is ideal for precision automation equipment.
The hollow structure maximizes internal space utilization.
Multi-functional module integration becomes easier.
Modern intelligent equipment requirements are fully support.
High Rigidity and Accurate Positioning Performance
The SLPA60 utilizes a high-precision cross-roller bearing structure.
Outstanding rigidity is achieve.
The platform withstands significant axial loads.
Smooth rotational performance is maintain.
As a SLPA60 high precision hollow rotary platform for indexing applications,
it delivers excellent repeat positioning accuracy.
Complex motion control requirements are support.
Mechanical error accumulation is minimize.
Processing consistency is improve.
The platform can connect directly to stepper motors.
Servo motor integration is also support.
Flexible drive configurations are available.
It is ideal for precision indexing applications.
Precision Manufacturing and Long-Term Stability
The platform body is manufactured from high-strength alloy materials.
Critical components receive precision CNC machining.
Assembly accuracy remains highly consistent.
Long-term operational reliability is enhance.
As a SLPA60 hollow rotary platform for robotic automation assembly equipment,
it provides excellent wear resistance.
Continuous operation environments are support.
Maintenance frequency is reduce.
The internal transmission system is carefully optimize.
Rotational efficiency is improve.
Operating noise is reduce.
User experience is enhance.
Each platform undergoes precision inspection.
Load performance testing is completed before shipment.
OEM and customized development services are available.
Typical Applications
Industrial robots.
Automated assembly equipment.
Laser processing platforms.
Vision inspection systems.
Semiconductor equipment.
Automatic indexing tables.
Electronics manufacturing equipment.
Smart packaging machinery.
SLPA60 Hollow Rotary Platform – Technical Specifications
General Specifications
- Product Name: SLPA60 Hollow Rotary Platform
- Product Type: High-Precision Hollow Rotary Indexing Platform
- Platform Size: 60 Series Hollow Rotary Table
- Drive Method: Direct connection with stepper or servo motor
- Structure Type: Hollow through-hole rotary design
- Installation Orientation: Horizontal or vertical mounting
- Body Material: High-rigidity aluminum alloy housing

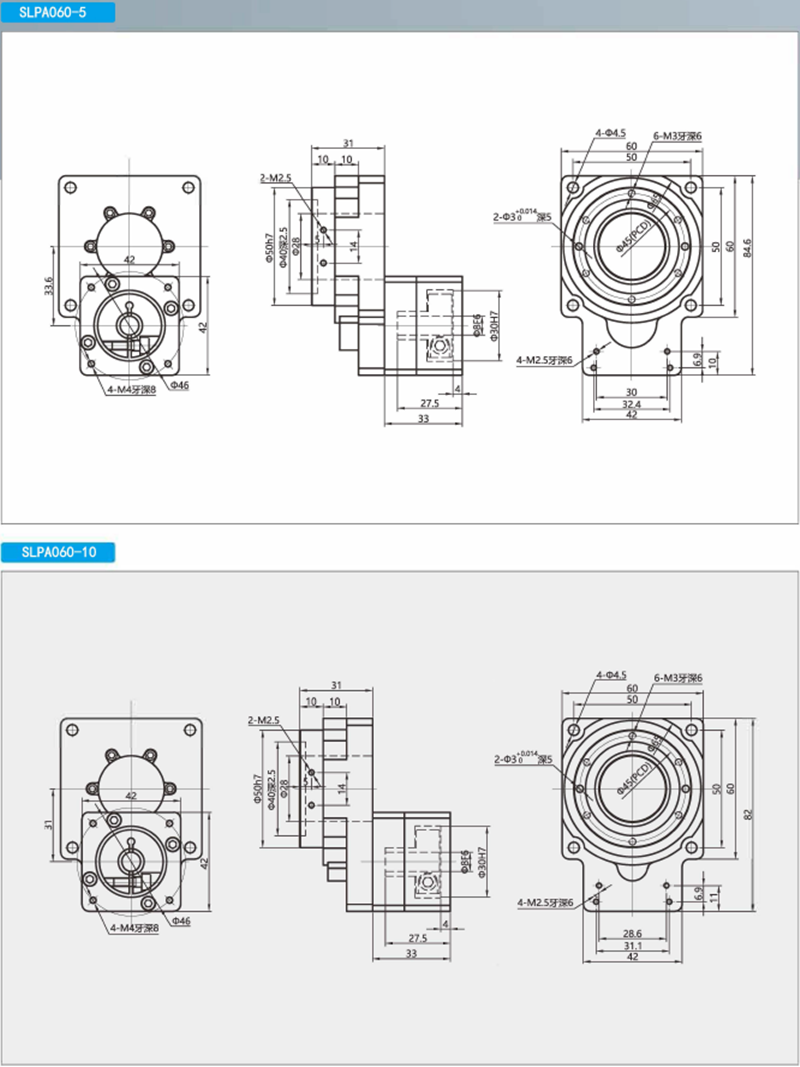

Dimensional Specifications
- Overall Dimensions: 60 × 60 × 36 mm
- Hollow Bore Diameter: Φ28 mm
- Rotary Table Diameter: Ø60 mm
- Center Pilot Diameter: Ø50 mm
- Mounting Pattern: 8-M4 threaded holes
- Motor Interface: Standard Nema17 motor mounting
- Output Platform Height: 36 mm
Motion Performance
- Reduction Ratio: 10:1
- Positioning Accuracy: ≤3 arcmin
- Repeatability Accuracy: ±15 arcsec
- Maximum Output Speed: 180 rpm
- Rated Output Torque: 20 N·m
- Peak Output Torque: 40 N·m
- Allowable Axial Load: 500 kgf
- Allowable Radial Load: 300 kgf
- Tilting Moment Capacity: 25 N·m
- Backlash: ≤1 arcmin
Bearing and Transmission System
- Bearing Type: High-precision cross-roller bearing
- Transmission Structure: Precision spiral bevel gear mechanism
- Lubrication System: Fully enclosed lifetime lubrication
- Operating Characteristics: Low vibration and low noise performance
Environmental Specifications
- Operating Temperature: -10°C to +80°C
- Storage Temperature: -20°C to +100°C
- Protection Rating: IP40
- Service Life: ≥20,000 hours
- Maintenance Requirement: Maintenance-free design
Typical Applications
- Industrial robot joints
- Automatic indexing tables
- CCD vision inspection systems
- Laser processing platforms
- Semiconductor automation equipment
- Precision assembly systems
| No | Item | Data | No | Item | Data |
| 1 | Type | SLPA60 | 11 | Rate output speed | 200rpm |
| 2 | Bearing Type | Crossed roller bearings RPA6028 | 12 | Max.output speed | 500rpm |
| 3 | Ratio | 5 、 10 | 13 | Max.radial& axial force | 1800N |
| 4 | Rated Output Torque | 3.5~6Nm | 14 | Max.Owerturning Force | 120N |
| 5 | Max. Output Torque | 10.5~18Nm | 15 | Backlash | ≤1（±0.5）Arcmin |
| 6 | Efficiency | 90% | 16 | Torsional stiffness | 2.4Nm/arcmin |
| 7 | Life Expectancy | 20000H | 17 | Work temperature | -25℃~+90℃ |
| 8 | Lubricating method | Synthetic grease | 18 | Platform end&radial runout | ≤0.01 |
| 9 | Weight | 0.55KG | 19 | No-load Torque | 0.1Nm |
| 10 | IP Grade | IP50 | 20 | Noise | 55dB |
| Model | Unit | SLPA060 | Ratio(i) |
| Rated Output Torque Tn | Nm | 6 | 5 |
| 3.5 | 10 | ||
| Failure Stop Torque T2n | Nm | 3 Times Rated Output Torque | |
| No-load Torque | Nm | 0.1 | |
| Bearing Type | Crossed roller bearings RPA6028 | ||
| Max.radial force | N | 1800 | |
| Max.axial force | N | 1800 | |
| Max.Owerturning Force | Nm | 120 | |
| Torsional stiffness | Nm/arcmin | 2.4 | |
| Platform end runout | mm | ≤0.01 | |
| Platform radial runout | mm | ≤0.01 | |
| Rotary precision | arcmin | ≤1(±0.5) | |
| Rated output speed | rpm | 200 | |
| Max.output speed | rpm | 500 | |
| Weight | Kg | 0.55 | |
| Design load bearing | Kg | 10 | |
| Noise | Db | ≤55 | |
| Lifetimes | h | 20000 | |
| Mini. working temperature | ℃ | -25 | |
| Max. working temperature | ℃ | 90 | |
| Protection class | IP | IP50 | |
| Lubrication method | Long-lasting lubrication | ||
| Installation method | Any | ||
| Direction of rotation | Output, Input Reverse | ||
| Full load efficiency | % | 90% | |
| Description: | 1, the return clearance is measured at 2% of the rated output torque T2n; 2, the noise value was measured at 1 meter distance from the body under test without load at rated input speed. |
||
