Description
Heavy-Duty Linear Motion Control Solution

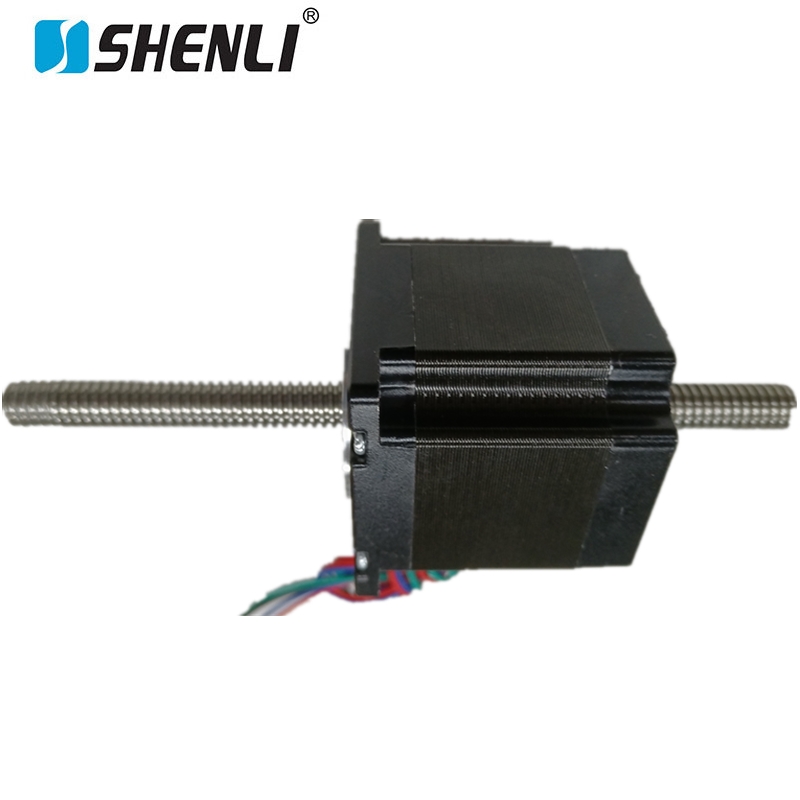

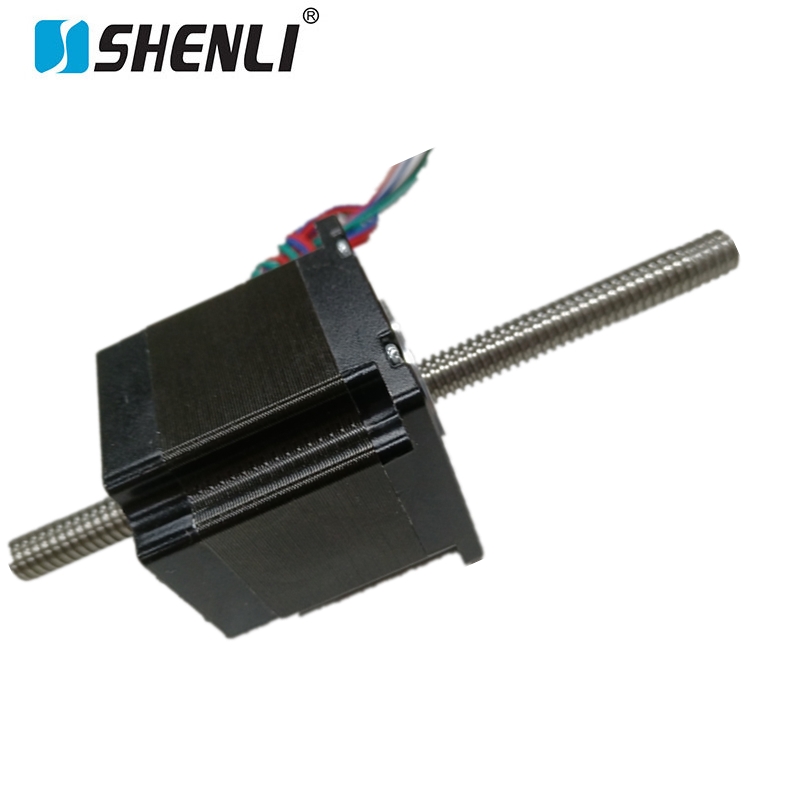

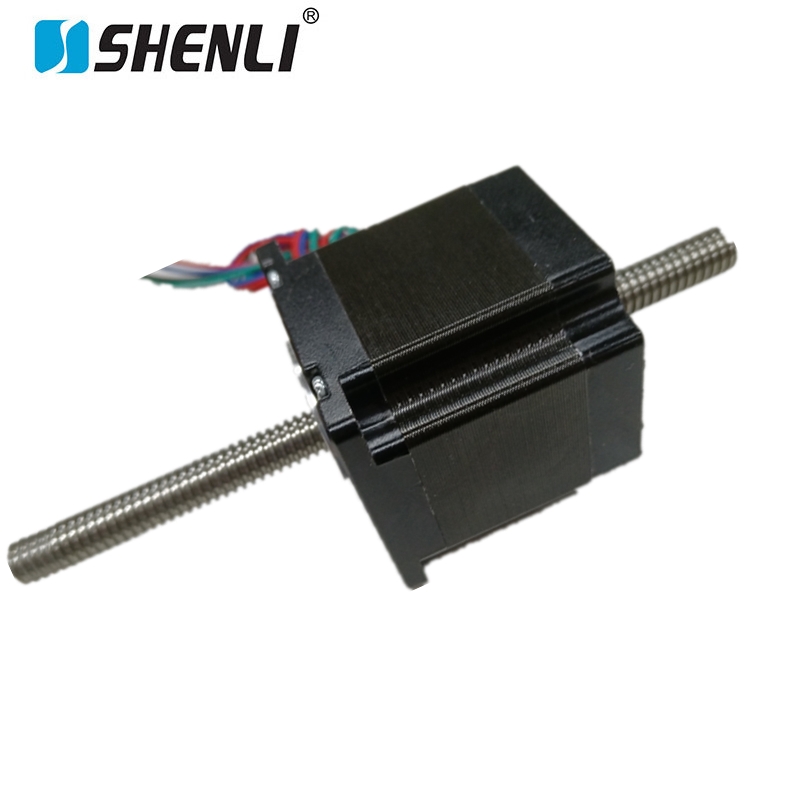

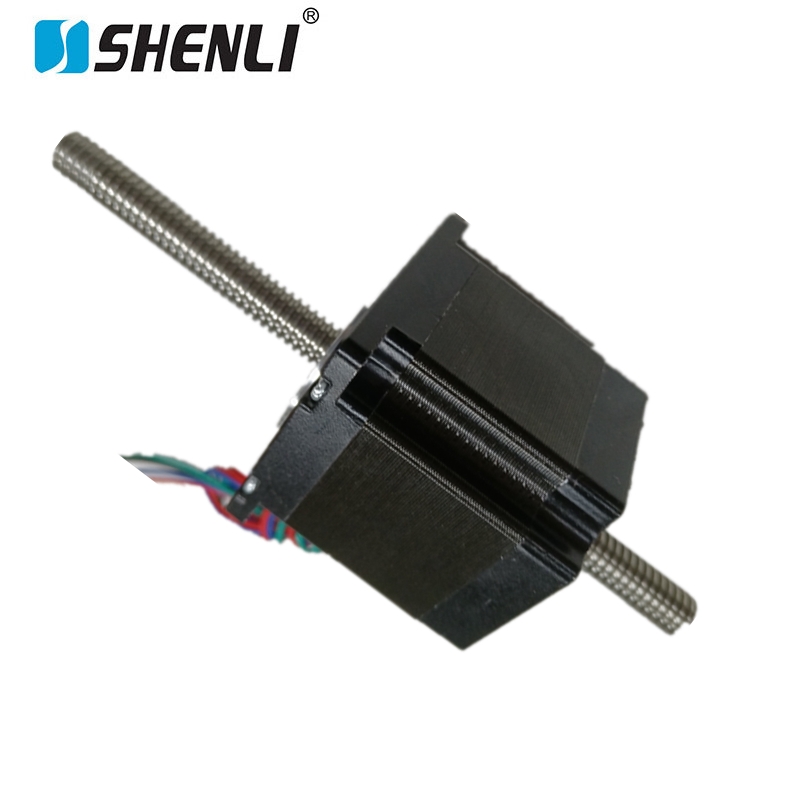

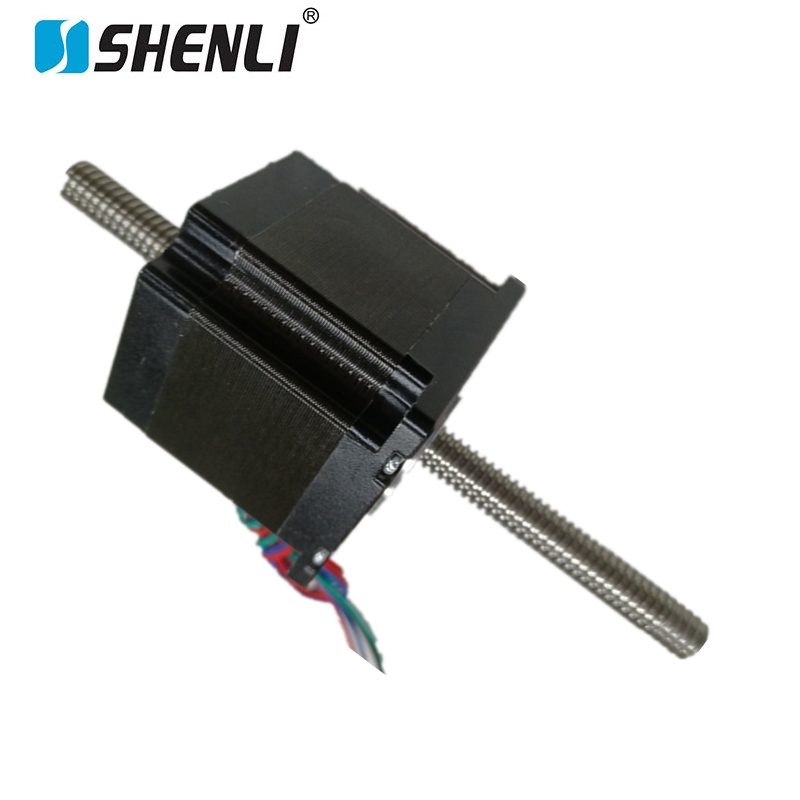

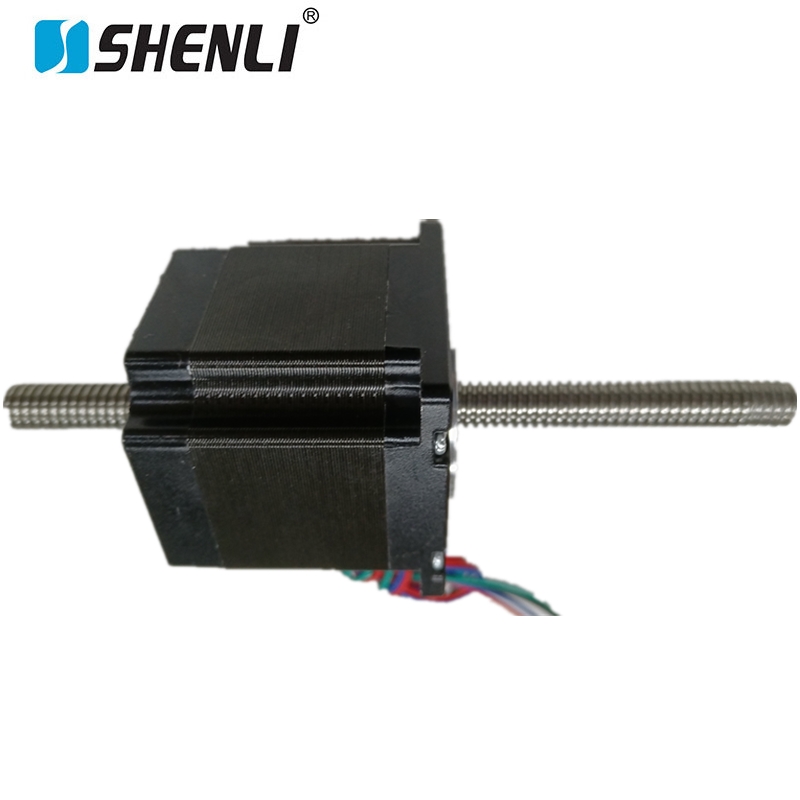

The Nema34 non-captive linear stepper motor is design for demanding industrial applications.
>Its open lead screw structure supports extended travel distances.
>This configuration is ideal for large automation systems.
>Precise displacement control is achieve without complex transmission mechanisms.
>Powerful thrust output handles challenging operating conditions.
>As a Nema34 non-captive linear stepper motor for heavy-duty automation equipment,
it performs reliably in continuous-duty environments.
>Positioning stability remains excellent throughout operation.
>Overall equipment productivity can be significantly improve.
Powerful Thrust and Efficient Motion Performance
The motor utilizes a large rotor structure.
>This generates higher holding torque output.
>An optimized magnetic circuit improves energy efficiency.
>Power losses during operation are minimize.
As a high-thrust Nema34 non-captive linear stepper motor with long travel,
it is suitable for heavy-duty motion platforms.
Multiple lead configurations support different speed requirements.
A high-rigidity lead screw maintains motion accuracy.
Smooth operation is preserve under heavy loads.
The motor is ideal for assembly machinery and logistics systems.
The motor supports advanced microstepping technology.
This enables finer positioning performance.
Repeatable motion accuracy remains highly consistent.
It is suitable for high-cycle automation processes.
Precision Manufacturing and Industrial Reliability
The rotor uses high-performance rare-earth magnetic materials.
This increases magnetic strength and output capability.
The stator core is manufacture using precision CNC processes.
Vibration and temperature rise are effectively reduce.
As a Nema34 non-captive linear stepper motor for industrial motion control systems,
it meets demanding industrial automation standards.
Critical components undergo strict dimensional inspection.
Consistent quality is ensure across production batches.
Every motor completes load performance testing.
>Continuous operation verification is also conduct.
Wear-resistant lead screws extend service life.
Premium bearings improve running stability.
OEM and ODM development services are support.
Custom solutions are available for diverse industries.
Typical Applications
Heavy-duty automation lines.
Semiconductor manufacturing equipment.
Smart warehousing systems.
Large-scale packaging machinery.
Industrial inspection platforms.
CNC processing equipment.
New energy production systems.
Automated conveying equipment.

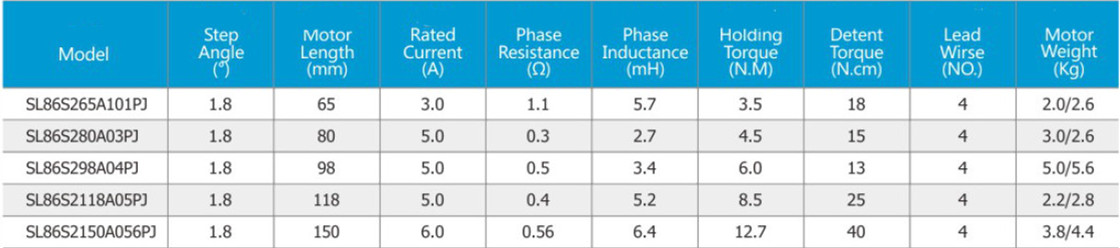

General Specifications
- Product Name: Nema34 Non-Captive Linear Stepper Motor
- Motor Type: 2-Phase Hybrid Linear Stepper Motor
- Configuration: Non-Captive Open Lead Screw Drive Design
- Frame Size: 86 × 86 mm
- Motor Length: 98 mm / 114 mm / 150 mm optional
- Step Angle: 1.8° (200 steps per revolution)
- Step Accuracy: ±5%
- Lead Screw Diameter: Φ12 mm or Φ16 mm optional
- Lead Screw Material: Hardened High-Strength Alloy Steel
- Lead Options: 4 mm / 8 mm / 12 mm / 20 mm
- Maximum Theoretical Travel: Unlimited, depending on external screw length
Electrical Characteristics
- Rated Current: 4.0~6.8 A/phase
- Phase Resistance: 0.3~1.2 Ω
- Phase Inductance: 3.5~12.0 mH
- Recommended Supply Voltage: 48~100 VDC
- Insulation Resistance: ≥100 MΩ at 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Insulation Class: Class F (155°C)

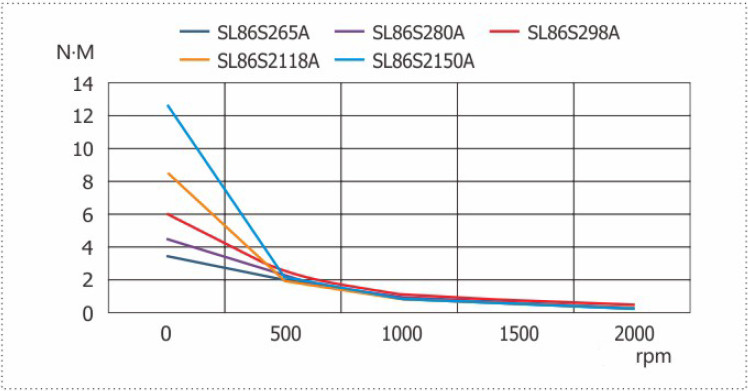

Motion Performance
- Holding Torque: 4.5~12 N·m
- Maximum Linear Thrust: 800~3000 N
- Repeatability Accuracy: ±0.008 mm
- Axial Backlash: ≤0.03 mm
- Maximum No-Load Speed: 1500 mm/s
- Noise Level: ≤60 dB
- Maximum Axial Load Capacity: 3500 N
Environmental Specifications
- Operating Temperature: -20°C to +55°C
- Storage Temperature: -40°C to +85°C
- Protection Rating: IP54 (Optional IP65)
- Cooling Method: Natural Cooling or Forced-Air Cooling
Optional Features
- Anti-Rotation Mechanism
- Incremental Encoder
- Absolute Encoder
- Electromagnetic Brake
- Custom Lead Screw Length
- Dual Shaft Configuration
Typical Applications
- Heavy-Duty Automation Lines
- Semiconductor Equipment
- Laser Processing Machines
- Smart Warehousing Systems
- New Energy Battery Production Equipment
- Large Industrial Conveying Platforms
- CNC Automation Machinery
