DLF28 Planetary Gear Motor – Technical Overview
DLF28 planetary gear motor is a compact micro planetary gearbox motor designed for small-scale automation systems. It features a compact structure, high transmission efficiency, and stable operation, making it suitable for precision motion control applications.

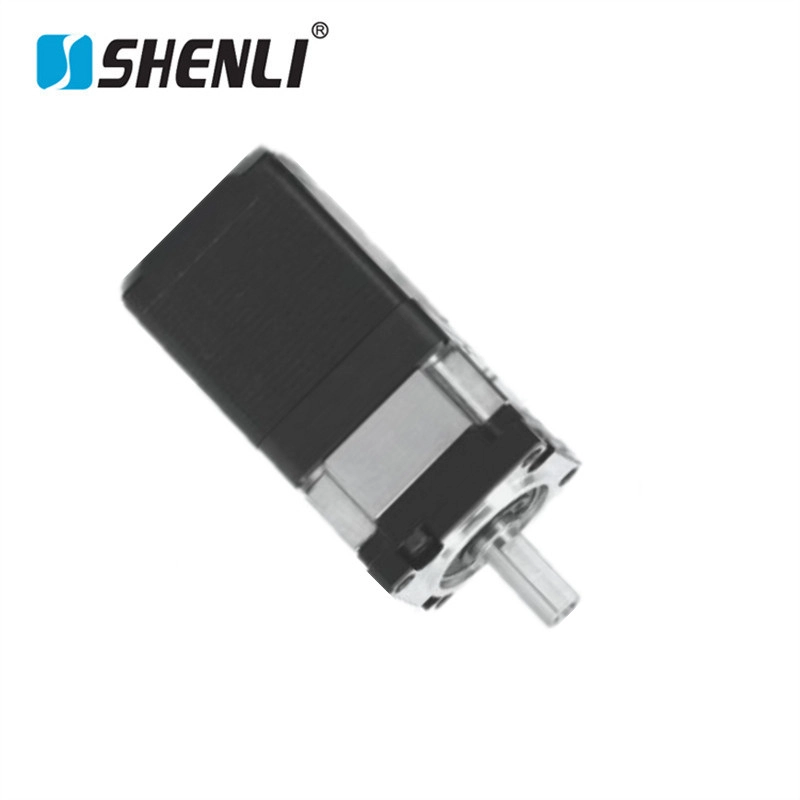

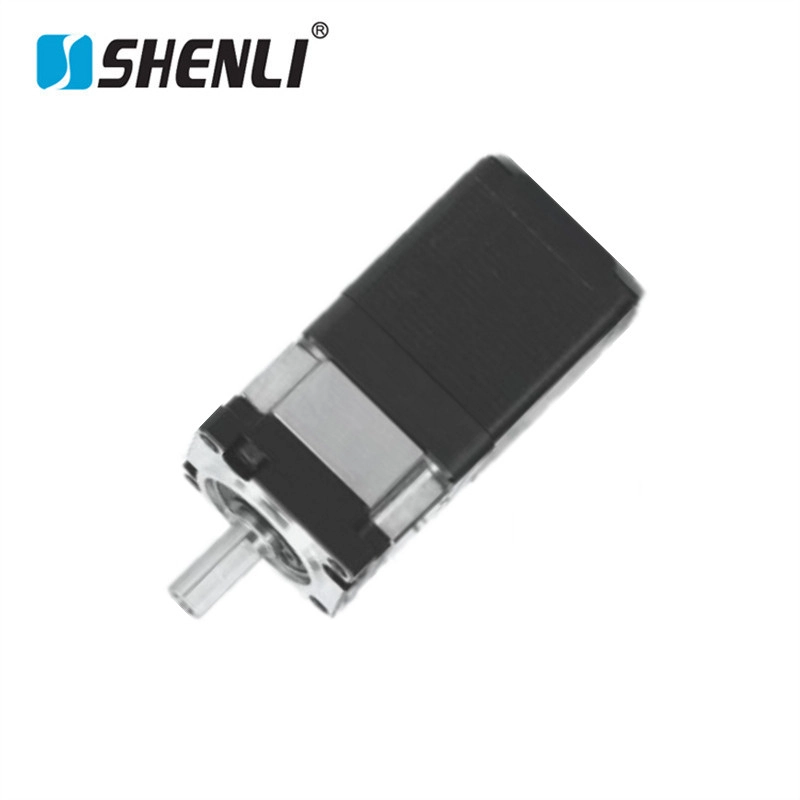

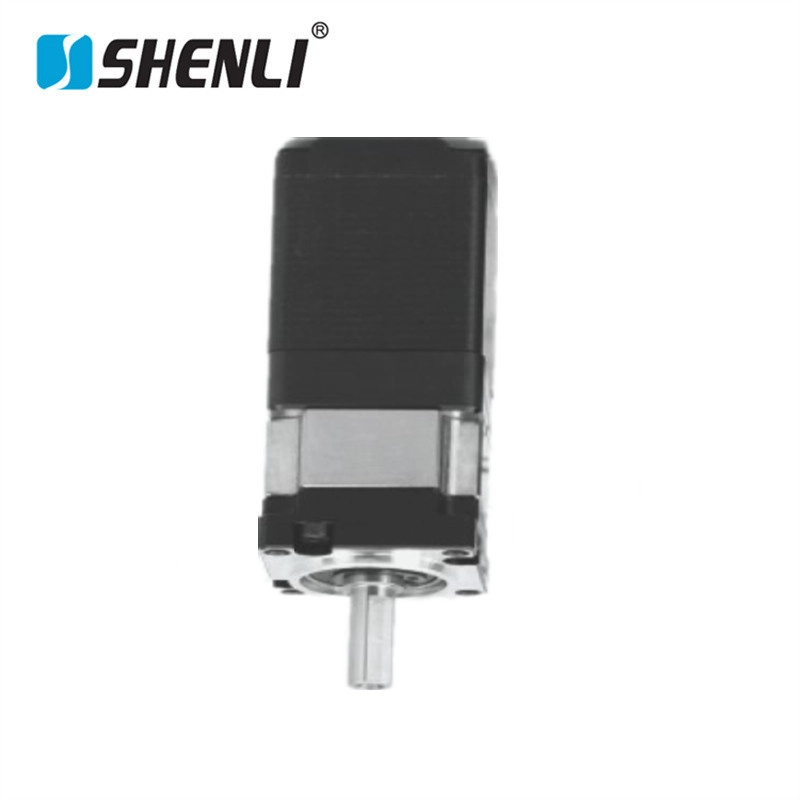

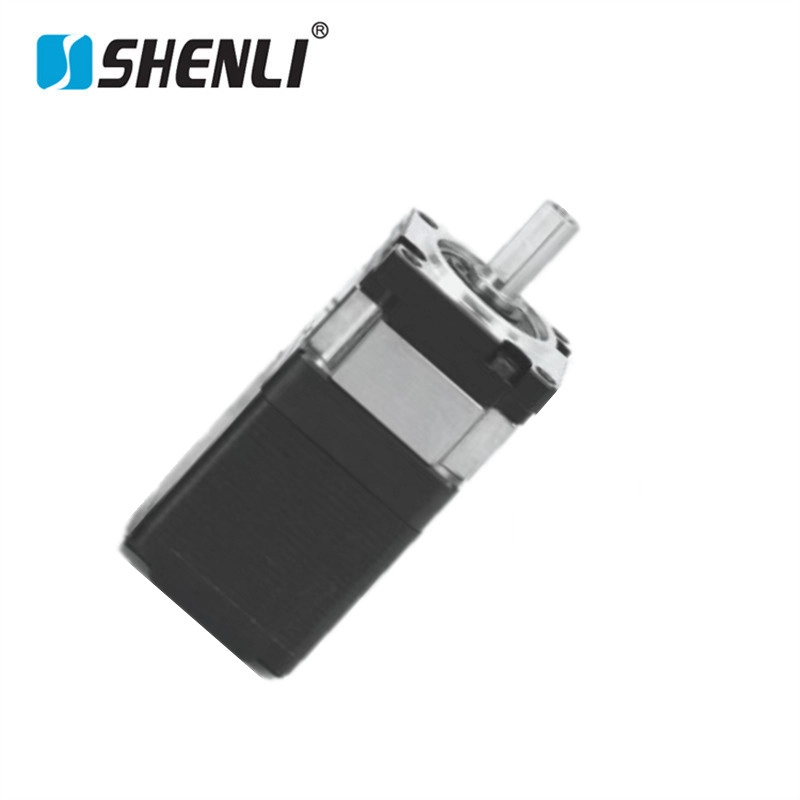

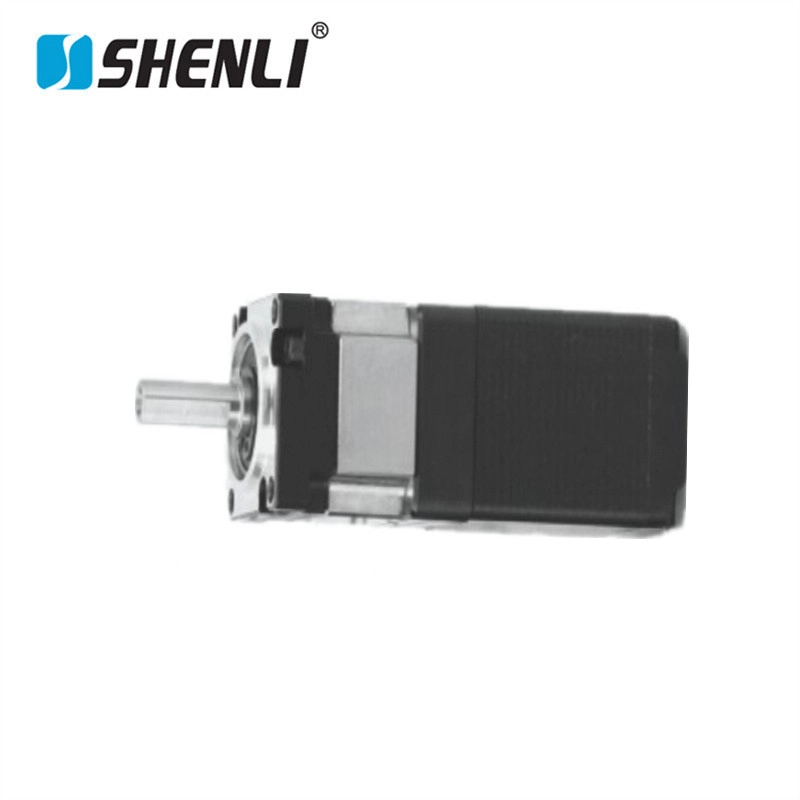

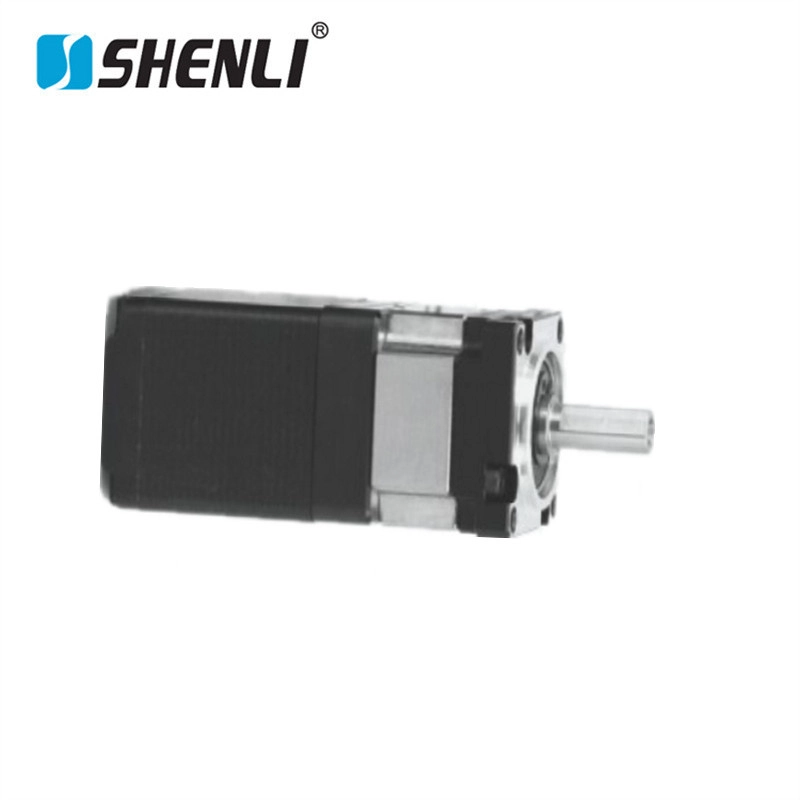

Structural Design

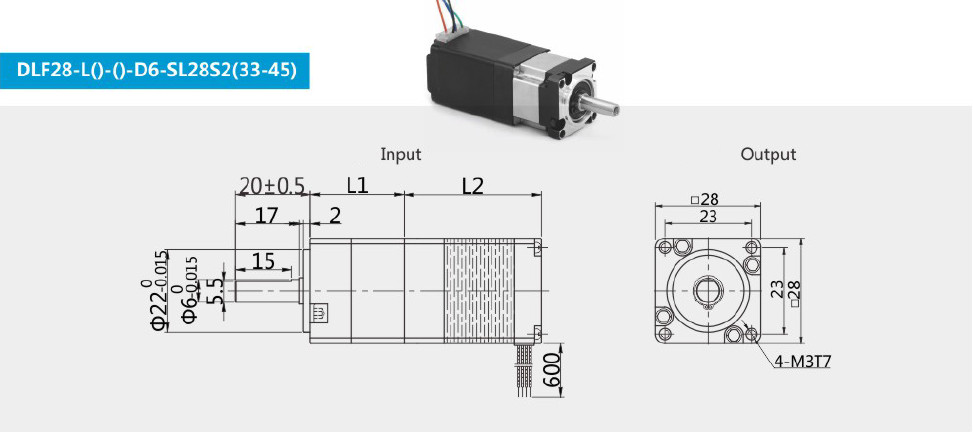

DLF28 planetary gear motor adopts a compact structure with an outer diameter of approximately 28mm. The design allows easy installation in space-limited equipment while maintaining mechanical strength and operational stability. The overall length varies depending on gear stages and motor configuration.
Gear Transmission System
The motor uses a multi-stage planetary gear structure consisting of a sun gear, planet gears, and an internal ring gear. Multiple tooth engagement improves torque density and ensures smooth and stable power transmission during operation.
Electrical Specifications

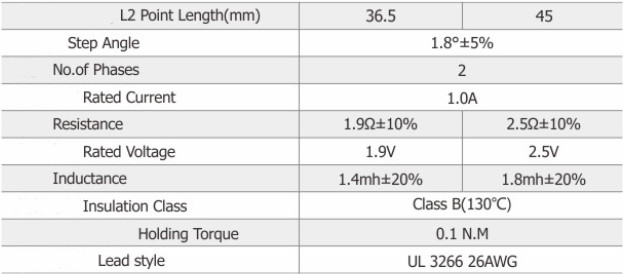

Input voltage options include 12V DC and 24V DC, with customizable versions available. The motor uses high-quality copper wire windings combined with high-permeability silicon steel laminations to improve efficiency and electrical performance.
Gear Ratios

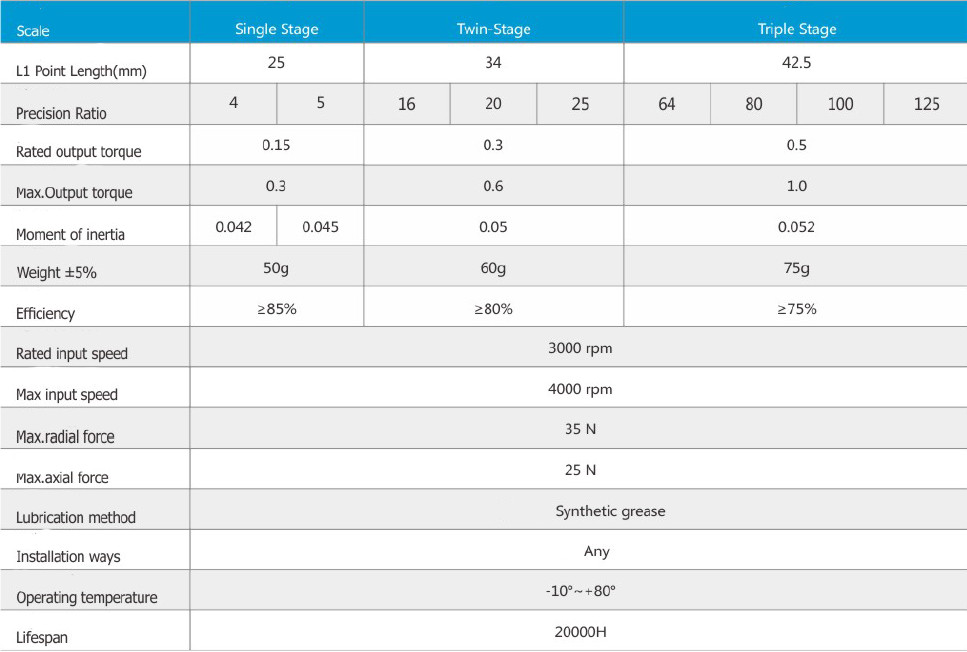

Available reduction ratios include 4:1, 9:1, 16:1, and 25:1, with customization options available. Different ratios allow flexible selection based on required speed and torque performance.
Torque and Performance
The planetary gearbox increases output torque while maintaining stable low-speed operation. DLF28 planetary gear motor provides consistent torque output, making it suitable for precision small-scale mechanical systems.
Material and Manufacturing
The gearbox uses high-strength alloy steel gears processed through precision CNC machining and surface hardening treatment. This improves wear resistance, impact strength, and service life.
Stability and Operation
Optimized gear meshing and dynamic balance design ensure low noise, low vibration, and stable operation even during continuous use.
Bearing and Lubrication System
High-precision bearings and long-life lubrication reduce friction and improve transmission efficiency, ensuring stable long-term performance.
Typical Applications
DLF28 planetary gear motor is widely used in smart robotics, medical equipment, precision instruments, vending machines, security systems, and small automation equipment. It is a key component for compact and precise motion control systems.
Product Summary
DLF28 planetary gear motor combines compact size, high efficiency, and stable torque output, making it an ideal solution for micro precision drive systems in modern automation applications.
