Description
High-Load Linear Motion Solution

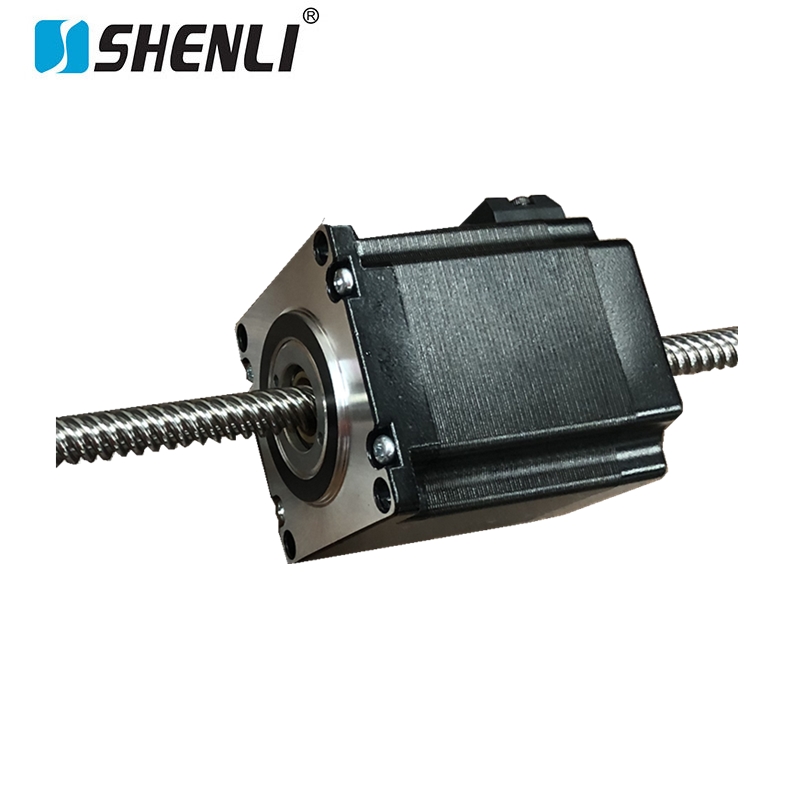

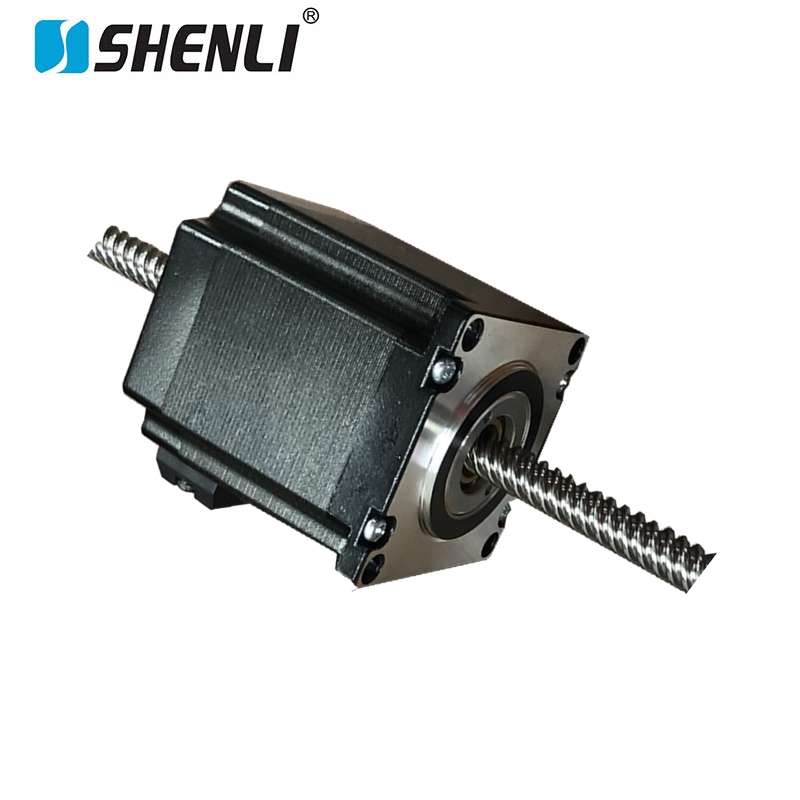

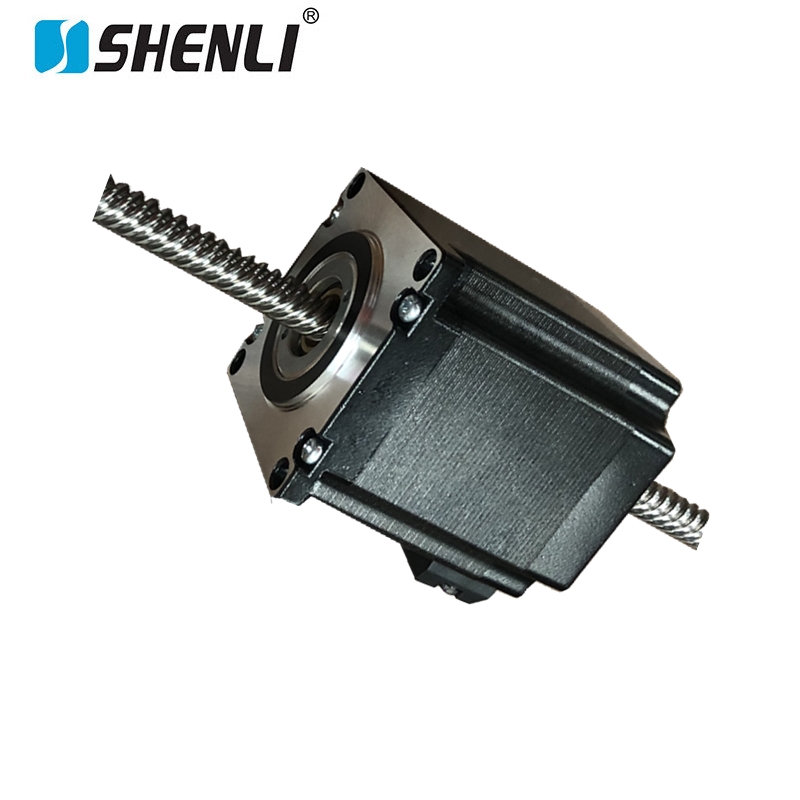

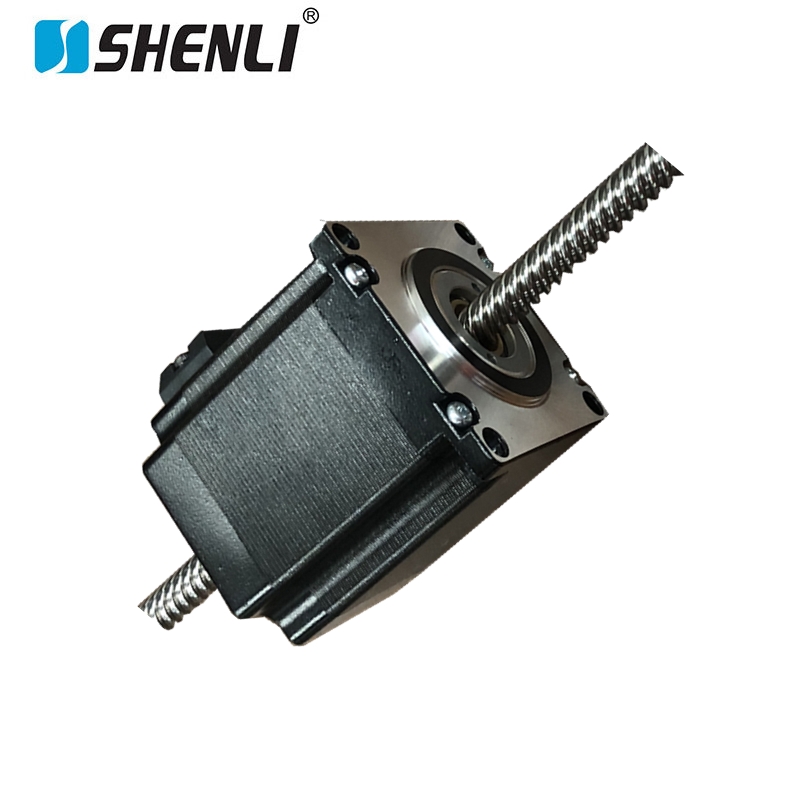

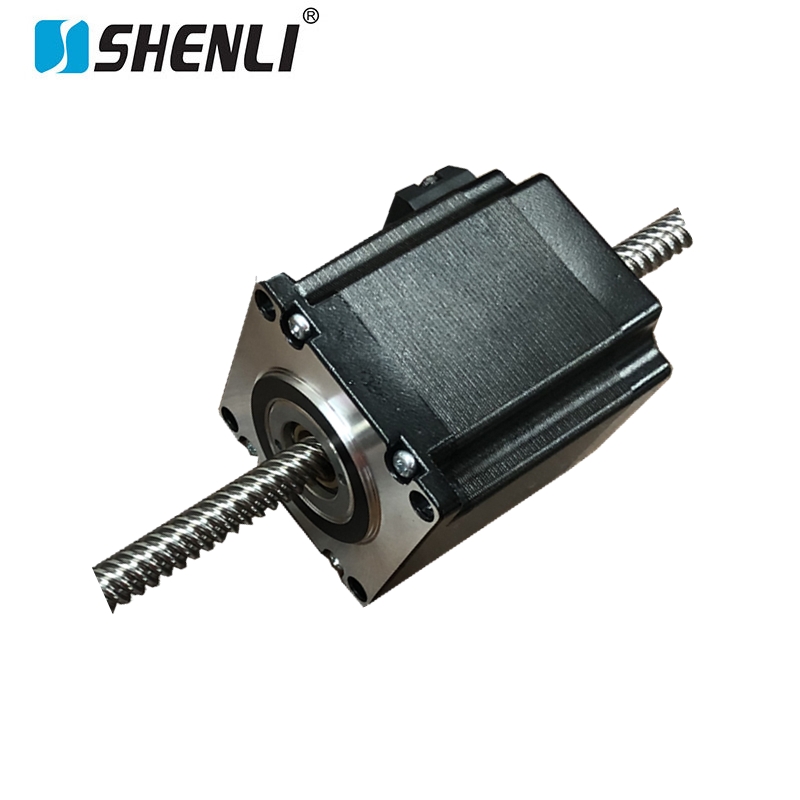

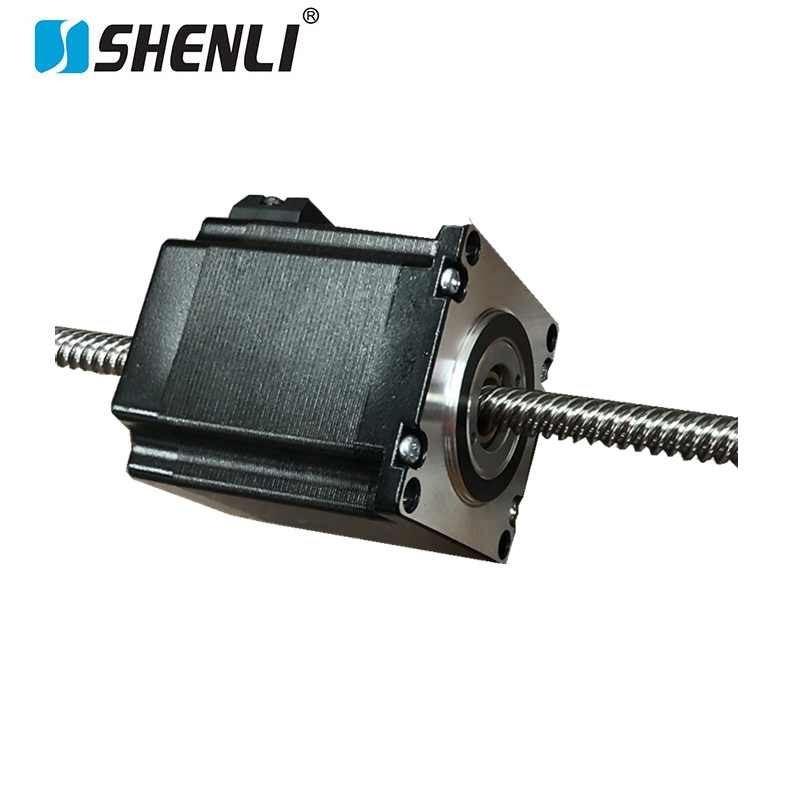

The Nema23 non-captive linear stepper motor is engineer for medium and high-load motion systems.
Its open lead screw design supports extended linear travel requirements.
Precise displacement control is achieve without additional transmission components.
The motor is suitable for industrial automation and smart manufacturing systems.
Stable thrust output ensures reliable continuous operation.
As a Nema23 non-captive linear stepper motor for industrial automation applications,
it meets the demands of complex production environments.
Its compact structure simplifies installation.
This helps reduce machine development time.
Excellent Thrust and Motion Accuracy
The motor combines hybrid stepper technology with an optimized magnetic circuit.
>This delivers outstanding thrust density performance.
>A precision lead screw ensures smooth and reliable movement.
>Vibration and positioning errors are effectively minimize.
>As a high-thrust Nema23 non-captive linear stepper motor with long travel,
it outperforms many conventional compact linear actuators.
>Multiple lead options are available.
>This allows optimization of speed and positioning accuracy.
>The motor is ideal for automated assembly equipment and inspection systems.
>It also performs well in packaging and electronics manufacturing machinery.
The motor supports advanced microstepping control.
Higher motion resolution can be achieve.
It is suitable for demanding repeatability applications.
Long-term operational stability is maintain.
Precision Manufacturing and Quality Assurance
The rotor uses high-performance rare-earth magnetic materials.
This improves magnetic strength and conversion efficiency.
The stator features precision laminated construction.
Heat generation and core losses are reduce.
As a Nema23 non-captive linear stepper motor for high-precision motion control,
it is build to industrial-grade manufacturing standards.
Critical components undergo strict inspection procedures.
This ensures consistent quality across production batches.
Each motor is test under load conditions.
Continuous aging verification is also perform.
Precision bearings enhance motion stability.
Wear-resistant lead screws extend service life.
OEM and ODM customization services are available.
Specifications can be tailor to project requirements.
Typical Applications
Industrial automation lines.
Semiconductor manufacturing equipment.
Automated inspection systems.
Electronic assembly machinery.
Packaging equipment.
Medical automation platforms.
Smart logistics devices.
Laboratory automation systems.

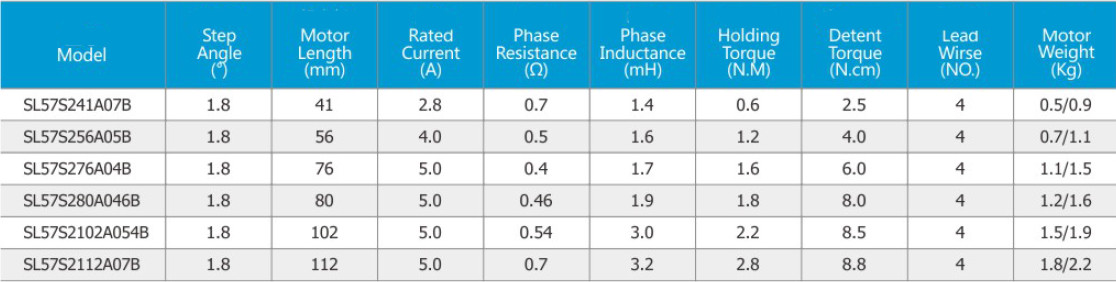

General Specifications
- Product Name: Nema23 Non-Captive Linear Stepper Motor
- Motor Type: 2-Phase Hybrid Linear Stepper Motor
- Configuration: Non-Captive Open Lead Screw Design
- Frame Size: 57 × 57 mm
- Motor Length: 41mm/56 mm / 76 mm / 80 mm / 102 mm/112mm optional
- Step Angle: 1.8° (200 steps per revolution)
- Step Accuracy: ±5%
- Lead Screw Diameter: Φ8 mm
- Lead Screw Material: High-Strength Stainless Steel
- Lead Options: 2 mm / 4 mm / 8 mm / 12.7 mm
- Maximum Travel Distance: Unlimited, depending on screw length
Electrical Characteristics
- Rated Current: 2.0~4.2 A/phase
- Phase Resistance: 0.6~2.8 Ω
- Phase Inductance: 1.8~6.5 mH
- Supply Voltage: 24~80 VDC
- Insulation Resistance: ≥100 MΩ at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Insulation Class: Class B (130°C)

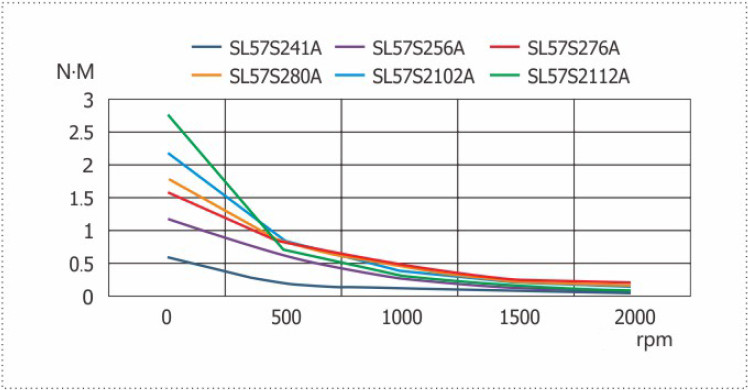

Motion Performance
- Holding Torque: 0.9~3.0 N·m
- Maximum Linear Thrust: 120~800 N
- Repeatability Accuracy: ±0.01 mm
- Axial Backlash: ≤0.04 mm
- Maximum No-Load Speed: 1200 mm/s
- Noise Level: ≤55 dB
Environmental and Optional Features
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +70°C
- Protection Rating: IP40
- Mounting Style: Standard Nema23 Mounting Pattern
- Optional Features: Anti-Rotation Device, Encoder, Dual Shaft Output
- Custom Options: Lead, Screw Length, End Connection Structure
Typical Applications
- Automated Assembly Equipment
- Semiconductor Manufacturing Systems
- Industrial Inspection Machines
- Smart Logistics Equipment
- Automatic Packaging Machinery
- Medical Automation Platforms
