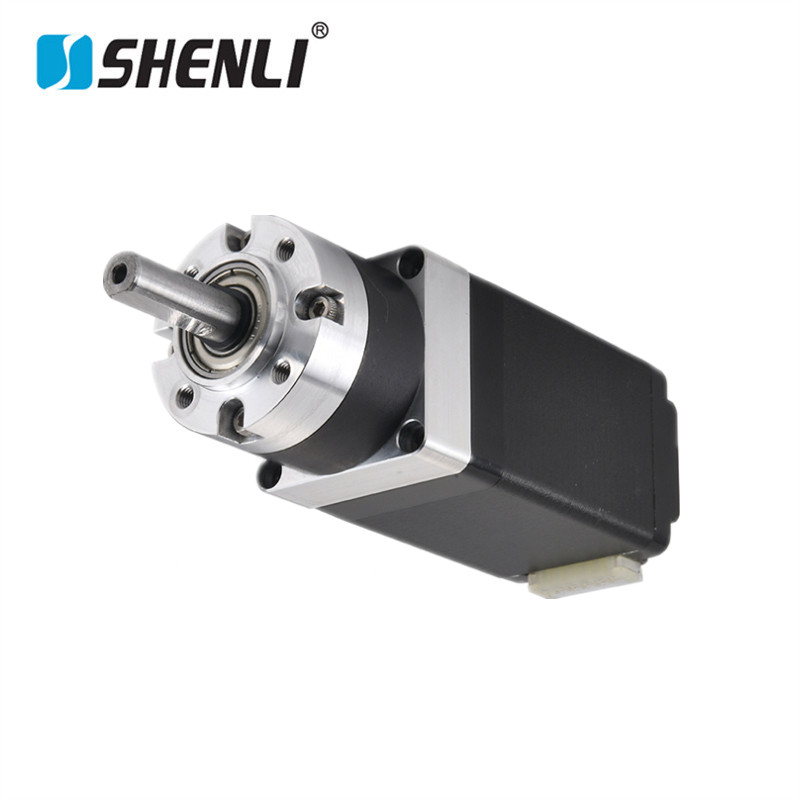

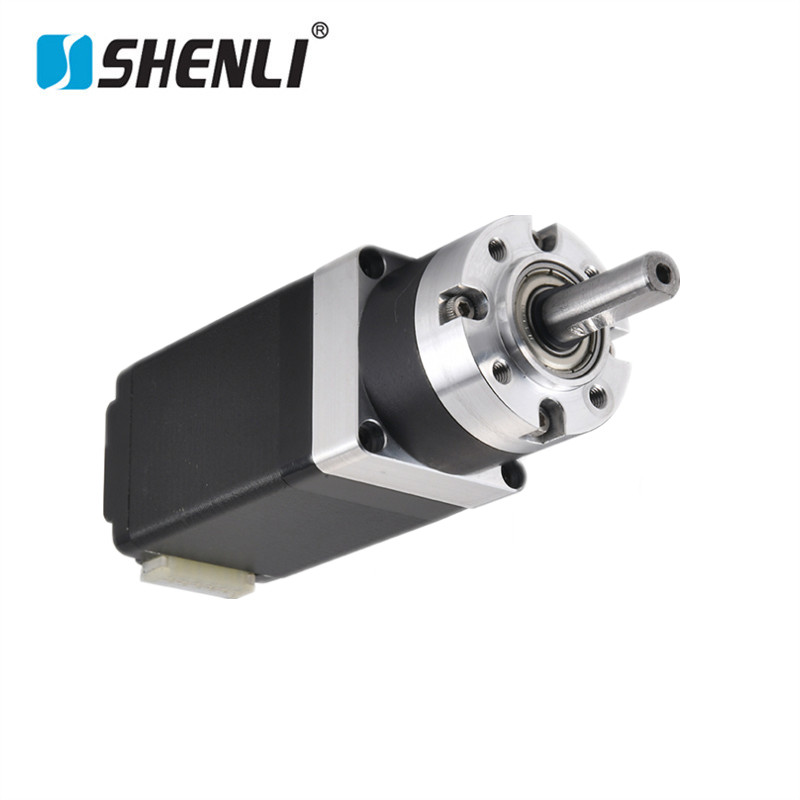

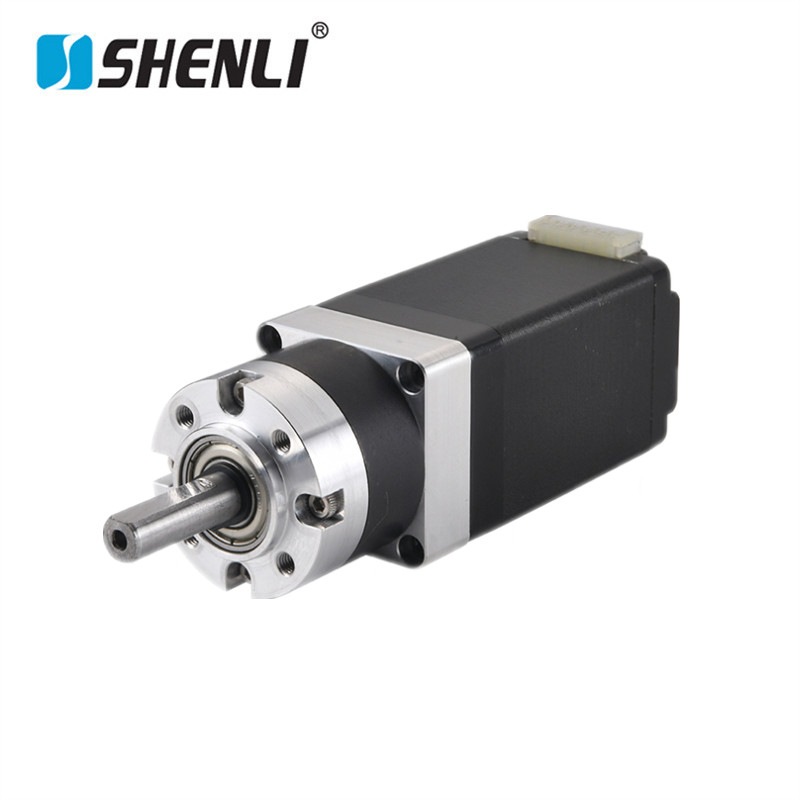

Compact Integrated Stepper and Gear Reduction Drive
The DLE28-Nema11 planetary gear motor is design for high-precision micro motion systems.
>It integrates a stepper motor with a planetary gearbox.
>It provides high torque output and precise angle control.
>It is suitable for compact automation equipment.
As a DLE28-Nema11 gear reduction stepper motor for micro automation high-precision motion control systems,
it significantly improves low-speed stability.
Vibration and step loss are effectively reduce.
It is suitable for precision positioning and micro mechanical systems.
Continuous stable operation is support.
The structure adopts a high-rigidity coaxial design.
Transmission efficiency is improve.
Energy loss and backlash error are reduce.

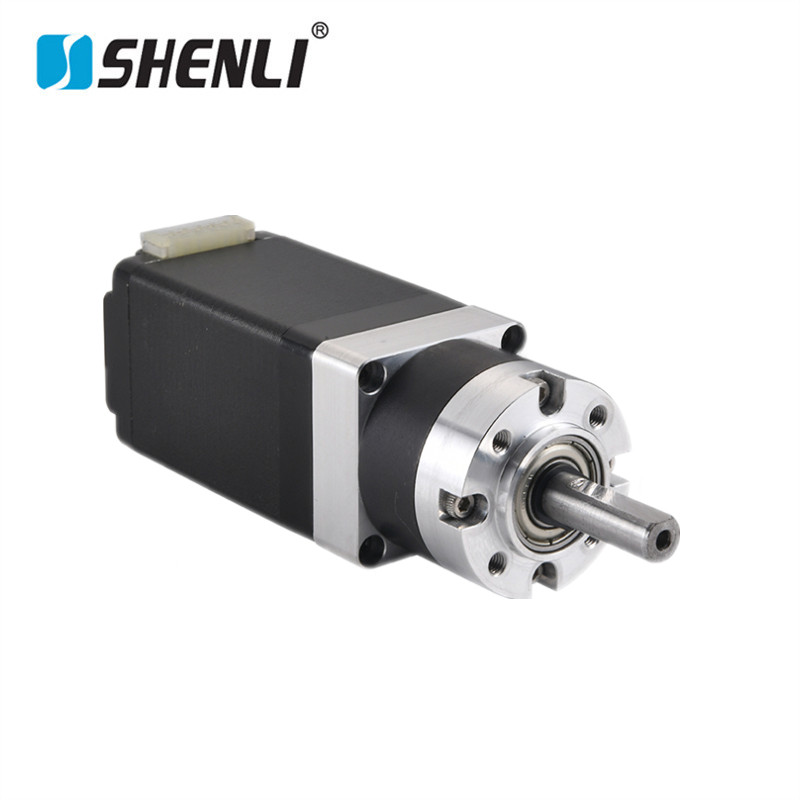

High Precision Transmission and Low Backlash Performance
The DLE28 unit uses a precision planetary gear transmission system
It provides high reduction ratio output capability.
Low-speed torque stability is significantly improve.
It is suitable for high-load precision control applications.
As a DLE28-Nema11 planetary gear motor for precision automation equipment micro positioning drive systems,
it is widely used in medical devices and precision instruments.
High repeat positioning accuracy is support.
System consistency is improve.
Control error accumulation is reduce.
Gears are manufactured using precision grinding technology.
Low noise and low backlash operation is achieve.
Service life is extend.

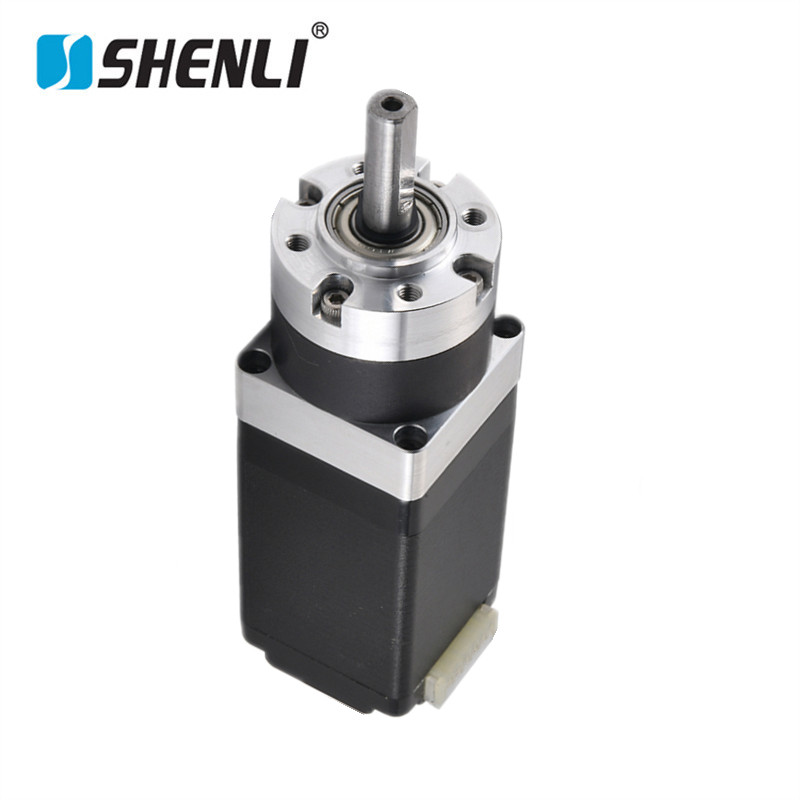

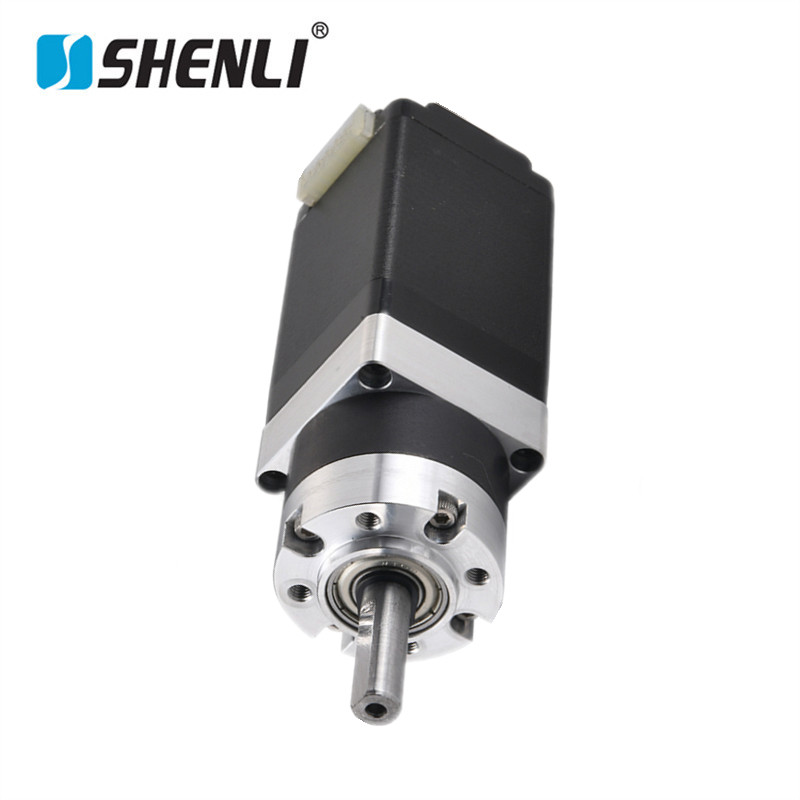

Precision Manufacturing and High Reliability Structure
The DLE28 gear motor uses high-strength alloy steel gears.
Critical transmission parts are heat-treated for reinforcement.
Wear resistance and impact strength are improve.
The motor winding adopts high-precision winding technology.
As a DLE28-Nema11 planetary gear motor for industrial precision automation micro drive systems,
it supports long-term high-frequency operation.
Stable and consistent output is ensure.
The unit adopts a modular sealed structure design.
Excellent dust and contamination resistance is achieve.
It is suitable for complex industrial environments.
Typical Applications
Medical precision equipment.
Electronic automation devices.
Robotic joint drive systems.
Small CNC equipment.
Automated inspection instruments.
Precision positioning platforms.
Laboratory automation systems.
General Information
- Product Name: DLE28-Nema11 Planetary Gear Motor
- Product Type: NEMA11 integrated stepper motor with planetary gearbox
- Structure: Integrated stepper motor + precision planetary gearbox
- Control Mode: Open-loop stepper control / closed-loop upgrade optional
- Mounting Type: Flange-mounted design

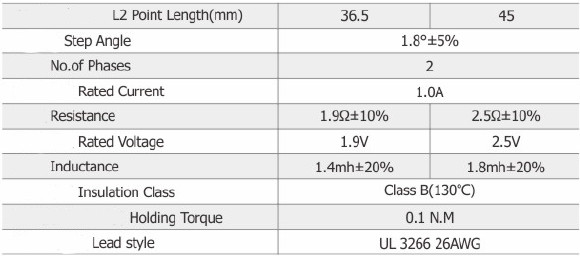

Motor Specifications
- Step Angle: 1.8°
- Phase: 2-phase hybrid stepper motor
- Rated Current: 0.8A to 1.5A optional
- Rated Voltage: 2.8V to 12V DC
- Holding Torque: 0.08 N·m to 0.2 N·m

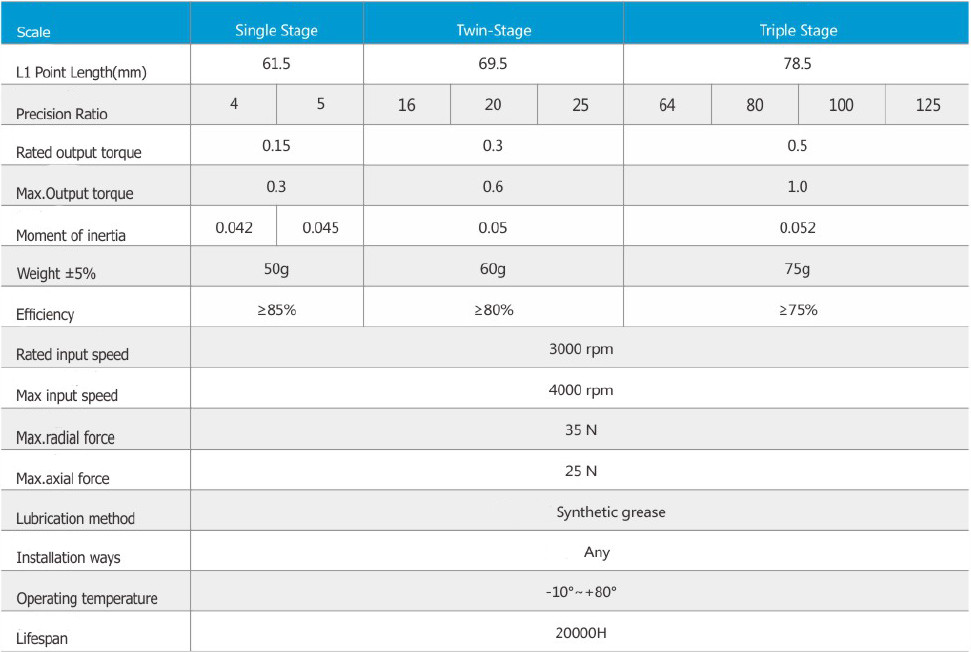

Gearbox Specifications
- Gear Type: Precision planetary gear system
- Gear Ratios: 3:1 / 5:1 / 10:1 / 15:1 / 20:1 / 30:1 / 50:1
- Transmission Efficiency: ≥85%
- Backlash: ≤1° (≤0.5° for high precision version)
- Gear Material: High-strength alloy steel + powder metallurgy gears

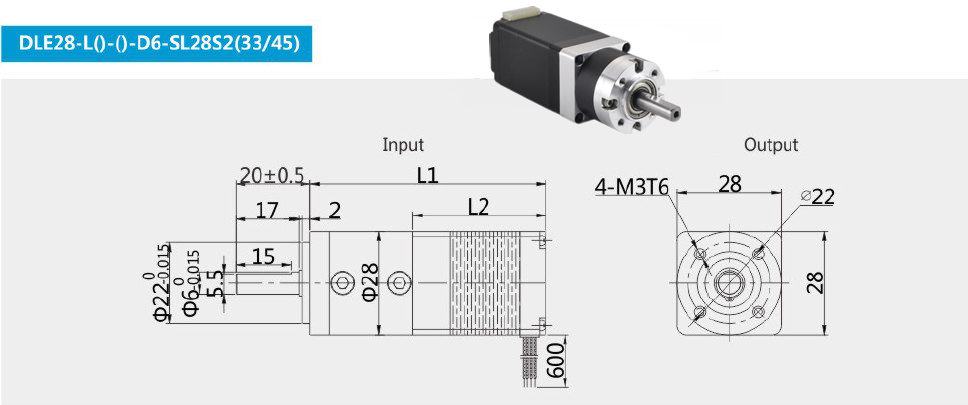

Structure and Dimensions
- Frame Size: 28 mm × 28 mm
- Motor Length: 30 mm to 60 mm depending on ratio
- Output Shaft: Ø5 mm / Ø6 mm
- Mounting Hole Distance: 22 mm × 22 mm
- Total Weight: approx. 0.15 kg to 0.35 kg
Performance
- Output Torque: 0.2 N·m to 3.0 N·m depending on ratio
- Max Speed: 200 rpm to 1500 rpm
- Position Accuracy: ±0.1° to ±0.5°
- Noise Level: ≤55 dB
- Service Life: ≥10,000 hours
Environmental Conditions
- Operating Temperature: -20°C to +50°C
- Protection Level: IP40 / IP54 optional
- Cooling Method: Natural cooling
- Application Environment: Industrial automation / precision systems
