The Nema11 non-captive linear stepper motor is designed for compact automation devices.
It is ideal for 3D printers, mini robots, medical instruments, and precision measurement tools.
This motor provides stable linear motion and accurate positioning, ensuring efficient operation.
Its compact design fits perfectly in tight spaces and small assemblies.
Using this product enhances device performance and meets high-precision automation requirements.
Advantages and Performance Features
The motor offers a high-precision step angle and low-noise operation.
Non-captive design delivers smooth linear travel and consistent thrust output.
High-quality magnets and windings improve driving force and durability.
Lightweight and compact structure reduces installation space requirements.
Long-life design ensures over 50,000 reliable cycles, lowering maintenance costs.
Manufacturing Process and Quality Assurance
The Nema11 linear stepper motor is produced with precision CNC machining and strict assembly.
Each unit undergoes 24-hour aging tests and performance verification.
High-quality standards guarantee stable operation in diverse industrial environments.
The motor is compatible with standard drivers for easy system integration.
OEM customization options allow tailored solutions for unique customer needs.
Nema11 Non-Captive Linear Stepper Motor Specifications

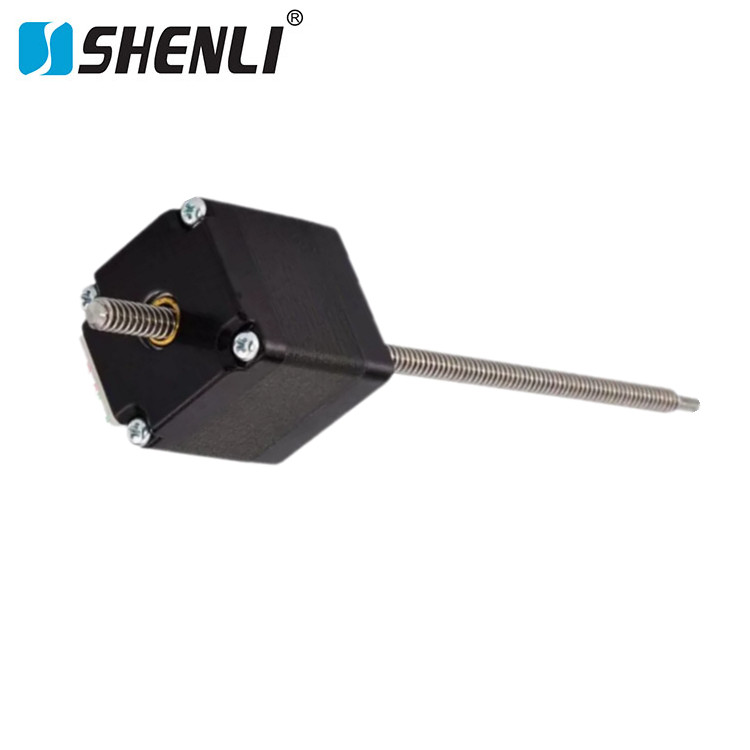

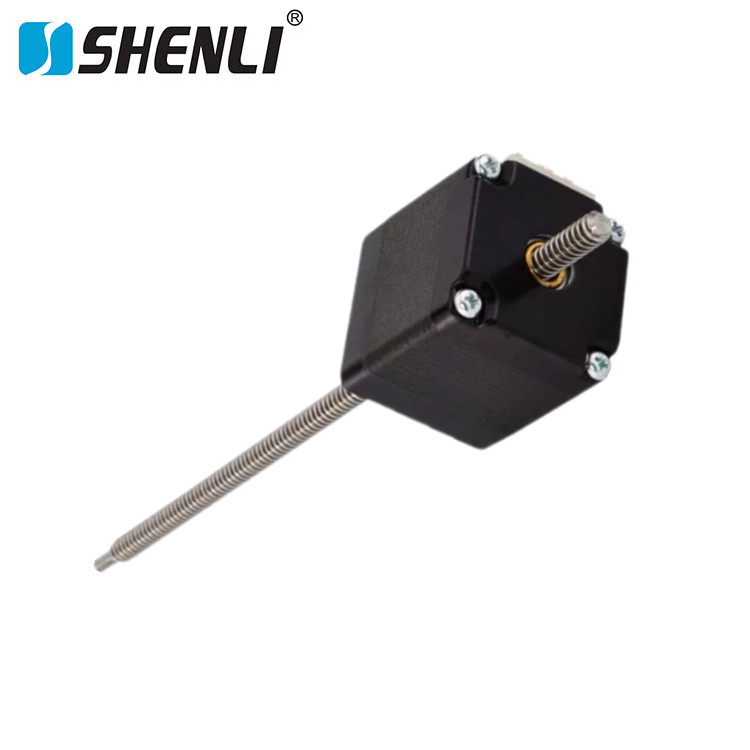

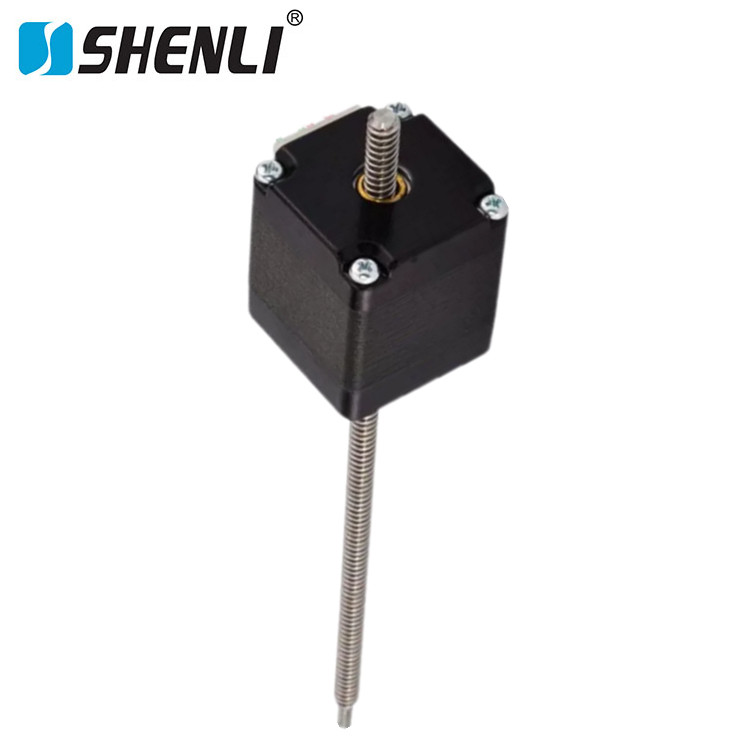

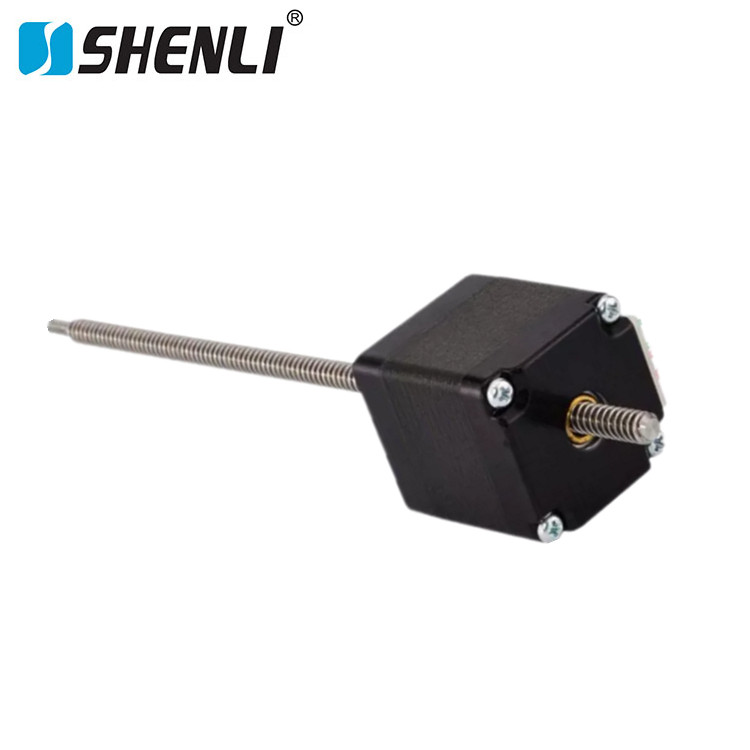

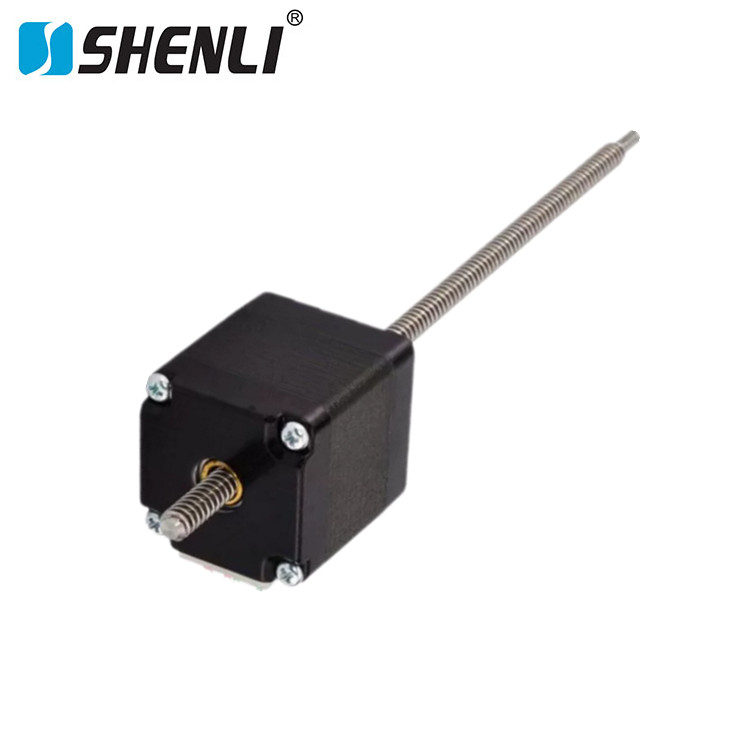

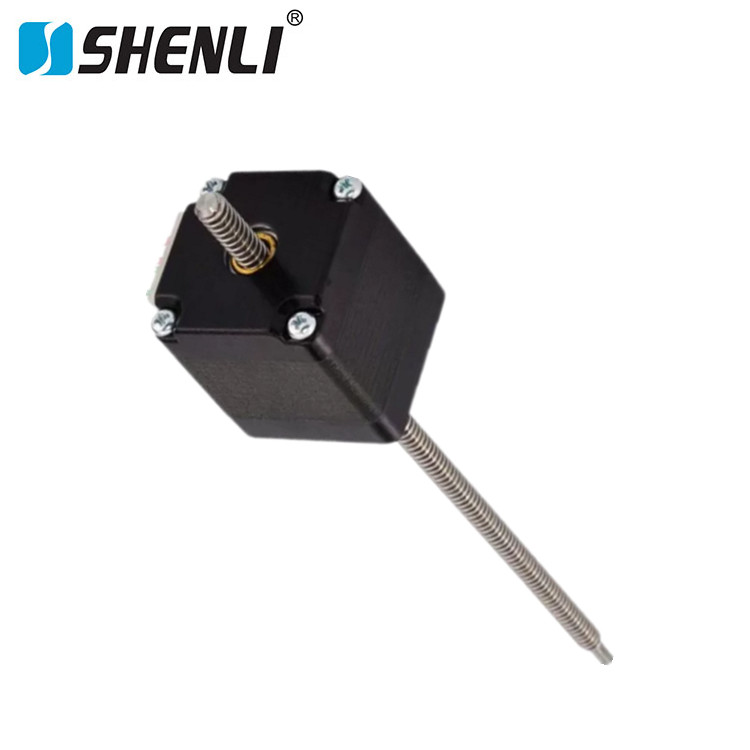

- Product Name: Nema11 Non-Captive Linear Stepper Motor
- Motor Type: 2-Phase Hybrid Linear Stepper Motor
- Design Configuration: Non-Captive External Lead Screw Design
- Frame Size: 28 × 28 mm
- Motor Length: 31 mm / 38 mm / 51 mm optional
- Step Angle: 1.8° (200 steps/revolution)
- Lead Screw Diameter: Φ4 mm
- Lead Options: 0.6096 mm / 1.27 mm / 2.54 mm per revolution
- Linear Resolution: Up to 0.003048 mm per step

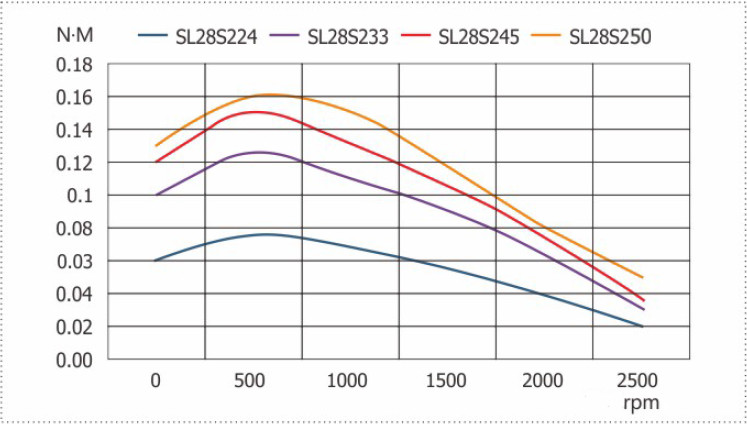

- Holding Torque: 0.05~0.18 N·m
- Linear Thrust: 15~80 N

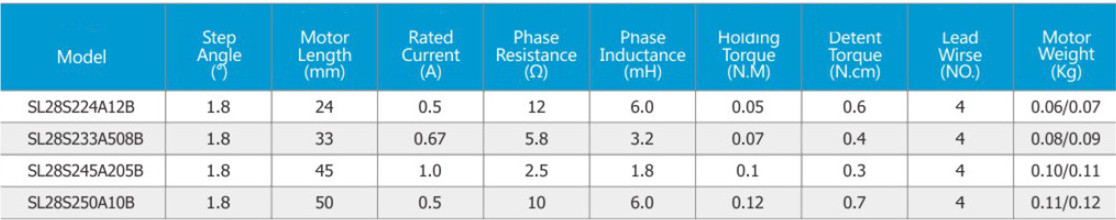

- Rated Current: 0.4~1.0 A/phase
- Phase Resistance: 3~30 Ω
- Rated Voltage: 3~24 V DC
- Insulation Resistance: 100 MΩ Min at 500V DC
- Insulation Class: Class B (130°C)
- Radial Runout: ≤0.03 mm
- Repeatability Accuracy: ±0.02 mm
- Noise Level: ≤40 dB
- Operating Temperature: -20°C to +50°C
- Service Life: ≥3 million reciprocating cycles
- Mounting Style: Standard Nema11 flange mounting
- Applications: Laboratory equipment, medical instruments, valve actuators, optical adjustment systems, and compact automation devices.
