Description
Medium-High Thrust Linear Automation Drive Solution

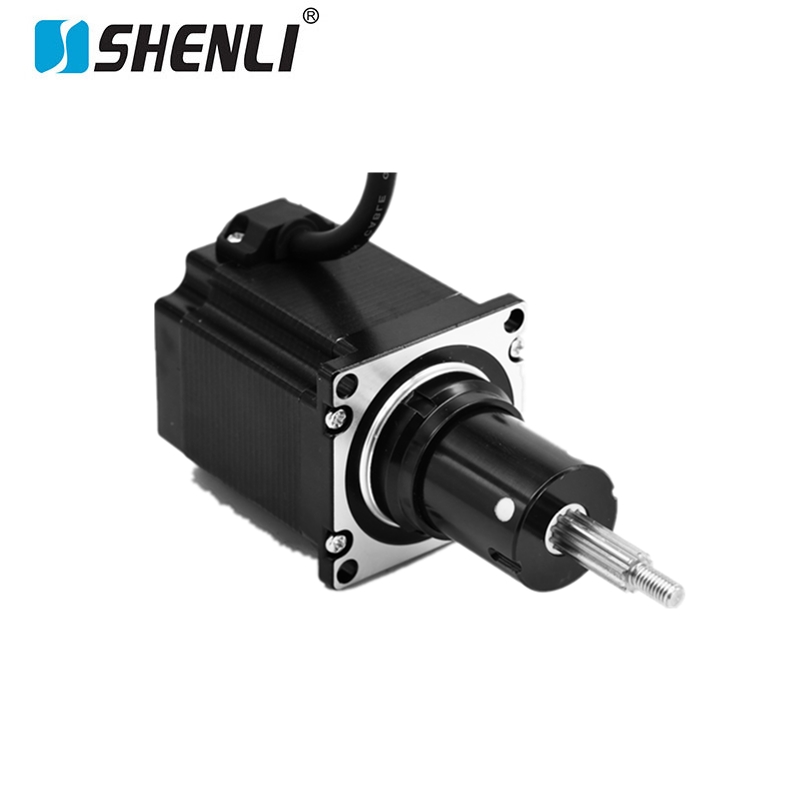

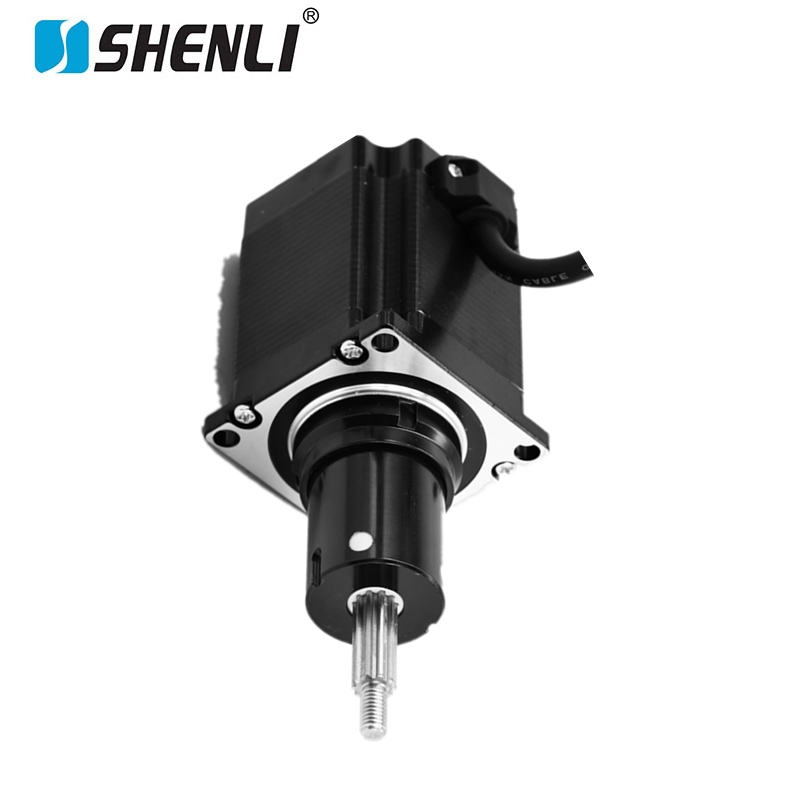

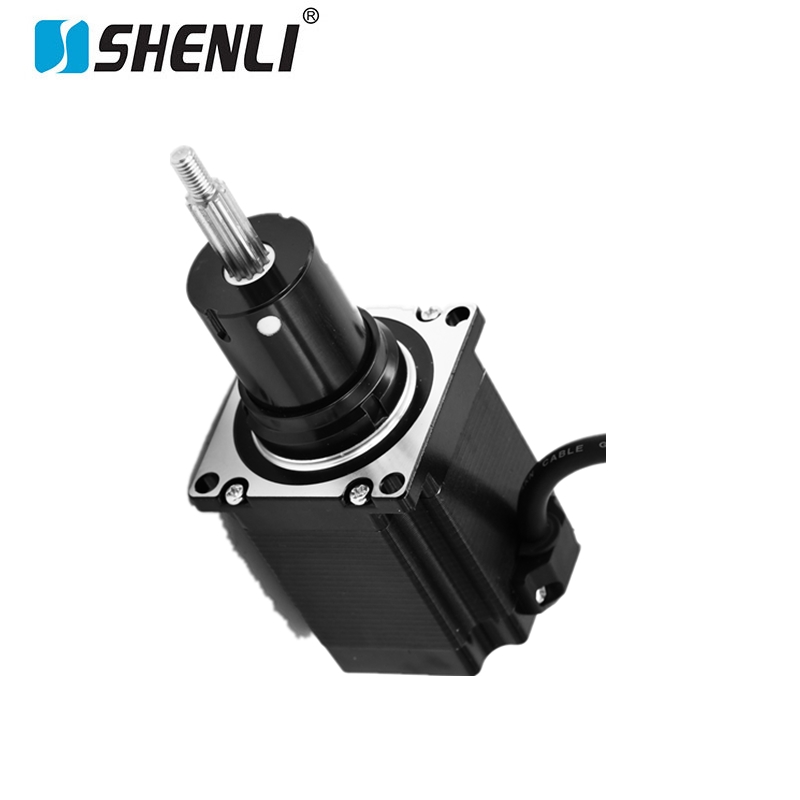

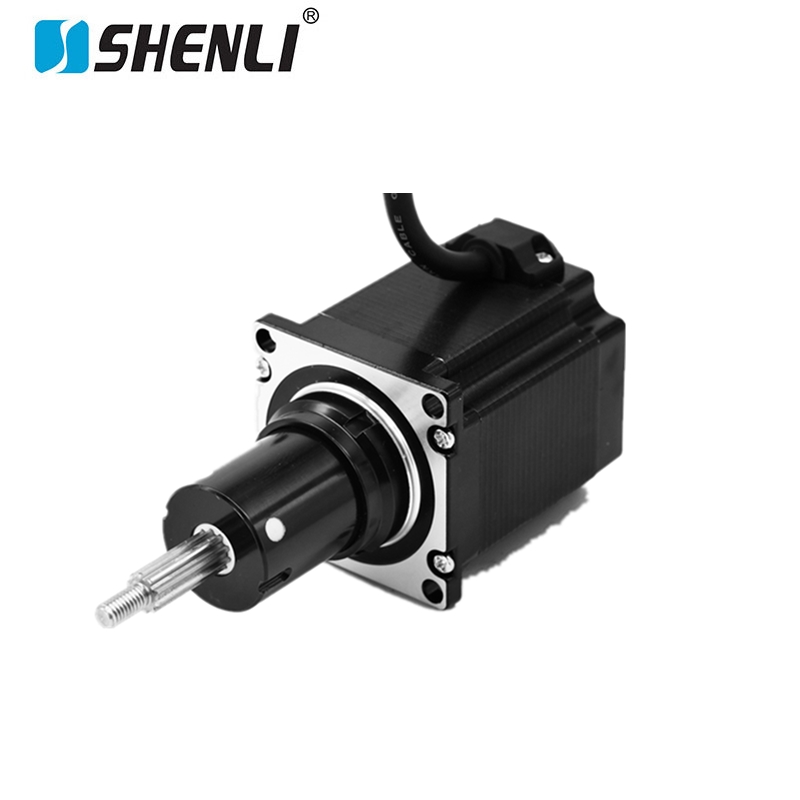

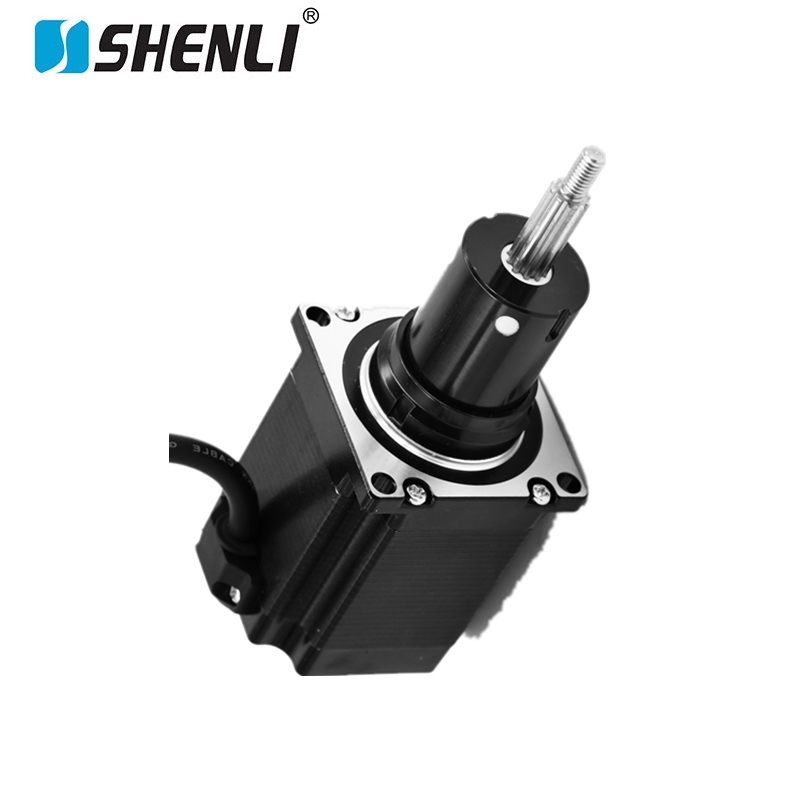

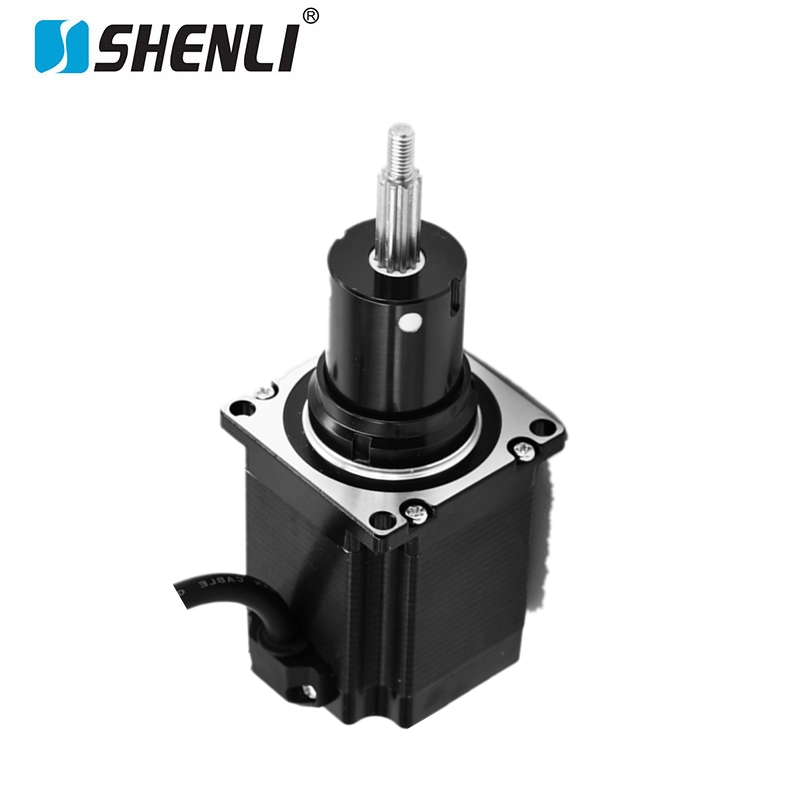

Nema23 push-rod stepper motor high thrust linear actuator,
it maintains precise positioning even under complex working conditions.
It is especially suitable for systems requiring repeat positioning and long continuous operation.
Such as automated assembly machines and intelligent inspection platforms.
Structural Design and Manufacturing Advantages
The motor adopts a high magnetic energy density rotor design.
This improves thrust output per unit volume.
The push-rod is made of high-strength alloy materials.
Ensuring durability and stability during long-stroke operation.
As a Nema23 push-rod stepper motor for industrial automation systems,
its internal winding uses precision uniform winding technology.
This reduces resistance imbalance and improves efficiency.
Thermal pathways are optimized to reduce temperature rise impact.
The mechanical guiding structure is precisely engineered.
It effectively reduces vibration and lateral deviation.
Ensuring high repeatability in linear motion performance.
Applications and Performance Advantages
The Nema23 push-rod stepper motor supports multiple drive control methods.
It is compatible with microstepping and closed-loop control systems.
This improves system response speed and motion smoothness.
Nema23 Push-Rod Stepper Motor Specifications
- Model: Nema23 Push-Rod Stepper Motor
- Shaft diameter: 8mm hardened chrome push-rod
- Motor size: 56×56×95~130mm (customizable length)
- Motor type: 2-phase stepper motor
- Rated current: 2.0A/phase
- Voltage: 12~48V DC
- Step angle: 1.8° per step
- Push-rod stroke: 20~100mm optional
- Thrust range: 200~400N
- Holding torque: 1.2~2.5Nm
- Repeatability: ±0.05mm
- Insulation class: Class B
- Protection level: IP50
- Operating temperature: -20°C~+50°C
- Humidity: ≤90% RH
- Mechanical life: ≥50,000 cycles
- Features: high rigidity push-rod, low vibration, long service life
- Drive compatibility: compatible with microstepping or closed-loop drives
- Applications: automated assembly, CNC auxiliary systems, mid-sized robotics
- Weight: approx. 1.1~1.4kg (depending on length)
Summary: This Nema23 push-rod stepper motor offers compact design, stable thrust, and flexible stroke. Length and stroke are customizable for client-specific requirements.
