AF60 Precision Helical Gearbox
Compact Helical Transmission for Precision Motion Control
The AF60 Precision Helical Gearbox is designed for compact, accurate, and continuous mechanical power transmission. Its helical gear arrangement promotes gradual tooth engagement during operation. This structure helps improve torque transfer and reduce mechanical shock. The AF60 suits servo-driven equipment requiring controlled rotational movement. Its compact transmission layout also benefits space-conscious machine designs.
Servo Motor Integration for Automated Motion
The gearbox can be paired with servo motors in automated motion systems. The AF60 Precision Helical Gearbox for Servo Motor applications supports repeatable mechanical transmission. It suits indexing units, positioning mechanisms, handling equipment, and compact automation modules. Engineers can select compatible motor interfaces according to system requirements. The gearbox provides a practical connection between the motor and driven mechanism.
Applications in Industrial Automation
The AF60 Precision Helical Gearbox for Industrial Automation supports various automated production applications. Typical uses include packaging machinery, assembly equipment, inspection systems, and material handling devices. Its compact structure helps engineers manage installation space around the drive assembly. Helical gearing supports consistent operation across repeated working cycles. This makes the gearbox suitable for machinery requiring dependable transmission performance.
Precision Manufacturing and Gear Processing
Manufacturing quality begins with controlled material selection and precision component processing. Gear components can undergo CNC machining, accurate tooth forming, and controlled heat treatment. These processes help maintain dimensional consistency and dependable gear engagement. Housing components are precision machined for accurate bearing and shaft alignment. During assembly, technicians inspect critical interfaces, rotation, lubrication, and overall mechanical condition.
CNC Machinery and Custom Drive Solutions
The AF60 Precision Gear Reducer for CNC Machinery supports compact machine-tool transmission requirements. It can also serve motion-control equipment requiring reliable speed reduction. International buyers can discuss motor matching, ratios, interfaces, and application conditions with our technical team. The AF60 supports customized integration into different equipment platforms. As a China AF60 Precision Helical Gearbox Supplier, we provide technical selection and OEM support.
Product Specifications

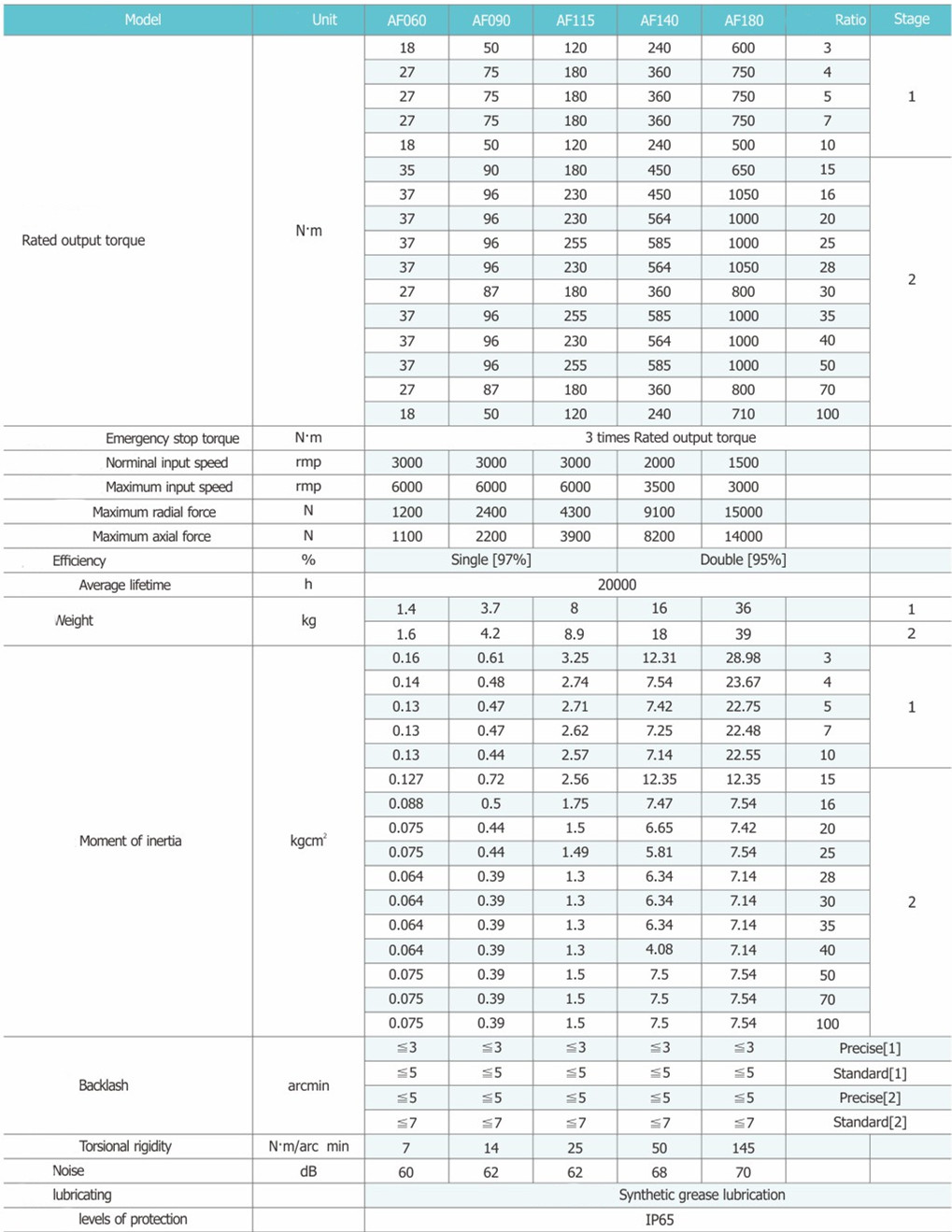

- Model: AF60 Precision Helical Gearbox
- Gearbox Type: Precision helical gear transmission
- Available Ratios: 3, 4, 5, 7, 10, 15, 16, 20, 25, 28, 30, 35, 40, 50, 70, and 100
- Transmission Stages: Single-stage and two-stage configurations
- Rated Output Torque: 18–37 N·m, depending on the selected ratio
- Nominal Input Speed: 3,000 rpm
- Maximum Input Speed: 6,000 rpm
- Maximum Radial Load: 1,200 N
- Maximum Axial Load: 1,100 N
- Emergency Stop Torque: 3 times the rated output torque
- Efficiency: 97% for single-stage; 95% for two-stage transmission
- Average Service Life: 20,000 hours
- Moment of Inertia: 0.064–0.160 kg·cm² across available ratios
- Backlash: Precision ≤3 arcmin; standard ≤5 arcmin or ≤7 arcmin
- Torsional Rigidity: 7 N·m/arcmin
- Operating Noise: 60 dB
- Lubrication: Synthetic grease lubrication
- Protection Rating: IP65
- Weight: Approximately 1.4 kg for single-stage; 1.6 kg for two-stage
- Typical Drive Compatibility: Servo motors and precision automation systems
- Dimensional Data: The supplied specification table does not list AF60 mounting dimensions. Flange dimensions, shaft sizes, and mounting-hole details should follow the applicable mechanical drawing.
