PLEK90 Non-Standard Ratio Gear Reducer for Industrial Automation

Description

Customized Transmission Solution for Special Industrial Requirements

The PLEK90 Non-Standard Ratio Gear Reducer is developed for complex industrial transmission applications.
It supports customized gear ratio designs for different machine requirements.
Compared with standard reducers, the PLEK90 offers more flexible transmission configurations.
The right-angle structure saves valuable installation space.
Optimized gear combinations improve efficiency and operational stability.
As a PLEK90 non-standard ratio gear reducer for industrial automation, it is widely used in robotics, automated production lines, AGV equipment, and smart manufacturing systems.
Stable torque output enables precise equipment control.
The compact design fits machines with limited installation space.

Precision Manufacturing for Reliable Long-Term Performance

The PLEK90 uses high-strength alloy materials for key transmission components.
Gears are processed through precision machining and heat treatment technology.
Advanced manufacturing improves gear surface durability.
High-precision bearings reduce mechanical losses during operation.
The optimized internal structure minimizes vibration and operating noise.
As a PLEK90 custom gear ratio planetary gearbox for servo motors, it matches various servo systems with different speed and torque requirements.
Strict quality inspection ensures consistent performance.
The long-life lubrication design reduces maintenance requirements.

Flexible Customization for OEM Equipment Manufacturers

The PLEK90 supports OEM and ODM customization services.
Customers can select suitable reduction ratios based on application needs.
Customized input flanges, output shafts, and mounting dimensions are available.
Professional engineers provide complete transmission design support.
As a PLEK90 precision gearbox manufacturer for customized transmission solutions, it serves industrial robots, packaging machinery, CNC equipment, medical devices, and renewable energy equipment.
The rigid structure improves machine accuracy.
Mass production capability supports global industrial customers.
Fast response helps shorten product development cycles.

Main Applications

PLEK90 Non-Standard Ratio Gear Reducer Specifications

General Information

Product Name: PLEK90 Non-Standard Ratio Gear Reducer
Model: PLEK90
Product Type: Customized right-angle planetary gear reducer
Transmission Structure: Right-angle bevel gear combined with planetary gear mechanism
Key Feature: Custom reduction ratios for special power matching requirements
Compatible Motors: Servo motors, stepper motors, direct-drive motors, and industrial drive systems
Applications: Industrial robots, automation equipment, AGV systems, CNC machinery, and renewable energy equipment

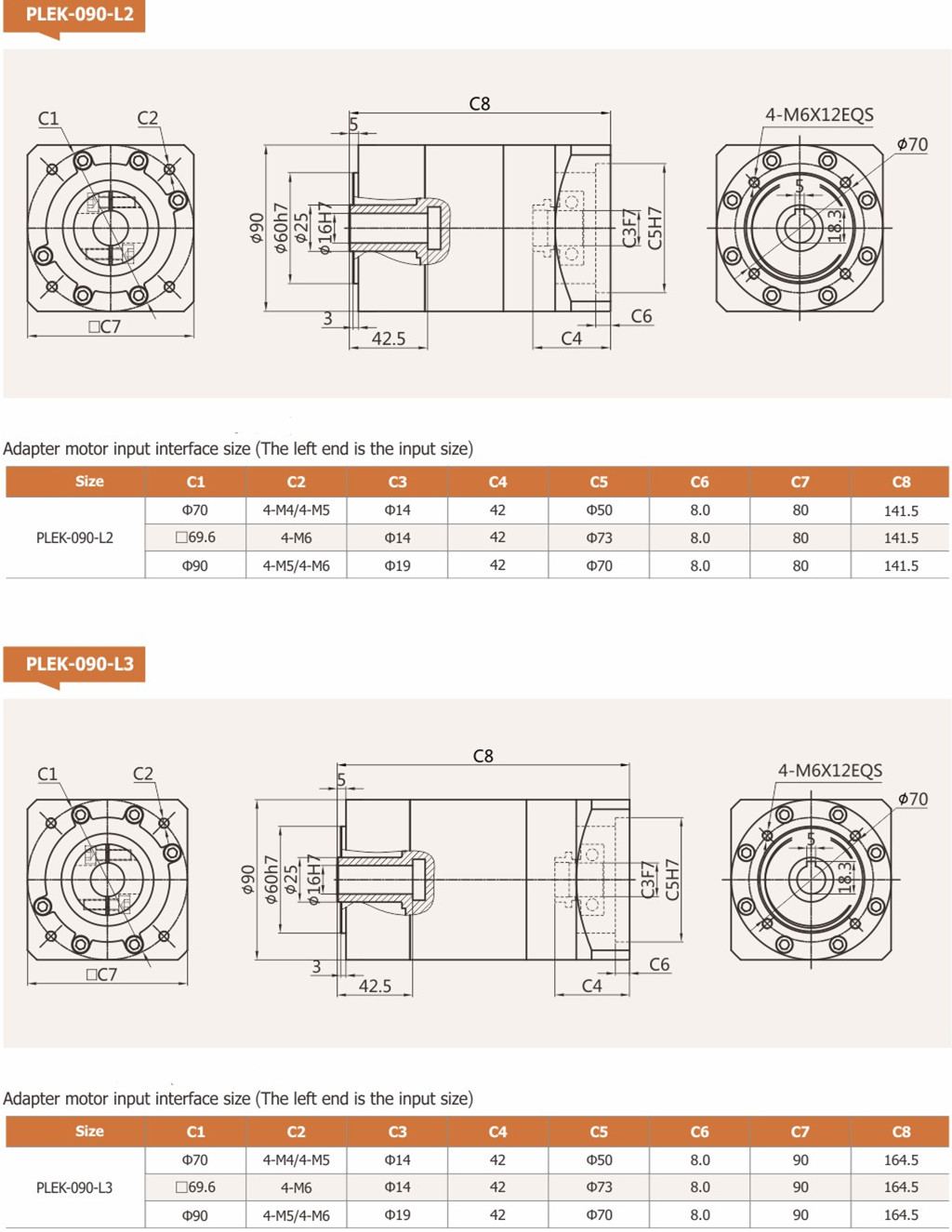

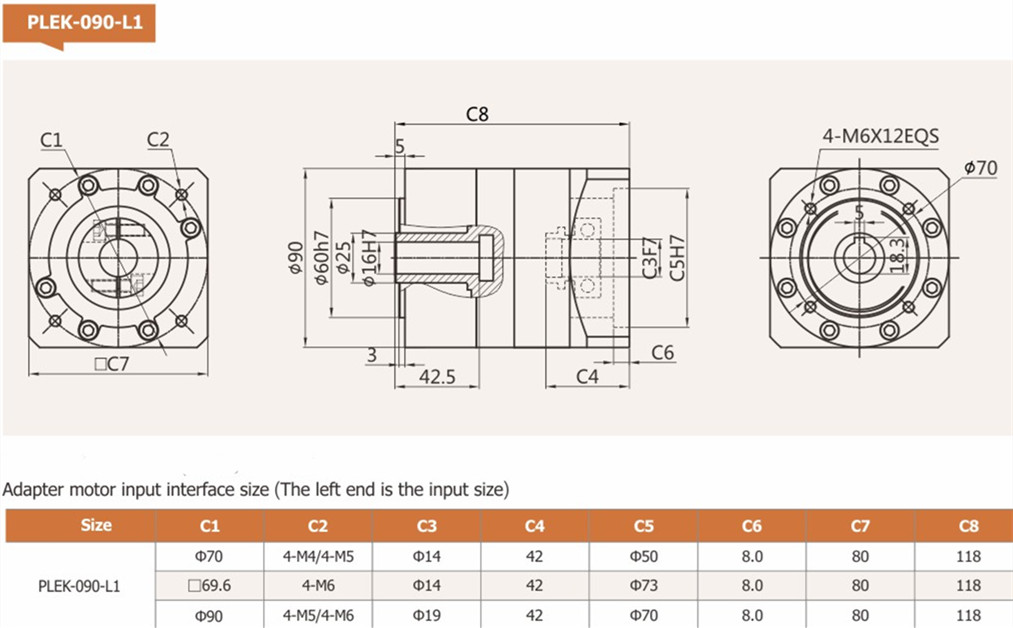

Mechanical Structure & Dimensions

Frame Size: 90 mm standard housing design
Input Interface: Compatible with various servo motor flange standards
Output Configuration: 90° right-angle output structure
Output Shaft: Solid shaft output with customized diameter and keyway options
Housing Material: High-strength aluminum alloy or customized metal housing
Gear Material: Premium alloy steel construction
Mounting Options: Flange mounting, base mounting, and customized installation designs
Protection Design: Sealed structure for improved dust and oil resistance

Transmission Performance

Gear Ratio Range: 3:1 to 200:1 (special ratios available upon request)
Gear Stages: Single-stage, two-stage, and multi-stage options
Rated Output Torque: 80–250 N·m
Peak Output Torque: Up to 350 N·m
Backlash: ≤10 arcmin (precision version available)
Efficiency: Up to 97% for single stage and 92% for multi-stage versions
Maximum Input Speed: 4000–6000 rpm
Operating Features: High rigidity, low vibration, and stable torque transmission

Precision Manufacturing Process

CNC precision machining for critical components
Gear grinding and finishing processes
Carburizing and hardening treatment for alloy steel gears
Gear surface hardness: HRC58–62
High-precision bearing system for smooth operation
Accurate assembly control for optimized gear meshing
Factory testing includes torque, noise, temperature rise, and backlash inspection
OEM, ODM, and customized development services available
