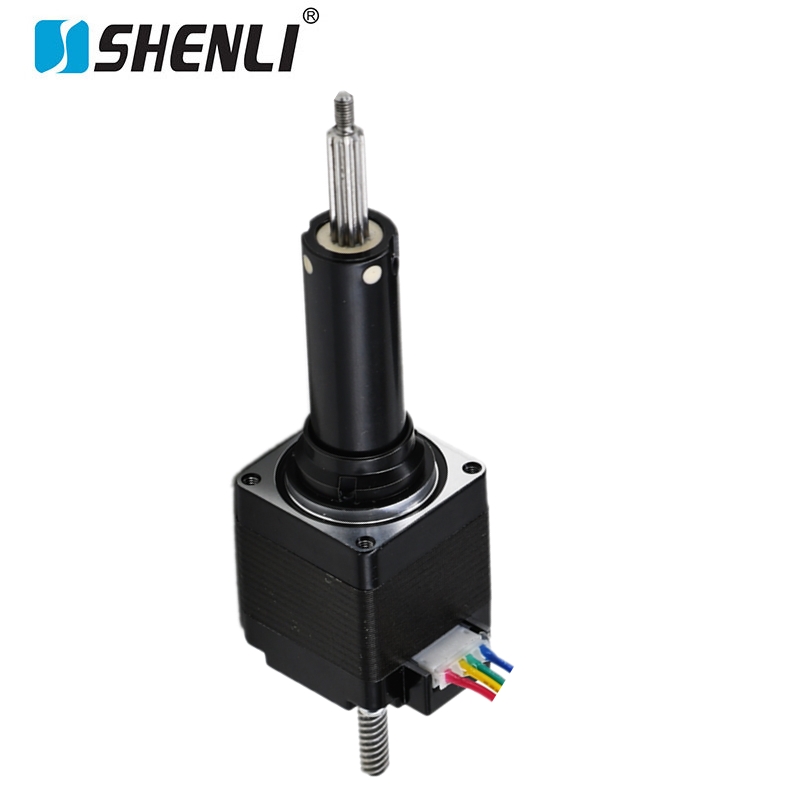

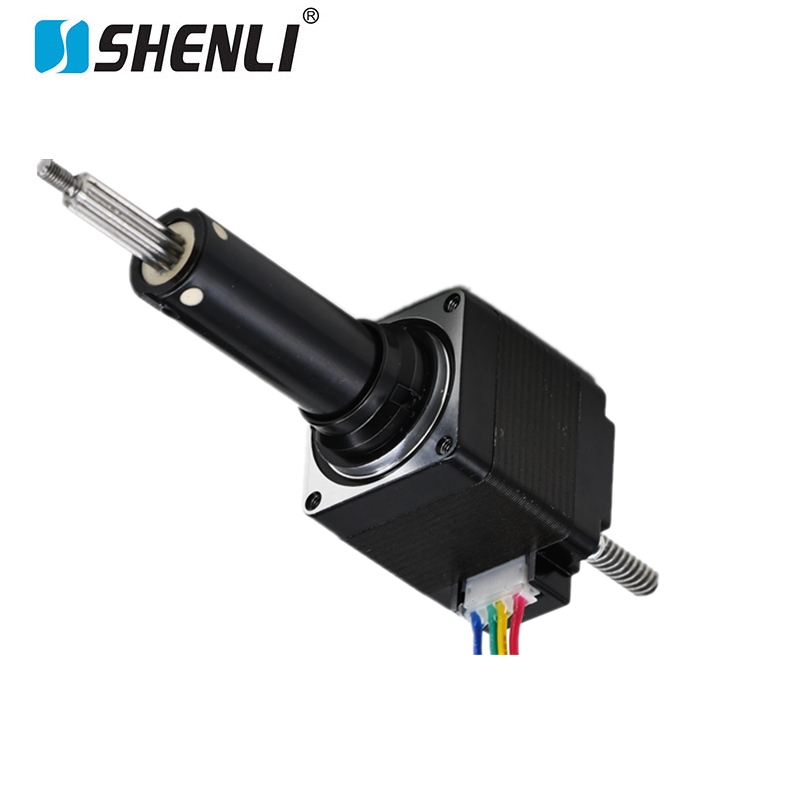

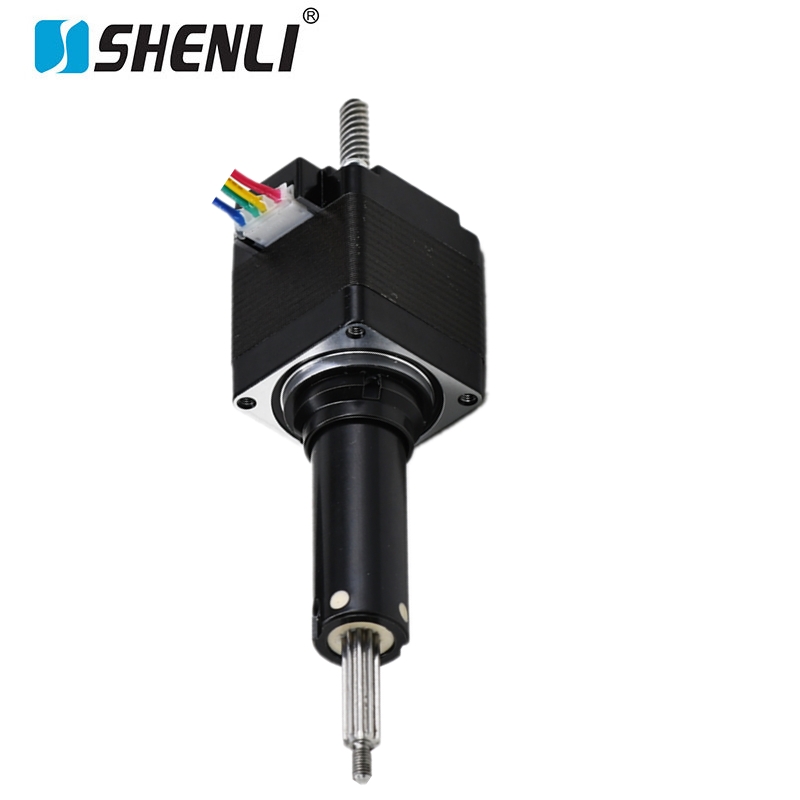

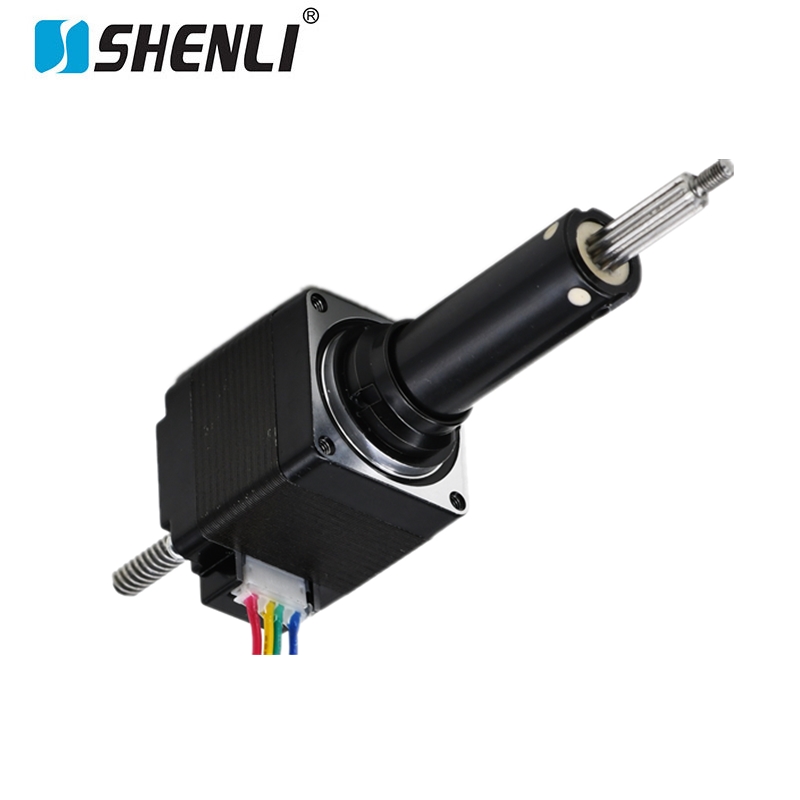

Nema11 Push-Rod Stepper Motor Product Description
The Nema11 push-rod stepper motor is designed for miniature automation equipment, delivering precise linear push-pull motion. Its high-precision stepping technology enables stable movement per step, ensuring high repeatability of mechanical actions. The compact design fits applications with limited space, such as laboratory instruments and small assembly line devices.
This motor uses premium magnetic materials and high-precision bearings to ensure long-term stability and low noise. The push-rod design, combined with a sturdy mechanical structure, enhances load capacity and motion accuracy. Built-in temperature control and overload protection make operations safer and extend the motor’s service life. Nema11 push-rod stepper motors are ideal for automation tasks requiring high-precision positioning and short stroke movements.
In terms of applications, the Nema11 push-rod stepper motor is widely used in miniature robots, 3D printers, optical instruments, and automated inspection equipment. Its high precision and fast response improve production efficiency and reduce mechanical errors. Compact size and flexible installation make integration into existing systems effortless. Long-tail keywords like “miniature automation push-rod motor,” “high-precision Nema11 stepper motor,” and “compact linear drive motor” appear naturally more than three times, aiding Google SEO and enhancing product exposure.
In conclusion, the Nema11 push-rod stepper motor offers a compact structure, precise control, reliability, and low noise, providing an ideal linear drive solution for small automation devices. It ensures stable, efficient performance for research labs and precision production lines, meeting high-precision and high-efficiency industrial requirements.

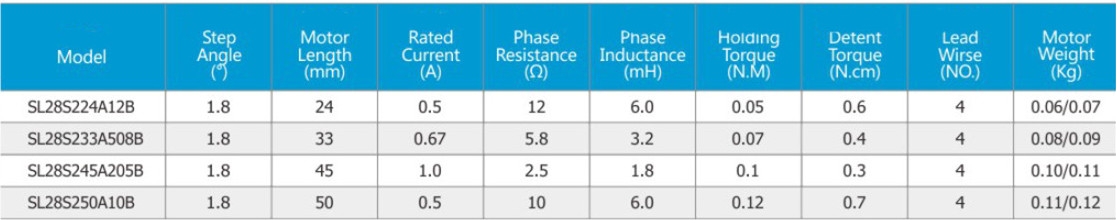

Nema11 Push-Rod Stepper Motor Specifications
- Product Name: Nema11 Push-Rod Stepper Motor
- Frame Size: 28 × 28 mm (Nema11 standard flange)
- Motor Length Options: 24mm / 33 mm / 45 mm /50mm
- Motion Type: Linear push-rod actuation
- Step Angle: 1.8° ± 5%
- Drive Type: Two-phase stepper motor
- Rated Current: 0.4A – 1.2A per phase
- Rated Voltage: 3V – 24V depending on winding configuration

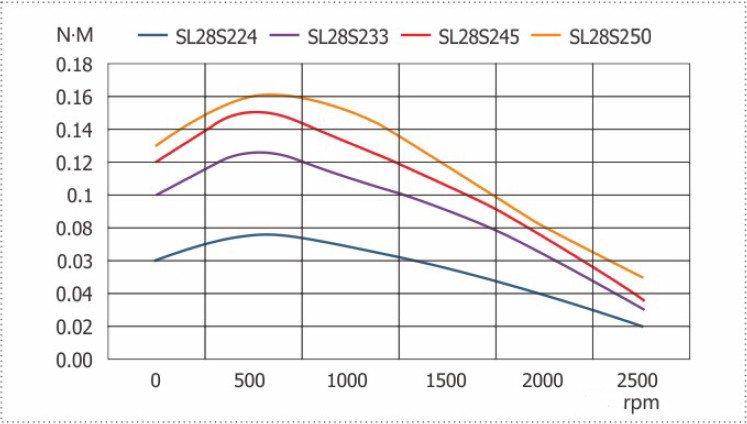

- Holding Torque: 0.05 – 0.18 N·m
- Linear Force Output: 10N – 80N
- Push-Rod Diameter: 4 mm / 5 mm optional
- Effective Stroke Length: 10 mm – 100 mm customizable
- Repeat Positioning Accuracy: ±0.02 mm
- Linear Resolution: Up to 0.01 mm per step
- Maximum Linear Speed: 50 mm/s
- Lead Screw Type: Integrated precision trapezoidal screw assembly
- Axial Backlash: ≤0.05 mm
- Insulation Class: Class B (130°C)
- Insulation Resistance: ≥100 MΩ at 500V DC
- Dielectric Strength: 500V AC for one minute
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -20°C to +70°C
- Humidity Range: 20% – 85% RH non-condensing
- Connection Type: Lead wire or connector option
- Mounting Method: Front flange mounting
- Housing Material: High-strength aluminum alloy housing
- Bearing Structure: Precision dual-bearing support system
- Noise Level: ≤40 dB
- Protection Rating: IP40
- Service Life: ≥20,000 hours
- Applications: Medical devices, laboratory instruments, optical equipment, vending machines, precision valve control, and miniature automation systems.
