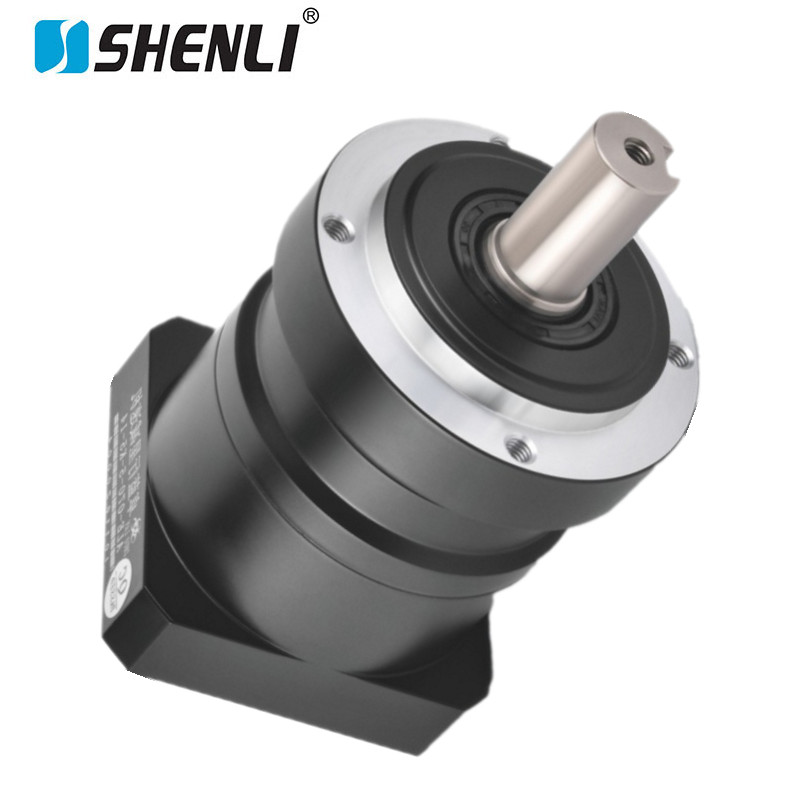

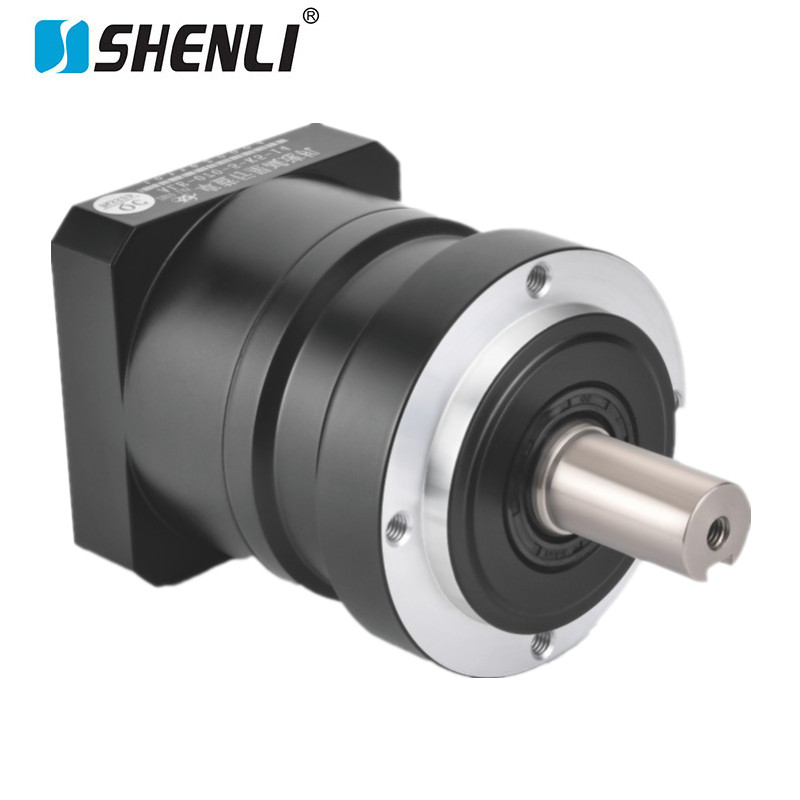

ALE90 Helical Gearbox Manufacturer China
Industrial Transmission Solutions from China
The ALE90 Helical Gearbox is designed for machinery manufacturers seeking dependable transmission components. It supports equipment projects requiring compact integration and clearly defined mechanical interfaces. As a product supplied by a China-based manufacturer, it offers an option for OEM buyers sourcing industrial drive components. The ALE90 Helical Gearbox Manufacturer China page helps buyers evaluate product suitability and discuss project requirements.
Designed for Practical Equipment Integration
Industrial machines often have different mounting layouts, motor connections, and space constraints. Selecting a compatible gearbox helps simplify mechanical assembly and equipment development. Our team can review motor specifications, installation drawings, and operating conditions before recommending a configuration. This process helps identify interface requirements early and reduce avoidable design changes. An ALE90 helical gearbox for industrial automation can be evaluated for suitable machinery and drive applications.
Helical Gear Transmission and Production Quality
Helical gears feature angled teeth that engage progressively during rotation. This geometry can support smooth transmission when the gearbox operates within its specified conditions. Overall performance depends on gear accuracy, material selection, bearing quality, lubrication, and assembly control. Precision machining helps maintain consistent dimensions and proper gear contact. Production inspections help identify manufacturing deviations before shipment. These processes support consistent product quality and reliable integration into industrial equipment.
Applications Across Industrial Machinery
The ALE90 Helical Gearbox can be assessed for automated production lines, packaging equipment, material handling machinery, and specialized industrial drives. Suitability depends on required torque, reduction ratio, input speed, duty cycle, and installation orientation. A technical review helps buyers compare these requirements with the available gearbox configuration. An ALE90 helical gear reducer for OEM machinery can be considered for equipment projects requiring coordinated motor and transmission integration.
OEM Sourcing and Technical Support
We work with equipment manufacturers seeking gearbox components for new designs and existing machinery. Buyers can provide technical drawings, motor details, mounting dimensions, and operating requirements. Our team can review these materials to assess compatibility and feasible configuration options. Customization depends on the product structure and engineering evaluation. This cooperation helps streamline technical communication and supports more informed purchasing decisions. It also helps OEM teams coordinate gearbox selection with their equipment design process.
Request a Gearbox Quotation
Choosing a gearbox requires matching its specifications to the complete drive system. Motor compatibility, mounting interfaces, transmission ratio, and operating loads should be evaluated together. Contact our team to discuss the ALE90 Helical Gearbox and your application requirements. Submit your technical details to request a quotation and configuration review. We aim to support practical integration, consistent manufacturing standards, and long-term OEM cooperation.

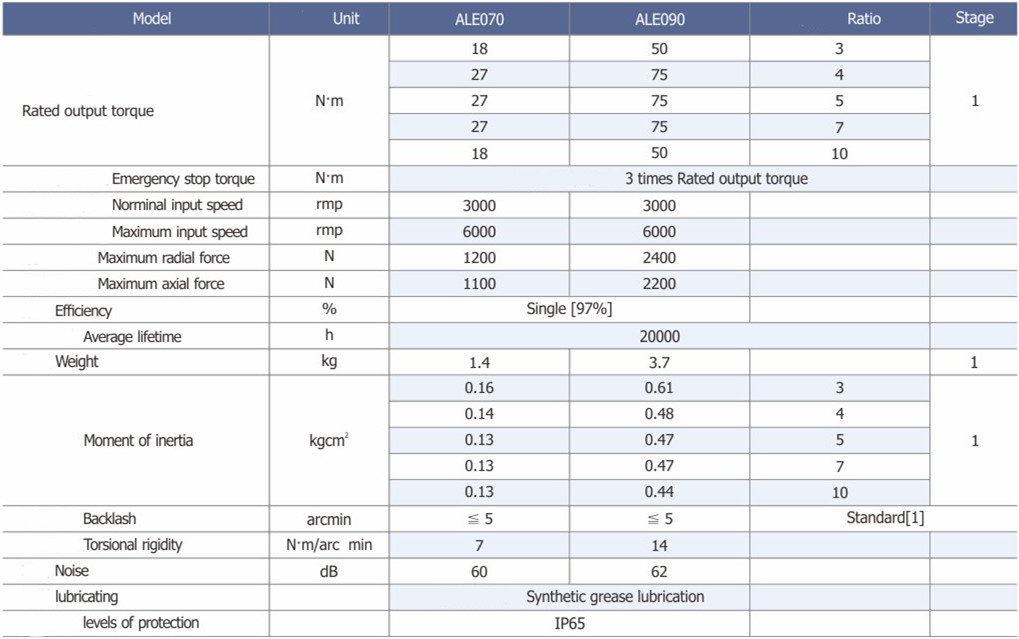

ALE090 Helical Gearbox — Technical Specifications
- Model: ALE090 Helical Gearbox
- Gearbox Type: Helical gear reducer
- Reduction Stage: Single-stage
- Available Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1
- Rated Output Torque: 50 N·m at 3:1 and 10:1; 75 N·m at 4:1, 5:1, and 7:1
- Emergency Stop Torque: 3 times the rated output torque
- Nominal Input Speed: 3,000 rpm
- Maximum Input Speed: 6,000 rpm
- Maximum Radial Force: 2,400 N
- Maximum Axial Force: 2,200 N
- Transmission Efficiency: 97% for single-stage configuration
- Average Service Life: 20,000 hours
- Weight: 3.7 kg
- Moment of Inertia: 0.61 kg·cm² at 3:1; 0.48 kg·cm² at 4:1; 0.47 kg·cm² at 5:1 and 7:1; 0.44 kg·cm² at 10:1
- Backlash: ≤ 5 arcmin, standard configuration
- Torsional Rigidity: 14 N·m/arcmin
- Noise Level: 62 dB
- Lubrication: Synthetic grease
- Protection Rating: IP65
- Mounting Dimensions: Refer to the ALE090 dimensional drawing for flange, shaft, and overall dimensions.
- OEM Compatibility: Confirm motor interface and mounting requirements before ordering.
