AH90 High Precision Helical Gearbox

Precision Transmission for Industrial Equipment

The AH90 High Precision Helical Gearbox is designed for machinery requiring controlled speed reduction and dependable rotational transmission. Its helical gear structure supports progressive tooth engagement during operation. This design helps deliver smooth mechanical movement and consistent transmission behavior. With a rated output torque of 50–96 N·m, the AH090 model offers options for different reduction ratios. It suits applications where engineers need to balance output torque, rotational speed, and installation requirements. Selecting an AH90 Precision Helical Gearbox requires evaluating motor specifications, operating loads, positioning requirements, and available mounting space.

Servo Motor Integration and Positioning Control

The AH90 gearbox can be consider for compatible servo motor systems and industrial motion control equipment. Its reduction ratios help match motor speed to the driven mechanism’s operating requirements. Precision backlash options support applications where transmission clearance must be carefully controlle. Depending on the selected stage and specification, buyers can evaluate precision or standard backlash configurations. An AH90 High Precision Helical Gearbox for Servo Motor may suit automated machinery, positioning mechanisms, and equipment requiring coordinated rotational movement. Proper sizing remains essential for achieving the required motion performance.

Manufacturing Quality and Mechanical Consistency

Gearbox reliability depends on gear machining accuracy, component quality, assembly control, and inspection procedures. Controll manufacturing helps maintain dimensional consistency across critical transmission components. Assembly checks can identify alignment issues that may affect mechanical operation. Appropriate synthetic grease lubrication supports gear contact and helps manage friction during service. Each configuration should be evaluated against its rated torque, permissible input speed, and load limits. These checks help buyers select an AH90 Low Backlash Helical Gearbox that matches their actual application requirements. Performance claims should always correspond to the confirmed technical specifications.

Applications in Automation and Machinery

The AH90 High Precision Helical Gearbox can be evaluate for industrial automation, packaging machinery, CNC equipment, and mechanical positioning systems. Its nominal input speed is 3,000 rpm, while its maximum input speed reaches 6,000 rpm. The published single-stage efficiency is 97%, and the two-stage efficiency is 95%. Maximum radial and axial forces are rated at 3,300 N and 1,700 N, respectively. The gearbox has an IP65 protection rating and an average service life of 20,000 hours. Actual suitability depends on the operating environment and selected configuration.

OEM Supply and Technical Selection

Shenli supports buyers evaluating an AH90 Precision Helical Gearbox Supplier for industrial equipment projects. Technical discussions can cover reduction ratios, motor interfaces, backlash requirements, mounting arrangements, and operating conditions. Sharing equipment drawings and load information helps improve configuration selection. Buyers comparing an AH90 High Precision Helical Gearbox Manufacturer should also assess specification transparency, manufacturing consistency, inspection standards, and technical communication. Contact Shenli to discuss your transmission requirements and request a suitable gearbox configuration.

AH90 High Precision Helical Gearbox – Technical Parameters

Model: AH090 / AH90 High Precision Helical Gearbox
Gear Type: Helical gear transmission
Reduction Ratios: 3, 4, 5, 7, 10, 15, 16, 20, 25, 28, 30, 35, 40, 50, 63, 70, 100
Rated Output Torque: 50–96 N·m, depending on ratio and stage
Emergency Stop Torque: 3 times rated output torque
Nominal Input Speed: 3,000 rpm
Maximum Input Speed: 6,000 rpm
Maximum Radial Force: 3,300 N
Maximum Axial Force: 1,700 N
Single-Stage Efficiency: 97%
Two-Stage Efficiency: 95%
Average Service Life: 20,000 hours
Weight: 3.7 kg for single-stage; 4.2 kg for two-stage
Moment of Inertia: 0.39–0.72 kg·cm², depending on ratio and configuration
Backlash: Single-stage precision ≤3 arcmin; standard ≤5 arcmin. Two-stage precision ≤5 arcmin; standard ≤7 arcmin
Torsional Rigidity: 14 N·m/arcmin
Noise Level: 62 dB
Lubrication: Synthetic grease
Protection Rating: IP65
Applications: Servo motor drives, industrial automation, precision positioning, and mechanical transmission equipment

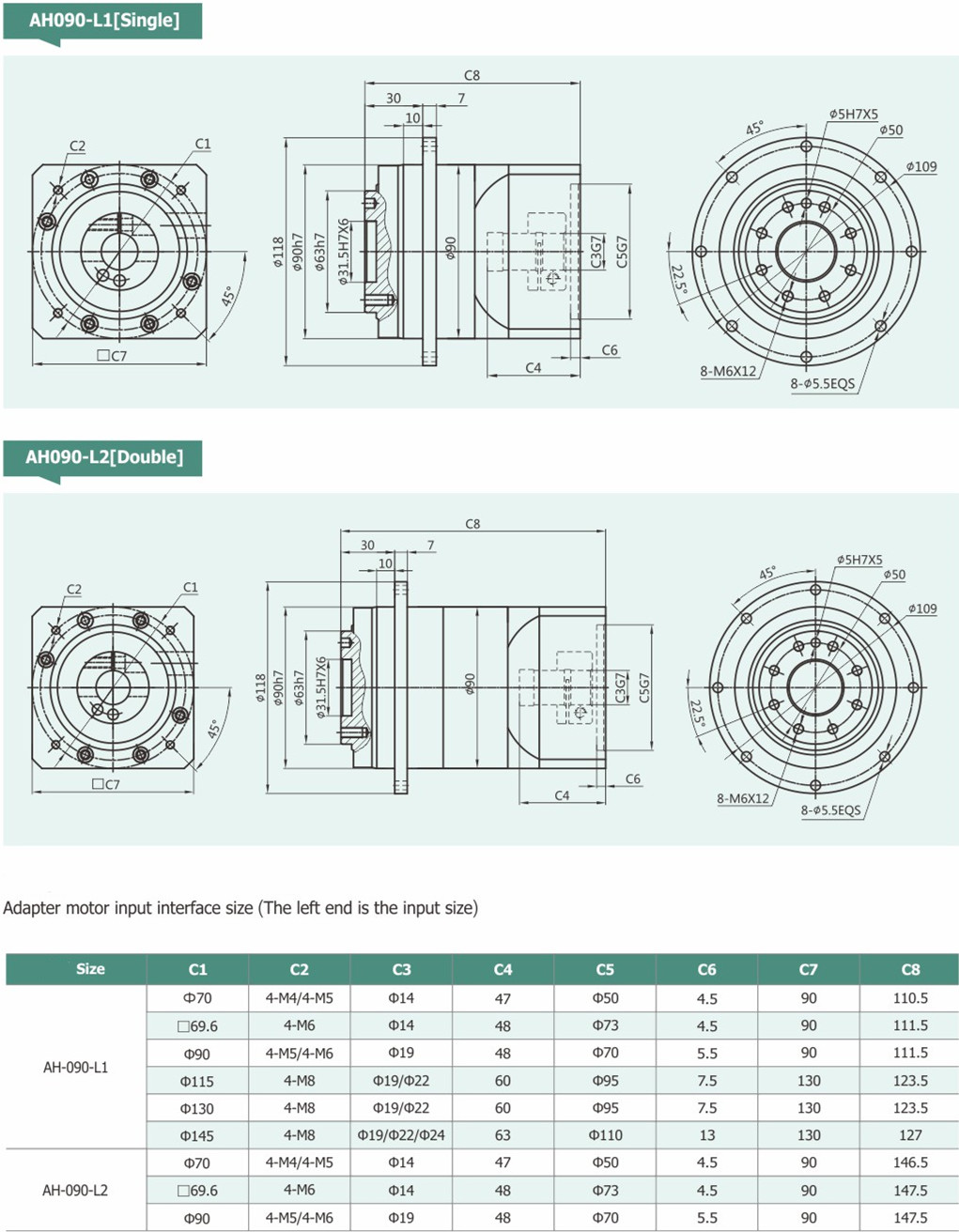

Dimensions: Confirm flange, shaft, mounting-hole, and overall dimensions using the AH090 dimensional drawing before installation.
