ZPLF120 China Planetary Gearbox Manufacturer

Professional Chinese Planetary Gearbox Manufacturing

The ZPLF120 Planetary Gearbox targets industrial equipment requiring dependable power transmission.
It uses a compact planetary gear structure for efficient speed and torque conversion.
The design suits machinery with limited installation space and demanding transmission requirements.
As a Chinese-manufactured solution, the ZPLF120 supports standard and customized configurations.
The ZPLF120 China Planetary Gearbox Manufacturer solution serves overseas equipment builders and industrial buyers.

The ZPLF120 can be matched with different motors and machine configurations.
Reduction ratios, input interfaces, and output structures can suit specific applications.
This flexibility supports automation equipment and customized machinery projects.
Volume buyers can also select configurations based on project requirements.
Therefore, the ZPLF120 suits long-term industrial supply and OEM cooperation.

Precision Transmission and Industrial Applications

The ZPLF120 can work with servo motors and industrial drive systems.
Typical applications include robots, CNC machines, packaging equipment, and automated production lines.
Precision positioning mechanisms can also use this gearbox for controlled power transmission.
Stable gear engagement helps maintain consistent equipment operation.
Proper ratio selection allows motors to operate within suitable working ranges.

As a ZPLF120 Precision Planetary Gearbox Manufacturer China solution, it targets precision motion control applications.
Its compact structure also helps engineers optimize available installation space.
Stable transmission provides practical value for continuously operating industrial machinery.
Each application can be evaluated according to its load and speed requirements.

Precision Manufacturing and Quality Control

The ZPLF120 uses precision gear machining for critical transmission components.
Gear production focuses on tooth accuracy and dimensional consistency.
Selected components can receive heat treatment for improved wear resistance.
Bearings, gears, and output components follow controlled assembly procedures.
Production includes dimensional inspections and operational testing.

These manufacturing processes help maintain consistency between production batches.
Proper assembly quality can reduce abnormal operating risks during equipment service.
Chinese manufacturing capabilities also support long-term OEM procurement for overseas customers.
This makes the ZPLF120 suitable for projects requiring stable product supply.

OEM Cooperation and Global Supply

The ZPLF120 supports project procurement for machine builders and system integrators.
Customers can provide motor models, loads, speeds, and mounting requirements.
The manufacturer can then help determine a suitable gearbox configuration.
OEM projects can also accommodate quantity requirements and interface specifications.
This cooperation model supports long-term equipment development and volume production.

As a ZPLF120 Planetary Gearbox OEM Manufacturer, the supplier can support customized industrial projects.
Volume purchasing can also help customers establish a stable supply channel.
The ZPLF120 combines precision manufacturing with flexible configuration options.
It provides overseas buyers with a dependable Chinese planetary gearbox sourcing option.

ZPLF120 Planetary Gearbox Specifications

Core Specifications

Model: ZPLF120
Product Type: Precision planetary gearbox
Reduction Ratios: 3:1 to 350:1 across 25 available ratios
Gear Stages: 1-stage, 2-stage, and 3-stage configurations
Rated Output Torque: 93–364 N·m, depending on ratio and stage
Emergency Stop Torque: 2× rated output torque
Nominal Input Speed: 2,000 rpm
Maximum Input Speed: 3,500 rpm
Maximum Radial Force: 2,230 N
Maximum Axial Force: 1,550 N
Transmission Efficiency: Up to 97% for single-stage configurations
Average Service Life: 20,000 hours
Noise Level: ≤68 dB
Lubrication: Synthetic grease
Protection Rating: IP65

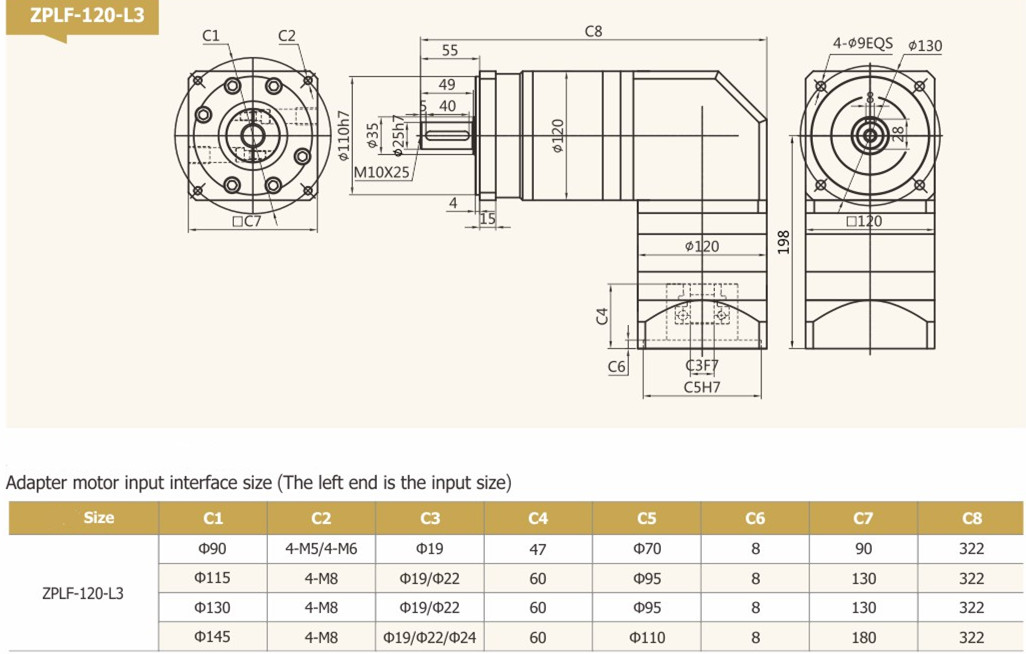

Mechanical Dimensions

Output Flange Diameter: Ø130 mm
Output Mounting Size: □120 mm
Output Mounting Holes: 4-Ø9 EQS
Gearbox Body Diameter: Ø120 mm
Overall Height: 198 mm

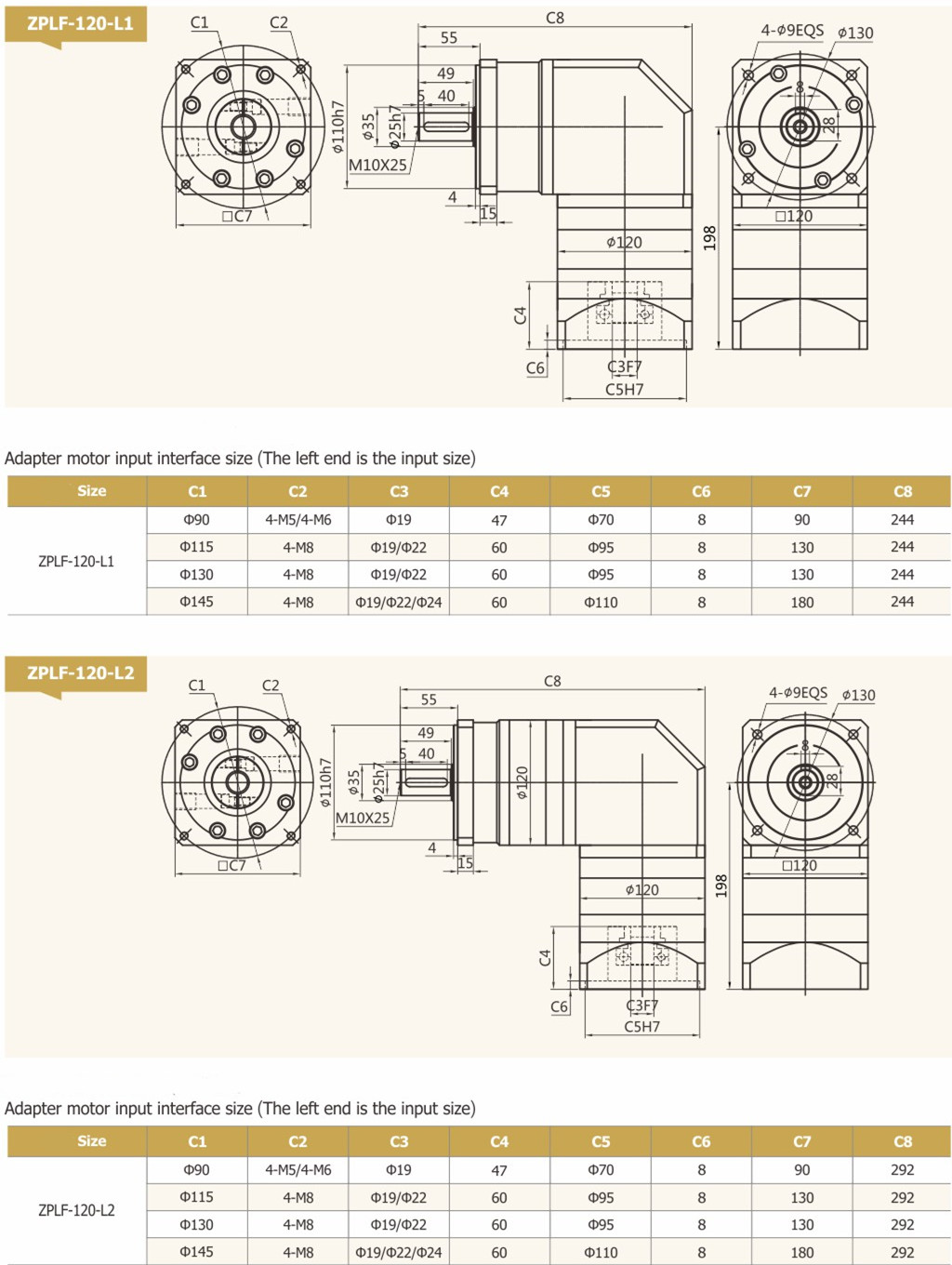

ZPLF-120-L1 Overall Length: C8 = 244 mm
ZPLF-120-L2 Overall Length: C8 = 292 mm
Input Shaft: Ø35 mm with Ø25 h7 shaft section
Input Thread: M10×25
Motor Adapter Sizes: Ø90, Ø115, Ø130, and Ø145 mm
Input Mounting Holes: 4-M5/M6 or 4-M8
Input Shaft Interface: Ø19, Ø22, or Ø24 mm, depending on motor configuration
C4 Dimension: 47 mm or 60 mm
C7 Dimension: 90, 130, or 180 mm
Lubrication Structure: Enclosed synthetic grease lubrication
