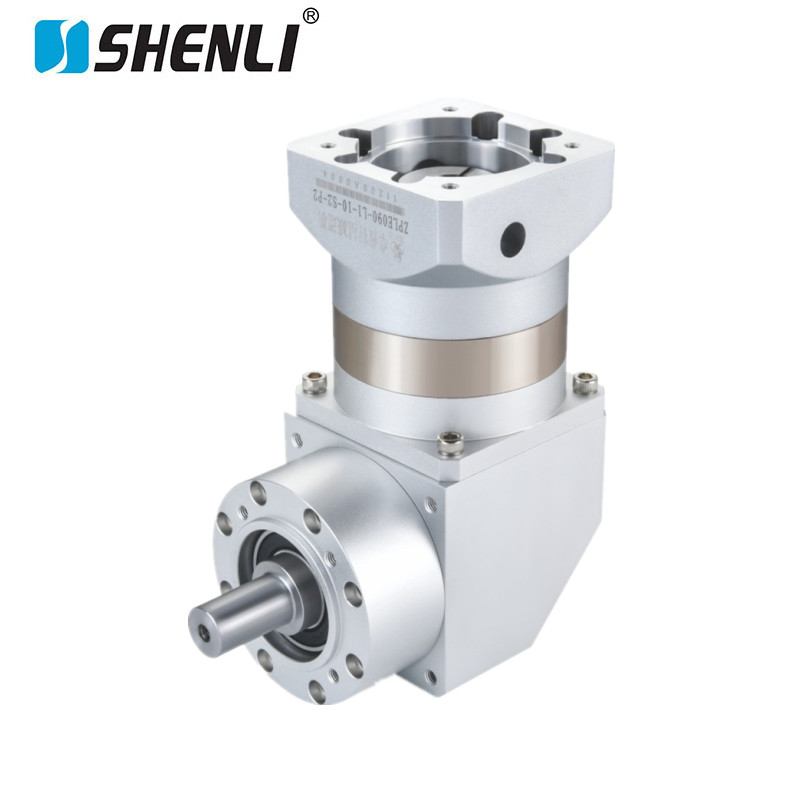

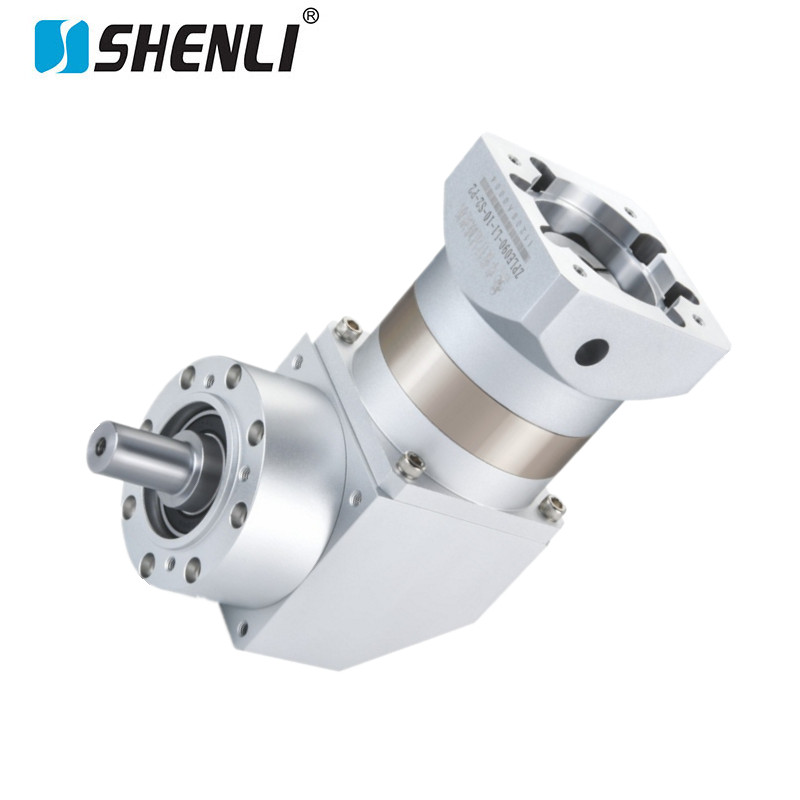

ZPLE60 Right-Angle Planetary Gearbox Product Description
Engineered for Compact Industrial Transmission Systems
The ZPLE60 Right-Angle Planetary Gearbox is developed for equipment with limited installation space.
Its 90-degree output design improves overall machine layout.
The compact construction maximizes available installation space.
As a ZPLE60 Right-Angle Planetary Gearbox Supplier, we deliver dependable transmission solutions for industrial automation.
The gearbox is suitable for robots, CNC equipment, and smart manufacturing systems.
Efficient torque transmission improves overall machine performance.
Reliable operation supports demanding production environments.
Precision Manufacturing for Consistent Performance
Every ZPLE60 gearbox is manufactured from premium alloy steel.
The gears undergo carburizing, hardening, and precision grinding.
Advanced machining ensures excellent gear engagement accuracy.
The optimized planetary gear arrangement distributes loads evenly.
As a ZPLE60 Precision Right-Angle Planetary Gearbox, it offers low backlash and exceptional structural rigidity.
High-precision bearings improve rotational stability.
Comprehensive inspections ensure consistent performance across every production batch.
Efficient Power Delivery for Servo Applications
The ZPLE60 is compatible with many leading servo motor brands.
It supports high-speed operation and frequent start-stop cycles.
The low backlash design improves repeat positioning accuracy.
High transmission efficiency minimizes power loss.
As a ZPLE60 Right-Angle Planetary Gearbox for Servo Motor Applications, it performs reliably in automation assembly, packaging machinery, electronics manufacturing, and precision inspection systems.
Low operating noise creates smoother machine performance.
Extended service life reduces long-term maintenance costs.
Flexible Configuration for Diverse Industries
The ZPLE60 is available with multiple gear ratios.
Various flange dimensions and output shaft options are supported.
The gearbox integrates easily with different installation standards.
Customized interfaces simplify machine integration.
Professional engineers provide product selection and technical assistance.
Fast production and delivery help shorten project schedules.
The ZPLE60 delivers reliable, efficient, and precise transmission performance for modern industrial equipment.

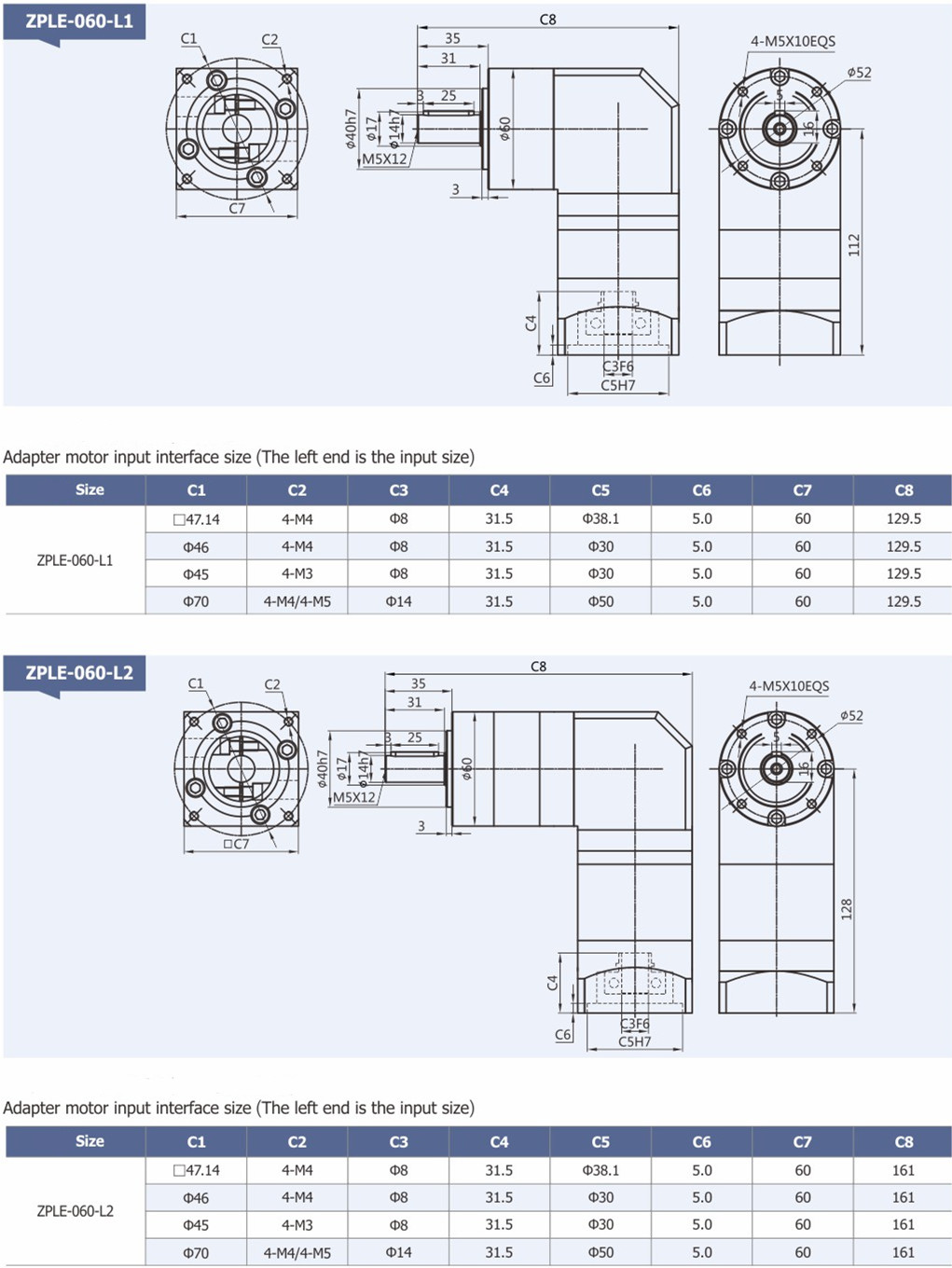

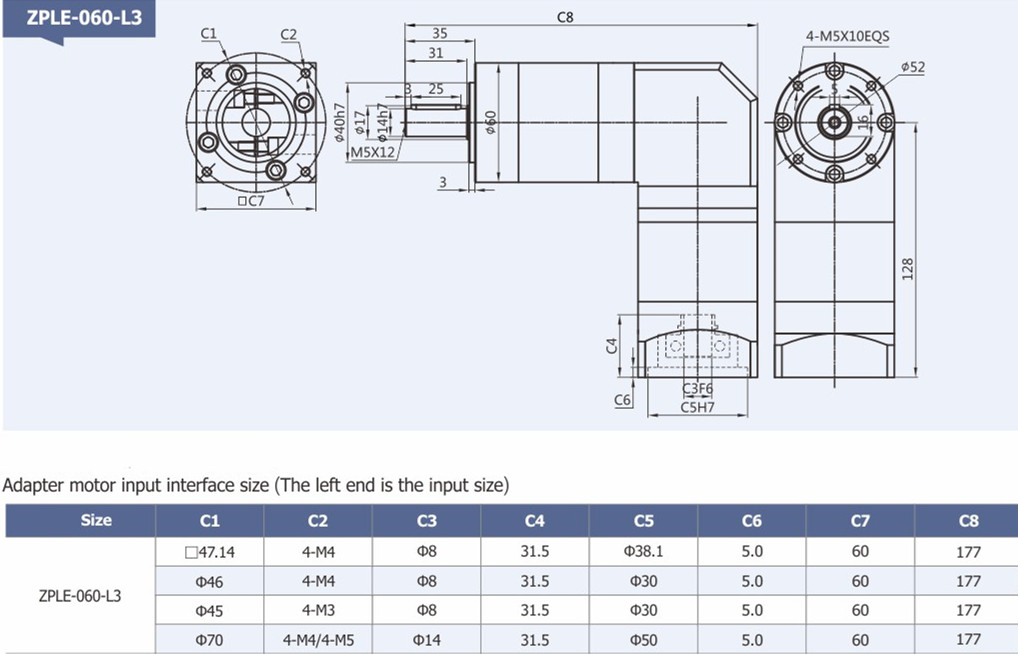

ZPLE60 Right-Angle Planetary Gearbox Product Specifications
- Model: ZPLE60
- Product Name: ZPLE60 Right-Angle Planetary Gearbox
- Product Type: 90-degree precision right-angle planetary gearbox
- Frame Size: 60 mm class
- Transmission Structure: Single-stage or multi-stage right-angle planetary gear system
- Output Direction: 90-degree input and output shaft configuration
- Compatible Motors: AC servo motors, stepper motors, and brushless DC motors
- Primary Function: Speed reduction, torque multiplication, and compact power transmission
Mechanical Specifications
- Housing Material: High-strength aluminum alloy or ductile cast iron, depending on configuration
- Gear Material: Premium alloy steel with carburizing, heat treatment, and precision grinding
- Output Shaft: Solid shaft with optional keyway or customized connection
- Flange Style: International standard mounting flange
- Bearing System: High-precision, low-friction rolling bearings
- Lubrication: Lifetime sealed industrial grease
- Sealing Design: Multi-layer dustproof and oil-retention sealing system
- Structural Feature: Compact 90-degree layout for restricted installation spaces

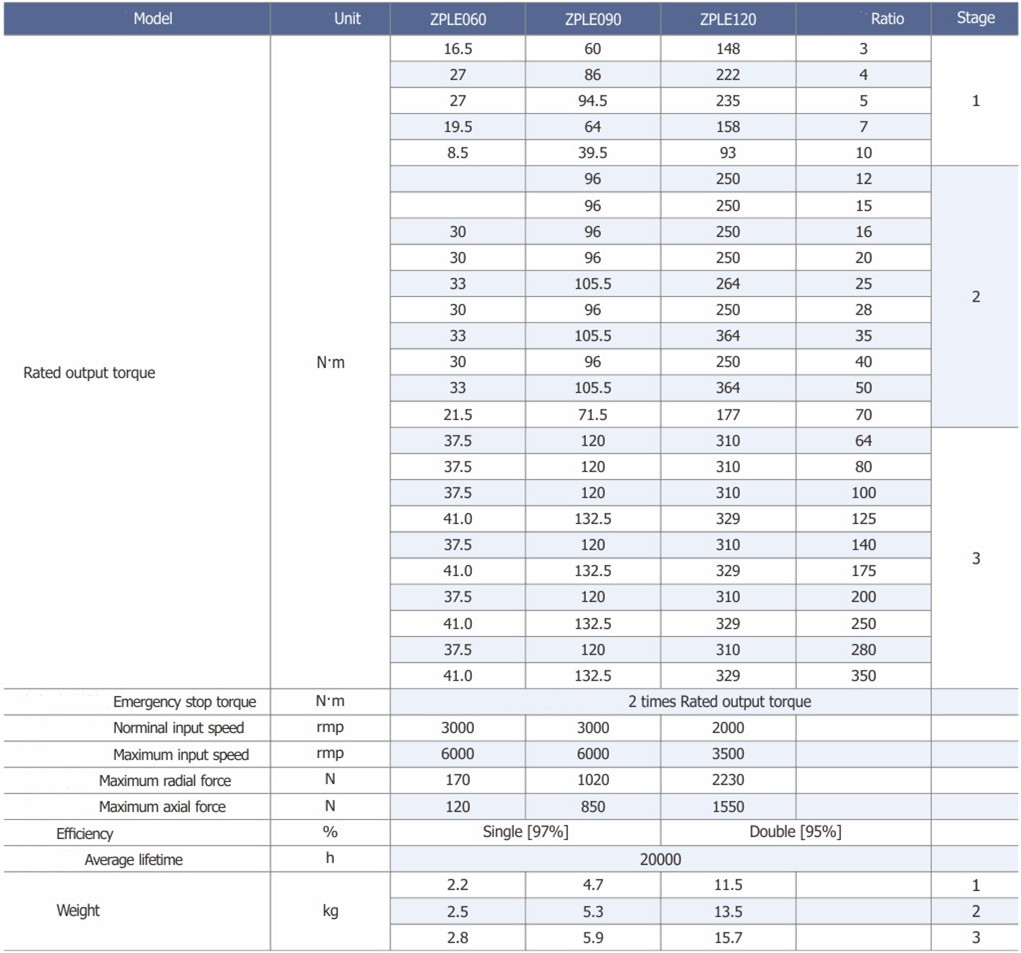

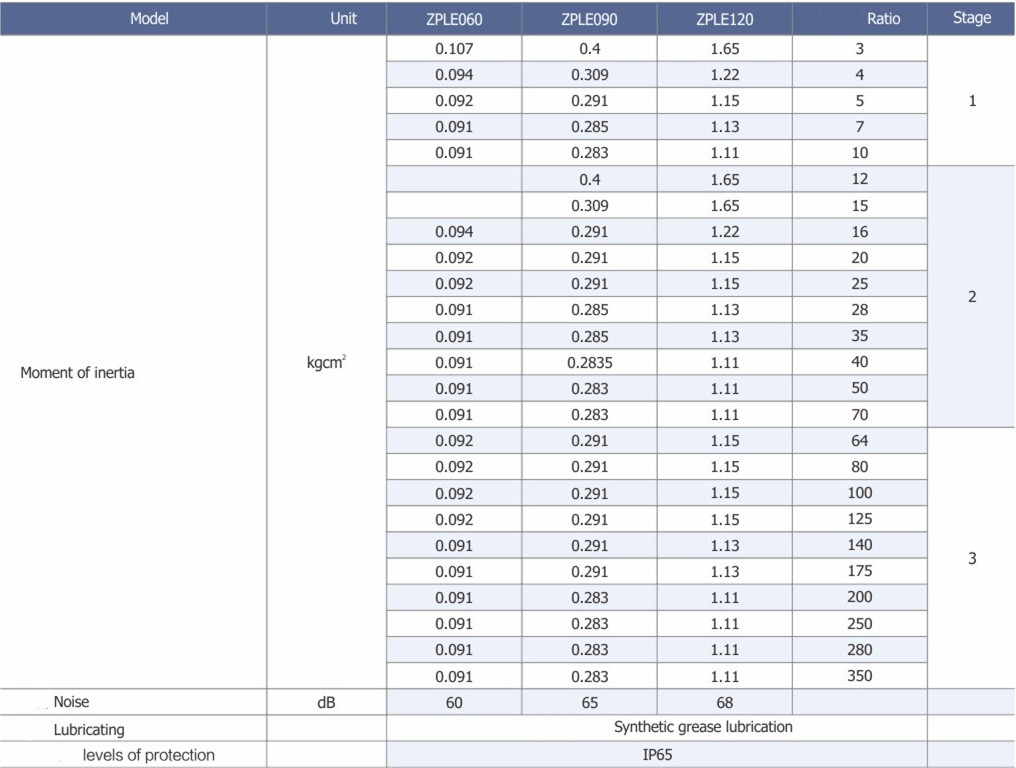

Performance Specifications
- Gear Ratios: 3:1, 4:1, 5:1, 7:1, 10:1, plus additional multi-stage reduction ratios
- Backlash: Precision low-backlash design for accurate positioning
- Transmission Efficiency: Optimized for efficient power transfer and reduced energy loss
- Output Torque: Stable high torque according to selected reduction ratio
- Maximum Input Speed: Suitable for high-speed servo drive systems
- Operating Characteristics: Low noise, low vibration, and reduced temperature rise
- Positioning Accuracy: Excellent repeatability for precision motion control
- Service Life: Designed for long-term industrial operation with minimal maintenance
Applications and Customization
- Industries: Industrial robotics, factory automation, packaging machinery, semiconductor equipment, medical systems, CNC machinery, and material handling equipment
- Motor Compatibility: Compatible with a wide range of international motor brands
- Optional Configurations: Multiple gear ratios, flange dimensions, shaft types, and mounting options
- Quality Inspection: Every gearbox undergoes backlash, concentricity, efficiency, noise, and load testing
- Supply Capability: OEM, ODM, and global bulk supply services available
- Key Advantages: High precision, space-saving installation, reliable durability, and consistent manufacturing quality.
