PLX190 High Accuracy Planetary Gearbox Product Description
High Accuracy Transmission for Heavy-Duty Industrial Applications
The PLX190 High Accuracy Planetary Gearbox is designed for large automation equipment and high-load motion systems.
It adopts a reinforced planetary gear structure to improve load capability.
The optimized internal design ensures smoother power transmission.
This gearbox is suitable for robots, CNC equipment, and smart manufacturing lines.
As a PLX190 high accuracy planetary gearbox for industrial automation, it provides precise speed control and stable torque output.
The rigid construction reduces mechanical errors during operation.
It helps equipment achieve reliable performance in continuous working conditions.
Precision Manufacturing Ensures Reliable Operation
The PLX190 uses high-strength alloy steel for critical transmission components.
The gears undergo precision machining and heat treatment processes.
Advanced grinding technology improves tooth contact accuracy.
The multi-stage planetary structure provides balanced load distribution.
As a PLX190 low backlash precision planetary gearbox, it is designed for accurate positioning and dynamic control applications.
The premium bearing system reduces friction during operation.
The optimized lubrication design extends service life.
Designed for Robotics and Automation Equipment
The PLX190 is widely used in industrial robots, robotic arms, and automation machinery.
It delivers high torque density and stable transmission performance.
The gearbox performs well in high-speed and demanding environments.
Its reliable structure improves overall equipment efficiency.
As a PLX190 high torque planetary gearbox for servo motors, it meets servo system requirements for accuracy and fast response.
Low vibration characteristics improve machine performance.
Excellent repeatability enhances manufacturing quality.
Flexible Customization for Various Applications
The PLX190 supports customized gear ratios and mounting solutions.
The input interface can match different servo motor brands.
The output structure can be modified according to application requirements.
Professional engineers provide complete technical support.
OEM and ODM production services are available for bulk orders.
The PLX190 provides reliable precision power transmission solutions for global machine builders.
PLX190 High Accuracy Planetary Gearbox Specifications
Basic Product Information
- Product Name: PLX190 High Accuracy Planetary Gearbox
- Model Number: PLX190
- Product Type: Large-size high-rigidity precision planetary gearbox
- Transmission Structure: Inline multi-stage planetary gear transmission design
- Main Function: Reduces motor speed while increasing output torque for precise motion control
- Compatible Drives: Servo motors, stepper motors, and automation drive systems
- Applications: Industrial robots, robotic arms, CNC equipment, smart manufacturing, and heavy-duty automation machinery

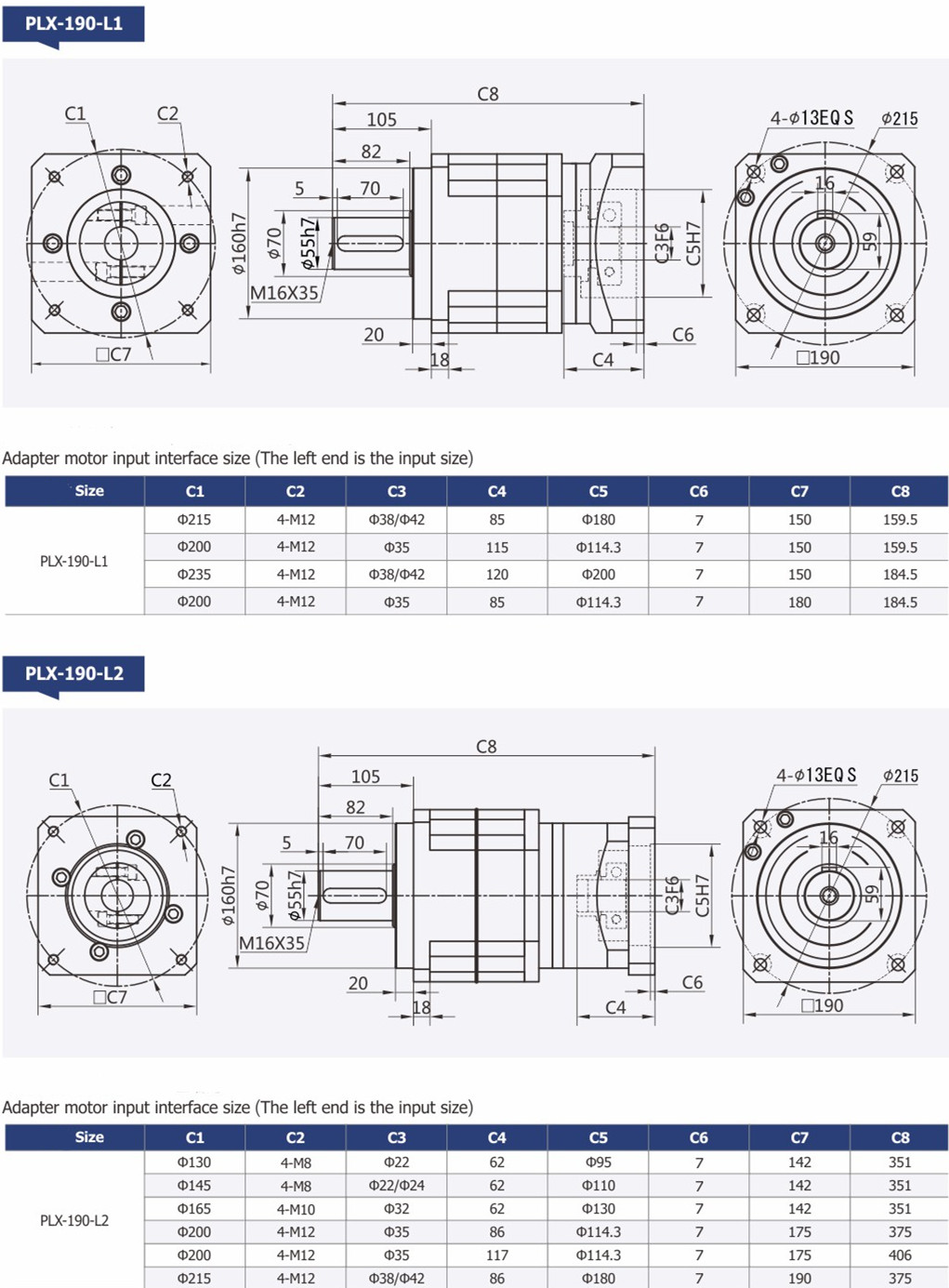

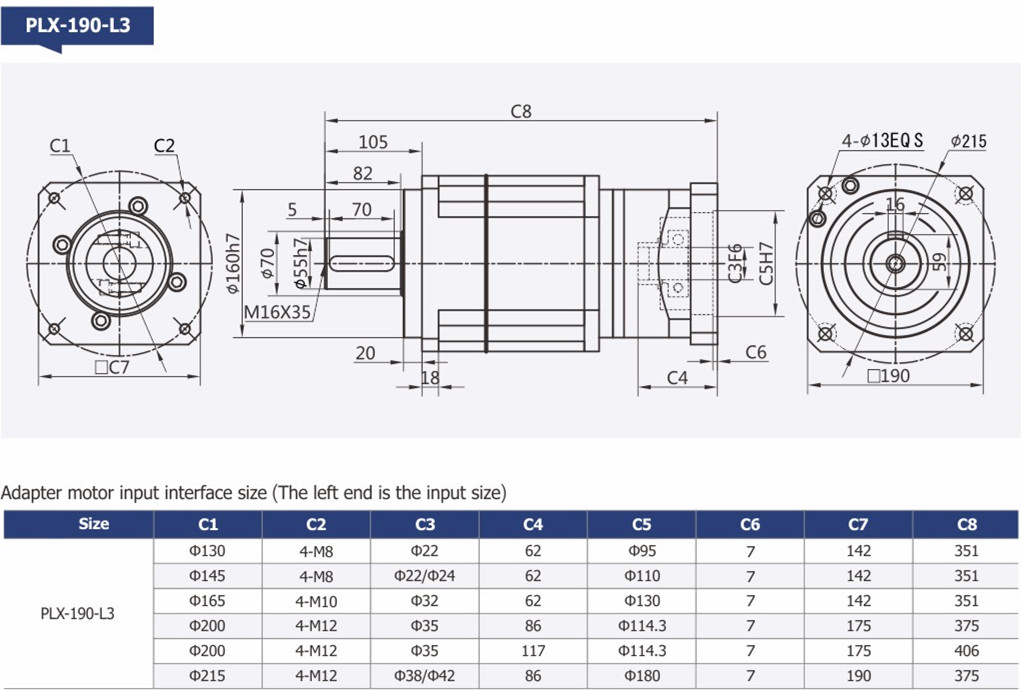

Mechanical Structure Specifications
- Frame Size: 190mm large-size design for high-load transmission applications
- Gear Material: High-strength alloy steel with carburizing and hardening treatment
- Gear Processing: Precision grinding technology for accurate engagement and smooth operation
- Planetary Mechanism: Multi-planet gear structure for balanced force distribution and higher torque capacity
- Housing Design: High-rigidity integrated housing for improved impact resistance
- Output Structure: Reinforced output shaft supporting various mechanical connection methods
- Bearing System: Precision rolling bearings for stable long-term operation

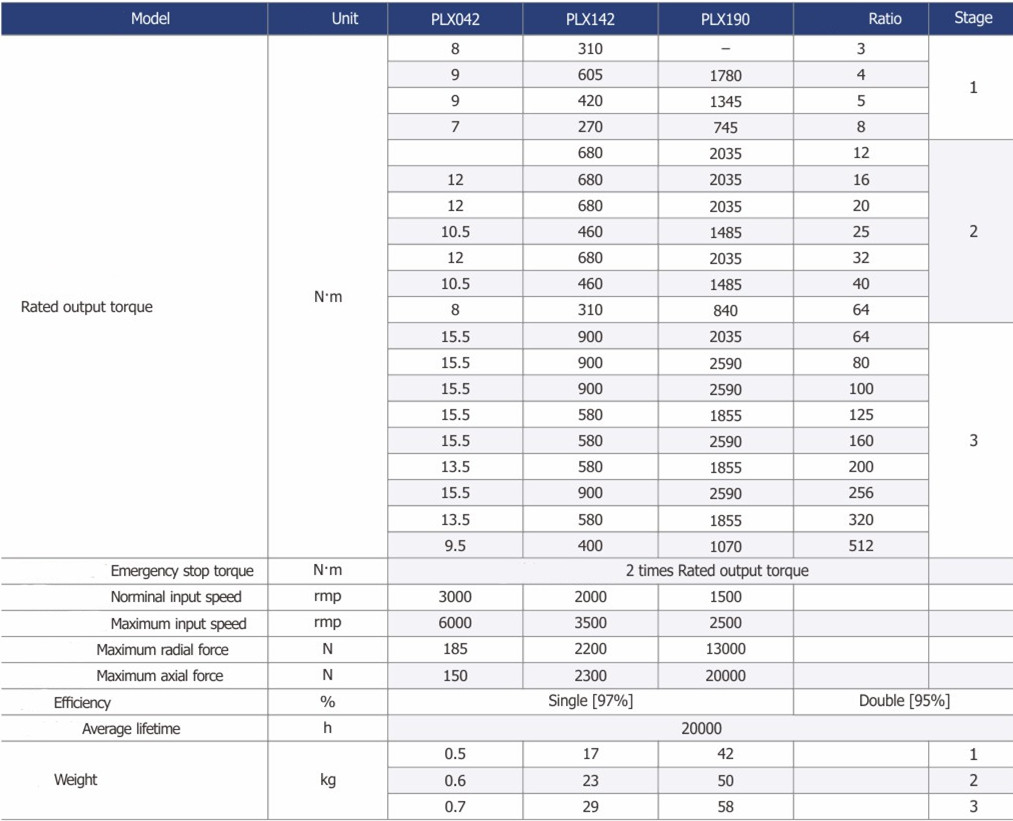

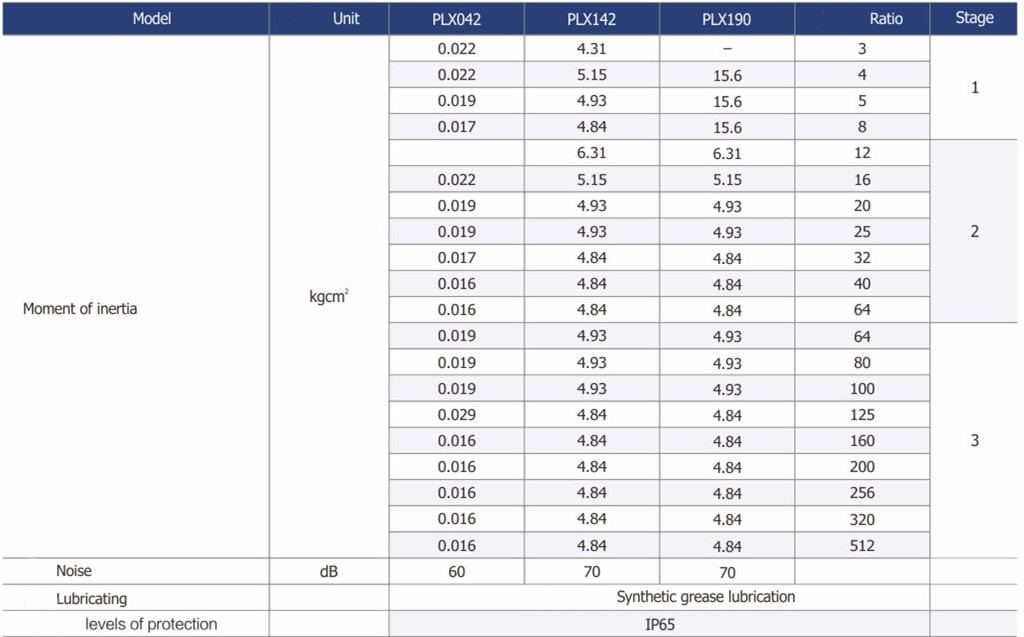

Performance Specifications
- Gear Ratio Range: 3:1 to 512:1, selectable for different applications
- Rated Output Torque: High torque design for large industrial equipment requirements
- Backlash Performance: Low backlash structure for improved positioning accuracy and response speed
- Transmission Efficiency: Up to 95% efficiency in single-stage transmission
- Input Speed: Supports high-speed motor input for fast motion control systems
- Operating Features: Low noise, low vibration, high rigidity, and reliable performance
- Control Capability: Suitable for precision positioning and repeatability applications
Installation & Customization Features
- Mounting Method: Standard flange mounting for easy machine integration
- Lubrication Method: High-performance grease lubrication for reduced maintenance
- Protection Design: Sealed housing structure for industrial operating environments
- Operating Temperature: -20°C to +90°C
- Inspection Items: Includes backlash testing, torque verification, noise evaluation, and lifetime testing
- Customization Service: Supports special gear ratios, shaft sizes, flange dimensions, and OEM/ODM development
