PLE120 High Torque Gear Reduction Gearbox for Robotic Arms

Description

High Load Industrial Power Transmission Solution

The PLE120 Gear Reduction Gearbox is designed for large automation equipment and high-load transmission systems.
It adopts a precision planetary gear structure for stable power conversion.
The large frame design provides stronger torque capacity.
The rigid construction ensures reliable long-term operation.
Low backlash performance improves motion control accuracy.
As a PLE120 gear reduction gearbox for industrial automation, it is suitable for robotics, AGV systems, CNC equipment, and smart manufacturing lines.
High transmission efficiency reduces energy loss.
Reliable output performance supports continuous operation.
It performs well in demanding industrial environments.

Precision Manufacturing for Extended Service Life

The PLE120 uses high-strength alloy steel for critical transmission components.
The gears are precisely machined and heat treated.
Optimized tooth profiles improve smooth gear engagement.
The design effectively reduces vibration and operating noise.
As a PLE120 high torque gear reduction gearbox for heavy duty applications, it delivers strong load-handling capability.
High precision bearings improve rotational stability.
Strict assembly control ensures accurate concentric operation.
The long-life lubrication system reduces maintenance requirements.
It is suitable for continuous industrial applications.

Flexible Transmission Component for Smart Manufacturing

The PLE120 Gear Reduction Gearbox supports various servo motors and drive systems.
Standardized interfaces simplify installation and maintenance.
Multiple gear ratios meet different application requirements.
Customized structures are available for special projects.
As a PLE120 precision planetary gearbox for CNC machines and servo motors, it is widely used in CNC machining centers, robotic arms, packaging machinery, lithium battery equipment, and semiconductor manufacturing systems.
The rigid output design improves dynamic performance.
The compact structure helps save installation space.
OEM and ODM customization services are available.

Main Applications

Industrial robots and robotic arm systems
CNC machining centers
AGV drive systems
Automated production lines
Packaging machinery
Lithium battery manufacturing equipment
Semiconductor production equipment
Precision positioning platforms
Intelligent logistics systems

PLE120 Gear Reduction Gearbox Specifications

Product Information

Product Name: PLE120 Gear Reduction Gearbox
Product Type: Precision planetary gear reduction gearbox
Product Series: PLE High Load Gearbox Series
Transmission Structure: High-strength planetary gear transmission system
Compatible Motors: Servo motors, stepper motors, and industrial drive motors
Main Applications: Robotics, AGV equipment, CNC machines, automation lines, and heavy-duty industrial systems

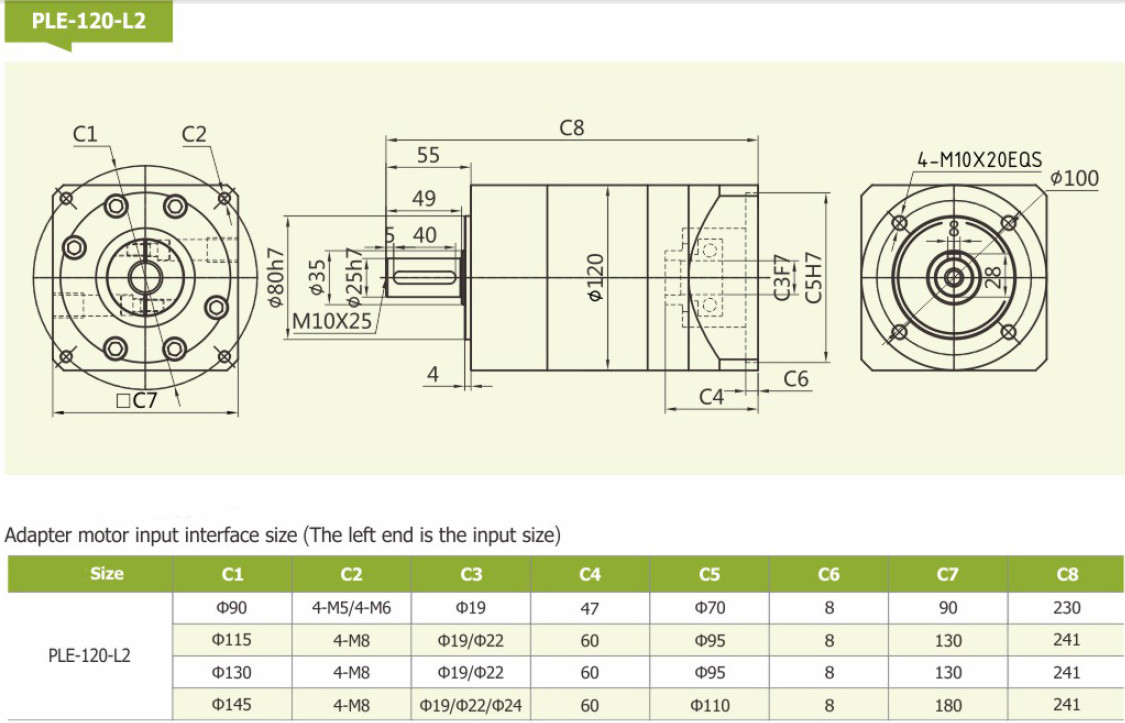

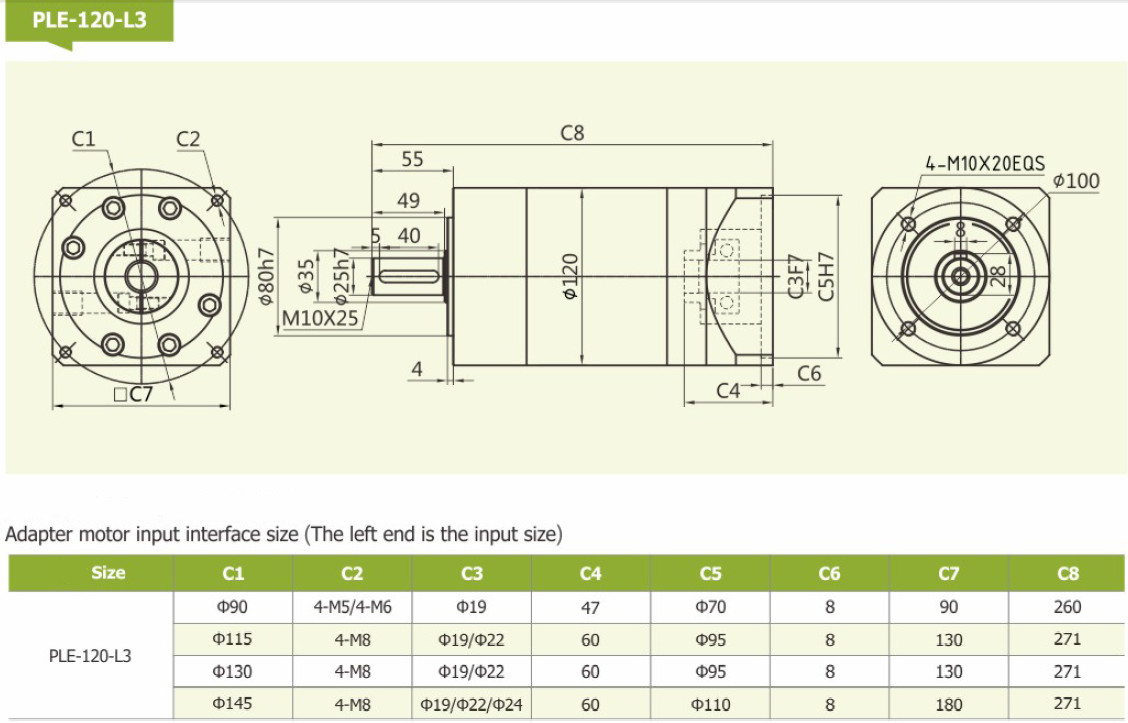

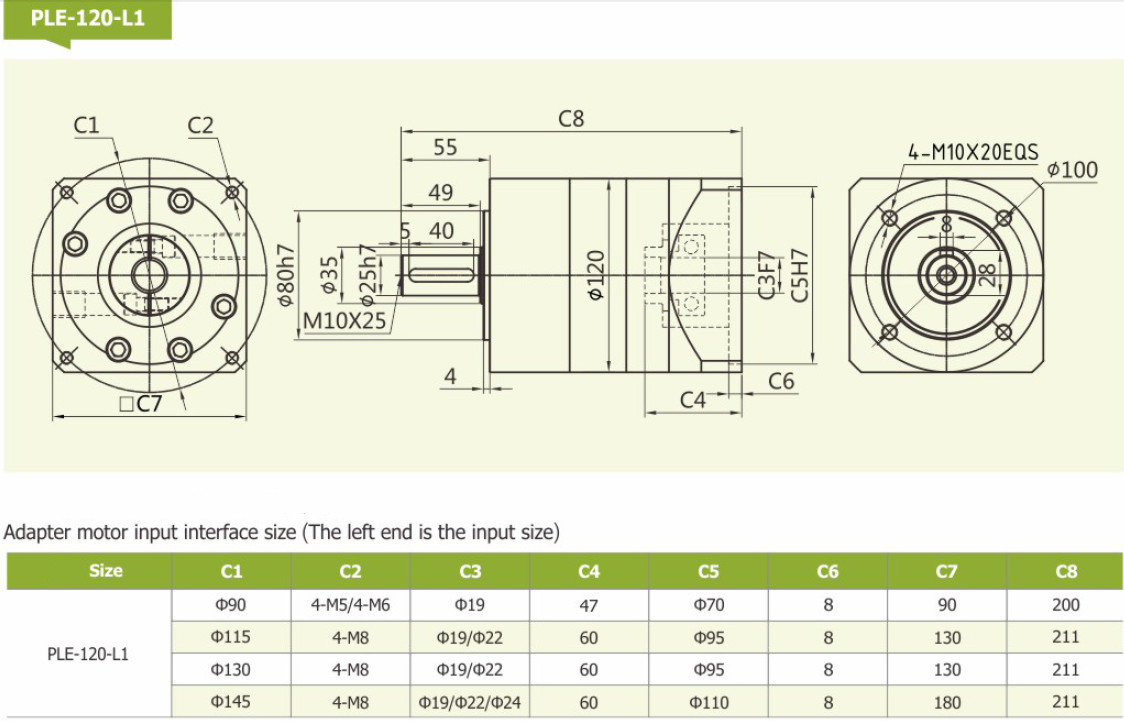

Mechanical Structure Parameters

Frame Size: 120 mm design
Input Interface: Standard motor flange connection with customization options
Output Structure: High-rigidity shaft output design
Output Shaft Type: Solid shaft with optional keyway machining
Housing Material: Precision high-strength aluminum alloy housing
Gear Material: Wear-resistant alloy steel
Mounting Method: Flange mounting with multi-direction installation support
Sealing Structure: Industrial-grade sealing design for improved environmental protection

Transmission Performance

Gear Ratio Range: 3:1 to 100:1
Gear Stages: Single-stage and two-stage options
Rated Output Torque: 150–400 N·m
Peak Output Torque: Up to 500 N·m
Backlash: ≤8 arcmin (single stage), ≤12 arcmin (two stage)
Efficiency: ≥97% for single stage, ≥94% for two stage
Maximum Input Speed: 5000 rpm
Operating Features: High torque, high rigidity, low vibration, and stable performance
