Product Overview

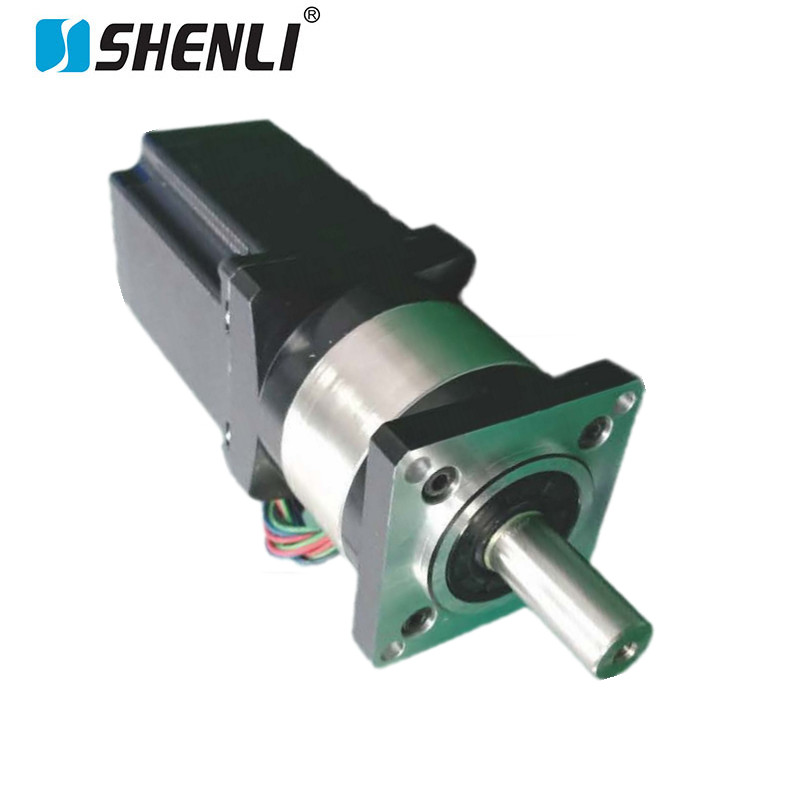

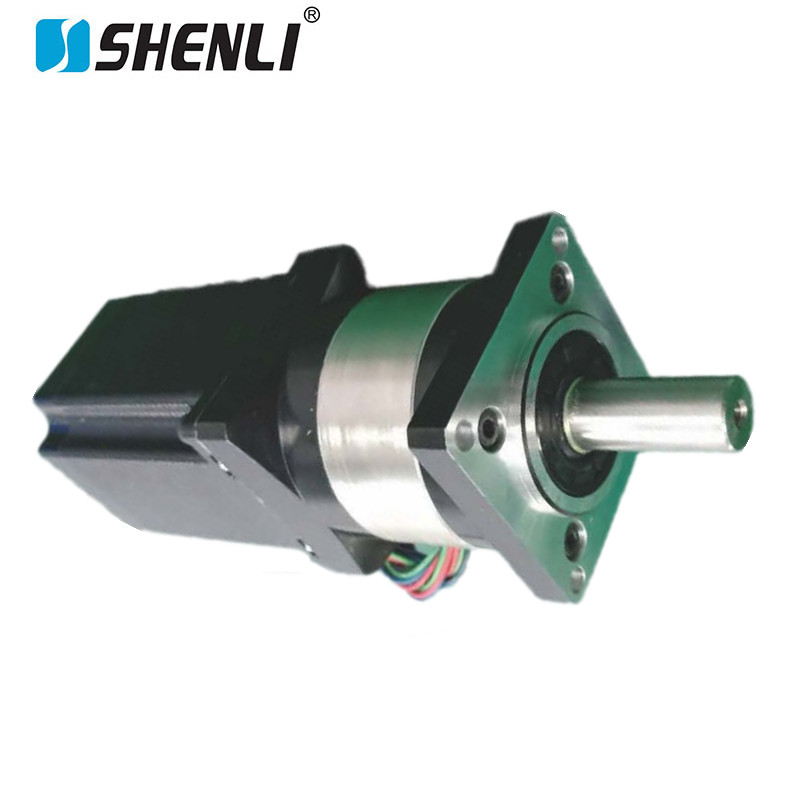

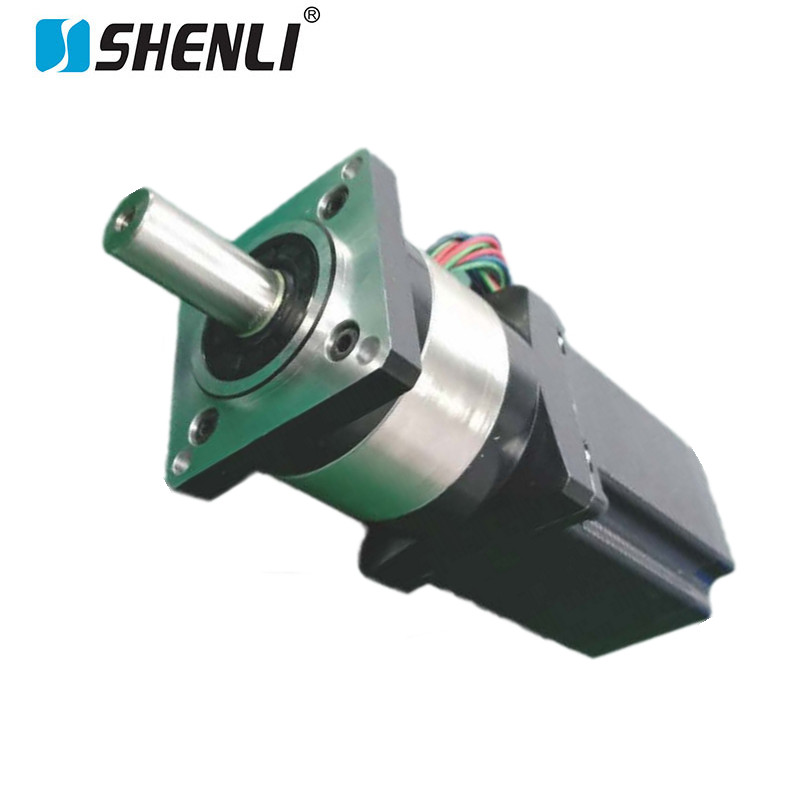

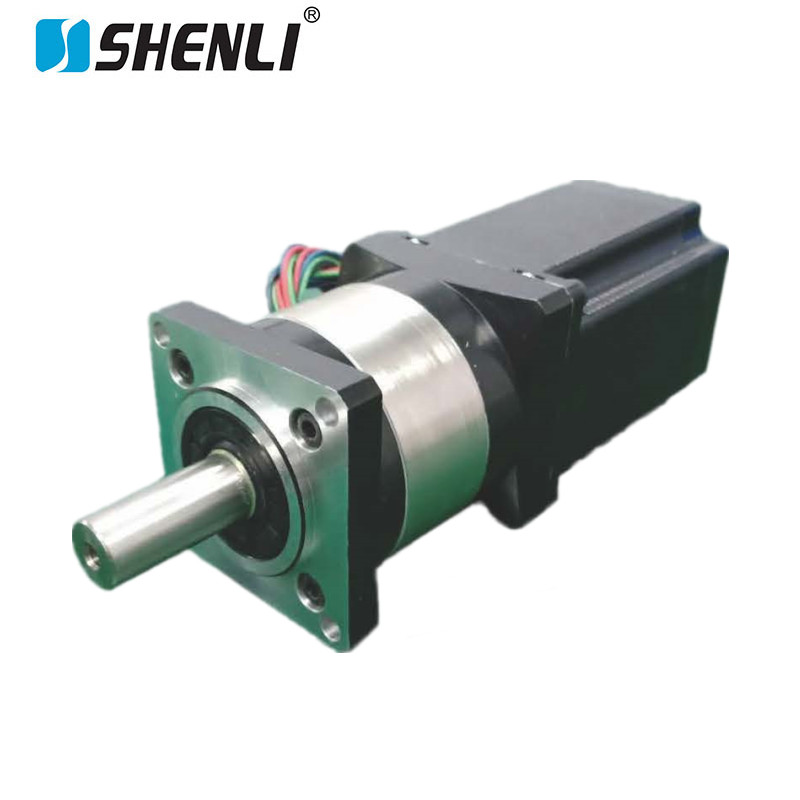

- Product Name: DLF86-Nema34 Planetary Gear Motor
- Product Type: NEMA34 Heavy-Duty Planetary Geared Stepper Motor
- Structure: High-rigidity integrated planetary gearbox system
- Drive Type: 2-phase hybrid stepper motor
- Mounting Standard: NEMA34 international flange standard

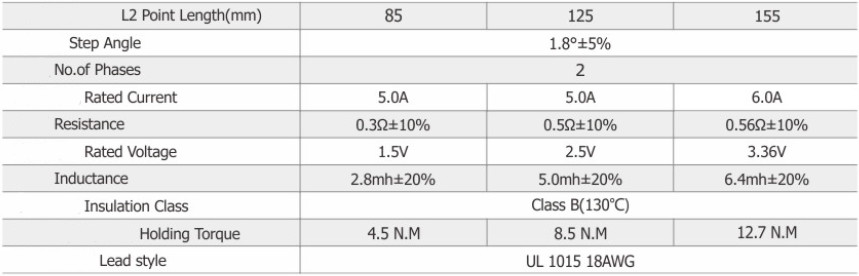

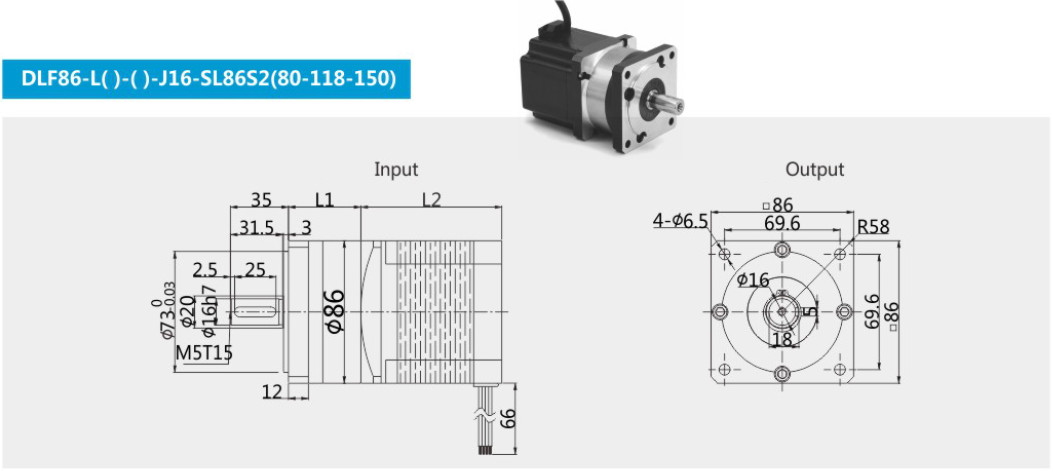

Motor Specifications
- Frame Size: 86 × 86 mm
- Step Angle: 1.8°
- Phases: 2
- Holding Torque: 3.5–12 N·m
- Rated Current: 2.8–6.0 A
- Coil Resistance: 0.4–2.5 Ω
- Insulation Class: Class B
- Insulation Resistance: ≥100 MΩ at 500V DC

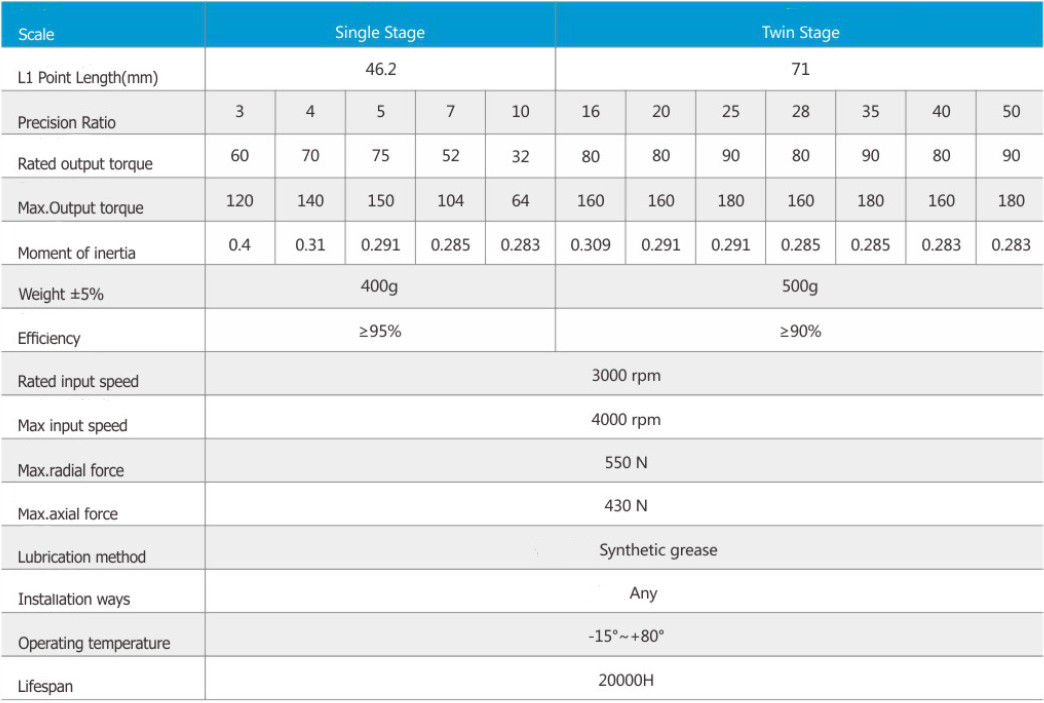

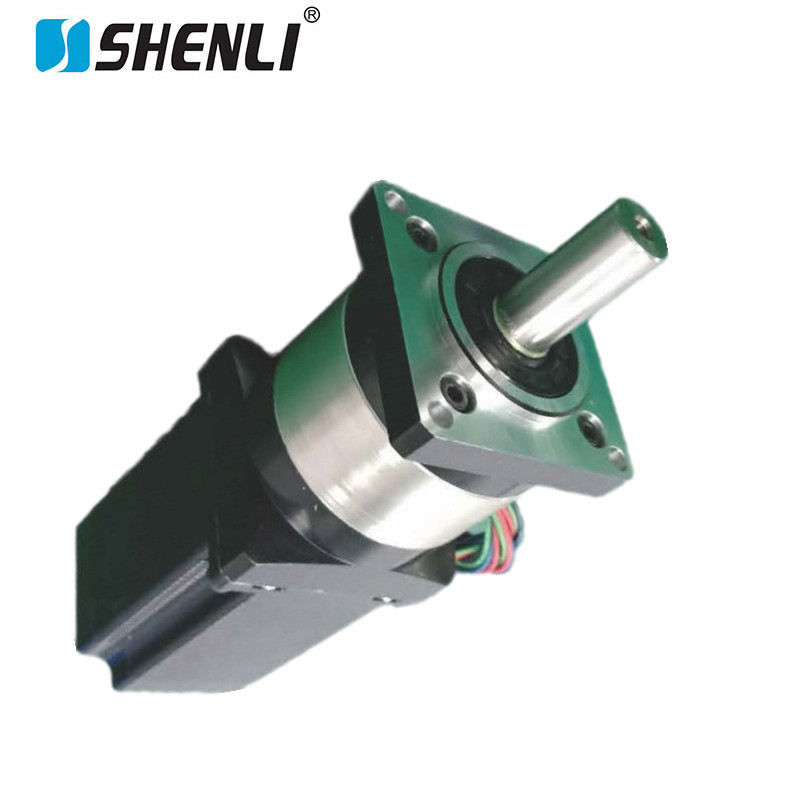

Planetary Gearbox Specifications
- Gearbox Diameter: 86 mm
- Gear Stages: Single / double / triple stage options
- Gear Ratios: 3:1, 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 50:1, 100:1, 120:1
- Backlash: ≤8 arcmin (high-precision version)
- Transmission Efficiency: 94% (single-stage)
- Gear Material: Carburized and hardened alloy steel
- Lubrication: High-temperature long-life industrial grease

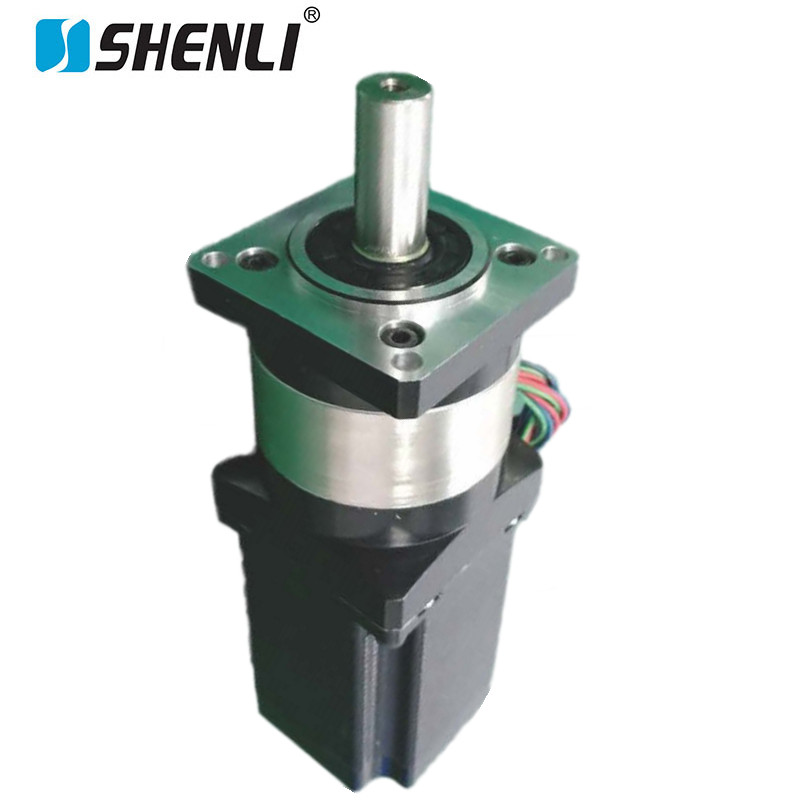

Output Specifications
- Output Shaft Diameter: Ø14 mm / Ø19 mm optional
- Shaft Type: Round shaft / keyway shaft customizable
- Maximum Output Torque: 120 N·m
- Maximum Radial Load: 500 N
- Maximum Axial Load: 350 N
- Output Speed Range: 10–1200 rpm
Performance Features
- Ultra-high torque density design
- Stable performance under heavy load
- Low-backlash precision transmission
- Low noise and low vibration operation
- Continuous-duty industrial capability
Environmental Conditions
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -30°C to +80°C
- Protection Rating: IP40 / IP54 optional
- Cooling Method: Natural or forced air cooling
- Service Life: ≥20,000 hours
