Description

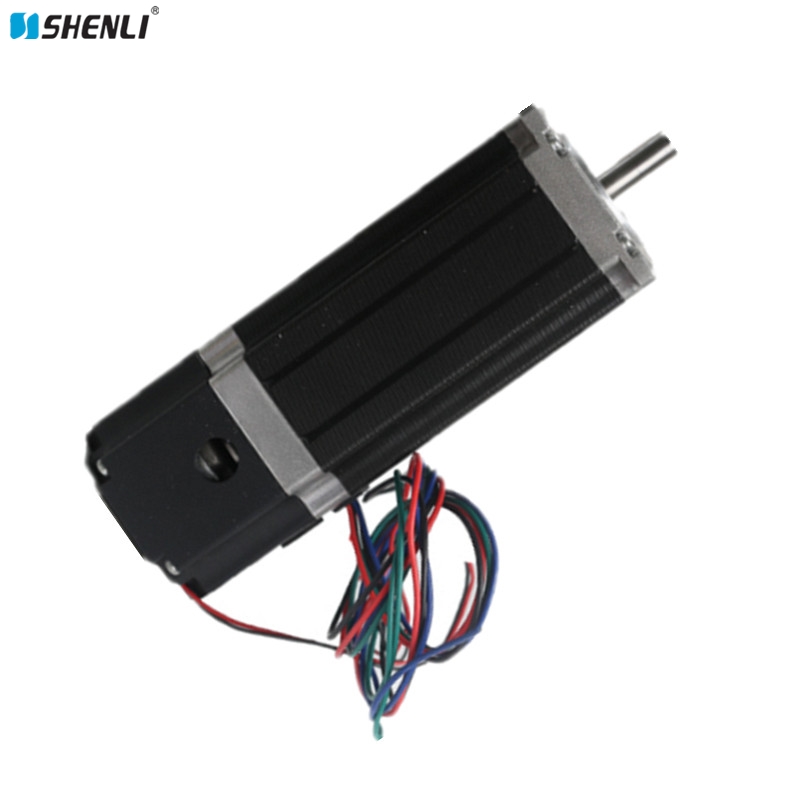

High-Torque Motion Control for Heavy-Duty Applications

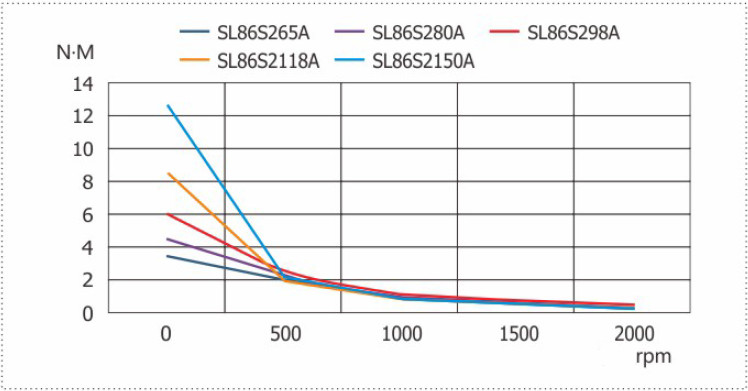

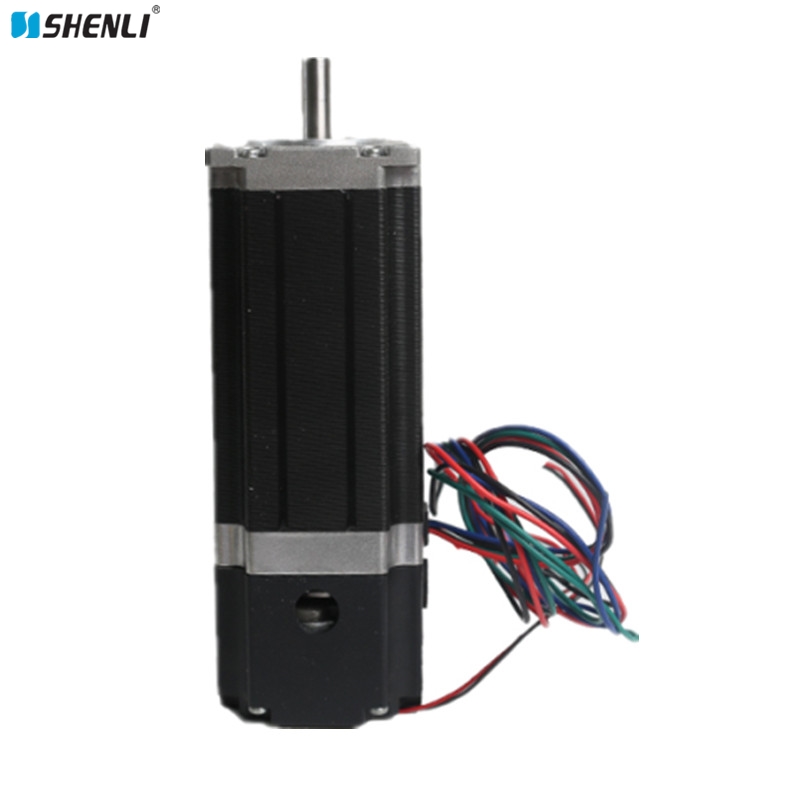

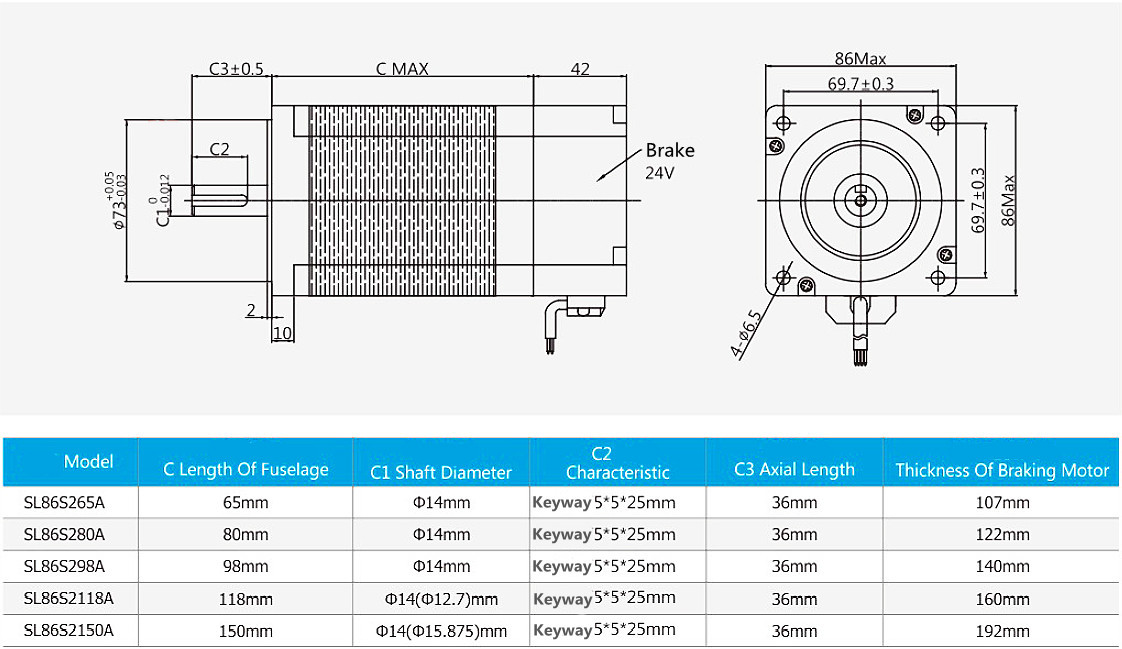

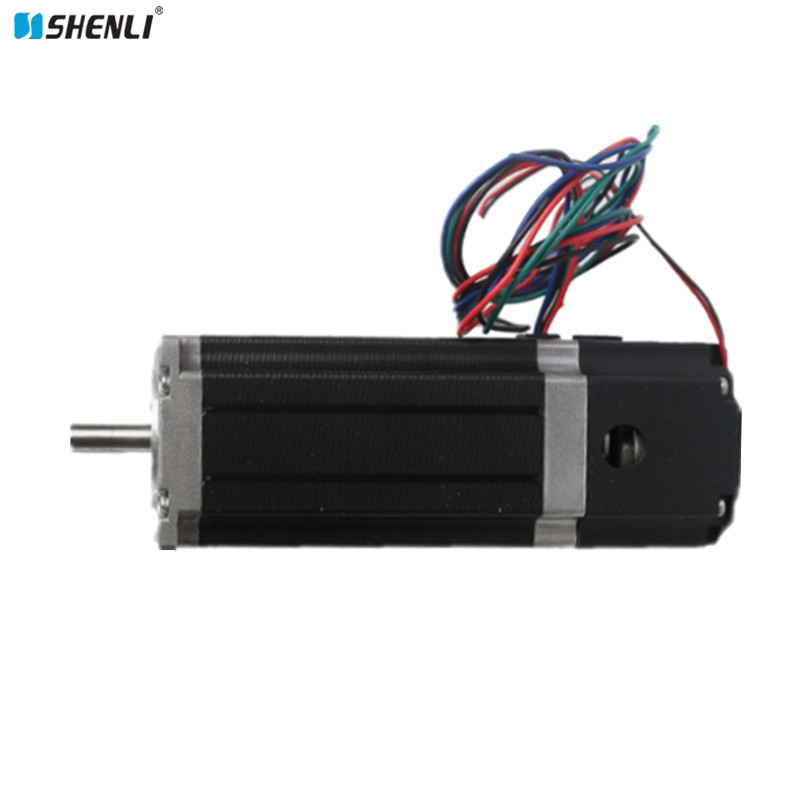

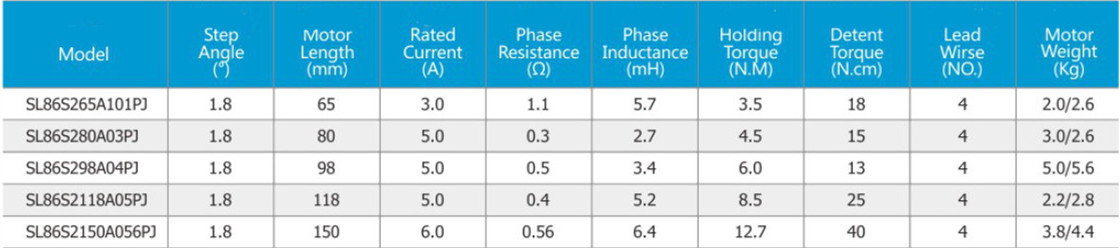

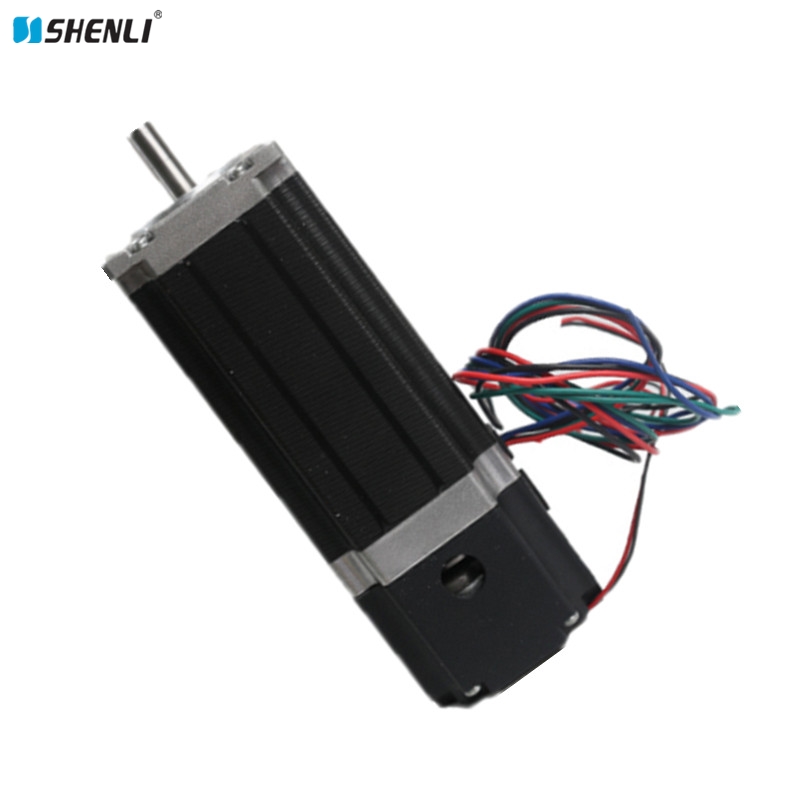

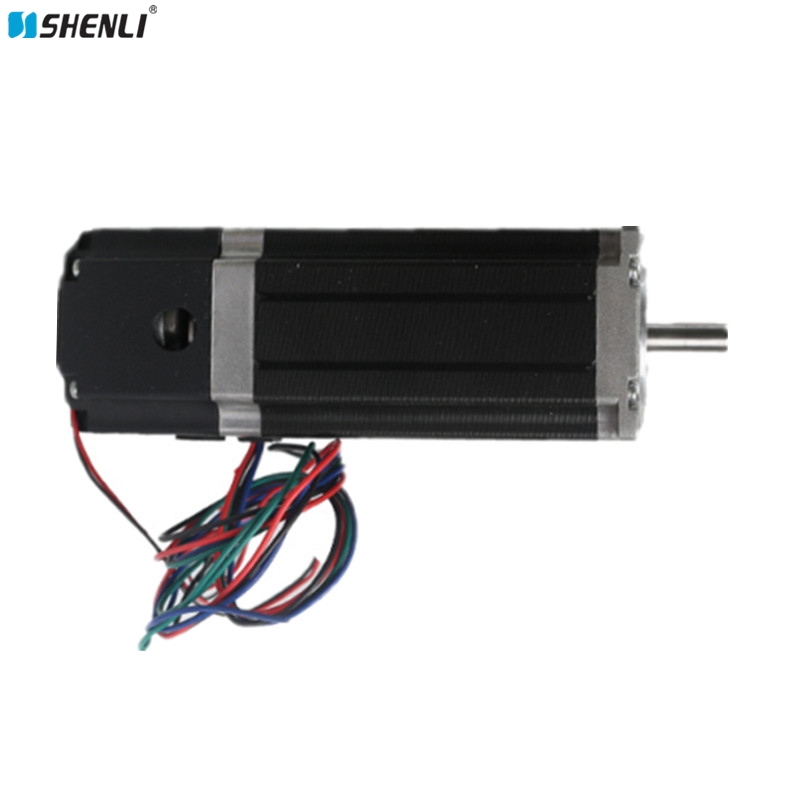

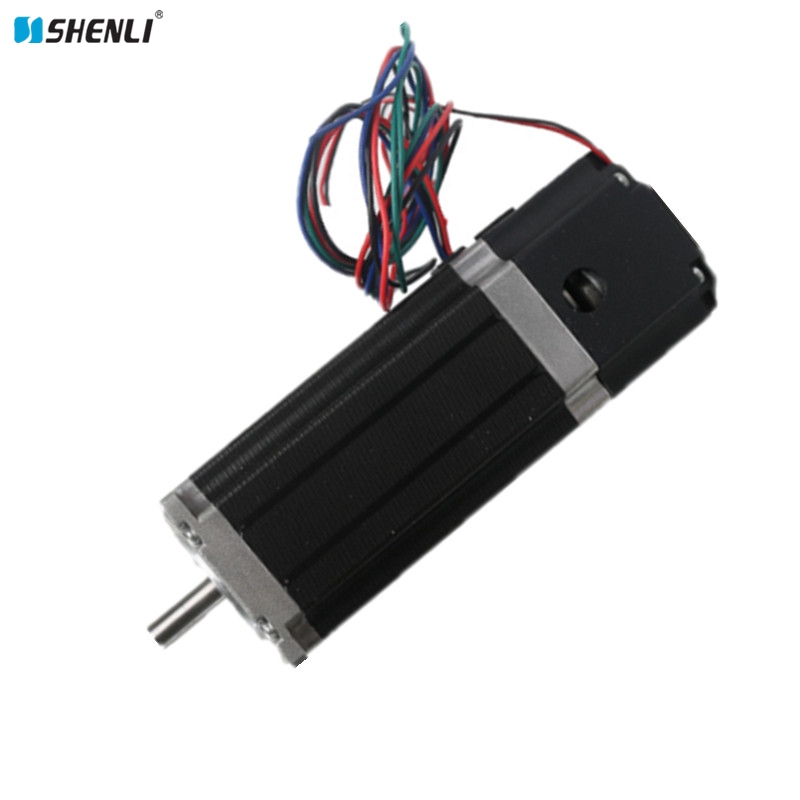

The NEMA 34 stepper motor with brake helps industrial equipment manufacturers achieve reliable motion control and position holding in demanding automation applications. It combines high torque output with an integrated electromagnetic brake to support applications that require controlled movement and shaft holding.
When the system loses power, the electromagnetic brake engages according to its design, helping prevent unwanted shaft rotation. As a result, equipment designers can incorporate an additional holding mechanism into CNC machines, robotic systems, and automated production lines.
Furthermore, the motor supports applications that require stable positioning under high-load conditions. By combining motor-driven motion with brake-assisted holding, it helps system integrators address back-driving risks and improve equipment safety when they configure the motor and brake for the intended load.
High-Performance Structure and Manufacturing Design
The NEMA 34 stepper motor with brake incorporates structural and electromagnetic design features that support industrial motion control. Its high-magnetic-density rotor design helps generate torque, while optimized winding technology aims to improve energy conversion and manage heat generation.
In addition, the motor uses a reinforced housing to support mechanical durability and heat dissipation. Its bearing system supports smoother shaft rotation, helping equipment manufacturers integrate the motor into machinery that operates for extended periods.
The integrated brake uses an electromagnetic mechanism to engage and hold the shaft. Therefore, engineers should evaluate the brake’s holding torque, engagement and release behavior, and thermal limits against the application’s actual load requirements.
For CNC equipment and other precision machinery, these structural features provide a foundation for evaluating motor performance under demanding operating conditions. However, actual torque, temperature rise, braking response, and service life depend on the specific motor configuration, drive settings, installation, and operating environment.
Drive Compatibility and Motion Control Integration
The NEMA 34 stepper motor with brake can support different motion control configurations, depending on the selected motor and drive specifications. For example, compatible systems may use microstepping to improve motion smoothness and reduce vibration during operation.
Additionally, system integrators can evaluate closed-loop control when an application requires feedback-based motion monitoring. When the motor, encoder, and controller support the required configuration, closed-loop control can help detect position errors and improve motion management.
Before integration, engineers should confirm the electrical interface, rated current, drive compatibility, brake voltage, control sequence, and available feedback options. This verification helps ensure that the motor and brake operate correctly within the complete control system.
Consequently, manufacturers can assess the NEMA 34 stepper motor with brake for repetitive positioning tasks, controlled motion sequences, and automation equipment that requires both motor torque and shaft holding.
Typical Applications of the NEMA 34 Stepper Motor with Brake
The NEMA 34 stepper motor with brake suits evaluation for industrial applications that require high torque, controlled positioning, or additional shaft holding. Its suitability depends on the actual load, motion profile, and system design.
- CNC machines: Support controlled axis movement and help hold position when the brake engages under specified conditions.
- Robotic systems: Provide motion control for selected robot axes that require torque and holding capability.
- Automated production lines: Support repetitive positioning and coordinated machine operations.
- Industrial handling equipment: Help manage shaft movement and holding requirements in compatible lifting or positioning mechanisms, subject to verified brake capacity and system safety design.
For each application, engineers should calculate the required torque and confirm the motor’s operating speed, acceleration, duty cycle, and thermal performance. They should also verify the brake’s holding capacity and ensure that the complete machine meets applicable safety requirements.
Technical Selection and OEM Integration Support
When sourcing a NEMA 34 stepper motor with brake, equipment manufacturers should evaluate more than the frame size and nominal torque. Instead, they should compare the motor’s electrical and mechanical specifications with the complete application’s requirements.
Before selecting a configuration, confirm the following parameters:
- Motor performance: Rated torque, operating speed, rated current, and torque-speed characteristics.
- Brake specifications: Holding torque, rated voltage, engagement behavior, and release requirements.
- Mechanical dimensions: Mounting dimensions, shaft size, and installation clearances.
- Drive compatibility: Supported current settings, microstepping options, and closed-loop control requirements.
- Operating conditions: Duty cycle, ambient temperature, heat dissipation, and expected service conditions.
- Customization requirements: Connector arrangement, shaft configuration, cable options, and other project-specific needs, subject to supplier availability.
By defining these requirements before ordering, OEMs and system integrators can assess product compatibility more accurately and reduce avoidable integration issues.
NEMA 34 Stepper Motor with Brake Specifications
- Structure: NEMA 34 stepper motor with industrial electromagnetic brake
- Step Angle: 1.8° (200 steps/rev for high-precision motion control)
- Holding Torque: 6.0 – 12.0 N·m (various winding options available)
- Brake Type: Power-off engaged electromagnetic braking system
- Brake Response Time: ≤ 40 ms fast locking mechanism
- Rated Current: 3.0A – 6.0A optional configurations
- Rated Voltage: 36V / 48V DC industrial compatible
- Shaft Diameter: 12.7 mm (1/2 inch) high-strength output shaft
- Flange Size: 86 mm × 86 mm (Nema34 standard)
- Motor Length: 100 mm – 150 mm multiple options available
- Insulation Class: Class H (180°C high-temperature design)
- Protection Rating: IP40 – IP65 optional sealed structure
- Noise Level: ≤ 55 dB low-noise industrial design
- Vibration Level: Reinforced anti-vibration structure
- Operating Temperature: -20°C to +60°C
- Mounting Type: Standard Nema34 flange mounting
- Driver Compatibility: Supports closed-loop and high-voltage drivers
- Applications: CNC machines, heavy-duty robotics, automation lines, industrial positioning systems
This Nema34 stepper motor with brake combines high torque output and reliable braking performance, making it ideal for heavy-duty, high-precision industrial automation systems.
