Description
Compact Precision Hollow Shaft Design

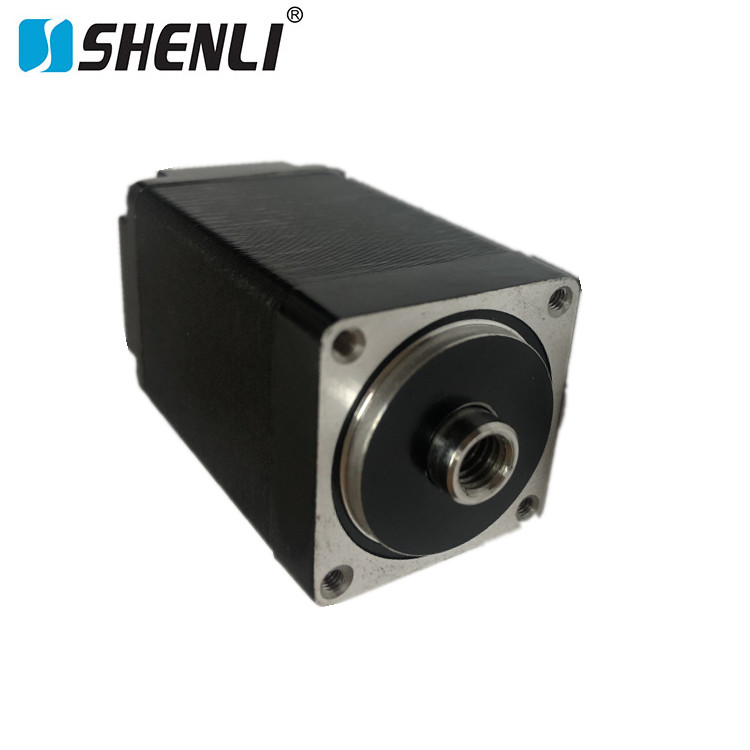

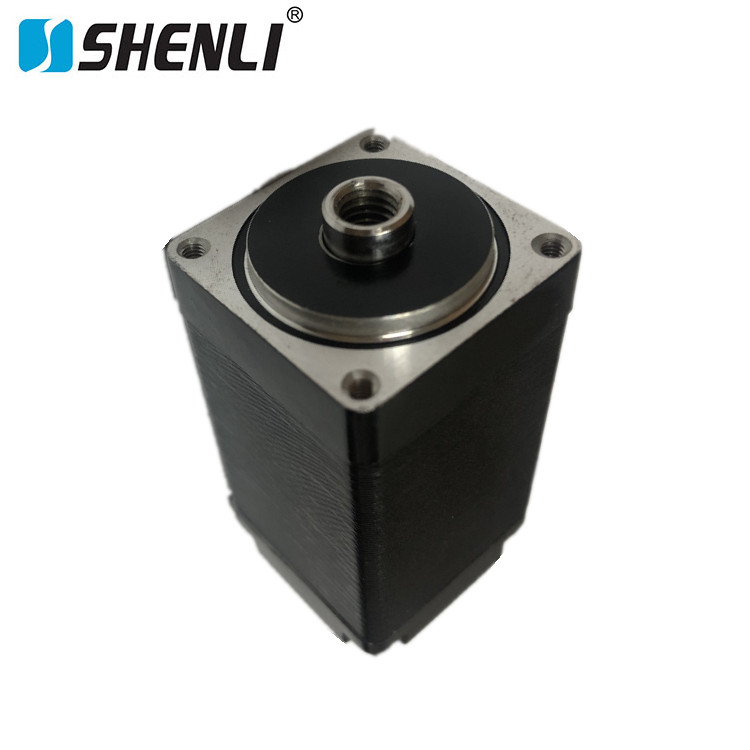

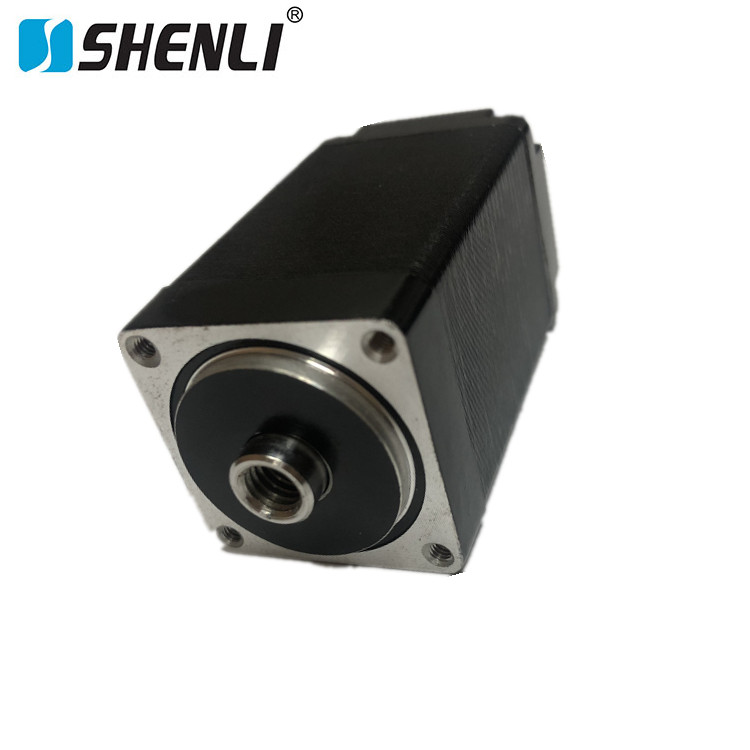

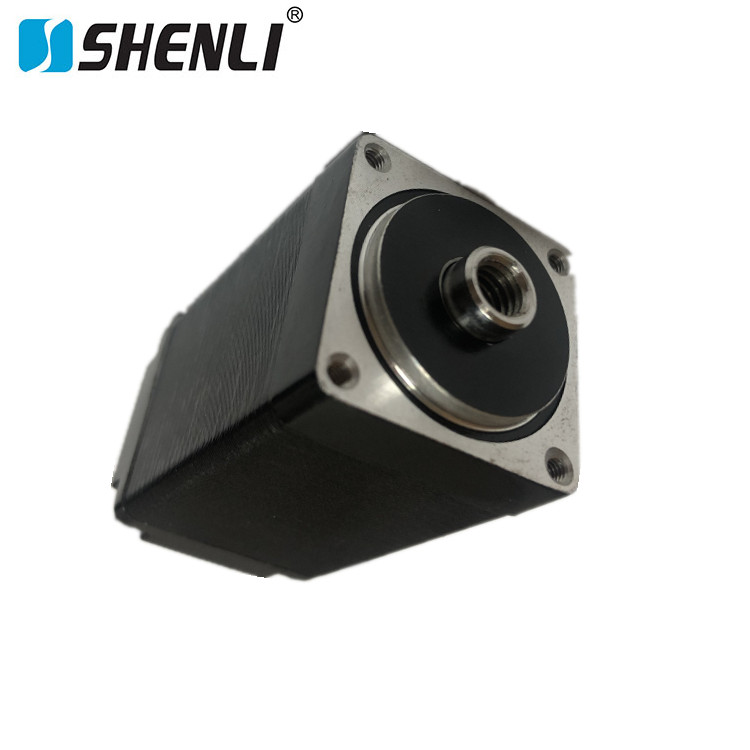

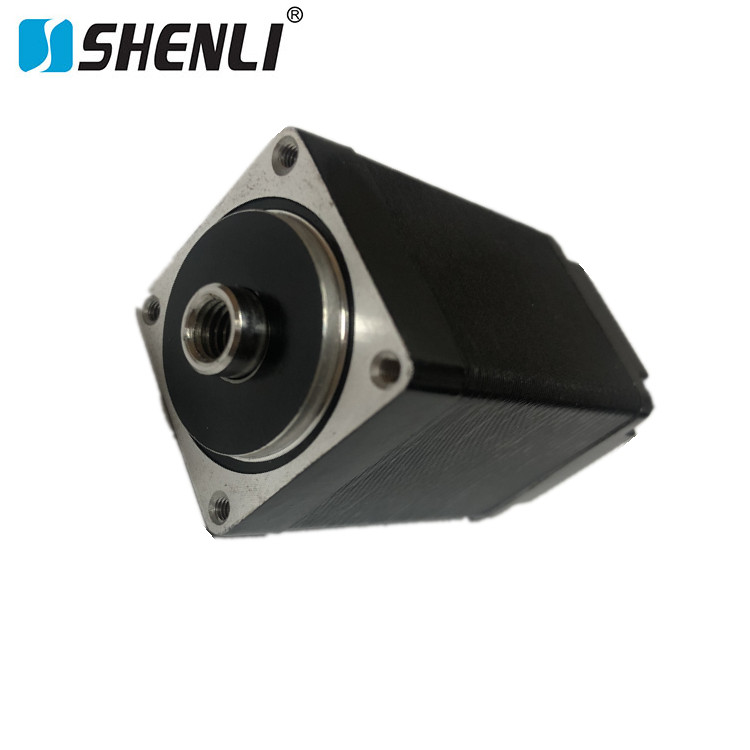

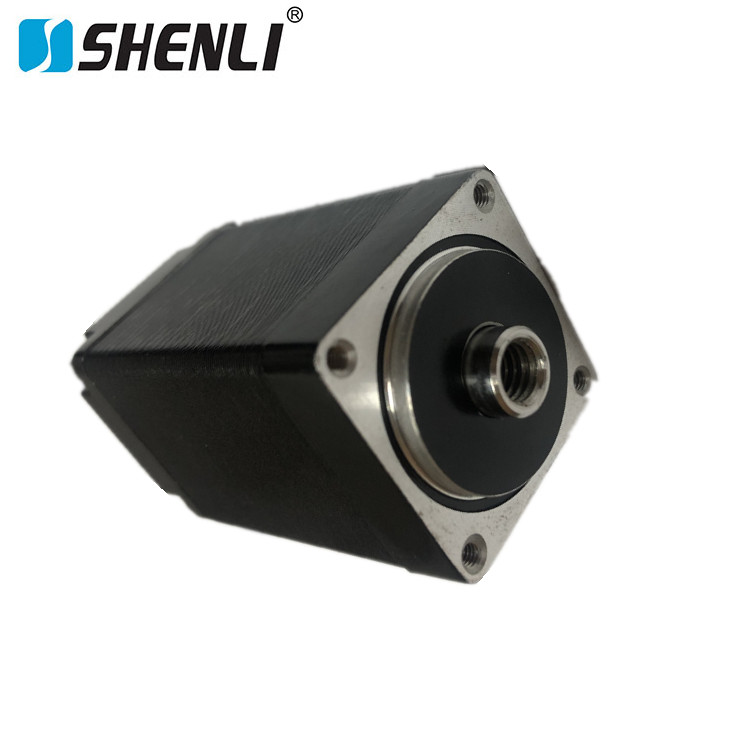

The NEMA 11 hollow shaft stepper motor supports compact precision equipment with limited installation space. Its miniature frame helps engineers integrate precise motion control into space-constrained systems. Furthermore, the hollow shaft accommodates internal wiring, optical shafts, and other compatible components, giving designers greater flexibility when planning mechanical layouts.
By routing cables or compatible components through the shaft, engineers can simplify external routing and reduce potential interference with surrounding mechanisms. As a result, this NEMA 11 hollow shaft stepper motor for compact precision motion control suits miniature automation equipment and other applications that require compact integration and accurate positioning.
High-Precision Motion and Stable Output
The motor uses a hybrid stepper architecture to support controlled positioning and precise motion in miniature drive systems. In addition, its hollow shaft provides an internal passage for compatible optical components, sensors, or wiring, helping engineers develop compact mechanical assemblies.
For applications that require fine positioning, this NEMA 11 hollow shaft stepper motor for high-precision micro drive systems offers a practical option for evaluating micro-displacement adjustment and precision motion control. Engineers can assess its positioning performance, vibration, and operating noise against their application requirements.
Moreover, customers can select suitable shaft configurations based on their integration needs. Before finalizing the design, they should confirm shaft dimensions, mounting interfaces, torque requirements, and compatibility with the intended optical or electrical components.
Precision Manufacturing and Reliability
OPTIMATRX focuses on precision motor construction to support consistent performance in compact motion control applications. The rotor uses permanent magnet materials to support electromagnetic performance and dynamic response. Meanwhile, precision-laminated stator cores help manage magnetic losses and heat generation during operation.
As a NEMA 11 hollow shaft stepper motor for laboratory automation and optical systems, the motor can be evaluated for applications that require compact construction and precise motion. Manufacturers should verify positioning accuracy, thermal behavior, vibration, and other critical performance parameters against the product datasheet and system requirements.
Furthermore, high-precision bearings support shaft alignment and smooth rotation when the motor operates within its specified conditions. Component inspection and performance testing can help manufacturers evaluate product consistency, while lifecycle testing provides additional evidence for service-life assessment.
For projects with specific integration requirements, OEM customers can discuss customization options with the supplier. By confirming mechanical dimensions, shaft configuration, electrical specifications, and operating conditions early, engineering teams can identify a suitable motor configuration for their miniature automation systems.
OEM Customization for Miniature Motion Control Systems
Different equipment designs require different motor configurations. Therefore, OEM buyers should define their application requirements before selecting a NEMA 11 hollow shaft stepper motor.
When requesting technical information, provide the following details:
- Shaft requirements: Specify the required hollow shaft diameter, passage dimensions, and component clearance.
- Motion requirements: Define the target torque, speed, positioning needs, and operating cycle.
- Mechanical integration: Confirm mounting dimensions and available installation space.
- Electrical specifications: Identify the required voltage, current, and driver compatibility.
- Application environment: Describe the operating temperature, duty cycle, and surrounding equipment.
- Customization needs: Outline any special shaft, wiring, or assembly requirements.
With these details, the engineering team can evaluate product compatibility and discuss feasible OEM customization options.
If you are sourcing a NEMA 11 hollow shaft stepper motor for compact precision equipment, contact OPTIMATRX to request technical specifications and discuss your project requirements. Our team can help you assess shaft configuration, motion performance, and integration needs before you finalize your selection.
Typical Applications
Laboratory automation equipment.
Optical adjustment systems.
Miniature inspection instruments.
Medical analytical devices.
Smart sensing systems.
Miniature robotic structures.
Precision valve control systems.
Compact automation devices.
