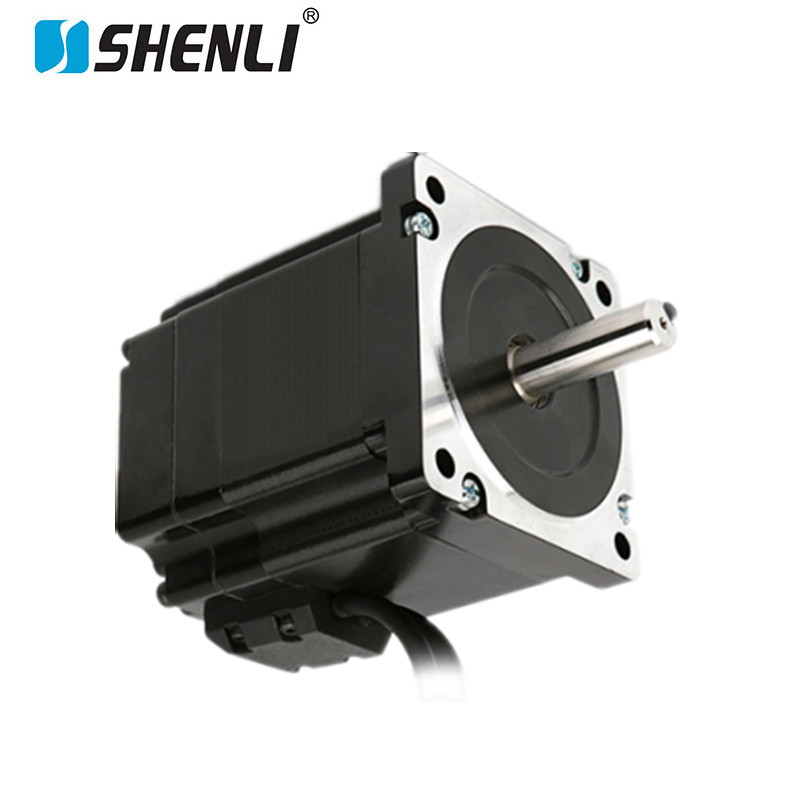

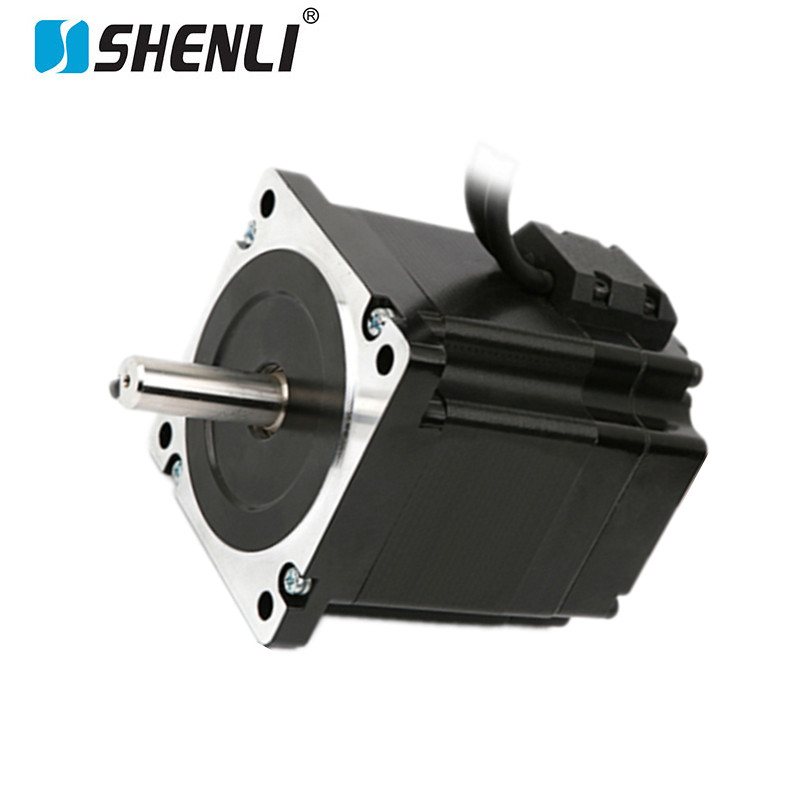

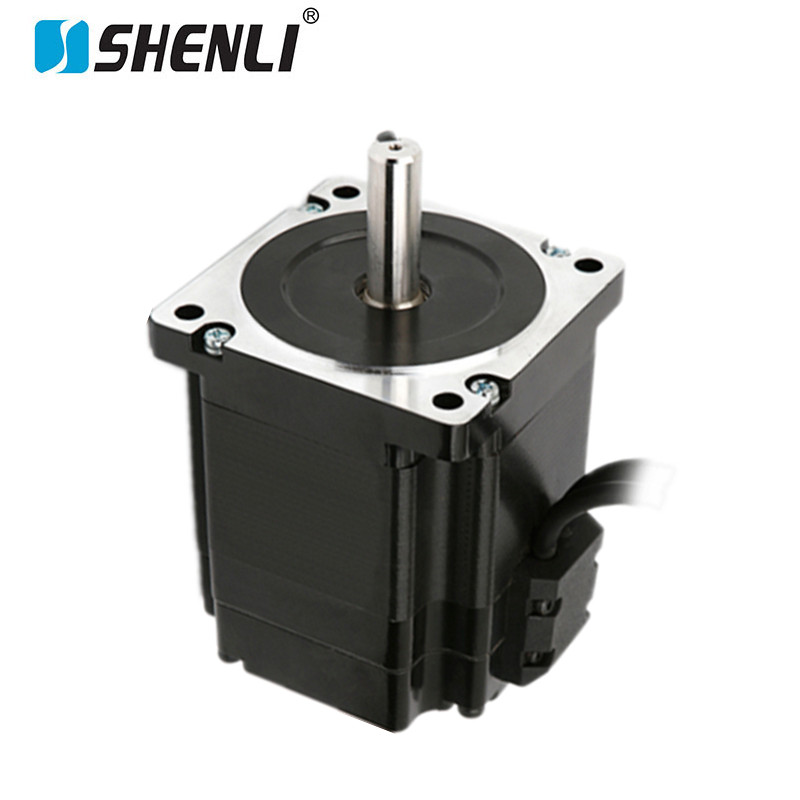

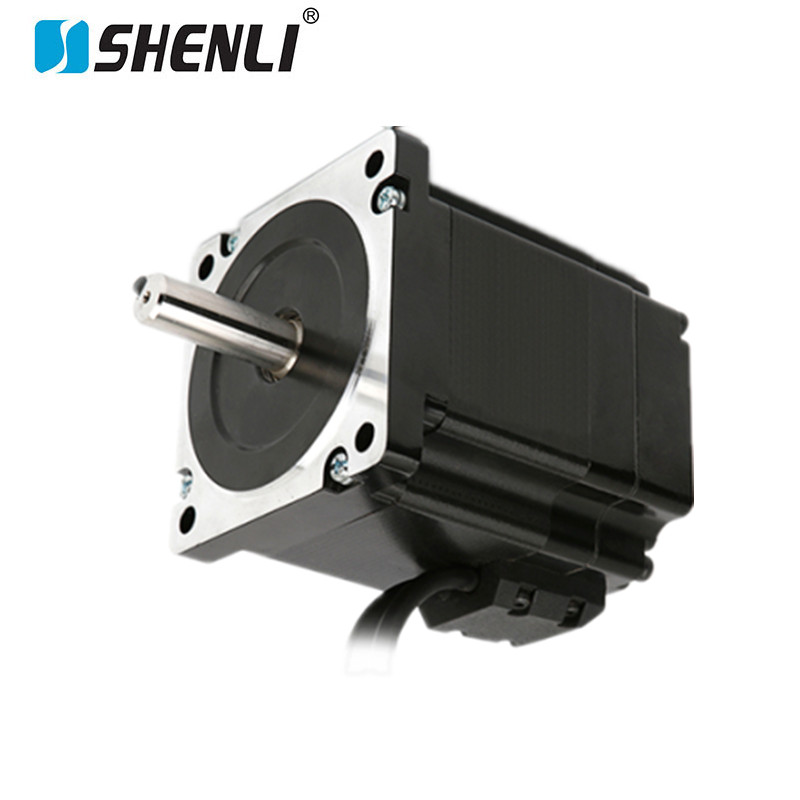

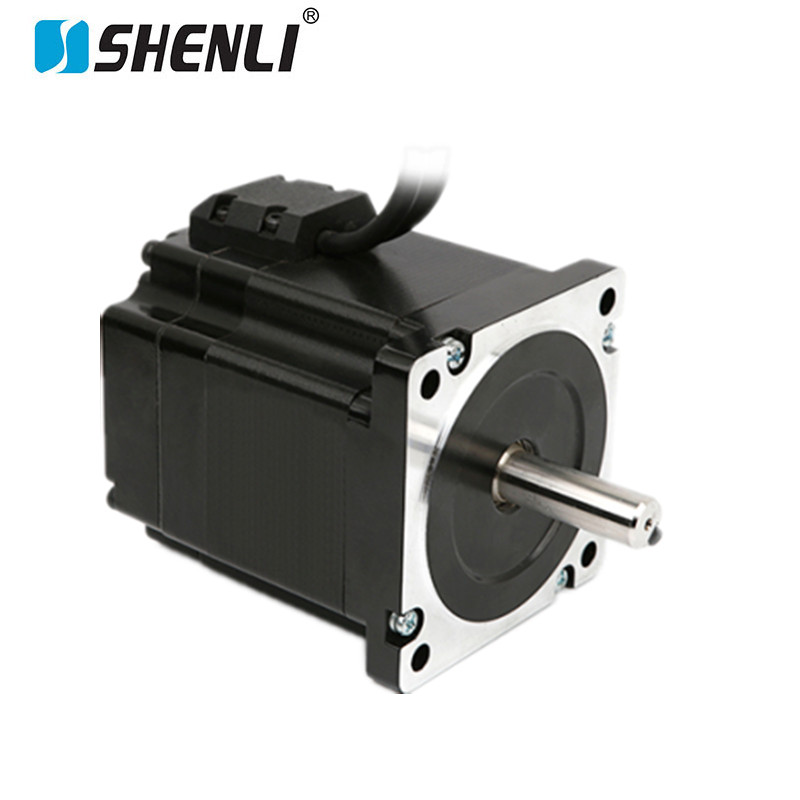

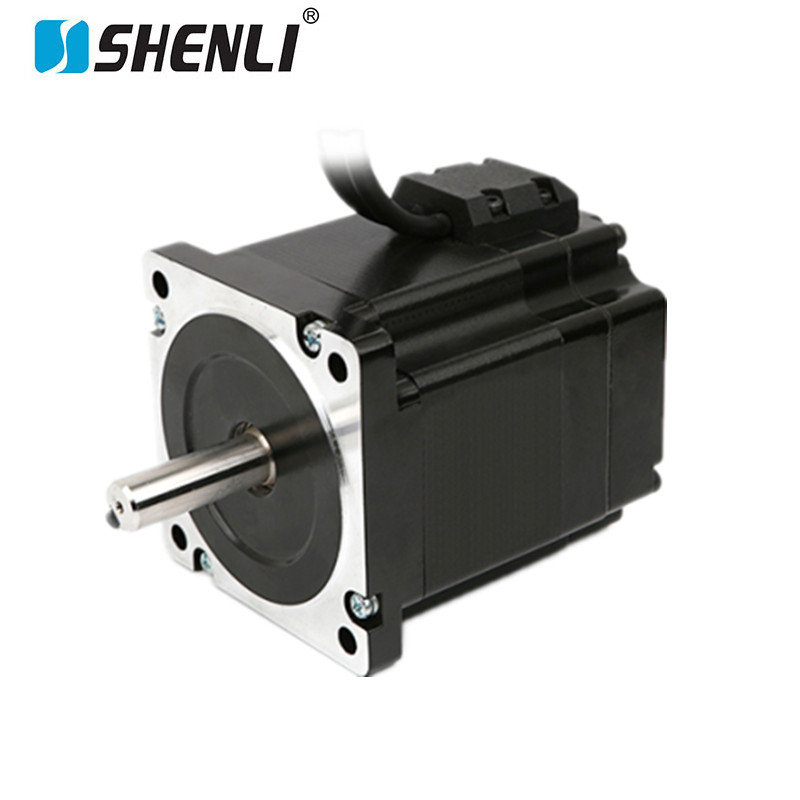

OEM NEMA34 Stepper Motor for Laser Cutting

Description

The NEMA34 stepper motor for laser cutting is designed for industrial motion systems that require strong torque and dependable positioning. Its NEMA34 frame provides a practical platform for applications involving larger mechanical loads and demanding motion requirements. The motor is suitable for laser cutting machines, large-format engraving equipment, CNC systems, automated assembly equipment, and heavy-duty gantry platforms.

For these machines, stable torque delivery helps maintain controlled movement during repeated positioning cycles. The motor’s strong low-speed torque characteristics also support smooth movement of heavier mechanical loads. This makes it a practical choice for equipment manufacturers developing high-load motion systems.

Stable Motion for Laser Cutting Applications

Laser cutting systems require controlled mechanical movement across multiple axes. The motor supports precise positioning throughout repeated cutting operations. Its optimized electromagnetic design helps provide stable torque output during motion. Precision rotor alignment also contributes to consistent motor operation.

When paired with a suitable stepper driver and motion controller, the motor can support microstepping-based motion control. This makes it suitable for X-axis, Y-axis, and other positioning mechanisms in compatible laser equipment. Actual positioning accuracy depends on the complete motion system, including the driver, controller, mechanical transmission, and load.

High Torque Performance for Heavy Loads

The NEMA34 platform is well suited to applications that require greater torque than smaller stepper motor formats. Its strong low-speed torque characteristics help move heavier loads without relying on unnecessarily complex drive architectures. This makes it useful for large-format engraving machines, CNC equipment, industrial cutting systems, and gantry positioning platforms.

For machine builders, selecting the appropriate torque specification remains essential. SHENLI can evaluate motor requirements according to load, speed, transmission design, duty cycle, and installation conditions.

Precision Motion Control

The motor combines high torque capability with stable positioning characteristics. Its electromagnetic structure is optimized to support smooth motion during microstepping operation. Reduced torque ripple and controlled mechanical vibration can contribute to smoother system movement.

The motor can therefore serve as a precision motion control motor in applications where repeatable positioning is important. In many open-loop systems, stepper motor technology can provide a simpler architecture than closed-loop solutions. However, the final control strategy should match the application’s load, acceleration, speed, and positioning requirements.

Engineering-Focused Motor Construction

SHENLI manufactures the NEMA34 stepper motor using components selected for industrial operating requirements. High-grade silicon steel laminations are precisely stacked within the magnetic circuit. This construction helps reduce eddy current losses and supports magnetic efficiency. The stator windings use high-purity copper wire for efficient electrical conductivity.

The winding design also supports stable thermal performance during continuous operation. These manufacturing details help establish a consistent foundation for industrial motion applications.

Balanced Rotor and Precision Shaft

The rotor assembly undergoes dynamic balancing to help reduce mechanical vibration during operation. Lower vibration can contribute to smoother machine movement and reduced mechanical stress. The shaft uses hardened alloy steel for improved wear resistance. CNC precision grinding helps maintain shaft dimensional accuracy.

This is particularly important when the motor interfaces with couplings, gears, pulleys, or other mechanical transmission components. For OEM equipment, shaft dimensions and configurations can also be evaluated according to the machine structure.

Durable Bearing and Insulation System

High-performance deep-groove ball bearings support the motor’s rotating assembly. They are designed to handle radial and axial loads within the motor’s specified operating conditions. The bearing configuration contributes to stable shaft rotation during demanding motion cycles.

Industrial-grade insulation materials provide additional thermal resistance. Together, these components support reliable operation in industrial automation environments. Actual service life depends on operating temperature, load, speed, installation, driver settings, and maintenance conditions.

Flexible Configuration for OEM Equipment

Different machines require different motion architectures. SHENLI therefore supports several configuration options for the NEMA34 platform.

Available customization can include:

These options allow machine builders to adapt the motor to different mechanical and control requirements.

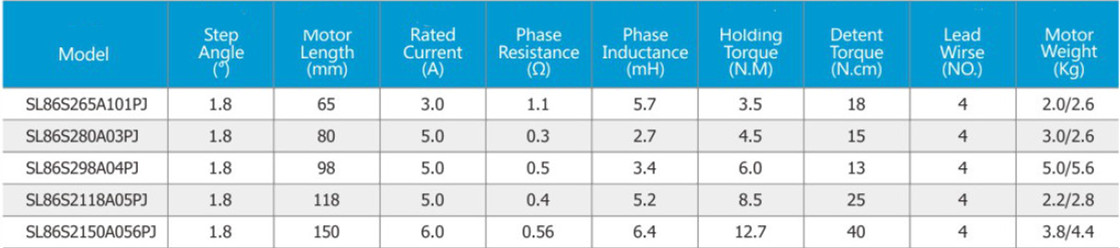

NEMA34 Stepper Motor – Technical Specifications

Basic Configuration

Product Model: NEMA34 Stepper Motor
Motor Type: 2-Phase Hybrid Stepper Motor
Frame Size: 86 mm × 86 mm
Step Angle: 1.8° (200 steps/revolution)
Phase Configuration: Drive System
Insulation Grade: Class B / Optional Class F High-Temperature Design

Electrical Characteristics

Rated Voltage: 24V DC / 48V DC / 60V DC
Rated Current: 3.0A – 8.0A per phase
Phase Resistance: 0.3Ω – 1.8Ω (varies by torque model)
Phase Inductance: 2.5 mH – 12.0 mH
Dielectric Strength: 600VAC / 1 minute test
Insulation Resistance: ≥100MΩ at 500VDC

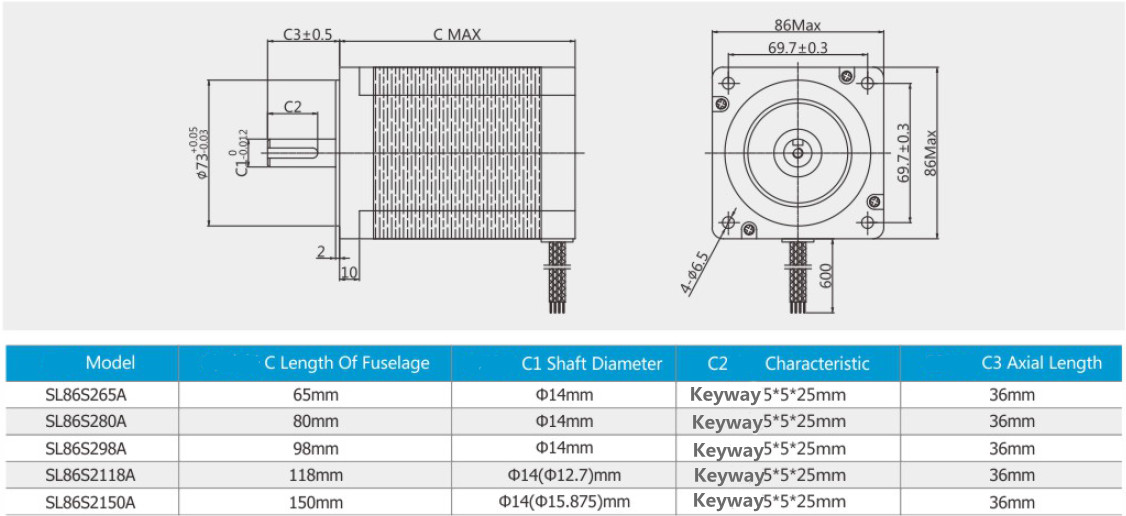

Mechanical Structure

Motor Length Range: 76 mm – 150 mm (high-torque series options)
Shaft Diameter: 12.7 mm / 14 mm / 16 mm optional
Shaft Type: Keyed shaft / Round shaft / D-cut precision shaft
Bearing System: Reinforced deep groove industrial bearings
Radial Load Capacity: Up to 400N
Axial Load Capacity: Up to 150N
Rotor Balance Grade: High-precision dynamic balancing (G6.3 standard)

Performance Data

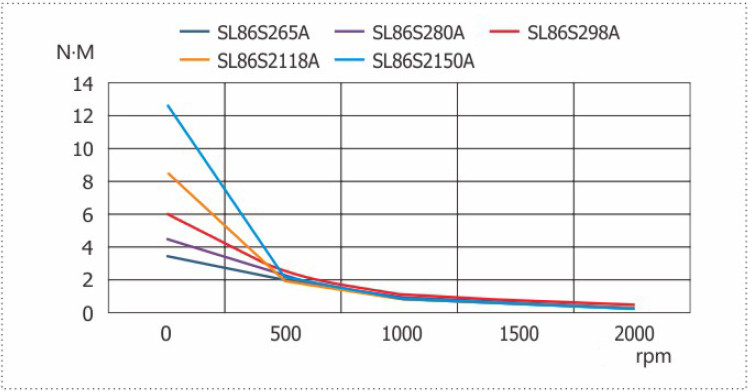

Holding Torque: 3.5 N·m – 12.0 N·m
Detent Torque: 0.15 N·m – 0.5 N·m
Max Operating Speed: 800 – 2000 RPM (driver-dependent)
Position Accuracy: ±0.08° typical
Torque Stability: Optimized low-speed torque retention for heavy load control
