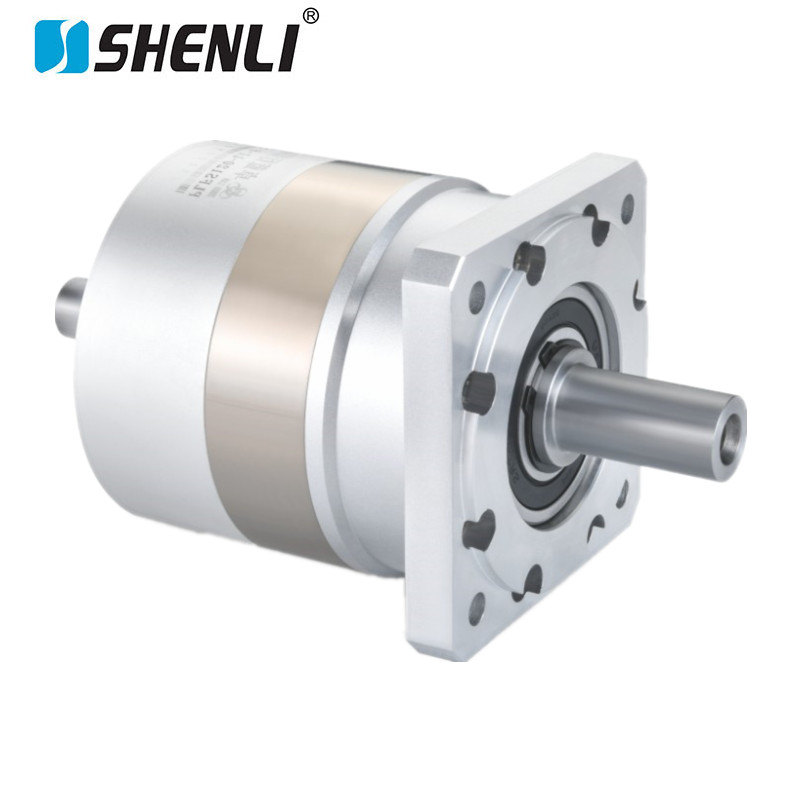

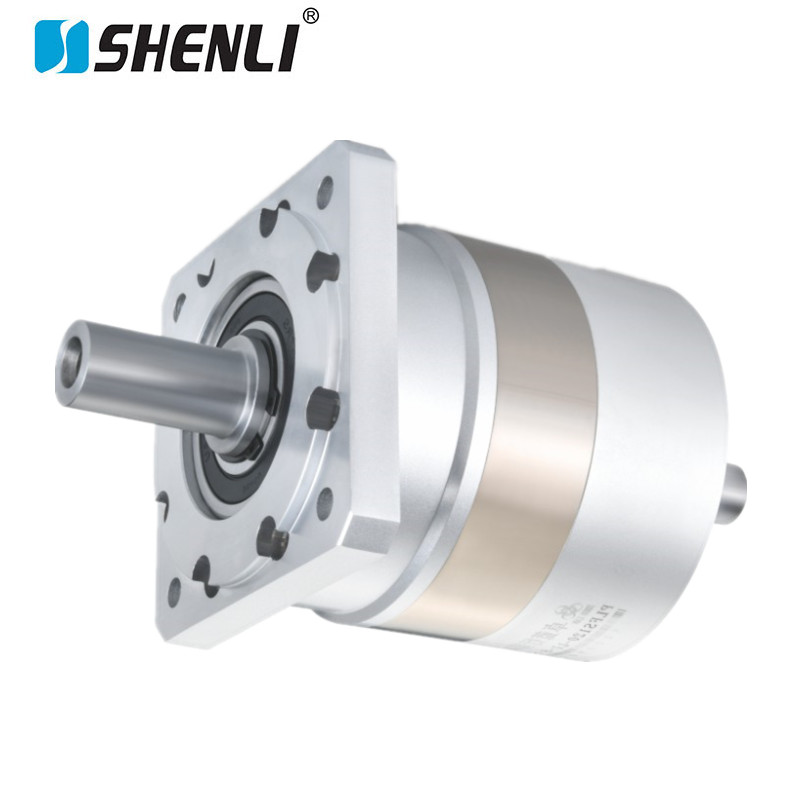

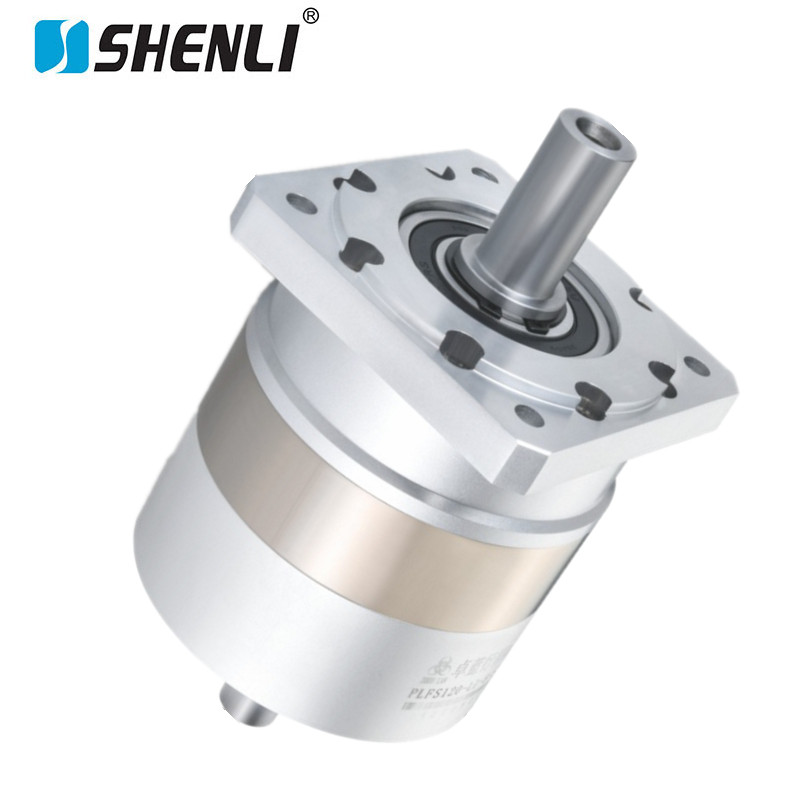

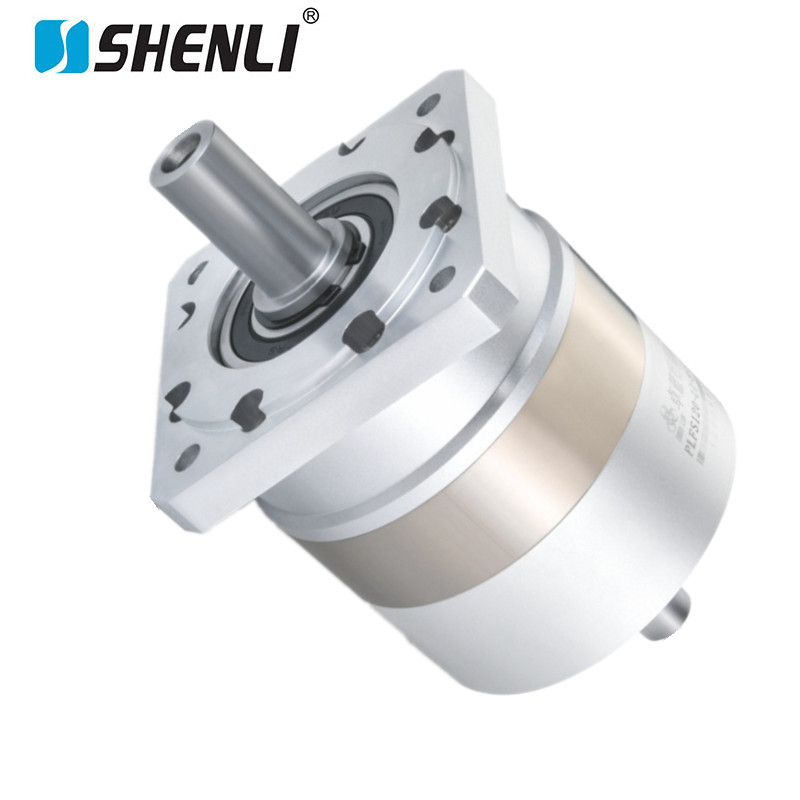

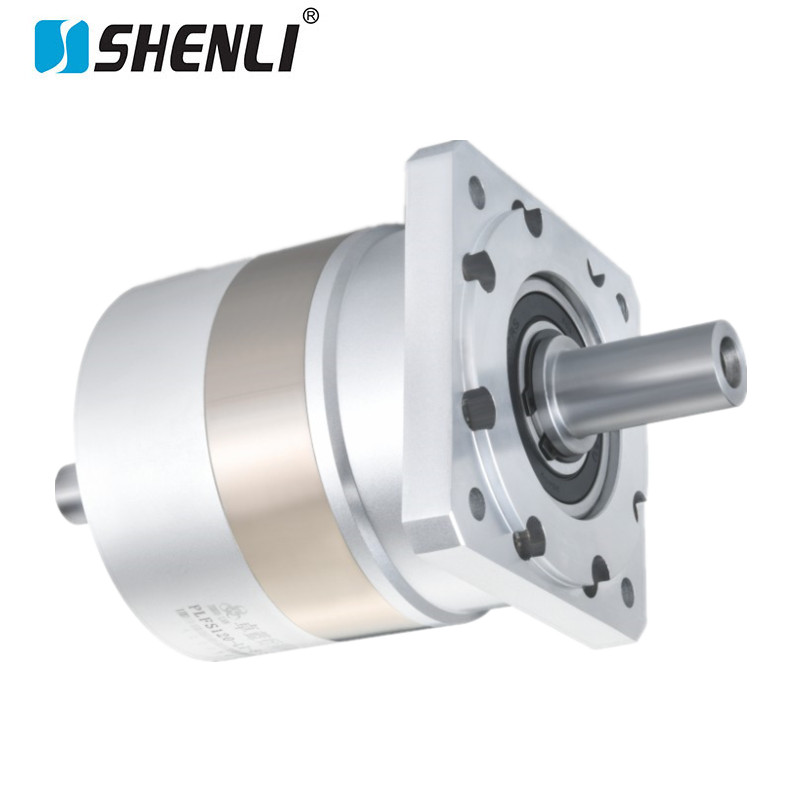

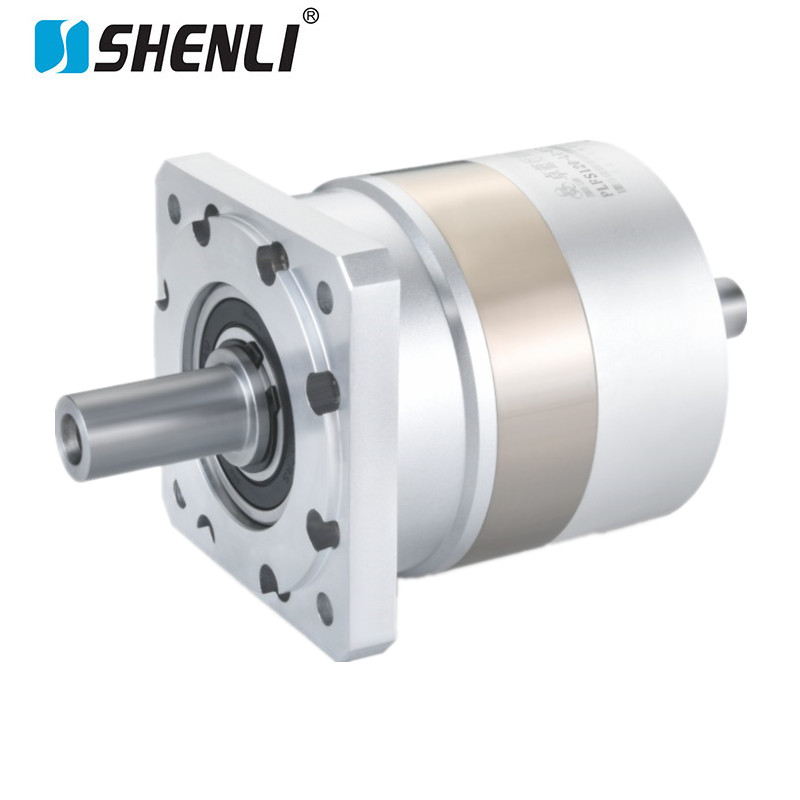

PLFS60 Compact Planetary Gearbox Product Description
Compact Design for Space-Limited Equipment Applications
The PLFS60 Compact Planetary Gearbox is developed for miniaturized automation equipment.
Its optimized structure reduces overall installation space.
The high-density gear arrangement improves transmission efficiency.
The precision planetary mechanism provides stable power output.
As a PLFS60 compact planetary gearbox for automation equipment, it is suitable for robots, smart devices, medical instruments, electronic manufacturing equipment, and precision machinery systems.
The lightweight design simplifies equipment integration.
Reliable performance supports continuous operation.
Precision Manufacturing Ensures Stable Performance
The PLFS60 uses high-strength alloy materials for critical components.
The gears are processed with precision machining and heat treatment.
Advanced grinding technology improves tooth surface accuracy.
Optimized gear engagement reduces noise and vibration.
As a PLFS60 precision planetary gearbox for servo motors, it works with servo motors and closed-loop control systems for accurate speed regulation and positioning.
High-quality bearings reduce mechanical losses.
Strict assembly procedures ensure consistent quality.
Efficient Transmission for Precision Automation Systems
The PLFS60 delivers fast response and stable transmission performance.
The compact structure reduces equipment weight and installation complexity.
The low inertia design improves dynamic control capability.
The rigid output structure enhances operational reliability.
As a PLFS60 small planetary reducer for robotic applications, it is widely used in small robots, automation fixtures, inspection equipment, and precision positioning mechanisms.
Excellent repeatability improves equipment accuracy.
High-efficiency transmission helps reduce energy consumption.
Flexible Configuration for Various Industrial Requirements
The PLFS60 supports multiple gear ratio options.
It can be integrated with different motor interfaces.
Input flanges and output structures can be customized.
Professional engineers provide application-based solutions.
OEM and ODM production services are available.
The PLFS60 helps machine builders create compact, efficient, and reliable motion control systems.
PLFS60 Compact Planetary Gearbox Specifications
Product Information
- Product Name: PLFS60 Compact Planetary Gearbox
- Model: PLFS60
- Product Type: Compact precision planetary transmission gearbox
- Key Features: Small size, high efficiency, high accuracy, and lightweight structure
- Transmission Type: Single-stage or multi-stage planetary gear system
- Mounting Method: Direct flange mounting with integrated motor connection
- Compatible Drives: Servo motors, stepper motors, brushless motors, and precision actuators
- Applications: Small robots, automation equipment, medical devices, electronic manufacturing equipment, and precision positioning platforms

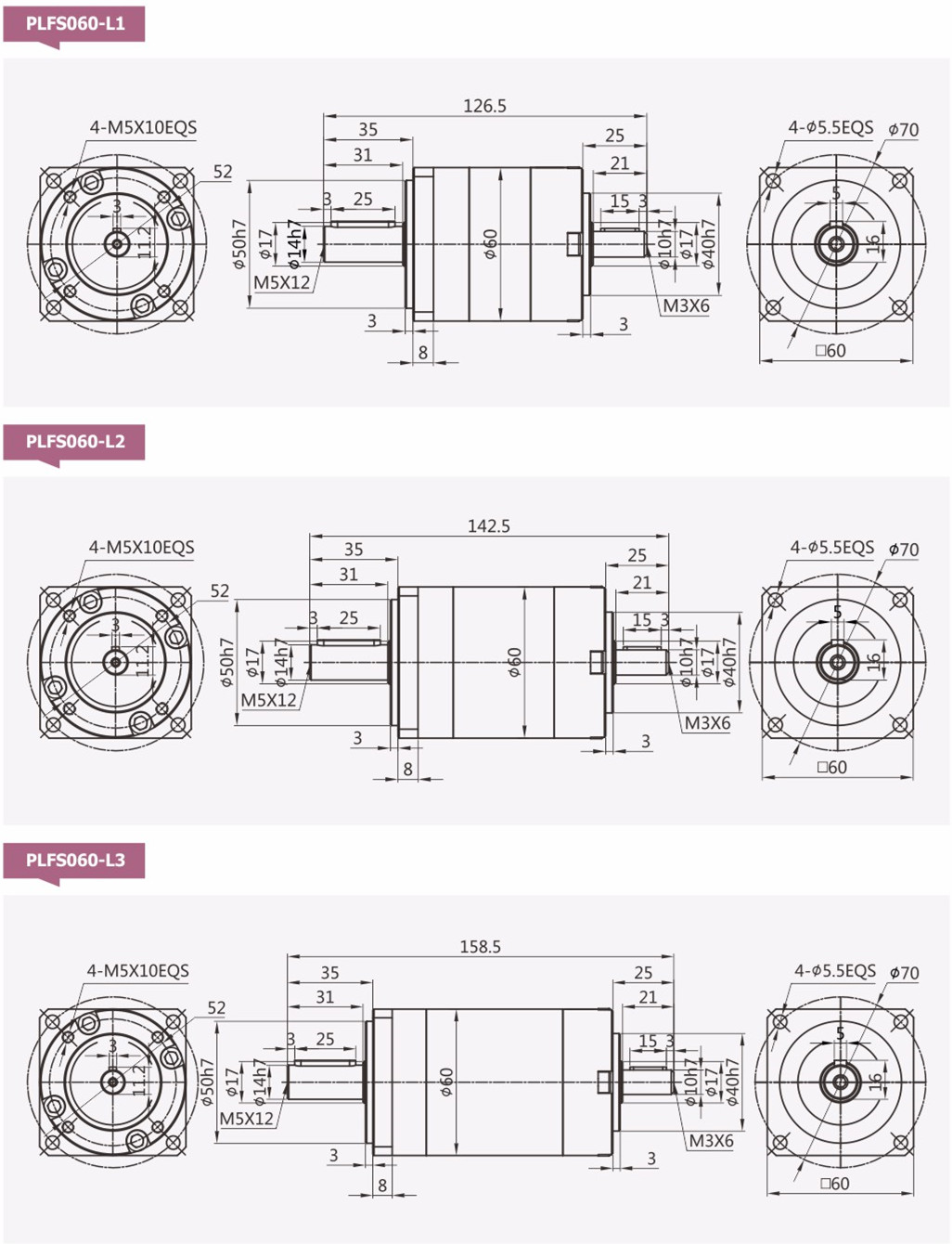

Mechanical Structure Parameters
- Frame Size: 60 mm
- Housing Material: High-strength aluminum alloy structure balancing weight and rigidity
- Gear Material: High-alloy steel with heat treatment for improved wear resistance
- Gear Structure: Precision planetary gear system for balanced load distribution
- Output Design: Compact solid output shaft for stable mechanical installation
- Bearing System: High-precision rolling bearings for continuous operation
- Manufacturing Process: CNC machining and gear grinding technology ensure assembly accuracy
- Sealing Design: Optimized sealing structure reduces dust entry and lubricant leakage

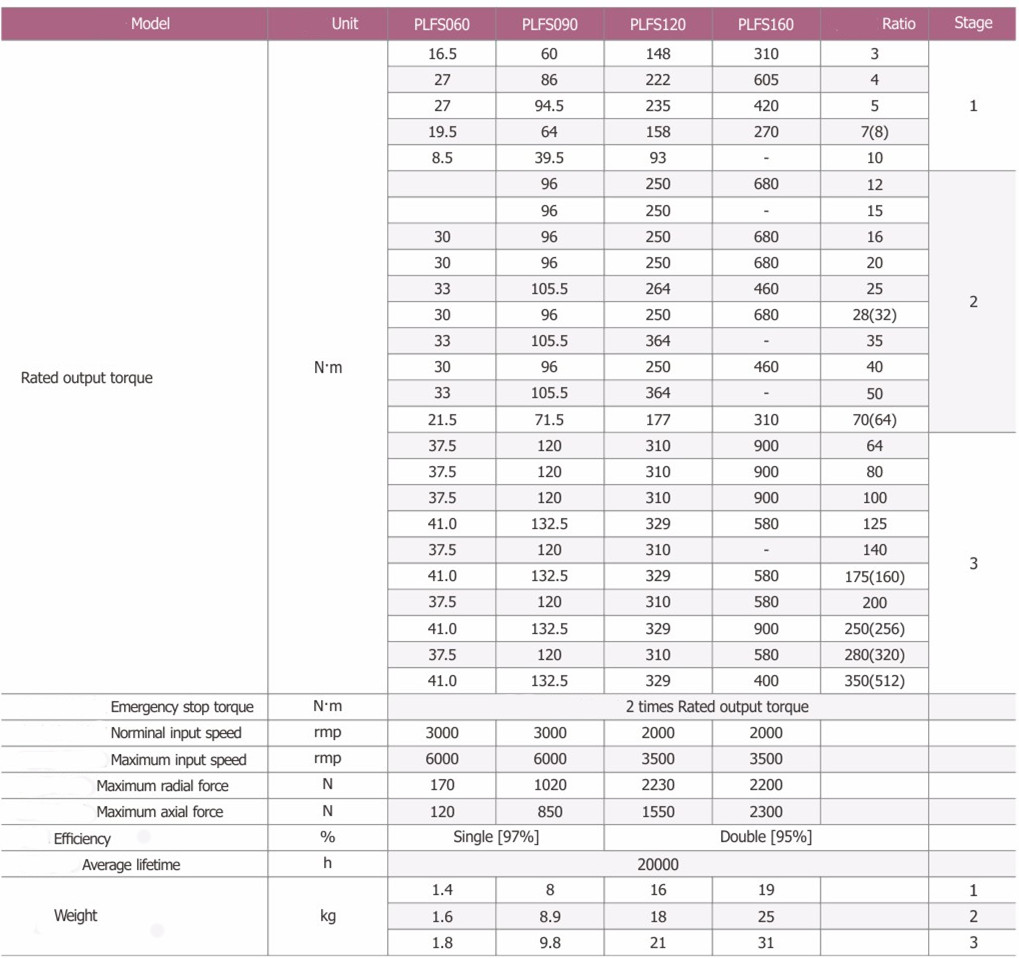

Transmission Performance Parameters
- Gear Ratio Range: 3:1, 4:1, 5:1, 7:1, 10:1 (single stage); 15:1–100:1 (multi-stage)
- Rated Output Torque: 30–120 N·m depending on configuration
- Peak Load Capability: Designed to withstand short-term impact loads
- Backlash: ≤8 arcmin standard, precision version available with ≤5 arcmin
- Maximum Input Speed: 5000 rpm
- Recommended Input Speed: 3000 rpm
- Transmission Efficiency: Up to ≥96% for single-stage configuration
- Performance Features: Low vibration, low noise, fast response, and stable positioning
Operating Conditions and Service Information
- Operating Temperature: -20°C to +90°C
- Protection Rating: IP54 standard, upgrade options available
- Operating Mode: Suitable for continuous and intermittent operation
- Noise Level: ≤60 dB under normal load conditions
- Service Life: Long-life design for industrial applications
- Quality Inspection: Gear accuracy inspection, torque testing, efficiency testing, and operational verification
- Customization: Special ratios, motor adapters, and shaft designs available
- Production Service: OEM and ODM manufacturing supported
