Description

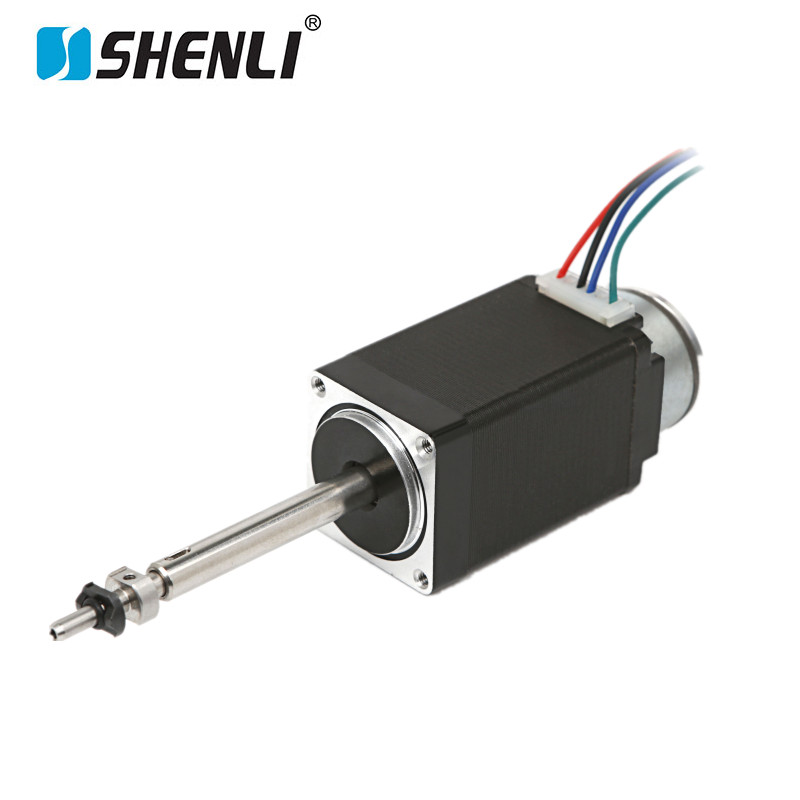

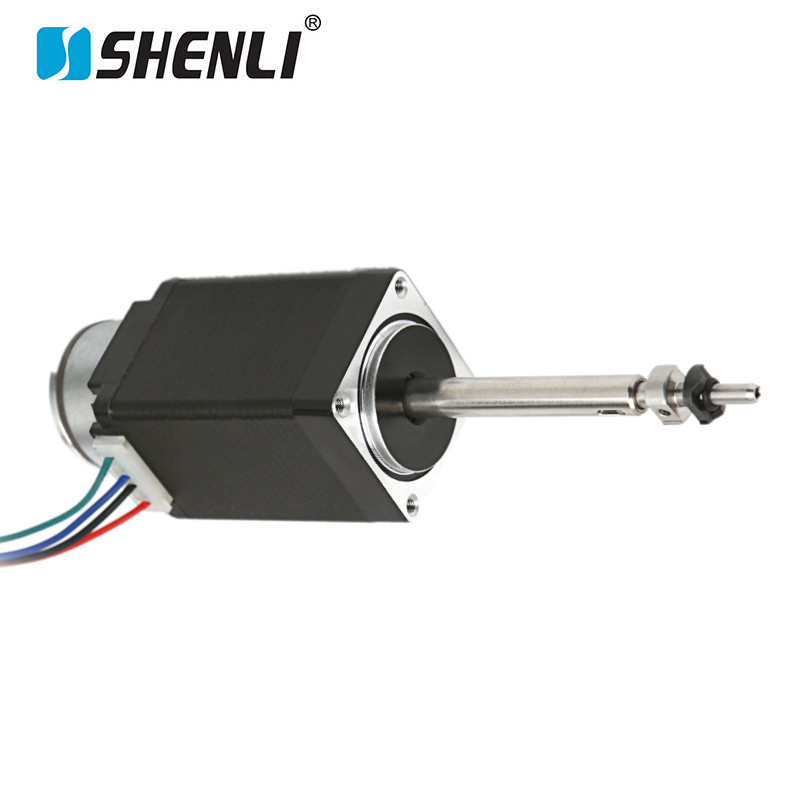

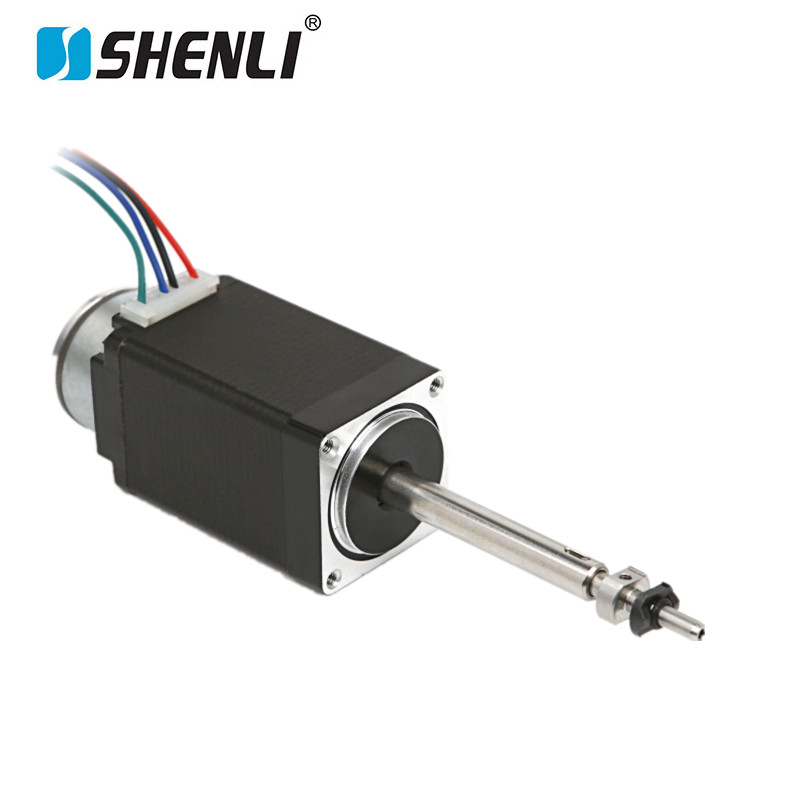

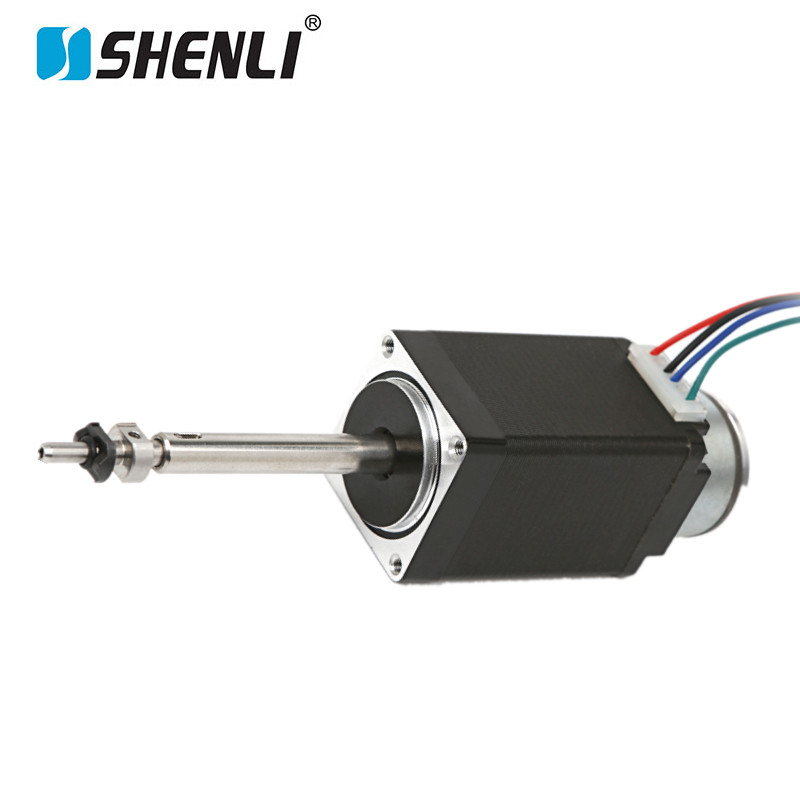

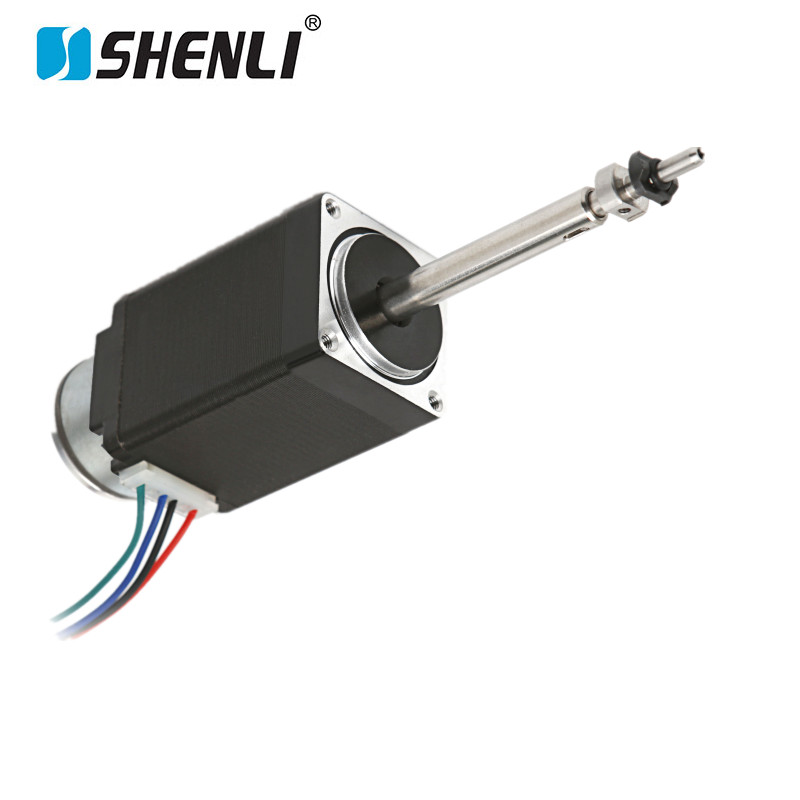

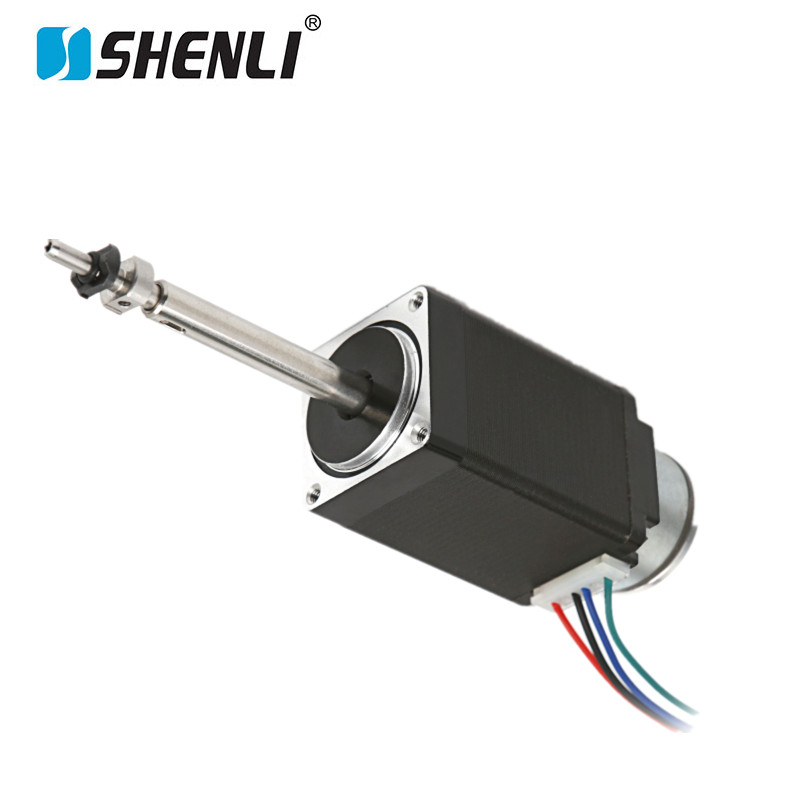

Nema11 stepper motor with brake provides precise and reliable motion control for compact automation systems. Its integrated brake ensures secure stopping and prevents load back-driving. This feature makes it ideal for robotics, small CNC machines, and medical devices, where accuracy and safety are critical.
Manufactured using high-quality materials, the motor ensures long-lasting performance and consistent torque output. The brake stepper motor Nema11 utilizes a high-torque holding mechanism, allowing machines to maintain position even under sudden power loss. Engineers can rely on this motor for applications requiring repeatable precision and safe load holding.
The compact Nema11 motor with brake features a low-inertia rotor design. This reduces vibration and allows smoother acceleration and deceleration. Enhanced thermal management guarantees stable operation under continuous duty. The motor’s durable housing and corrosion-resistant coatings provide extended service life.
Installation is straightforward, as the motor comes with standard mounting interfaces compatible with most Nema11 applications. Its low-profile design saves space without compromising torque or performance. Additionally, the motor supports microstepping drivers, enabling ultra-precise positioning and quiet operation.
Quality control ensures every Nema11 brake stepper motor meets strict performance standards. Each unit undergoes rigorous testing, including torque, braking response, and thermal stability. The result is a highly reliable motor that can operate efficiently in industrial, medical, or automated production environments.
Engineers and designers value the motor’s combination of safety, precision, and compactness. By integrating the brake function, this stepper motor enhances system reliability, reduces maintenance needs, and improves overall efficiency.
In summary, the Nema11 stepper motor with brake delivers compact design, high-precision control, and secure load holding. Its high-quality manufacturing, low vibration, and microstepping capability make it suitable for robotics, CNC equipment, medical devices, and automated assembly lines. Choose this motor for applications requiring safe, reliable, and precise motion control.
Nema11 Stepper Motor with Brake – Product Parameters
- Model: Nema11 Stepper Motor with Brake
- Step Angle: 1.8° per step, precise positioning
- Holding Torque: 0.12 Nm, ensures stable load holding
- Rated Current: 0.8 A per phase, low power consumption
- Voltage: 12 V DC, compatible with standard drivers
- Phase Resistance: 15 Ω ± 10%, optimized for heat control
- Phase Inductance: 25 mH ± 15%, smooth current response
- Rotor Type: Permanent magnet, low inertia for fast response
- Brake Type: Electromagnetic, automatically engages when power off
- Shaft Diameter: 5 mm, suitable for couplings and pulleys
- Shaft Length: 20 mm, adjustable for mechanical integration
- Motor Length: 35 mm, compact for space-constrained applications
- Weight: 0.25 kg, lightweight for small machinery
- Insulation Class: B, supports continuous operation
- Operating Temperature: -20°C to 50°C, wide-range reliability
- Mounting Style: Standard Nema11 flange, easy installation
- Noise Level: <45 dB, quiet operation
- Vibration: Low, smooth operation under load
- Compatible Drivers: Supports microstepping drivers, improves precision
- Applications: Robotics, lab automation, miniature CNC, medical devices
This Nema11 brake stepper motor combines compact size, precise positioning, and secure braking. It is optimized for safe, quiet, and reliable motion control in automated systems.
